0294060.U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 0294060.U

0294060.U: DescriptionElectric Fuse, 60A,; CategoryCircuit protection Circuit protection; File Size250KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

0294060.U Overview

Electric Fuse, 60A,

0294060.U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
body width	16.4 mm
body height	25.3 mm
Body length or diameter	23 mm
Circuit protection type	Electric Fuse
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
physical size	23mm x 16.4mm x 25.3mm
Rated current	60 A
Rated voltage	32 V
Base Number Matches	1

Preview

Download Datasheet

View All

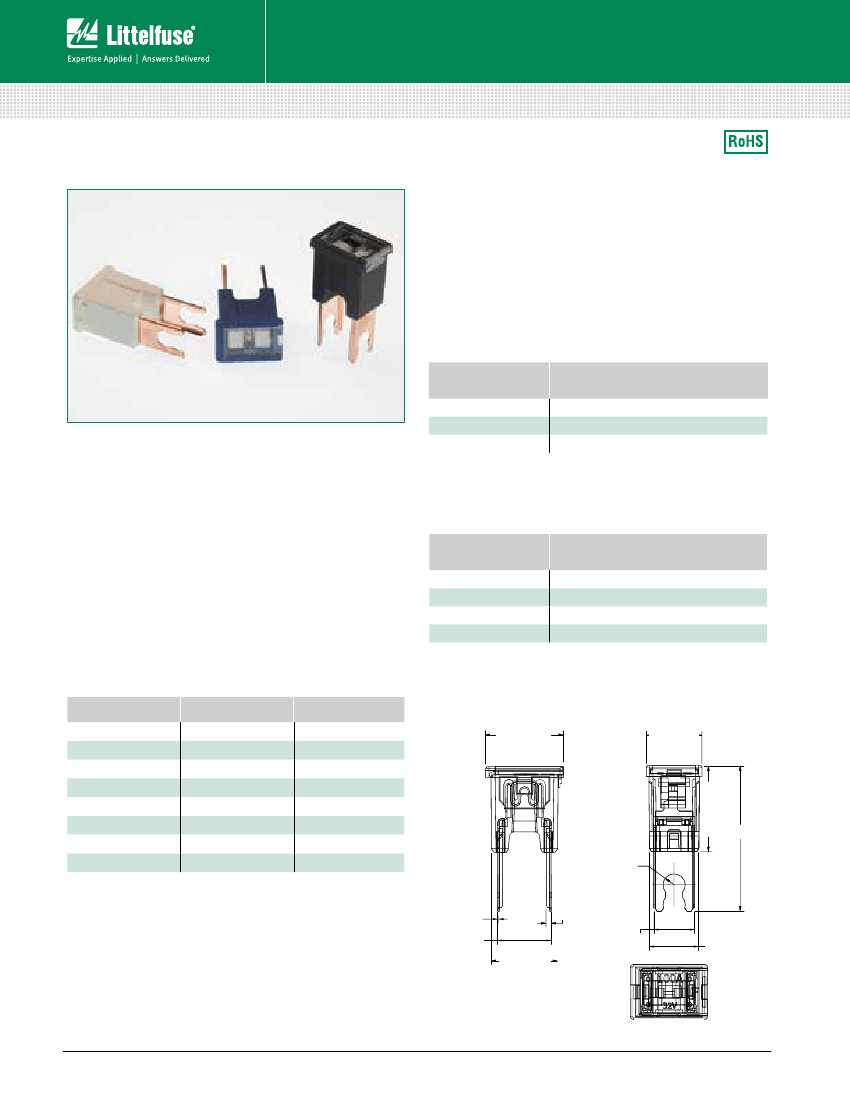

PAL Fuses

Auto Link PAL Fuses - 294

Specifications

Voltage Rating:

32 VDC

Current Cycling:

24˚C

The fuses satisfy the performance requirements after 50% of the rated current

is applied for 10,000 cycles. Each cycle consists of an interrupted current with

the pattern of 5 minutes ON and 10 minutes OFF.

Operating Temperature Range:

-40˚C to +125˚C

Complies with JASO 0612

Ordering Information

Part Number

0294xxx.H

0294xxx.U

0294xxx.MXJ

Package Size

100

500

1000

Description

PAL fuses are commonly found on many Japanese and domestic

built vehicles.

Time-Current Characteristics

% of Rating

110

200

350

600

Opening Time Min / Max (s)

14,400 s

5 s / 100 s

0.2s / 7 s

0.040 s / 1 s

Ratings

Part Number

0294030._

0294040._

0294050._

0294060._

0294070._

0294080._

0294100._

0294120._

Dimensions

Current Rating (A)

100

120

Body Color

PINK

GREEN

RED

YELLOW

BROWN

BLACK

BLUE

WHITE

Dimensions in mm

23.0 ±0.50

16.4 ±0.50

25.3 ±0.50

25.3

42.8 ±1.0

R 3.2

0.4 ±0.05

1.5 ±0.30

12.0 ±0.20

19.6 ±0.50

14.5 ±0.50

15.8 ±0.50

www.littelfuse.com

0294060.U Related Products

	0294060.U	0294120.U
Description	Electric Fuse, 60A,	Electric Fuse, 120A,
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	unknown	unknown
body width	16.4 mm	16.4 mm
body height	25.3 mm	25.3 mm
Body length or diameter	23 mm	23 mm
Circuit protection type	Electric Fuse	Electric Fuse
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
physical size	23mm x 16.4mm x 25.3mm	23mm x 16.4mm x 25.3mm
Rated current	60 A	120 A
Rated voltage	32 V	32 V
Base Number Matches	1	1
