EC2545TSY-FREQ3TR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EC2545TSY-FREQ3TR

EC2545TSY-FREQ3TR: DescriptionCRYSTAL OSCILLATOR, CLOCK, 1.544 MHz - 70 MHz, HCMOS/TTL OUTPUT; CategoryPassive components oscillator; File Size142KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EC2545TSY-FREQ3TR Overview

CRYSTAL OSCILLATOR, CLOCK, 1.544 MHz - 70 MHz, HCMOS/TTL OUTPUT

EC2545TSY-FREQ3TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	TAPE AND REEL
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Manufacturer's serial number	EC25
Installation features	SURFACE MOUNT
Maximum operating frequency	70 MHz
Minimum operating frequency	1.544 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS/TTL
Output load	10 TTL, 50 pF
physical size	7mm x 5mm x 1.6mm
longest rise time	10 ns
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Nickel/Gold (Ni/Au)
Base Number Matches	1

Preview

Download Datasheet

View All

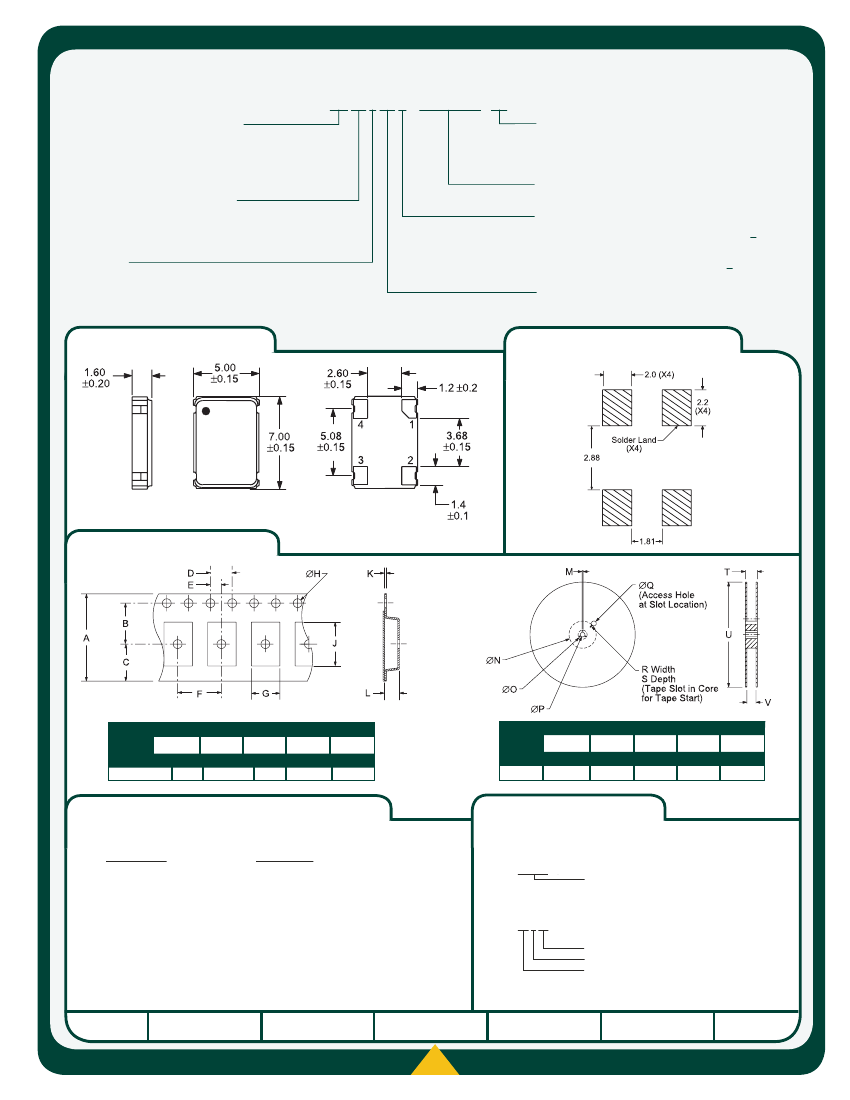

EC25

Series

• RoHS Compliant (Pb-Free)

• Ceramic SMD package

• 5.0V supply voltage

• HCMOS/TTL output

• Stability to 20ppm

• Available on tape and reel

EC25

H 1.6

L 7.0

W 5.0

OSCILLATOR

ELECTRICAL SPECIFICATIONS

Frequency Range

Operating Temperature Range

Storage Temperature Range

Supply Voltage (V

)

Input Current (No Load)

1.544MHz to 106.250MHz

-10°C to 70°C or

-40°C to 85°C

-55°C to 125°C

5.0V

±10%

10mA Maximum

30mA Maximum

50mA Maximum

60mA Maximum

±100ppm, ±50ppm, ±25ppm or

±20ppm Maximum

Frequency Tolerance / Stability

Output Voltage Logic High (V

)

Output Current (I

)

Output Voltage Logic Low (V

)

Output Current (I

)

Rise / Fall Time

1.544MHz to 32.000MHz

32.001MHz to 50.000MHz

50.001MHz to 70.000MHz

70.001MHz to 106.250MHz

Inclusive of all conditions: Calibration Tolerance at 25°C,

Frequency Stability over the Operating Temperature Range,

Supply Voltage Change, Output Load Change, First Year

Aging at 25°C, Shock, and Vibration

w/TTL Load

w/HCMOS Load

Load Drive Option "Blank"

Load Drive Option "Y"

w/TTL Load

w/HCMOS Load

Load Drive Option "Blank"

Load Drive Option "Y"

2.4V

Minimum

-0.5V

Minimum

-4mA <35.000MHz, -16mA >35.000MHz

-16mA <70.000MHz

0.4V

Maximum

0.5V

Maximum

+4mA <35.000MHz, +16mA >35.000MHz

+16mA <70.000MHz

10nSec Max. <70.000MHz

5nSec Max. >70.000MHz

5nSec Max. <70.000MHz

50 ±10(%) (Standard)

50 ±5(%) (Optional)

50 ±5(%) (Optional) 0°C to +70°C Only

10LSTTL Load or 30pF HCMOS Load

10LSTTL Load or 15pF HCMOS Load

10TTL Load or 50pF HCMOS Load

Enables Output

Disables Output: High Impedance

10mSeconds Maximum

±100pSeconds Maximum

±25pSeconds Maximum

CLASS

REV

DATE

10% to 90% of Waveform w/30pF HCMOS Load; 0.4V

to 2.4V

w/10LSTTL Load

10% to 90% of Waveform w/15pF HCMOS Load; 0.4V

to 2.4V

w/10LSTTL Load

10% to 90% of Waveform w/50pF HCMOS Load; 0.4V

to 2.4V

w/10TTL Load

Duty Cycle

at 50% of Waveform w/HCMOS Load or 1.4V

w/TTL Load <70.000MHz

at 50% of Waveform w/TTL Load or w/HCMOS Load >70.000MHz

at 50% of Waveform w/TTL Load or w/HCMOS Load <80.000MHz

at 50% of Waveform w/HCMOS Load (80.001MHz to 100.000MHz)

Load Drive Capability

<70.000MHz

>70.000MHz

<70.000MHz (Option “Y”)

No Connection

Tri-State Input Voltage

≥2.0V

≤0.8V

Start Up Time

Period Jitter: Absolute

Period Jitter: One Sigma
