1074-X-390-A-30002 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 1074-X-390-A-30002

1074-X-390-A-30002: DescriptionMains Power Connector, 6A, 250VAC, Male, Socket; CategoryThe connector The connector; File Size60KB，1 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/

Download Datasheet Parametric View All

1074-X-390-A-30002 Overview

Mains Power Connector, 6A, 250VAC, Male, Socket

1074-X-390-A-30002 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	UL 94V-0
Body/casing type	SOCKET
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
JESD-609 code	e3
MIL compliance	NO
Power Connector Ratings	6A, 250VAC
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYAMIDE6
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

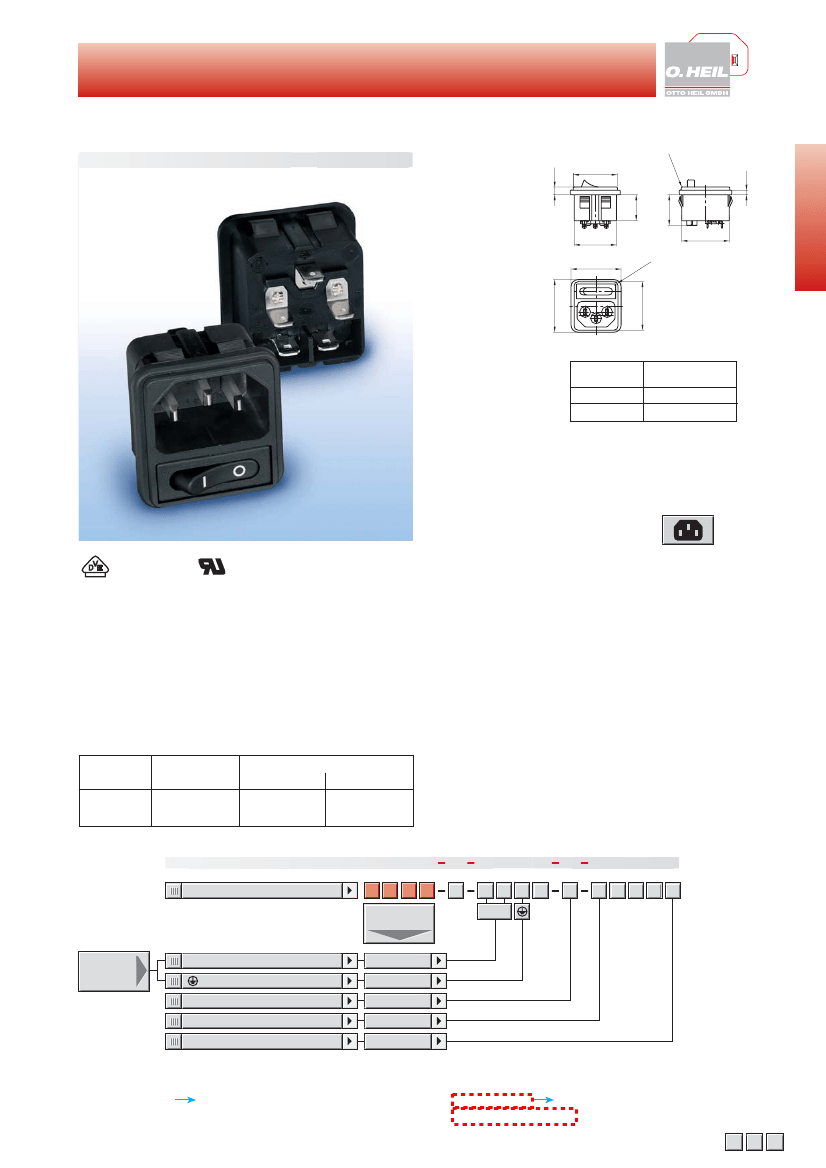

GERÄTESTECKER T 70°C / SCHALTER

appliance inlet / switch

No. 1074

C14

R0.

16.5

19.5

30.3

33.6

Wandstärke

Ausbruchmaße

panel thickness panel cutout

1 - 1,5 mm

2 - 2,5 mm

31,5

+0.2

x 27,2

+0.2

Geräteschutzklasse I / equipment class I

IEC 60320-1 / EN 60320-1 / VDE 0625-1

C14

10A/250Vac

15A/250Vac

socket:

Polyamide PA6 – UL94V-0

terminals:

copper alloy, tin-plated

or nickel-plated

Sockel:

Polyamid PA6 – UL94V-0

Anschlüsse:

Kupferlegierung, verzinnt

oder vernickelt

Schalter*)

switch type

Beschreibung

description

1polig schwarz

1pole black

Technische Daten / ratings

Europa**)

USA, CSA

6(2)A250Vac

1/8HP125Vac

1/8HP250Vac

**)

siehe Ausklappseite / ref. folding page

Nennstrom für ohmsche (induktive) Last > 10

Schaltspiele

rated current for resistive (inductive) load > 10

cylces

Gängiger Artikel/selling article

Artikel-Nr. /article-code

1 0 7 4

Varianten

choose from

8 8 8 0

3 0 0 0 2

Anschlüsse

terminals

L, N

2, 3, 8, 9

Farbe/colour

Bauform/design

Schalter / switch type

Bitte beachten Sie unsere passenden Gegenstücke auf Seite 79

Artikelnummernsystem

Ausklappseite in unserem Katalog

please note our mating parts on page 79

article code system

folding page in our cataloque

accessory protection cover

0 6 9
