AM95C60-20GCB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> AM95C60-20GCB

AM95C60-20GCB: DescriptionGraphics Processor, CMOS, CPGA145, PGA-145; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，27 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

AM95C60-20GCB Overview

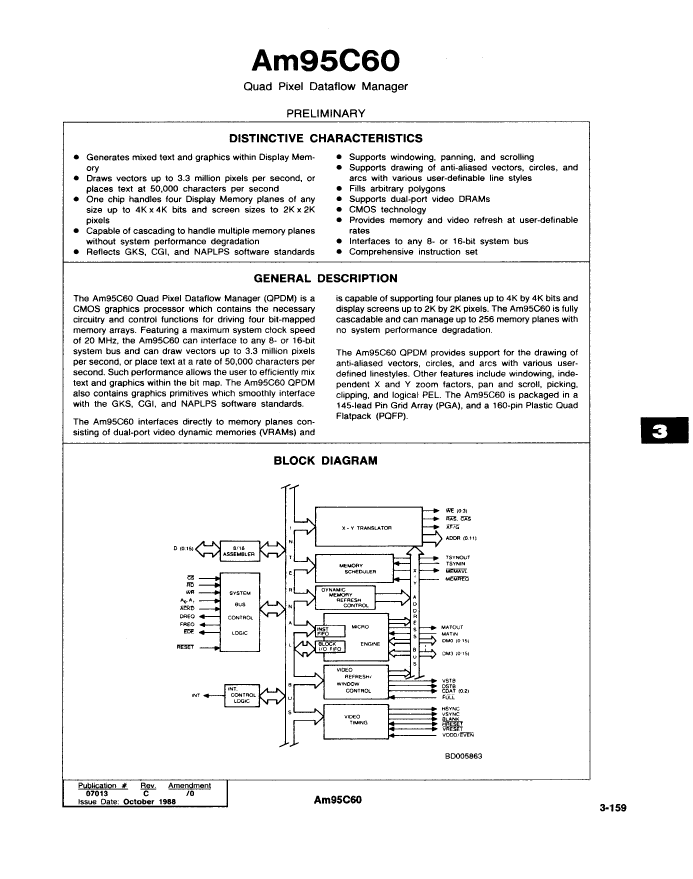

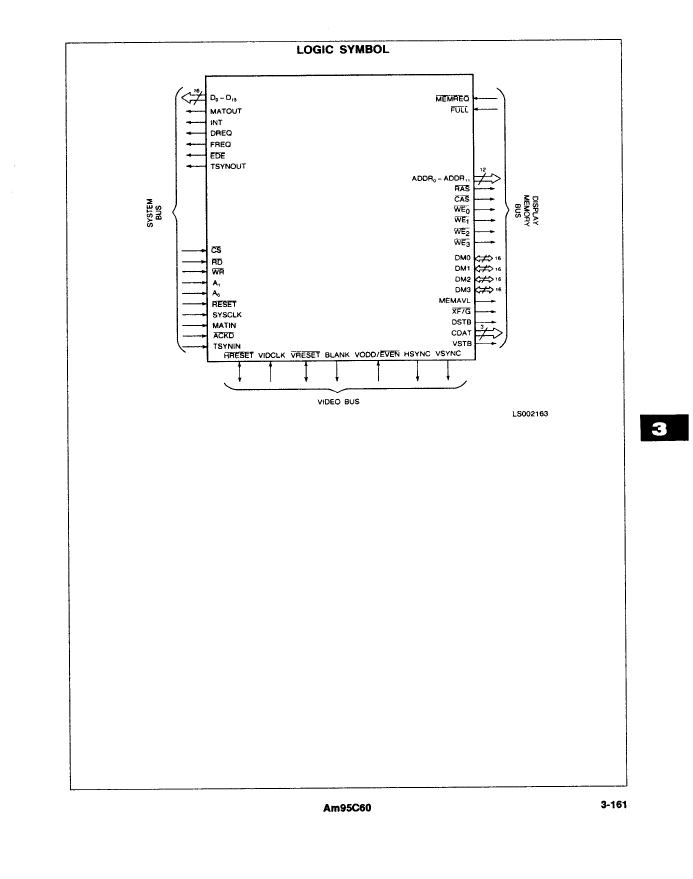

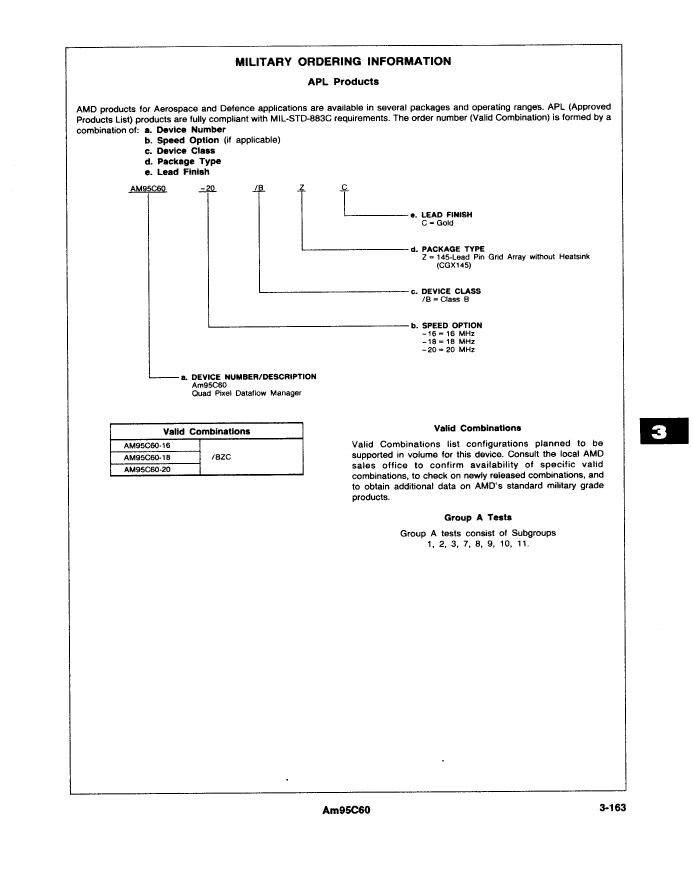

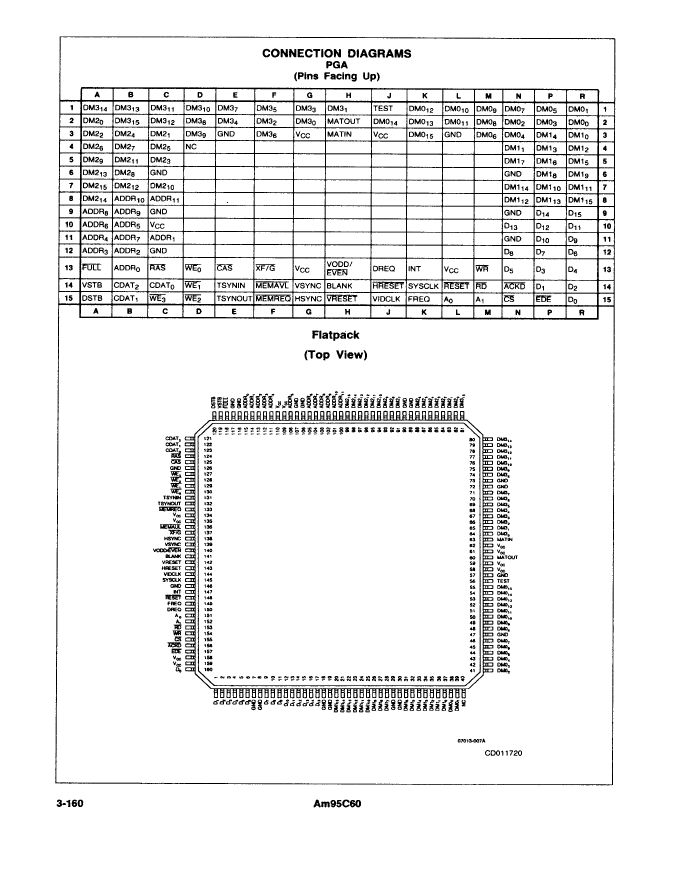

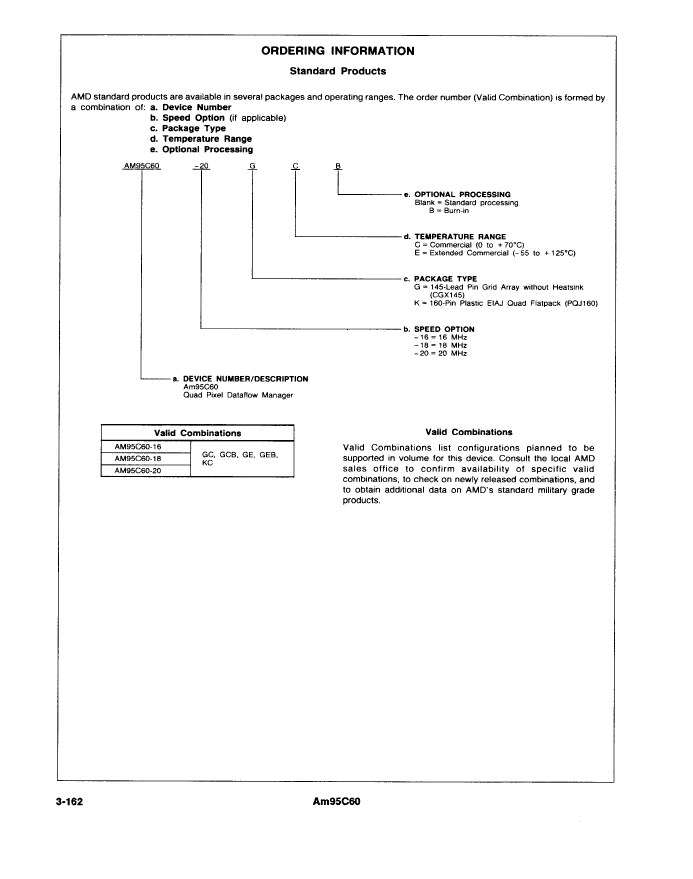

Graphics Processor, CMOS, CPGA145, PGA-145

AM95C60-20GCB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	PGA
package instruction	PGA, PGA145,15X15
Contacts	145
Reach Compliance Code	unknown
maximum clock frequency	20 MHz
External data bus width	16
JESD-30 code	S-CPGA-P145
JESD-609 code	e0
length	39.624 mm
Number of terminals	145
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Encapsulate equivalent code	PGA145,15X15
Package shape	SQUARE
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.953 mm
Maximum slew rate	250 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED
width	39.624 mm
uPs/uCs/peripheral integrated circuit type	GRAPHICS PROCESSOR
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

AM95C60-20GCB Related Products

	AM95C60-20GCB	P0805H2644CBPC	AM95C60-18/BZC	AM95C60-20GC	AM95C60-16GE	AM95C60-16GEB	AM95C60-20GEB	AM95C60-18GC	AM95C60-16KC	AM95C60-20/BZC
Description	Graphics Processor, CMOS, CPGA145, PGA-145	Fixed Resistor, Thin Film, 0.2W, 2640000ohm, 150V, 0.25% +/-Tol, 50ppm/Cel, Surface Mount, 0805, CHIP	Graphics Processor, CMOS, CPGA145, PGA-145	Graphics Processor, CMOS, CPGA145, PGA-145	Graphics Processor, CMOS, CPGA145, PGA-145	Graphics Processor, CMOS, CPGA145, PGA-145	Graphics Processor, CMOS, CPGA145, PGA-145	Graphics Processor, CMOS, CPGA145, PGA-145	Graphics Processor, CMOS, PQFP160, EIAJ, PLASTIC, QFP-160	Graphics Processor, CMOS, CPGA145, PGA-145
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	PGA, PGA145,15X15	CHIP	PGA-145	PGA, PGA145,15X15	PGA, PGA145,15X15	PGA, PGA145,15X15	PGA, PGA145,15X15	PGA, PGA145,15X15	QFP, QFP160,1.2SQ	PGA, PGA145,15X15
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Number of terminals	145	2	145	145	145	145	145	145	160	145
Maximum operating temperature	70 °C	155 °C	125 °C	70 °C	125 °C	125 °C	125 °C	70 °C	70 °C	125 °C
Minimum operating temperature	-	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C	-	-	-55 °C
Package form	GRID ARRAY	SMT	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	FLATPACK	GRID ARRAY
surface mount	NO	YES	NO	NO	NO	NO	NO	NO	YES	NO
technology	CMOS	THIN FILM	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Parts packaging code	PGA	-	PGA	PGA	PGA	PGA	PGA	PGA	QFP	PGA
Contacts	145	-	145	145	145	145	145	145	160	145
maximum clock frequency	20 MHz	-	18 MHz	20 MHz	16 MHz	16 MHz	20 MHz	18 MHz	16 MHz	20 MHz
External data bus width	16	-	16	16	16	16	16	16	16	16
JESD-30 code	S-CPGA-P145	-	S-CPGA-P145	S-CPGA-P145	S-CPGA-P145	S-CPGA-P145	S-CPGA-P145	S-CPGA-P145	S-PQFP-G160	S-CPGA-P145
JESD-609 code	e0	-	e0	e0	e0	e0	e0	e0	e0	e0
length	39.624 mm	-	39.624 mm	39.624 mm	39.624 mm	39.624 mm	39.624 mm	39.624 mm	28 mm	39.624 mm
Package body material	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA	-	PGA	PGA	PGA	PGA	PGA	PGA	QFP	PGA
Encapsulate equivalent code	PGA145,15X15	-	PGA145,15X15	PGA145,15X15	PGA145,15X15	PGA145,15X15	PGA145,15X15	PGA145,15X15	QFP160,1.2SQ	PGA145,15X15
Package shape	SQUARE	-	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	-	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.953 mm	-	4.953 mm	4.953 mm	4.953 mm	4.953 mm	4.953 mm	4.953 mm	3.47 mm	4.953 mm
Maximum slew rate	250 mA	-	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	224 mA	250 mA
Maximum supply voltage	5.25 V	-	5.5 V	5.25 V	5.5 V	5.5 V	5.5 V	5.25 V	5.25 V	5.5 V
Minimum supply voltage	4.75 V	-	4.5 V	4.75 V	4.5 V	4.5 V	4.5 V	4.75 V	4.75 V	4.5 V
Nominal supply voltage	5 V	-	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Temperature level	COMMERCIAL	-	MILITARY	COMMERCIAL	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	-	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	GULL WING	PIN/PEG
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	0.65 mm	2.54 mm
Terminal location	PERPENDICULAR	-	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	QUAD	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	39.624 mm	-	39.624 mm	39.624 mm	39.624 mm	39.624 mm	39.624 mm	39.624 mm	28 mm	39.624 mm
uPs/uCs/peripheral integrated circuit type	GRAPHICS PROCESSOR	-	GRAPHICS PROCESSOR	GRAPHICS PROCESSOR	GRAPHICS PROCESSOR	GRAPHICS PROCESSOR	GRAPHICS PROCESSOR	GRAPHICS PROCESSOR	GRAPHICS PROCESSOR	GRAPHICS PROCESSOR
ECCN code	-	EAR99	3A001.A.2.C	-	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	-	-	3A001.A.2.C
Maker	-	-	AMD	-	AMD	AMD	AMD	AMD	AMD	AMD
