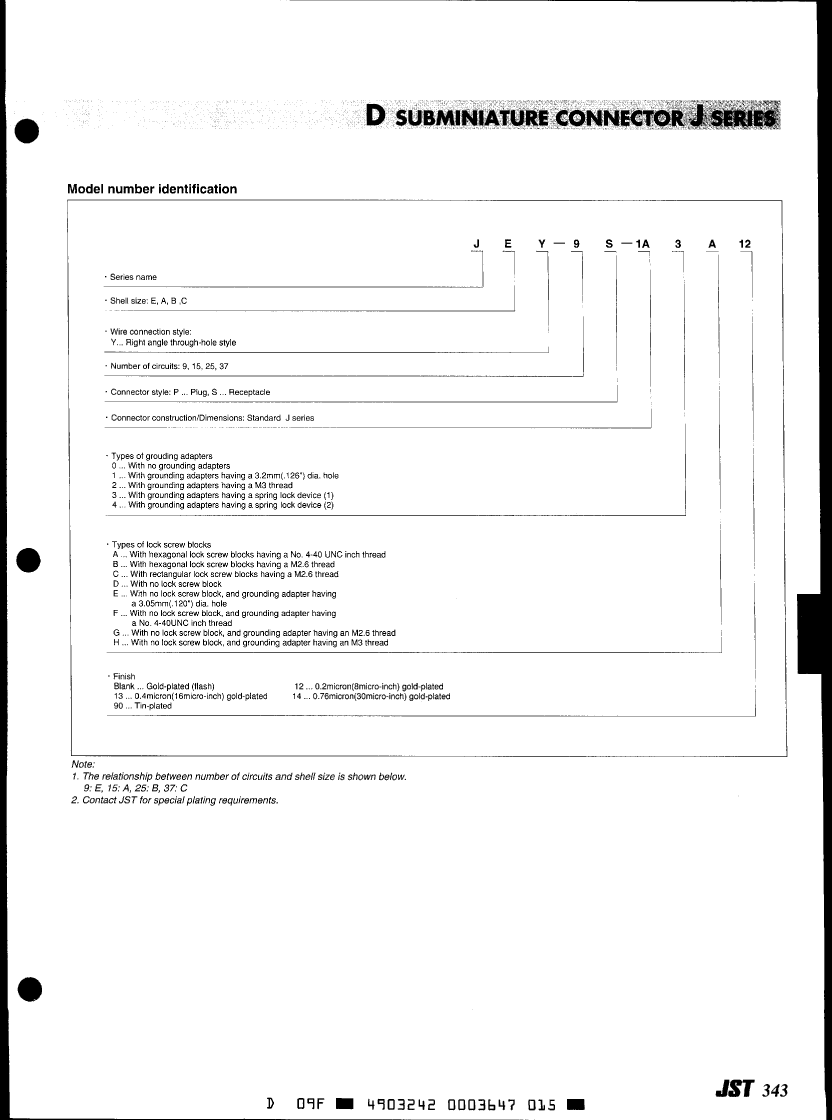

JAY-15P-1A1B13 datasheet, PDF - EEWORLD Datasheet

JAY-15P-1A1B13: DescriptionD Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, M2.6, Receptacle; CategoryThe connector The connector; File Size522KB，5 Pages; ManufacturerJST

Download Datasheet Parametric View All

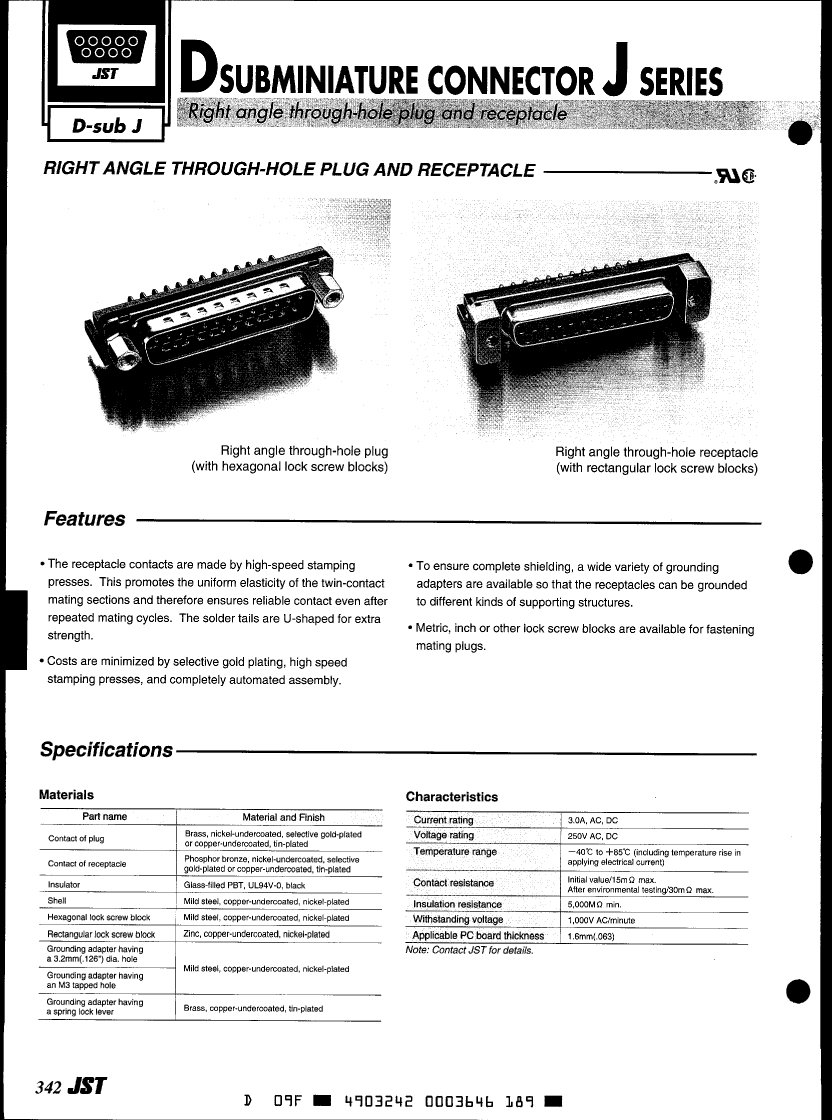

JAY-15P-1A1B13 Overview

D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, M2.6, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	unknown

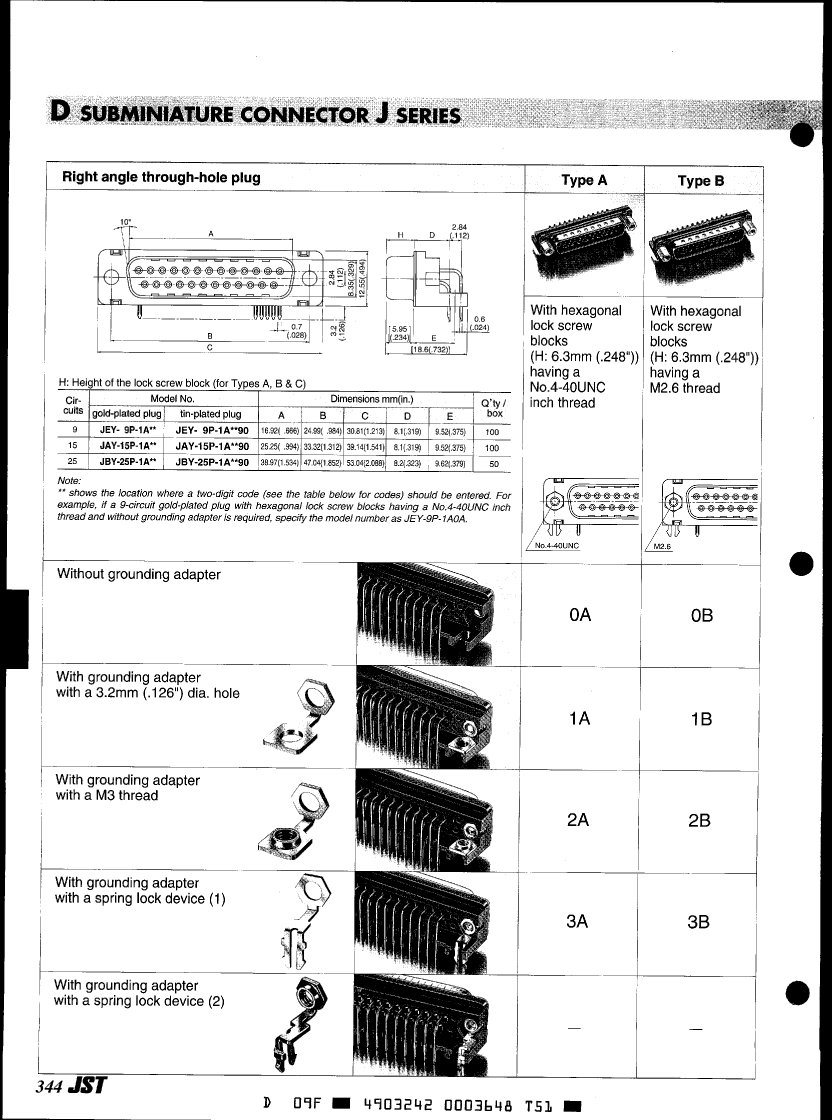

Other features	WITH GROUNDING ADAPTER
body width	0.494 inch
subject depth	0.498 inch
body length	1.541 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	J
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch

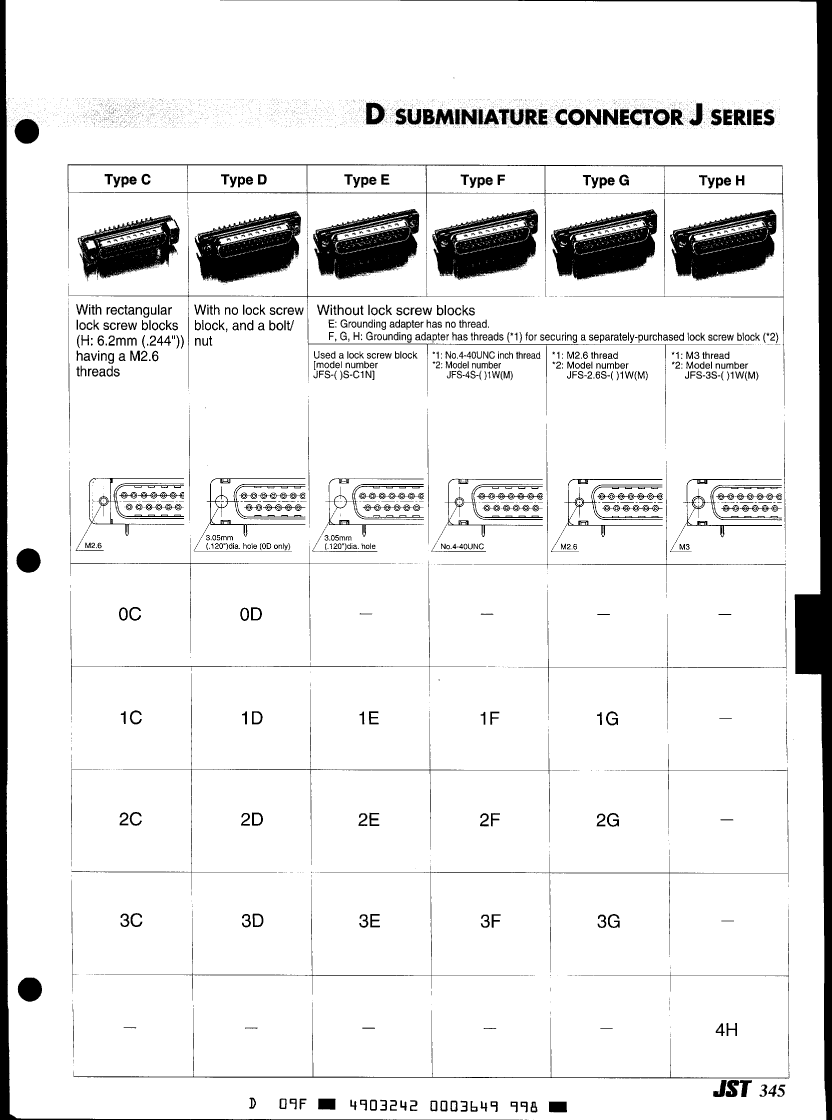

Installation option 1	M2.6
Installation option 2	SCREWLOCKS
Installation method	RIGHT ANGLE

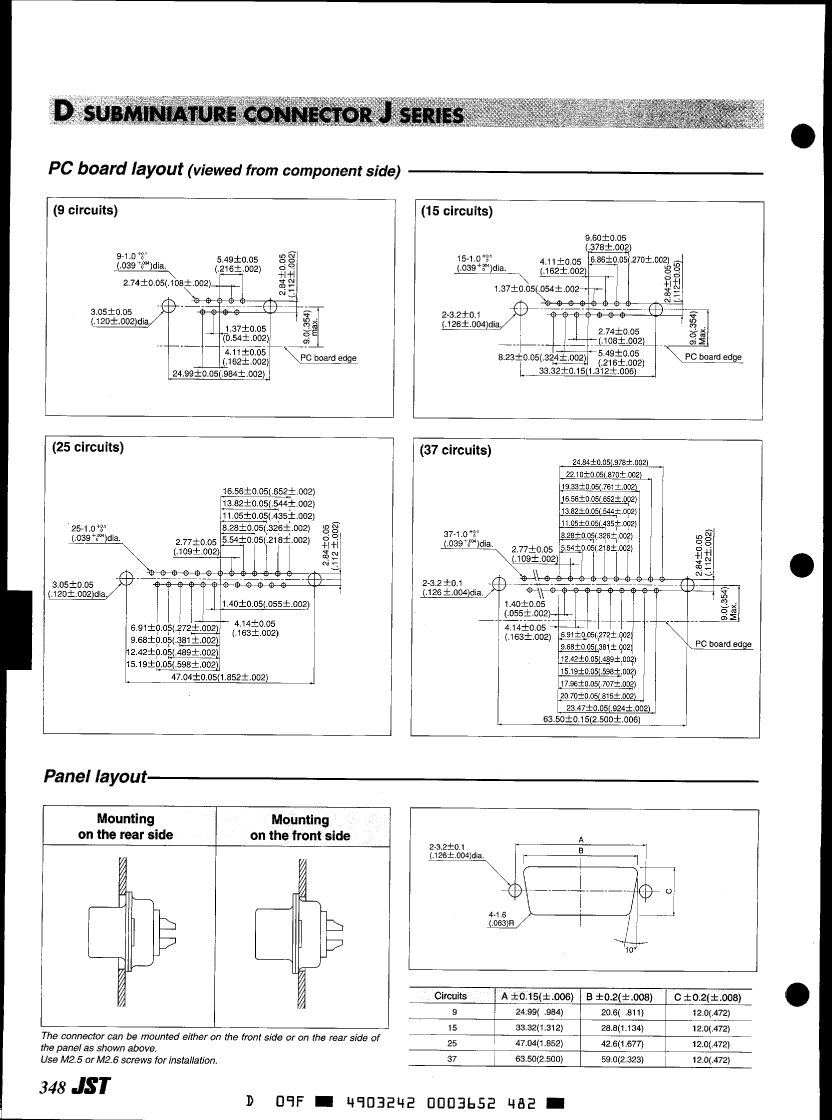

Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	16u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	NICKEL OVER COPPER
Shell material	STEEL
Terminal length	0.126 inch
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	15
Base Number Matches	1
