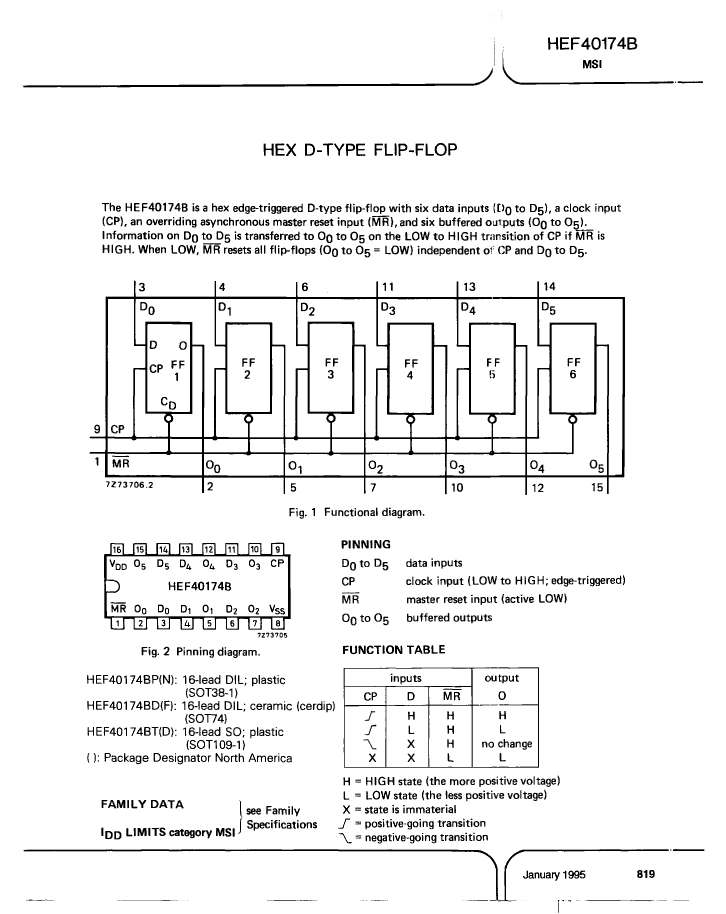

IC 4000/14000/40000 SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDIP16, FF/Latch

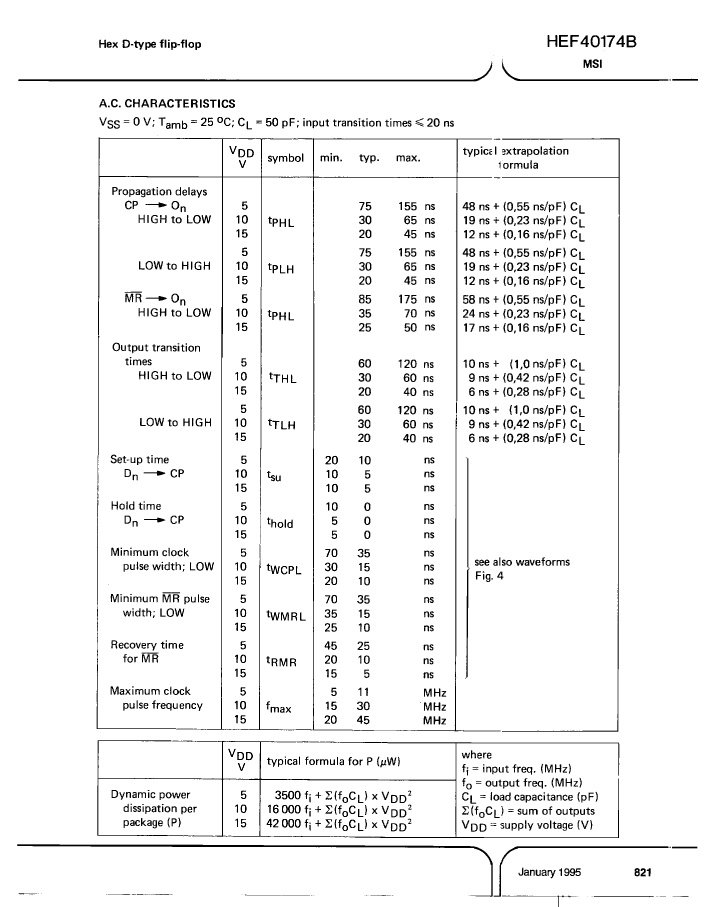

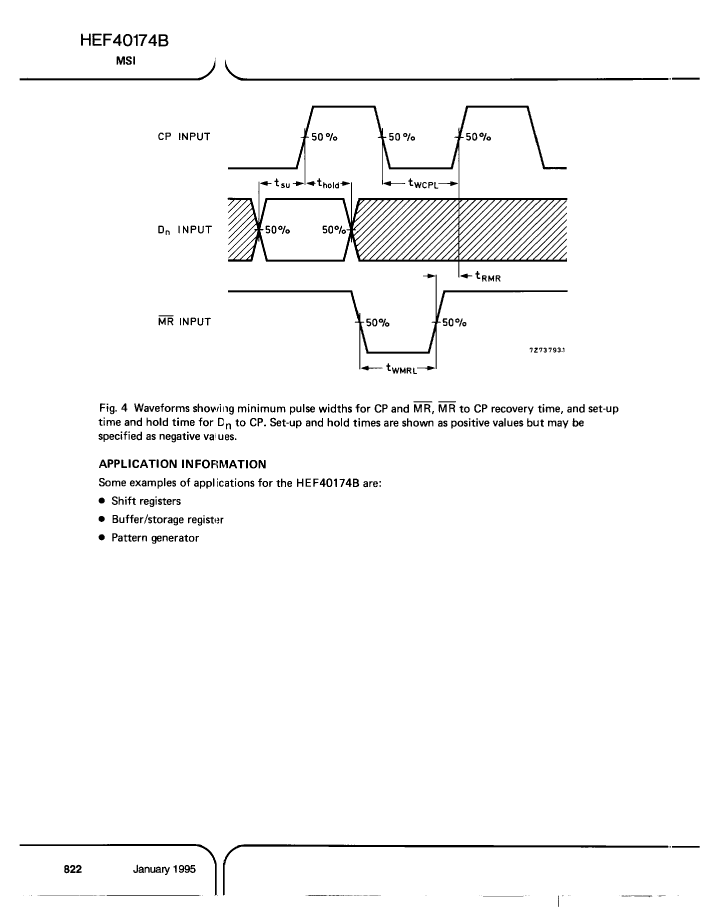

| Parameter Name | Attribute value |
| package instruction | DIP, |
| Reach Compliance Code | unknown |
| series | 4000/14000/40000 |
| JESD-30 code | R-PDIP-T16 |
| length | 21.6 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | D FLIP-FLOP |
| Number of digits | 6 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| propagation delay (tpd) | 155 ns |
| Certification status | Not Qualified |
| Maximum seat height | 4.7 mm |
| Maximum supply voltage (Vsup) | 15 V |
| Minimum supply voltage (Vsup) | 3 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Trigger type | POSITIVE EDGE |
| width | 7.62 mm |
| minfmax | 5 MHz |
| Base Number Matches | 1 |
| HEF40174BPB | HEC40174BDB | HEF40174BDB | |
|---|---|---|---|
| Description | IC 4000/14000/40000 SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDIP16, FF/Latch | IC 4000/14000/40000 SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDIP16, FF/Latch | IC 4000/14000/40000 SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDIP16, FF/Latch |
| package instruction | DIP, | DIP, | DIP, |
| Reach Compliance Code | unknown | unknown | unknown |
| series | 4000/14000/40000 | 4000/14000/40000 | 4000/14000/40000 |
| JESD-30 code | R-PDIP-T16 | R-GDIP-T16 | R-GDIP-T16 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | D FLIP-FLOP | D FLIP-FLOP | D FLIP-FLOP |
| Number of digits | 6 | 6 | 6 |
| Number of functions | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 |
| Maximum operating temperature | 85 °C | 125 °C | 85 °C |
| Minimum operating temperature | -40 °C | -55 °C | -40 °C |
| Output polarity | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE |
| propagation delay (tpd) | 155 ns | 155 ns | 155 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 4.7 mm | 5.08 mm | 5.08 mm |
| Maximum supply voltage (Vsup) | 15 V | 15 V | 15 V |
| Minimum supply voltage (Vsup) | 3 V | 3 V | 3 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO |
| technology | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | MILITARY | INDUSTRIAL |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| width | 7.62 mm | 7.62 mm | 7.62 mm |
| minfmax | 5 MHz | 5 MHz | 5 MHz |
| Maker | - | NXP | NXP |
