BD050-06-A-0-0500-L-B datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BD050-06-A-0-0500-L-B

Preview

BD050-06-A-0-0500-L-B: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking,; CategoryThe connector The connector; File Size163KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric Compare View All

BD050-06-A-0-0500-L-B Overview

Board Connector, 6 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking,

BD050-06-A-0-0500-L-B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.118 inch
subject depth	0.085 inch
body length	0.159 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
Manufacturer's serial number	BD050
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.9878 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

5

1

2

3

4

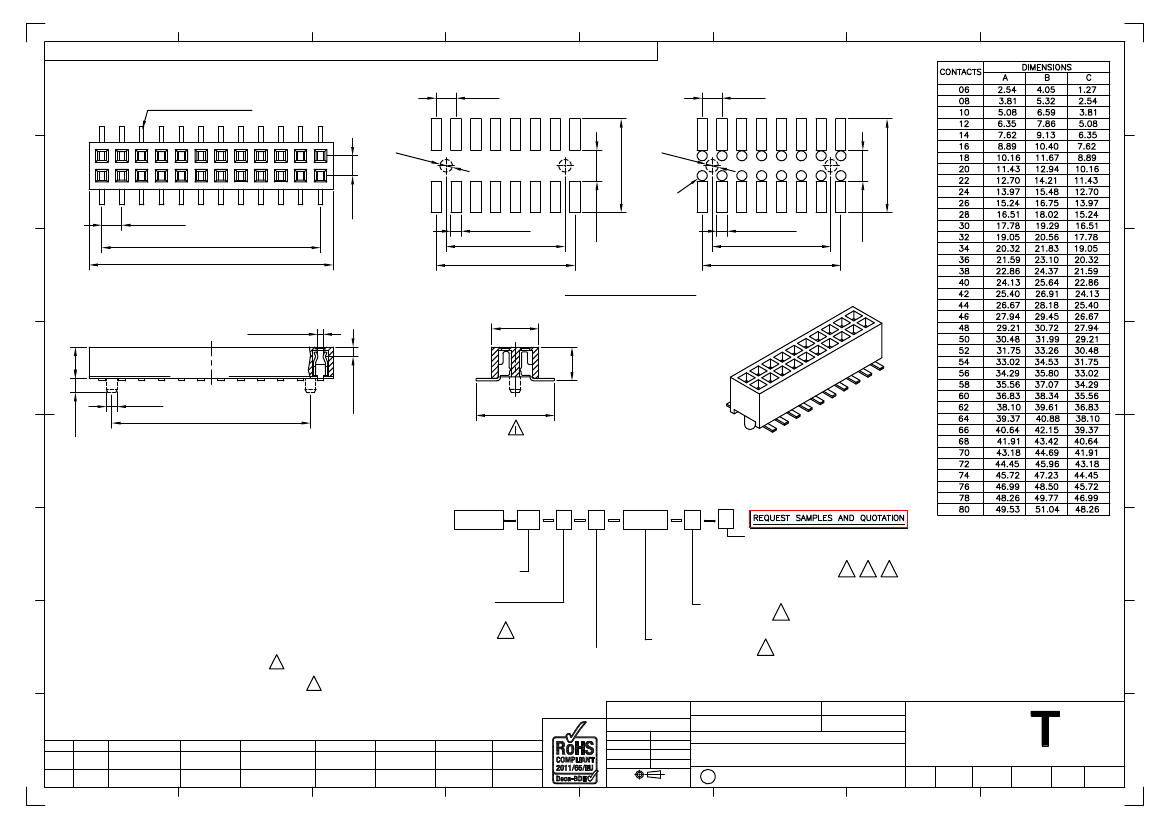

Global Connector Technology Ltd. - BD050: 1.27mm PITCH SOCKET, DUAL ROW, SURFACE MOUNT, LOW PROFILE, DUAL ENTRY

A

PIN 0.42X0.15 (Typ.)

6

7

8

1.27

(Typ. Non-Accum)

1.27

(Typ. Non-Accum)

A

D +1.0

B

1.27

D +1.0

Ø0.8

0

Ø0.8

0

B

Ø0.65

1.27 (Typ.)

A±0.20

B±0.30

0.65 (Typ.)

C

A

RECOMMENDED PCB LAYOUT

0.65 (Typ.)

C

A

2.00

C

2.00

C

0.34 Ref.

2.00

3.00

Ø0.70

(Typ.)

0.90

C±0.15

CONTACT POINT

D

2.15

D

0.60 Ref.

D±0.2

E

Ordering Grid

BD050

F

SPECIFICATIONS

规格

:

CURRENT RATING

电流额定值

: 1 AMP

INSULATOR RESISTANCE

绝缘电阻值:

1000 MΩ MIN.

CONTACT RESISTANCE

接触电阻值

: 20 mΩ MAX

DIELECTRIC WITHSTANDING

耐电压

: AC 500 V

OPERATING TEMPERATURE

工½温度

: -40° TO +105°C

CONTACT MATERIAL

端子物料

: PHOSPHOR BRONZE

INSULATOR MATERIAL

绝缘½物料

: POLYESTER

聚酯

, LCP, UL 94 V-0

SOLDERING PROCESS

可焊性

: LCP -

IR REFLOW

回流焊

: 260°C for 10 sec.

F

WAVE

波峰焊

: 250°C for 5-10 sec

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

F

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BD025

BD030

BD035

BD038

BD040

BD095

By

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

XX

X

XXXX

L

X

Packing Options

B = Tape & Reel with Cap (Standard)

D = Tube

E = Tube with Cap

D E G

F = Tube with Film

Insulator Material

L = LCP

J

F

No. of Contacts

06 to 80

Contact Plating

A = Gold Flash All Over (Standard)

C = Tin All Over

G

H

Locating Peg

0 = No Peg

1 = With Peg

Dimension D (1/100mm)

(Footprint Width)

I

0500 = 5.00mm (Standard)

0450 = 4.50mm

Tolerances

(Except as noted)

G

For bottom entry applications, stringent soldering control & pin alignment

are required as lead to pad misalignment could cause incorrect mating.

Date:-

Part Number:-

Dimensions in mm

SA

AJO

X.°±5°

.X°±2°

X.X ± 0.20

.XX°±1°

X.XX ± 0.15

X.XXX ± 0.10 .XXX°±0.5°

X. ± 0.30

Third Angle Projection

BD050

Description:-

28 DEC 07

H

PN

STANDARD INSULATOR

MATERIAL & PACKING

OPTIONS CHANGED

CB

AE

SA

PACKING OPTIONS SOLDER TEMP & MATES PACKING OPTIONS

WITH INFO. UPDATED

CHANGED

B2B PCN002

PLATING OPTIONS

SELECTABLE

1.27mm SOCKET

CHANGED

WIDTH REMOVED

N6T REMOVAL

1.27mm PITCH SOCKET, DUAL ROW,

SURFACE MOUNT, LOW PROFILE, DUAL ENTRY

www.globalconnectortechnology.com

Scale

NTS

GC

Material

See Note

H

Sheet No.

E & OE

1/1

A

28/12/07

D

27/04/09

1

E

20/05/09

2

F

27/07/09

G

29/03/10

3

H

17/05/10

I

04/07/12

J

13/12/12

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

J

Drawn by

LYH

4

5

6

7

8
