Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> R411.815.124

Preview

R411.815.124: DescriptionFixed Attenuator, 0MHz Min, 6000MHz Max; CategoryWireless rf/communication Radio frequency and microwave; File Size41KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

R411.815.124 Overview

Fixed Attenuator, 0MHz Min, 6000MHz Max

R411.815.124 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Factory Lead Time	8 weeks
Other features	SMA-F; SMA-M, I/P POWER-MAX(PEAK)=100W
Nominal attenuation	15 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
JESD-609 code	e4
Maximum operating frequency	6000 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

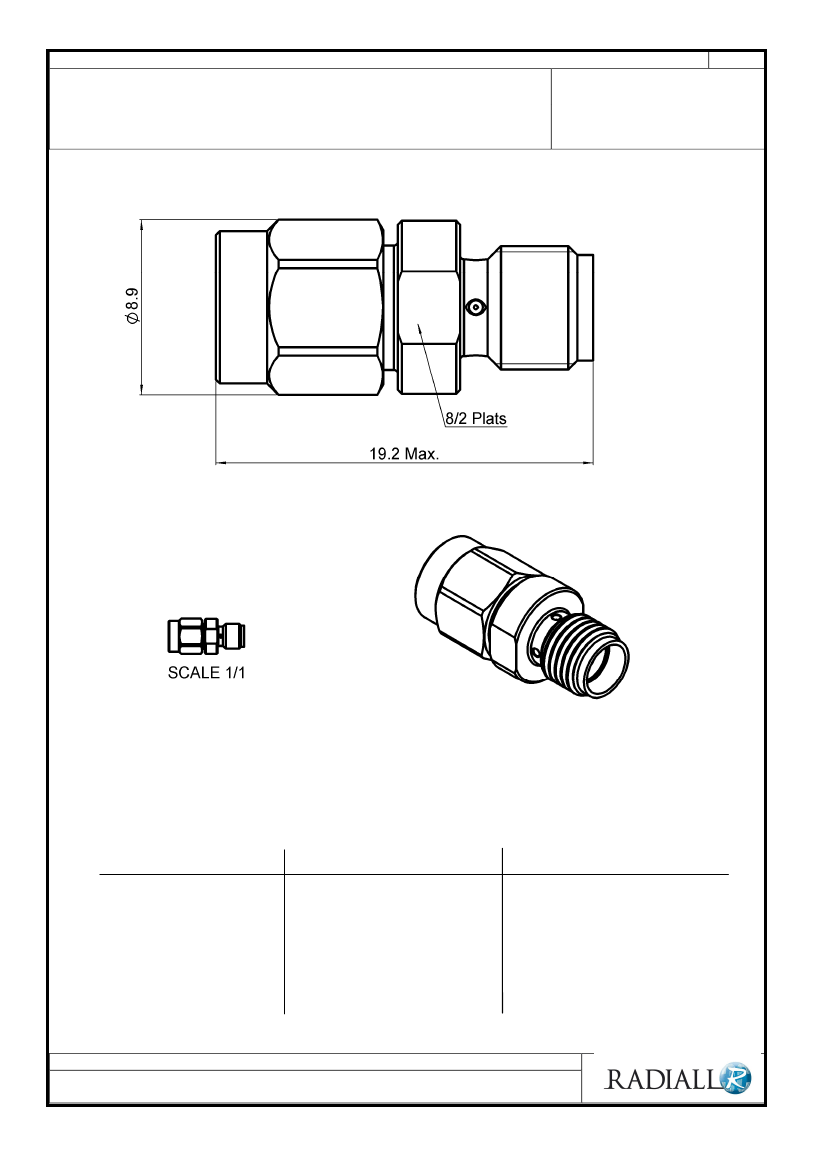

TECHNICAL DATA SHEET

1/2

SMA ATTENUATOR

15 DB 6 GHZ 1W

R411.815.124

Series :

ATTENUATEUR

.

pn

.

ao

A

ll dimensions are in mm.

COMPONENTS

BODY

MALE CENTER CONTACT

FEMALE CENTER CONTACT

OUTER CONTACT

INSULATOR

GASKET

SUBSTRATE

RESISTOR

OTHERS PARTS

MATERIALS

BRASS

BERYLLIUM COPPER

PTFE

SILICONE RUBBER

ALUMINA

THICK FILM

PLATING(µm)

NICKEL 2

GOLD 1 OVER NICKEL 2

Issue : 0845 C

In the effort to improve our products, we reserve the right to make changes judged to be

necessary.
