AR9D27: DescriptionTransponder RX antenna; File Size206KB，1 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/

Download Datasheet View All

AR9D27 Overview

Transponder RX antenna

Preview

Download Datasheet

View All

Transponder RX antenna< Pin Type: AR Series>

Type: AR9D27

◆

Product Description

・Φ2.6mm

Max.(Diameter),10.5mm Max. Height.

・Operating

temperature:

－40℃½＋85℃.

◆

Feature

・LF

transponder receiver antenna.

・Ideally

used in keyless smart entry system.

・RoHS

Compliance.

◆

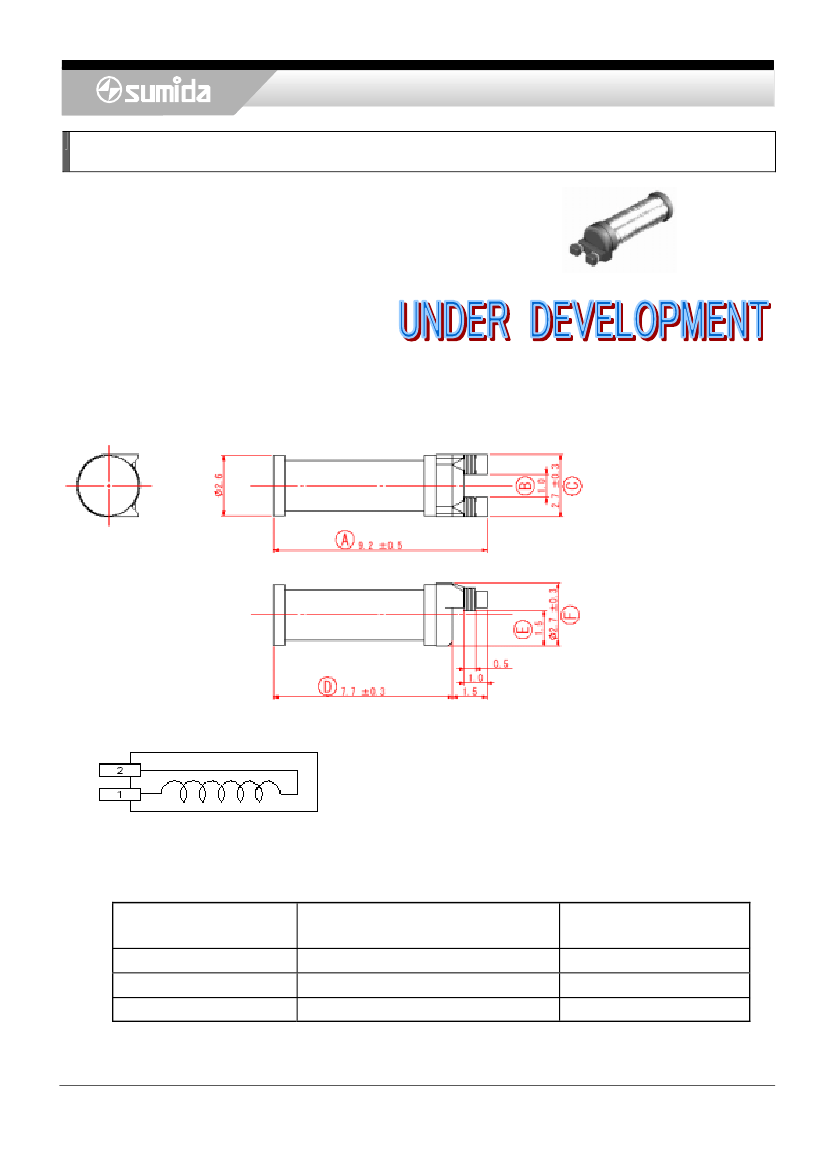

Dimensions (mm)

◆

Schematics(Bottom)

“S” is winding start.

◆

Specification

MEASURING

（２－１）

INDUCTANCE

UNLOADED

Ｑ

S.R.F

5.66½Ｈ±5％ WITHIN

MIN. 35 (at 25℃)

540kHz (Ref.)

CONDITIONS

125kHz,1V

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/1
