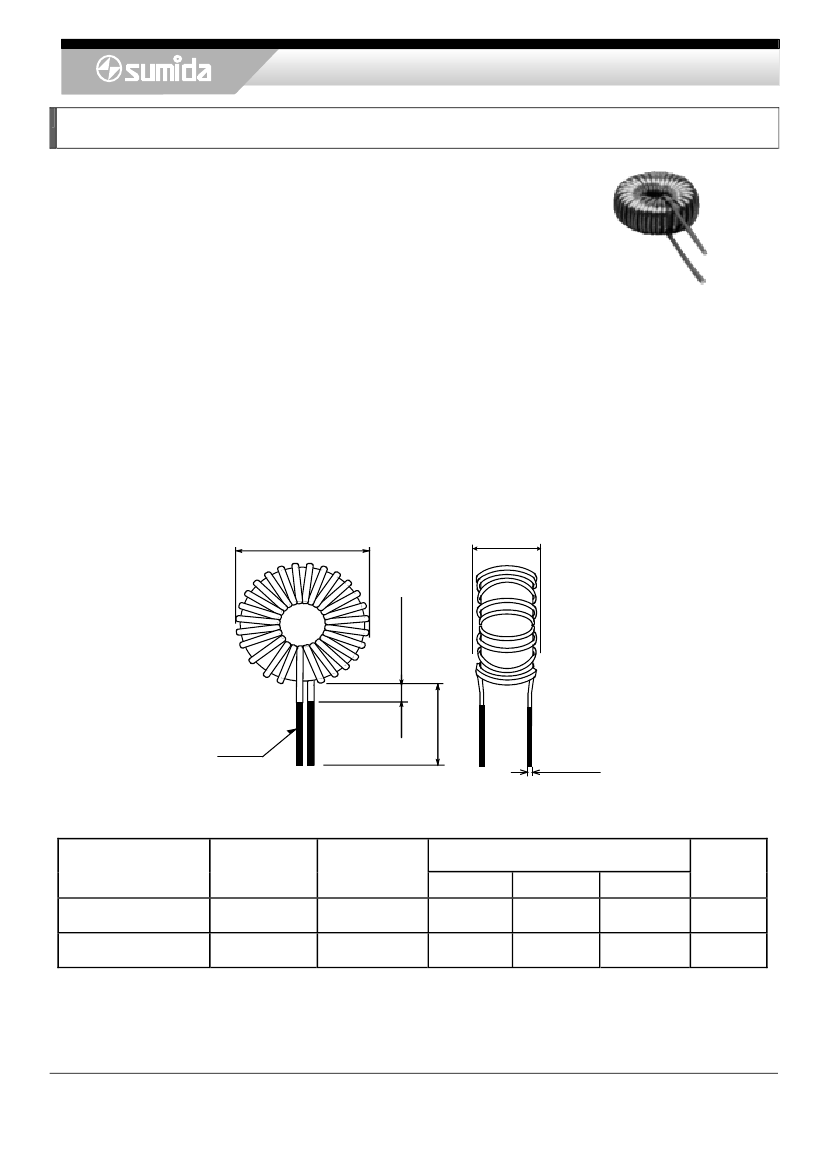

EMC Choke Coil<Pin Type: PFN Series>

Type: PFN0716

◆

Product Description

・￠16.5mm×8.0mm.

Max

・In

addition to the typical versions of parameters shown here,

custom parameters are available to meet your exact requirements.

◆

Feature

・Iron

dust core is used to realize better DC Saturation characteristics and higher noise

absorption effect.

・Less

leakage magnetic flux.

・Ideally

used as normal mode chokes EMI suppression in power supplies or signal lines.

・Elimination

for impulse noise.

・RoHS

Compliance

◆

Dimensions (mm)

φ16.5 MAX.

8.0 MAX.

NO SOLDER DIP

10.0±2.0

SOLDER

1.5 MAX.

φ0.65 MAX.

◆

Specification

Part Name.

PFNØ716NP-NM29A

PFNØ716NP-NM39A

Inductance

(μH) [MIN.]

At 1kHz

21

37

D.C.R.(mΩ)

[MAX.]

(at20℃)

43

58

Impedance [MIN.]

Rated

Current

(A)※1

5.4

2.9

①

544Ω

½t

5MHz

1245Ω

½t

5MHz

②

1180Ω

½t

10MHz

2070Ω

½t

7MHz

③

1245Ω

½t

20MHz

950Ω

½t

15MHz

※1.

Rated current: The DC current at which the temperature rise is

△t＝40℃.(Ta＝20℃).

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/1
