SUNON
SPECIFICATION FOR APPROVAL
CUSTOMER
MOTOR TYPE
DESCRIPTION
DIMENSIONS
MODEL
SUNON SPEC. NO.
CUSTOMER
APPROVAL NO.
APPROVED BY
CUSTOMER
(AUTHORIZED)
:
:
:
:
:
:
:
:
MagLev Motor Blower
30X30X3 mm
UB5U3-500
D03018191F-00
SPEC.NO
DRAWN
D03018191F-00
02.27.2009
9
E30900059
Nancy
01/07
CHECKED
Kiddy
March
ISSUE DATE
APPROVED
Jacky
EDITION
E.SPEC
REVISION DATE
01.07.2014
建準電機工業股½有限公司
SUNONWEALTH ELECTRIC MACHINE INDUSTRY CO., LTD.
NO. 30, LN. 296, XINYA RD., QIANZHEN DIST.,
TEL:886-7-8135888
KAOHSIUNG CITY 80673, TAIWAN (R.O.C)
FAX:886-7-8230505/8230606/8231010
D.C.C.
URL:http://www.sunon.com
E-mail: sunon@email.sunon.com.tw
2014.01.16
SUNON
DC BRUSHLESS BLOWER
MODEL : UB5U3-500
CHARACTERISTICS
1. Motor Design
:
Single phase, 6-poles Brushless DC motor.
2. Insulation Resistance
:
More than 20M ohm between internal stator and
lead wire(+) measured at DC 100V.
3. Dielectric Strength
:
Applied AC 500V for one minute or AC 600V for
2 seconds between housing and lead wire(+)
4. Noise Level
:
Measured in a semi-anechoic chamber
with background noise level below 15
dB(A). The fan is running in free air with the
microphone at a distance of one meter
from the fan intake.
5. Input Power, Current & Speed
:
Measured after continuous 10 minute
operation at rated voltage in clean air, and
at ambient temperature of 25 degrees C.
6. Tolerance
:
+15%
∕
-30% on rated power and current.
7. Air Performance
:
Measured by a double chamber. The values
are recorded when the fan speed has stabilized
at rated voltage.
SPEC.NO
D03018191F-00
REVISION DATE
01. 07. 2014
建準電機工業股½有限公司
ISSUE DATE
02. 27. 2009 E D I T I O N 9
D.C.C.
SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.
P A G E
2 OF 12
2014.01.16
SUNON
SPECIFICATIONS
MODEL : UB5U3-500
1-1. Rated Voltage
1-2. Operating Voltage Range
1-3. Starting Voltage
1-4. Rated Speed
1-5. Air Delivery
1-6. Static Pressure
1-7. Rated Current
1-8. Rated Power
1-9. Noise Level
1-10. Direction of Rotation
1-11. Operating Temperature
1-12. Storage Temperature
1-13. Bearing System
1-14. Weight
1-15. Safety
1-16. Protection
: 5 VDC
: 2~6 VDC
: 2.0 VDC (25 deg. C POWER ON/OFF)
: 9500 RPM
±
20%
: 18.0 l/min
: 88.18 Pa
: 72 mA
: 0.36 WATTS
: 25.6 dB(A) @ 1M
36.0 dB(A) @ 0.3M
: Counter-clockwise viewed from front of fan blade
: -10 to +70 deg. C
: -40 to +70 deg. C
: Vapo bearing system
: 2.4 g
: CE Approvals
:
Automatic
Restart Capability
Note: In a situation where the fan is locked by an external force while
the electricity is on, an increase in coil temperature will be prevented by
temporarily turning off the electrical power to the motor. The fan will
automatically restart when the locked rotor condition is released.
Polarity
Protection
1-17. IP Class : IP55
:
According to IEC 529 (or IEC 34-5) IP standard, the average
Temperature is 23~24°C and humidity is 67% RH for Dust Water
Test. The fan needs to be test and Spray Put in dust box for 8 hours for
Dust Test and be sprayed 10 minuteswith water of 4 aspects for Spray
Water Test.After these 2 tests, which executing by regular standard, the
fan will be measured the performance is normal or not.
PS. There are different applicative environments and systems by
different customers, so please put the product inthe most suitable
environment to measure the performances.
SPEC.NO
D03018191F-00
REVISION DATE
01. 07. 2014
建準電機工業股½有限公司
ISSUE DATE
02. 27. 2009 E D I T I O N 9
SUNONWEALTH ELECTRIC
D.C.C.
MACHINE INDUSTRY CO., LTD.
P A G E
3 OF 12
2014.01.16
SUNON
MODEL : UB5U3-500
PERFORMANCE CURVES
STATIC
PRESSURE
mm-H
2
O
Pa
8
80
5VDC
4
40
0
0
0
0
10
0.01
20
0.02
l/min
m
3
/min
SPEC.NO
D03018191F-00
REVISION DATE
01. 07. 2014
建準電機工業股½有限公司
ISSUE DATE
02. 27. 2009 E D I T I O N 9
D.C.C.
SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.
P A G E
4 OF 12
2014.01.16
SUNON
MATERIAL
2-1. Frame
2-2. Impeller
2-3. Lead Wire
:
:
:
Thermoplastic LCP of UL 94V-0
Thermoplastic LCP of UL 94V-0
UL10064,32 awg,+RED,-BLACK
UL10064,32 awg,YELLOW:3rd Wire

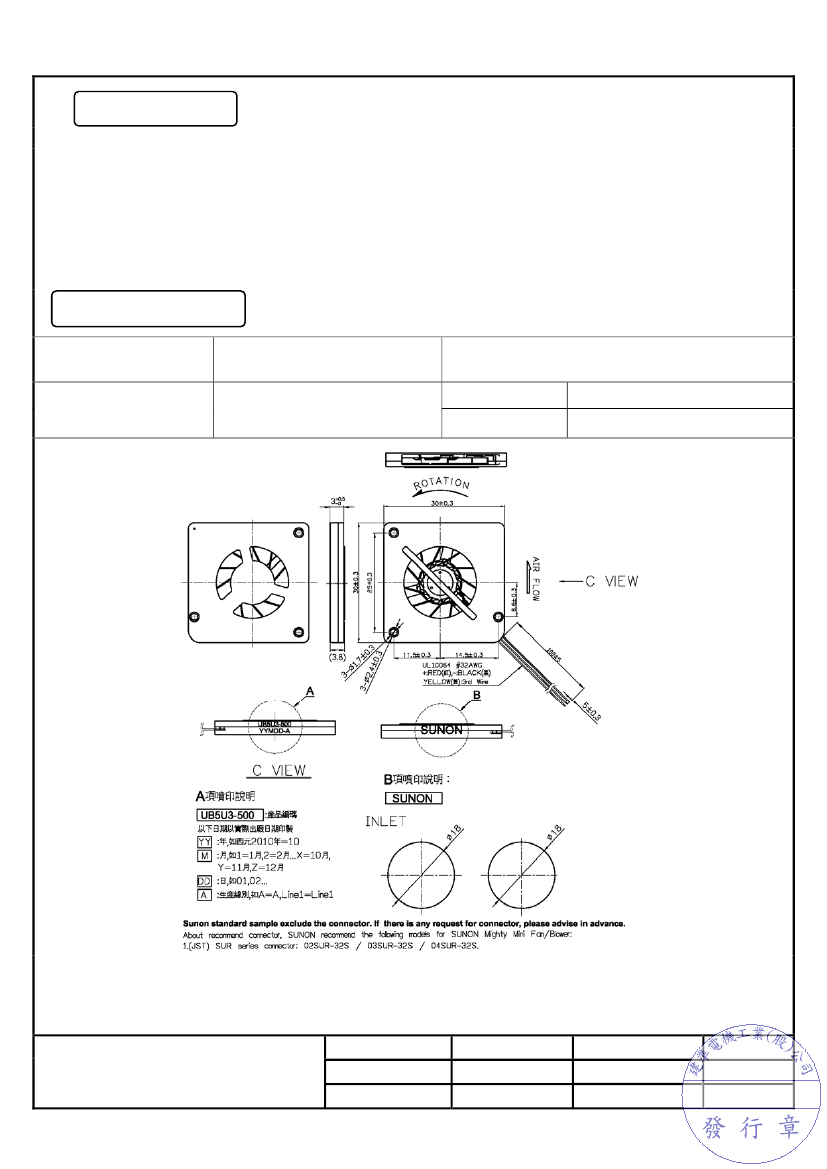

DIMENSIONS
Screw Type
(Pan head)
Machine screw
Note: SUNON recommends the screw and torque as below. Please
contact SUNON, if any new requirement is requested.
Torque
0.5
½
0.7 Kgf-cm
Size
M1.7
Screw Spec
Standard
JIS B1111-1974
1. One directional exhaust.
2. Best Mounting Direction: Fan blade face up or shaft horizontal direction.
UNIT
：
mm
SPEC.NO
建準電機工業股½有限公司
ISSUE DATE
SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.
P A G E
D03018191F-00
REVISION DATE
01. 07. 2014
02. 27. 2009 E D I T I O N 9
D.C.C.
5 OF 12
2014.01.16
