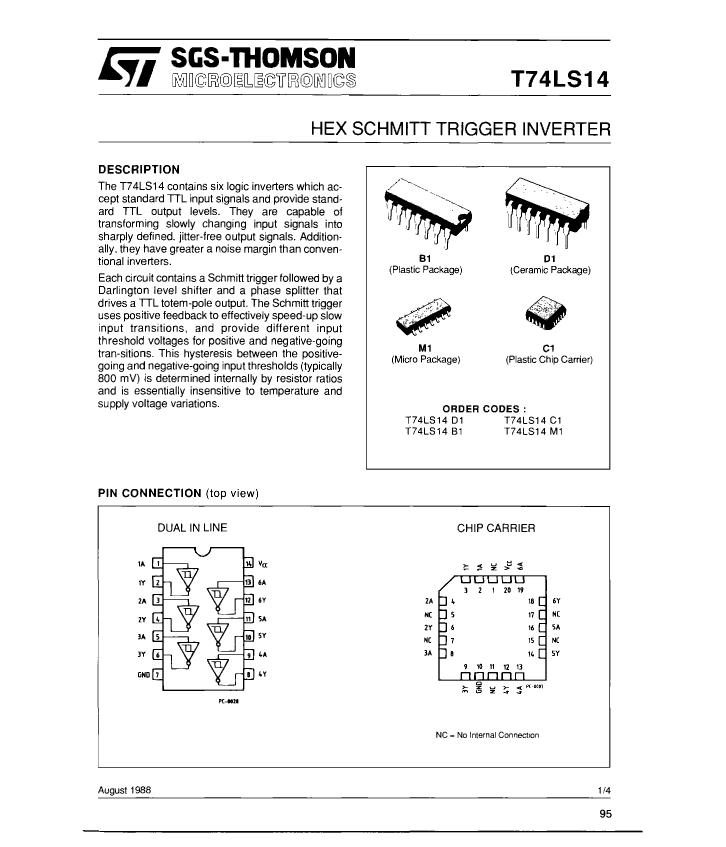

LS SERIES, HEX 1-INPUT INVERT GATE, CDIP14, CERAMIC, DIP-14

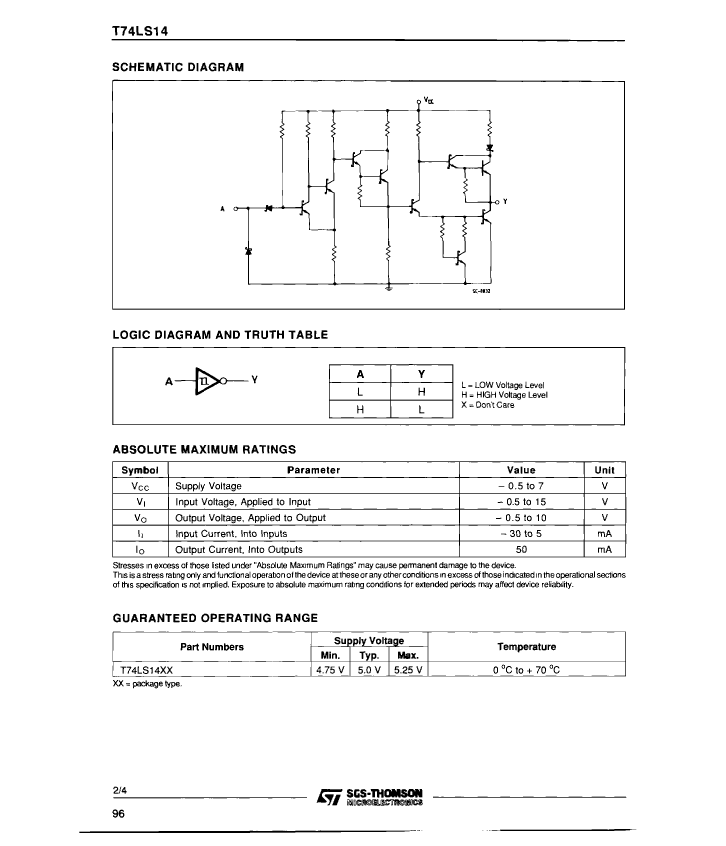

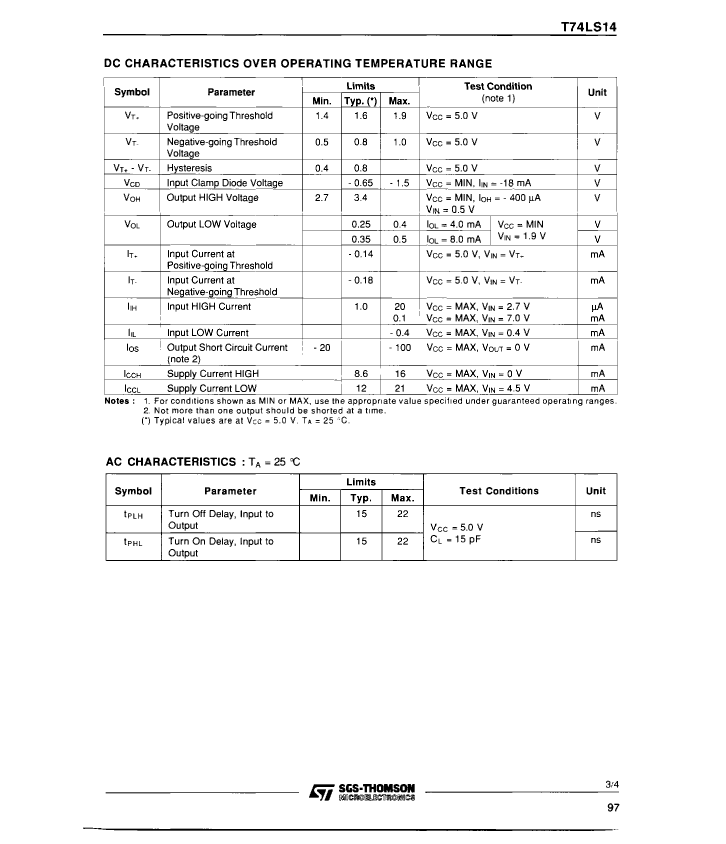

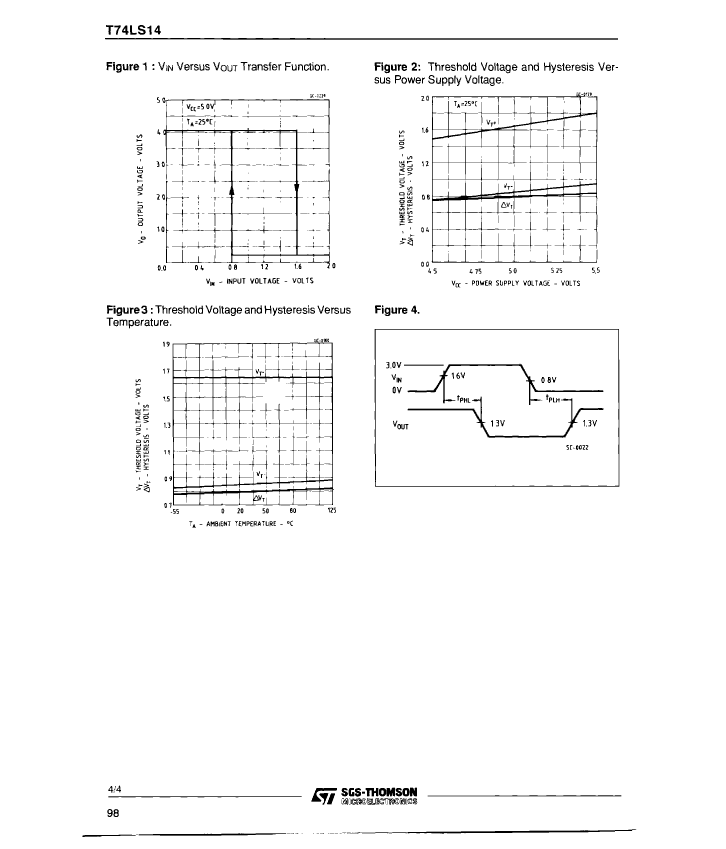

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Parts packaging code | DIP |
| package instruction | DIP, DIP14,.3 |
| Contacts | 14 |
| Reach Compliance Code | not_compliant |
| series | LS |
| JESD-30 code | R-GDIP-T14 |
| JESD-609 code | e0 |
| Load capacitance (CL) | 15 pF |
| Logic integrated circuit type | INVERTER |
| Number of functions | 6 |
| Number of entries | 1 |
| Number of terminals | 14 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Maximum supply current (ICC) | 21 mA |
| propagation delay (tpd) | 22 ns |
| Certification status | Not Qualified |
| Schmitt trigger | YES |
| Maximum seat height | 5.08 mm |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 7.62 mm |
| Base Number Matches | 1 |
| T74LS14D1 | T74LS14C1 | T74LS14M1 | T74LS14B1 | |
|---|---|---|---|---|
| Description | LS SERIES, HEX 1-INPUT INVERT GATE, CDIP14, CERAMIC, DIP-14 | LS SERIES, HEX 1-INPUT INVERT GATE, PQCC20, PLASTIC, LCC-20 | LS SERIES, HEX 1-INPUT INVERT GATE, PDSO14, MICRO, SO-14 | LS SERIES, HEX 1-INPUT INVERT GATE, PDIP14, PLASTIC, DIP-14 |
| Parts packaging code | DIP | QLCC | SOIC | DIP |
| package instruction | DIP, DIP14,.3 | QCCJ, | SOP, SOP14,.25 | DIP, DIP14,.3 |
| Contacts | 14 | 20 | 14 | 14 |
| Reach Compliance Code | not_compliant | unknown | not_compliant | not_compliant |
| series | LS | LS | LS | LS |
| JESD-30 code | R-GDIP-T14 | S-PQCC-J20 | R-PDSO-G14 | R-PDIP-T14 |
| Load capacitance (CL) | 15 pF | 15 pF | 15 pF | 15 pF |
| Logic integrated circuit type | INVERTER | INVERTER | INVERTER | INVERTER |
| Number of functions | 6 | 6 | 6 | 6 |
| Number of entries | 1 | 1 | 1 | 1 |
| Number of terminals | 14 | 20 | 14 | 14 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C |
| Package body material | CERAMIC, GLASS-SEALED | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | QCCJ | SOP | DIP |
| Package shape | RECTANGULAR | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | CHIP CARRIER | SMALL OUTLINE | IN-LINE |
| Maximum supply current (ICC) | 21 mA | 21 mA | 21 mA | 21 mA |
| propagation delay (tpd) | 22 ns | 22 ns | 22 ns | 22 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.08 mm | 4.57 mm | 1.75 mm | 5.1 mm |
| Maximum supply voltage (Vsup) | 5.25 V | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES | NO |
| technology | TTL | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | THROUGH-HOLE | J BEND | GULL WING | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | QUAD | DUAL | DUAL |
| width | 7.62 mm | 8.9662 mm | 3.9 mm | 7.62 mm |
| Is it lead-free? | Contains lead | - | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | - | incompatible | incompatible |
| JESD-609 code | e0 | - | e0 | e0 |
| Encapsulate equivalent code | DIP14,.3 | - | SOP14,.25 | DIP14,.3 |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 5 V | - | 5 V | 5 V |
| Schmitt trigger | YES | - | YES | YES |
| Terminal surface | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Maximum time at peak reflow temperature | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED |
| Maker | - | STMicroelectronics | STMicroelectronics | STMicroelectronics |
