DQS-A16: DescriptionQUADRATURE HYBRID MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size66KB，2 Pages; ManufacturerSYNERGY; Websitehttp://www.synergymwave.com/

Download Datasheet Parametric View All

DQS-A16 Overview

QUADRATURE HYBRID MODEL

DQS-A16 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	43.98 dBm
Maximum insertion loss	0.6 dB
Maximum operating frequency	174 MHz
Minimum operating frequency	118 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
RF/Microwave Device Types	90 DEGREE HYBRID COUPLER
Maximum voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

QUADRATURE HYBRID

MODEL DQS-A16

OPTIMIZED BANDWIDTH

SPECIFICATIONS

Operating Frequency:

Insertion Loss:

Isolation:

Amplitude Unbalance:

118 - 174 MHz

0.3 dB (Typ) / 0.6 dB (Max)

23 dB (Typ)/18 dB (Min)

0.4 dB (Typ) / 1.0 dB (Max)

Phase Unbalance:

VSWR:

Input Power Rating

Impedance:

Operating Temp. Range:

1.0º (Typ)/ 3.0º (Max)

1.35:1 (Max)

25 Watts (Max)

50 Ohms

o

-20 to +70

o

C

118 - 174 MHz

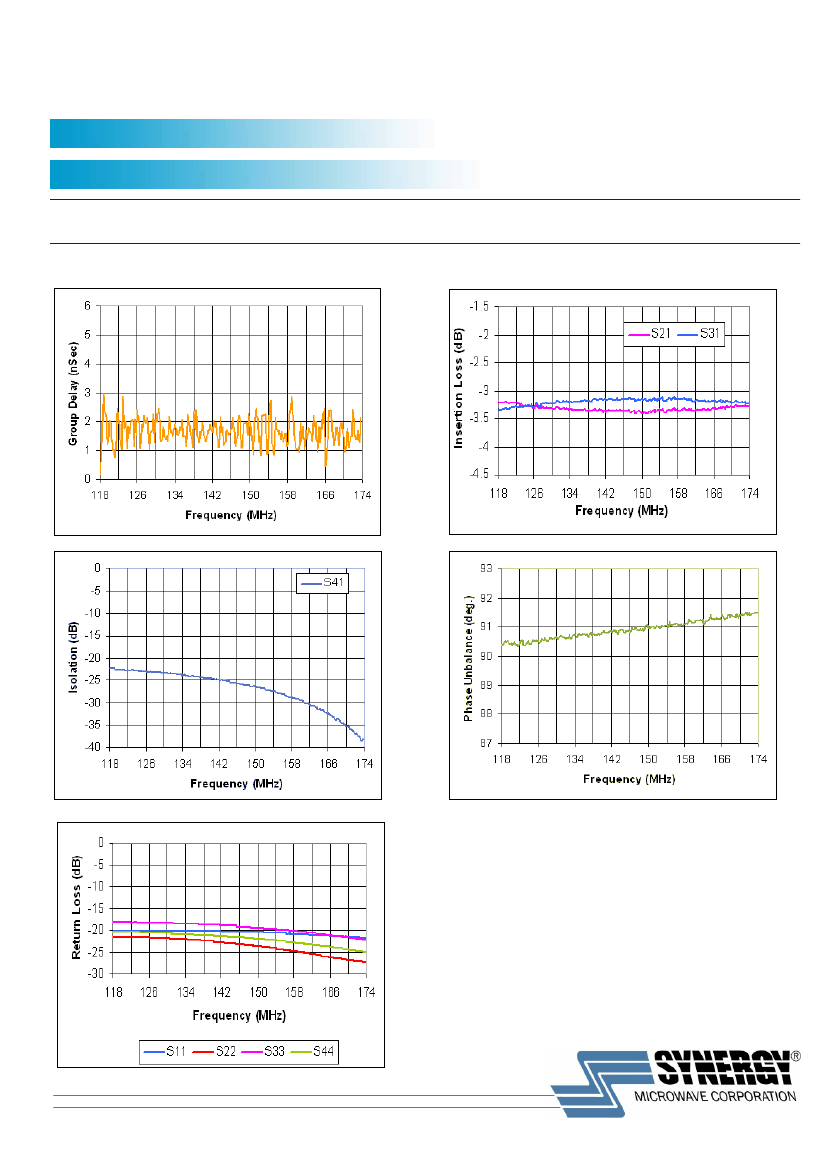

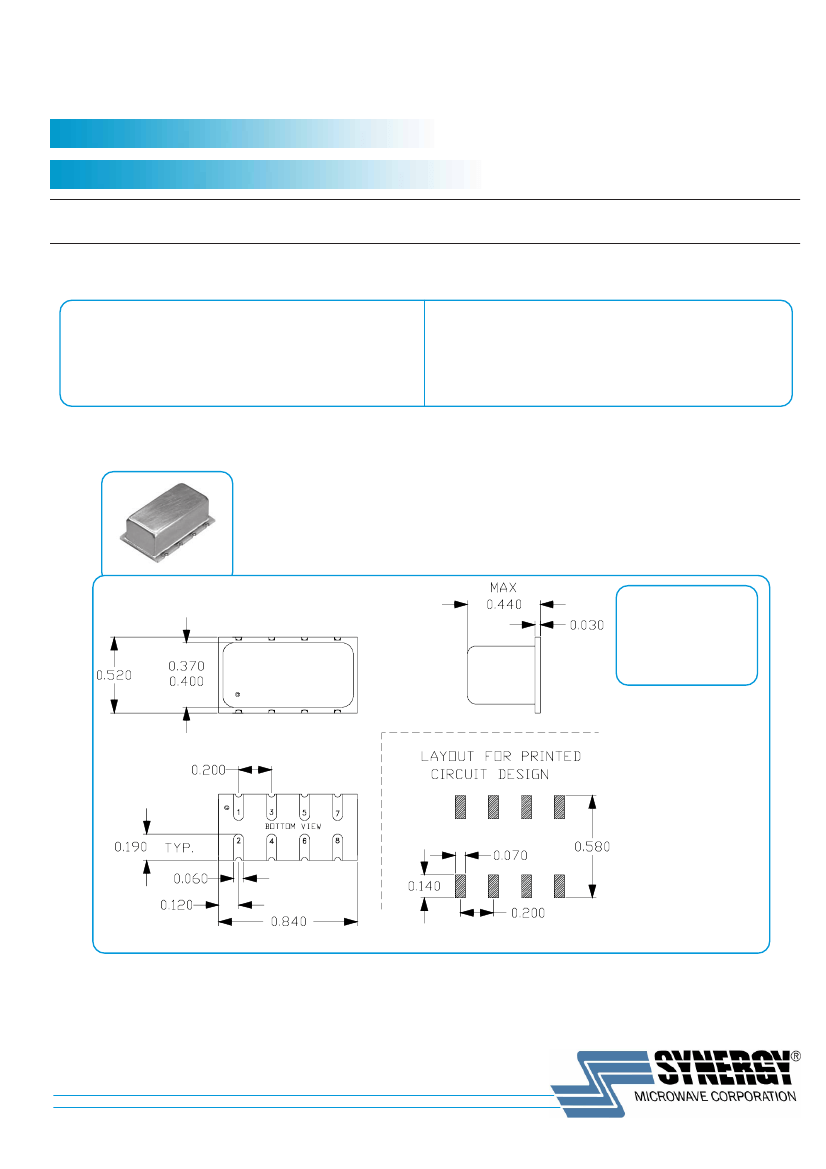

MECHANICAL OUTLINE:102S

PIN-OUT

INPUT

1

o

+90 OUTPUT

6

0

o

OUTPUT

5

ISOLATED*

2

CASE GND

3,4,7,8

* Terminate ISOLATED

port with 50 ohms.

201 McLean Boulevard • Paterson, New Jersey 07504 • Tel: (973) 881-8800 • Fax: (973) 881-8361

E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com
