BSS110E-6288 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BSS110E-6288

BSS110E-6288: Description170mA, 50V, P-CHANNEL, Si, SMALL SIGNAL, MOSFET, TO-92, TO-92, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size301KB，7 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BSS110E-6288 Overview

170mA, 50V, P-CHANNEL, Si, SMALL SIGNAL, MOSFET, TO-92, TO-92, 3 PIN

BSS110E-6288 Parametric

Parameter Name	Attribute value
Parts packaging code	TO-92
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	50 V
Maximum drain current (ID)	0.17 A
Maximum drain-source on-resistance	10 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-92
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	SMALL OUTLINE
Polarity/channel type	P-CHANNEL
Certification status	Not Qualified
surface mount	YES
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Transistor component materials	SILICON
Base Number Matches	1

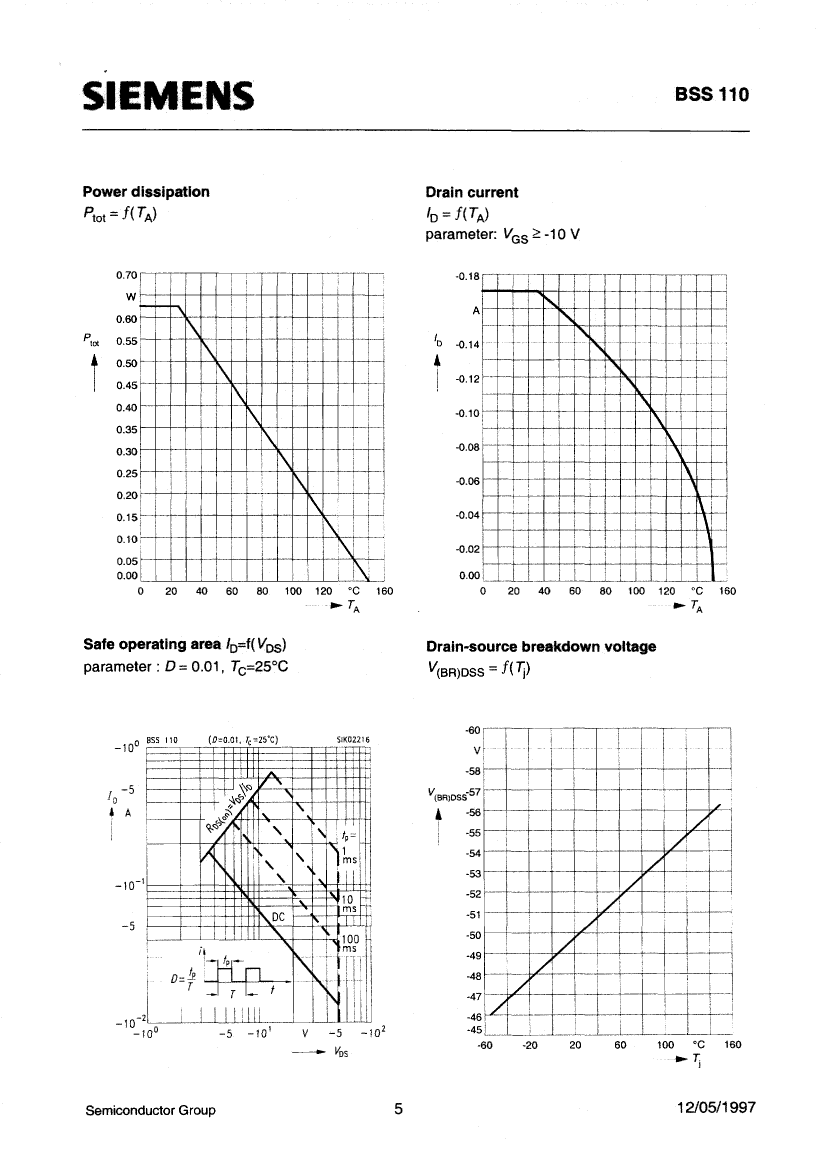

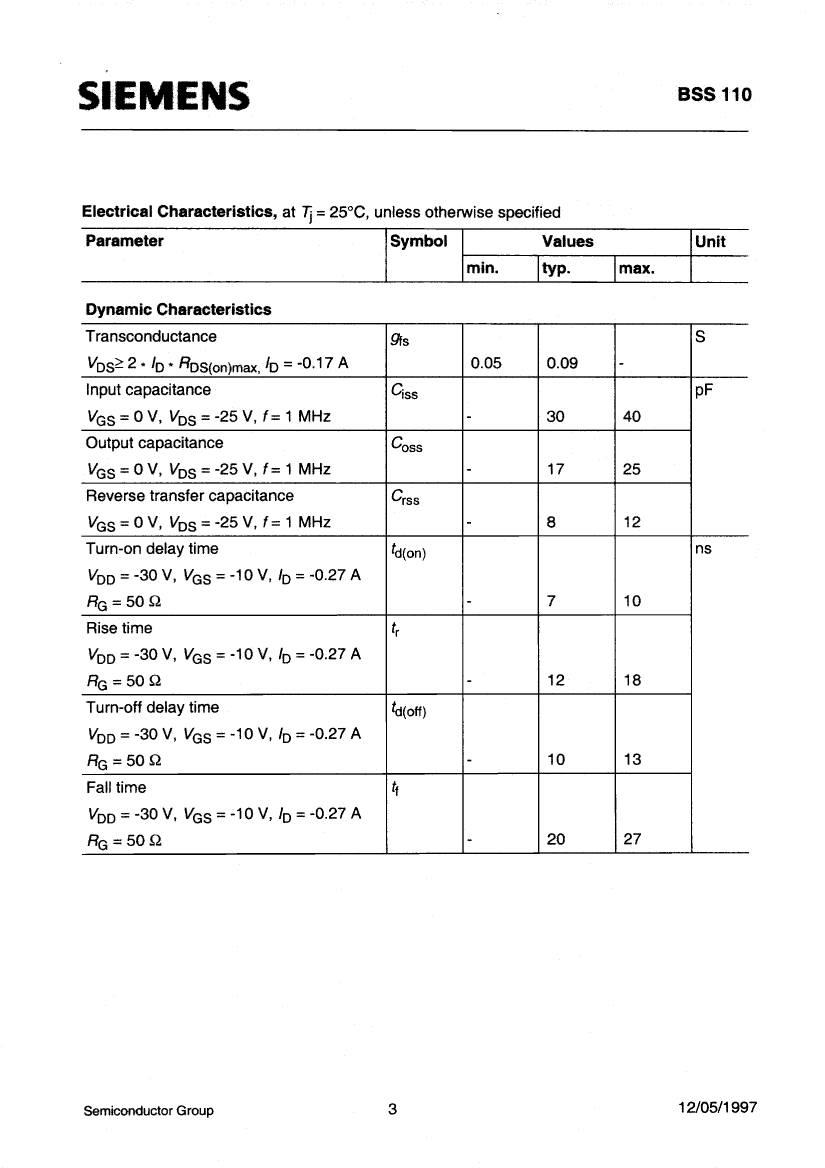

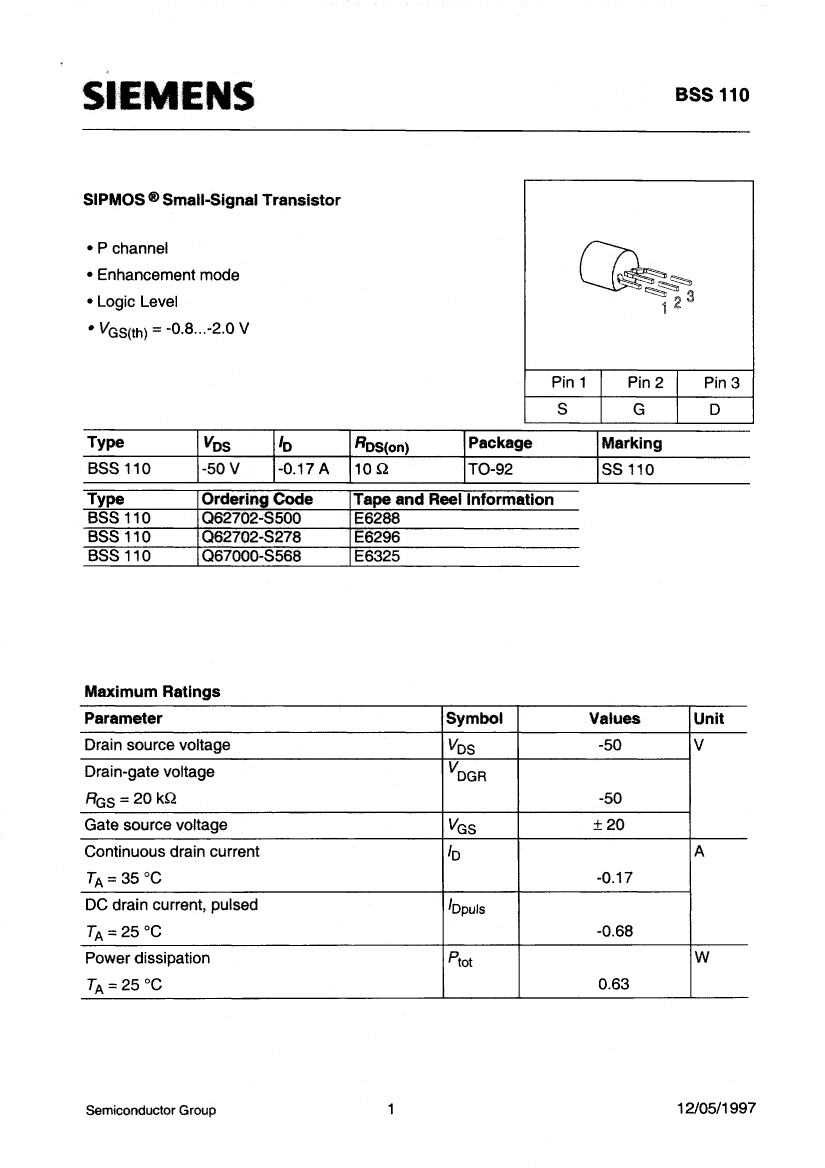

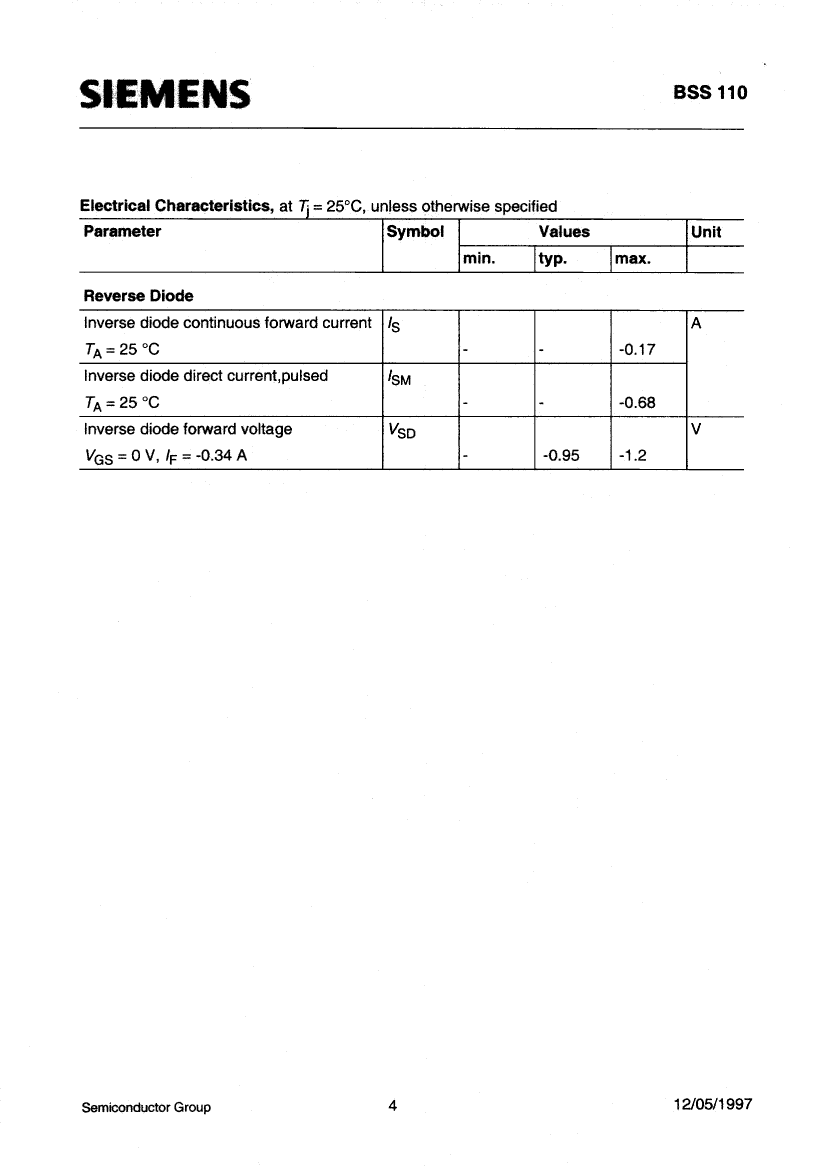

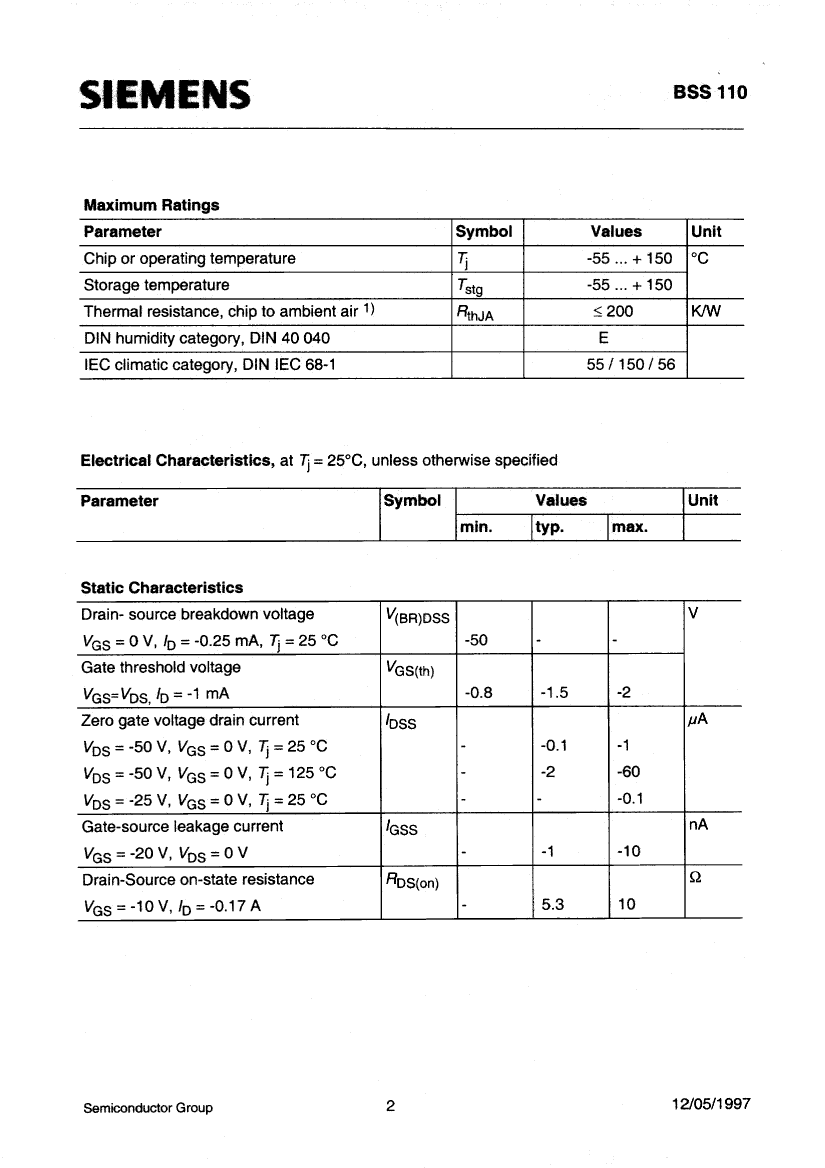

Preview

Download Datasheet

View All

BSS110E-6288 Related Products

	BSS110E-6288	BSS110E6288	BSS110E6296	BSS110E6325
Description	170mA, 50V, P-CHANNEL, Si, SMALL SIGNAL, MOSFET, TO-92, TO-92, 3 PIN	Small Signal Field-Effect Transistor, 0.17A I(D), 50V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-92, TO-92, 3 PIN	Small Signal Field-Effect Transistor, 0.17A I(D), 50V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-92	Small Signal Field-Effect Transistor, 0.17A I(D), 50V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-92
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown	unknown	unknown	unknown
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	50 V	50 V	50 V	50 V
Maximum drain current (ID)	0.17 A	0.17 A	0.17 A	0.17 A
Maximum drain-source on-resistance	10 Ω	10 Ω	10 Ω	10 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-92	TO-92	TO-92	TO-92
JESD-30 code	R-PDSO-G3	R-PDSO-G3	O-PBCY-T3	O-PBCY-T3
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	SMALL OUTLINE	SMALL OUTLINE	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	P-CHANNEL	P-CHANNEL	P-CHANNEL	P-CHANNEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	BOTTOM	BOTTOM
Transistor component materials	SILICON	SILICON	SILICON	SILICON
ECCN code	-	EAR99	EAR99	EAR99
Other features	-	LOGIC LEVEL COMPATIBLE	LOGIC LEVEL COMPATIBLE	LOGIC LEVEL COMPATIBLE
Maximum feedback capacitance (Crss)	-	12 pF	12 pF	12 pF
transistor applications	-	SWITCHING	SWITCHING	SWITCHING
