WTA36SAD9JL-D01 datasheet, PDF

Datasheet> All Categories > The connector> The connector> WTA36SAD9JL-D01

WTA36SAD9JL-D01: DescriptionBoard Connector, 36 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size151KB，2 Pages; ManufacturerAirBorn

Download Datasheet Parametric View All

WTA36SAD9JL-D01 Overview

Board Connector, 36 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle,

WTA36SAD9JL-D01 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36
Base Number Matches	1

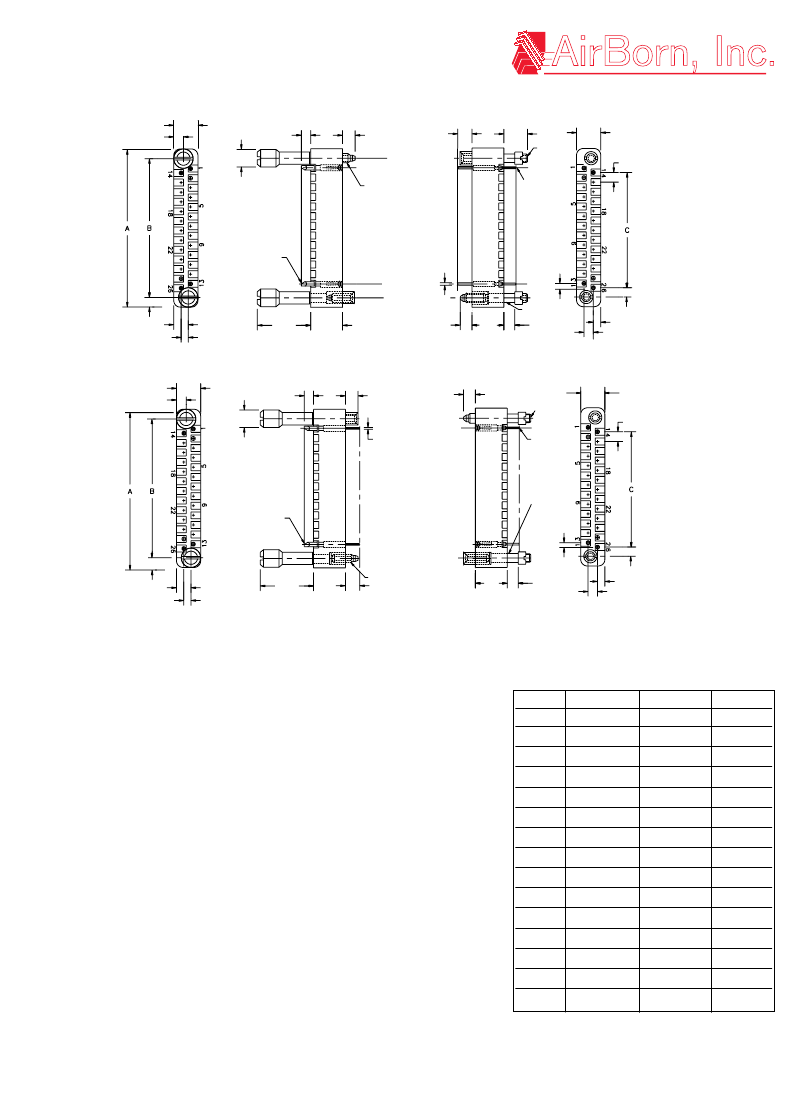

Preview

Download Datasheet

View All

The Interconnect Solution Source

•

ROW

Connectors

Cable to

Board or Panel

WTA-WTA

Examples:

PLUG:

RECEPTACLE:

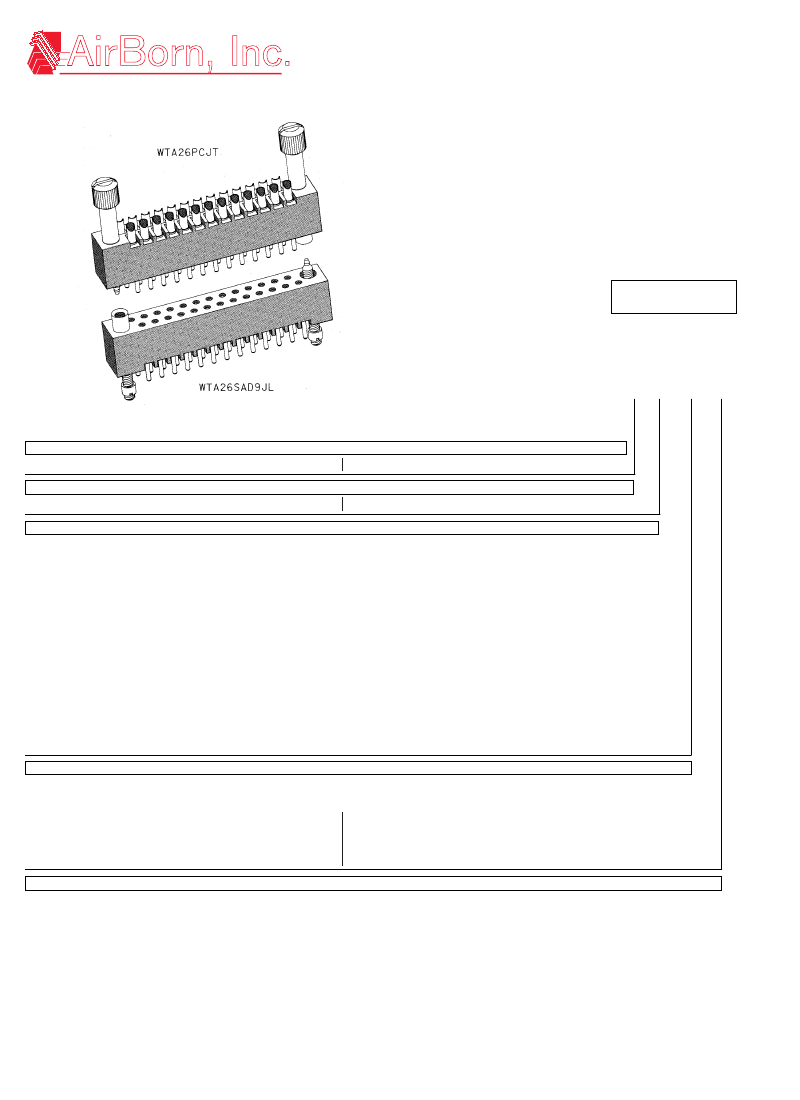

WTA 26

SAD9 JL

PLUG

WTA

= 2-row, straight-plug, w/o mounting ears

RECEPTACLE

SERIES

WTA

= 2-row, straight, receptacle, w/o mounting ears

NUMBER OF CONTACTS

10, 14, 20, 24, 26, 30, 36, 40, 44, 50, 54, 56, 60, 66, 70

TYPE OF CONTACTS

• Pin or socket contacts can be used in either plug or receptacle.

• When pin contacts are use, standard hardware orientation places the female hardware next to the #1 pin contact.

• When socket contacts are used, standard hardware orientation places the male hardware next to the #1 socket.

PD5

PD7

PD9

PD11

PD13

PD15

PD20

PF3

PF6

PF8

PW34

PW40

Pin, straight, solder cup

Pin, straight, dip solder, .078

Pin, straight, dip solder, .109

Pin, straight, dip solder, .140

Pin, straight, dip solder, .172

Pin, straight, dip solder, .203

Pin, straight, dip solder, .234

Pin, straight, dip solder, .312

Pin, straight, flex-circuit, .050

Pin,straight, flex circuit, .093

Pin,straight, flex circuit, .125

Pin, straight, wire wrap, .513

Pin, straight, wire wrap. .625

SAC

SAD7

SAD9

SAD11

SAF3

SAF6

SAF9

SAP

SAW24

SAW40

Socket, straight, solder cup

Socket, straight, dip solder, .109

Socket, straight, dip solder, .140

Socket, straight, dip solder, .172

Socket, straight, flex-circuit, .050

Socket, straight, flex-circuit, .093

Socket, straight, flex-circuit, .140

Socket, straight, pin termination, .150, connector saver

Socket, straight, wire wrap, .375

Socket, straight, wire wrap, .625

TYPE OF HARDWARE

• Jackset hardware determines image of connector. Must specify image with Guide Set Hardware.

• Plug facial seal gaskets and hoods; order separately or add “Q” in part number. Example: WTA10PD9QJ. See “Gaskets” and

“Hoods” under next tab for instructions.

= Turning jackset, .500

= Fixed jackset

JTA

= Turning Jackset, .200

= Fixed jackset, long

JTB

= Hex turning jackset, .200

JTC

= Hex turning jackset, .500

OPTIONS

• OPTION CODES: Add to the end of the part number. Example: WTA10SAD9J-D01. Call factory for additional codes.

-443: Polarized Pin installed in contact position noted by dash number. See “Polarization” under next tab.

-444: Contact position noted by dash number is left open (to mate with -443). See “Polarization” under next tab.

-B82: Termination face sealed against conformal coating.

-D01: Pre-tin contact terminations. (Solder cup, wire wrap and flex circuit contacts are excluded.)

-D54: Combine B82 and D01 special codes.

-G69: Solder cups are fixed in an outward orientation, otherwise contacts can rotate.

“W” Series Connectors

W-10

Airborn, Inc. • 4321 Airborn Drive • Addison, TX 75001-0519

Ph: (972)931-3200 Fax: (972)931-9305 E-mail: info@airborn.com

0005
