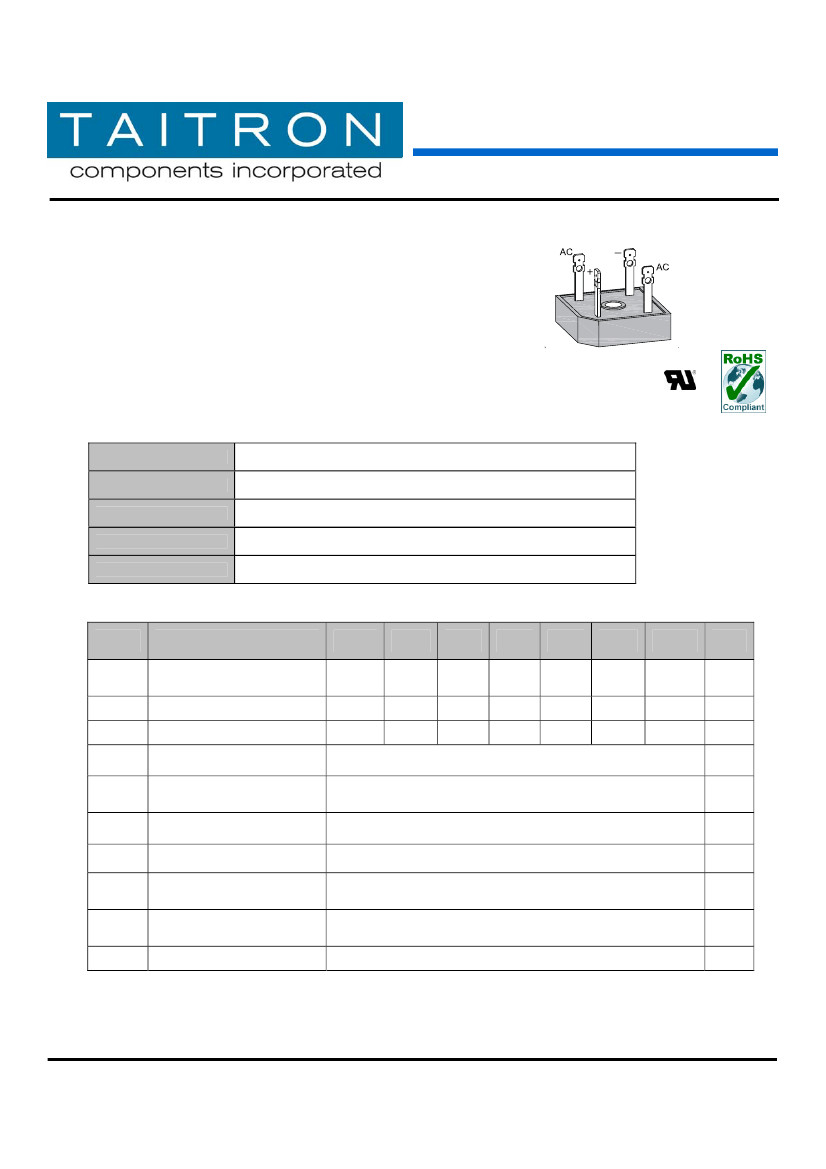

15.0A SINGLE-PHASE
BRIDGE RECTIFIER
TB1505 –TB1510
15.0A Single-Phase Bridge Rectifier
Features
•
High forward surge current capability
•
Ideal for printed circuit board
•
High temperature soldering guaranteed:
260°C/10 seconds, 5 lbs (2.3kg) tension
•
RoHS Compliant
TB35
Mechanical Data
Case:
Polarity:
Terminals:
Mounting Position:
Weight:
Molded plastic body with Metal Heat Sink
Polarity symbols marked on case
Plated 0.25" (6.35mm) lug
Thru hole for #10 screw,20 in -lbs. torque max
0.53 ounce, 15 grams
Maximum Ratings & Electrical Characteristics
(T
Ambient
=25ºC unless noted otherwise)
Symbols
Description
Max. recurrent peak reverse
voltage
Max. RMS voltage
Max. DC blocking voltage
Max. average forward rectified
current @ T
C=
55° C
Peak forward surge current
(Note 1)
Rating for Fusing (t<8.3ms)
Isolation Voltage from case to
lugs
Typical Capacitance
Junction(per element)(Note 2)
Operating junction
temperature range
Storage Temperature Range
TB1505
50
35
50
TB151
100
70
100
TB152
200
140
200
TB154
400
280
400
15.0
300
373
2500
300
-65 to +150
-65 to +150
TB156
600
420
600
TB158
800
560
800
TB1510
1000
700
1000
Unit
V
V
V
A
A
A²sec
V
pF
°C
°C
V
RRM
V
RMS
V
DC
Io
(AV)
I
FSM
l²t
V
ISO
C
j
T
J
T
STG
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-TAITRON
Fax: (800)-TAIT-FAX
(800)-824-8766
(800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. A/JJ 2007-06-15
Page 1 of 5
15.0A SINGLE-PHASE BRIDGE RECTIFIER
TB1505 –TB1510
Symbol
Description
Maximum Instantaneous
Forward Voltage
Drop Per Leg@7.5 A
Maximum DC
Reverse
T
A
=25°
C
Current
Rated DC
Blocking
T
A
=100°
C
Voltage
Maximum Thermal Resistance
(Note 3)
TB1505
TB151
TB152
TB154
1.1
TB156
TB158
TB1510
Unit
V
V
F
10.0
uA
I
R
500
uA
R
θ-JC
2.0
° C/W
NOTES:
1. 8.3ms single half sine-wave superimposed on rated load (JEDEC method).
2. Measured at 1MHz and applied reverse voltage of 4.0Volts D.C.
3. Thermal resistance junction to case mounted on heat sink.

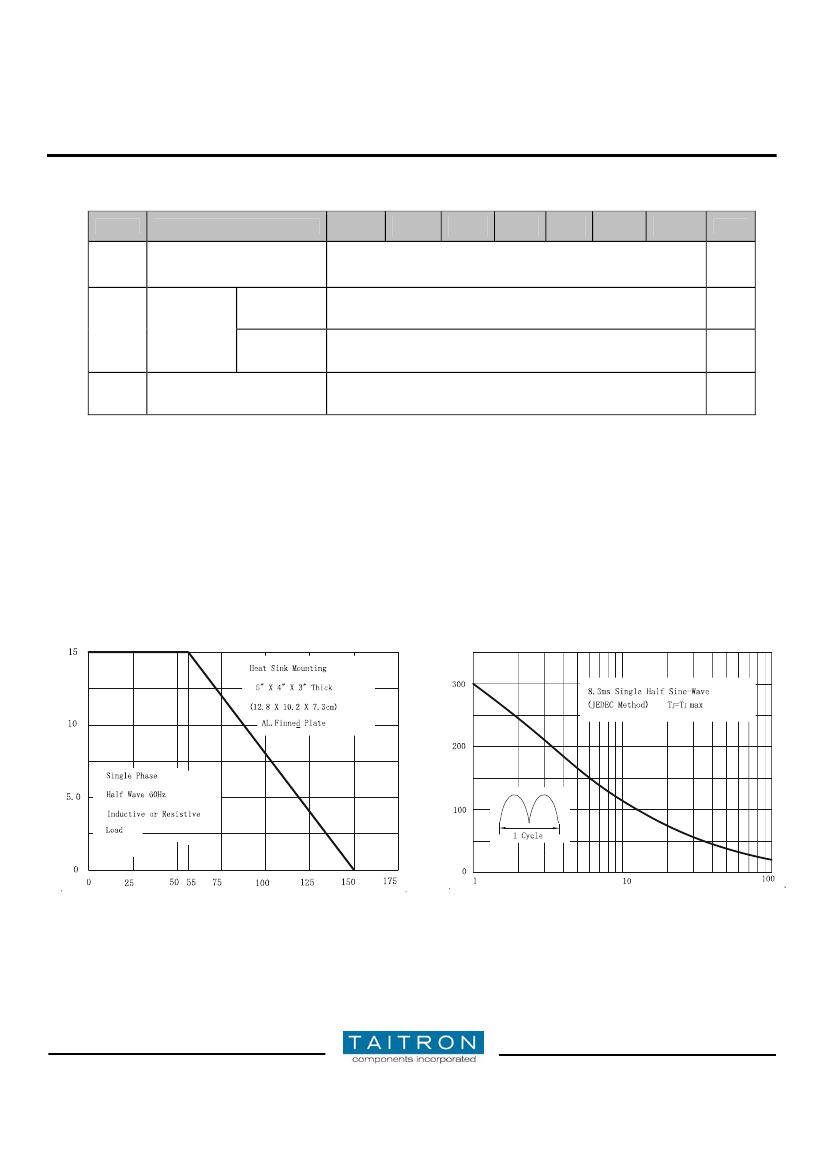

Typical Characteristics Curves
Fig.1- Typical Forward Current Derating Curve
I
FSM
Peak Forward Surge Current
(A)
Case Temperature (°C)
Io(AV) Average Forward Current (A)
Fig.2-Max. Non-repetitive Peak Forward Surge Current
Number of Cycles at 60Hz
Rev. A/JJ 2007-06-15
www.taitroncomponents.com
Page 2 of 5
15.0A SINGLE-PHASE BRIDGE RECTIFIER
TB1505 –TB1510

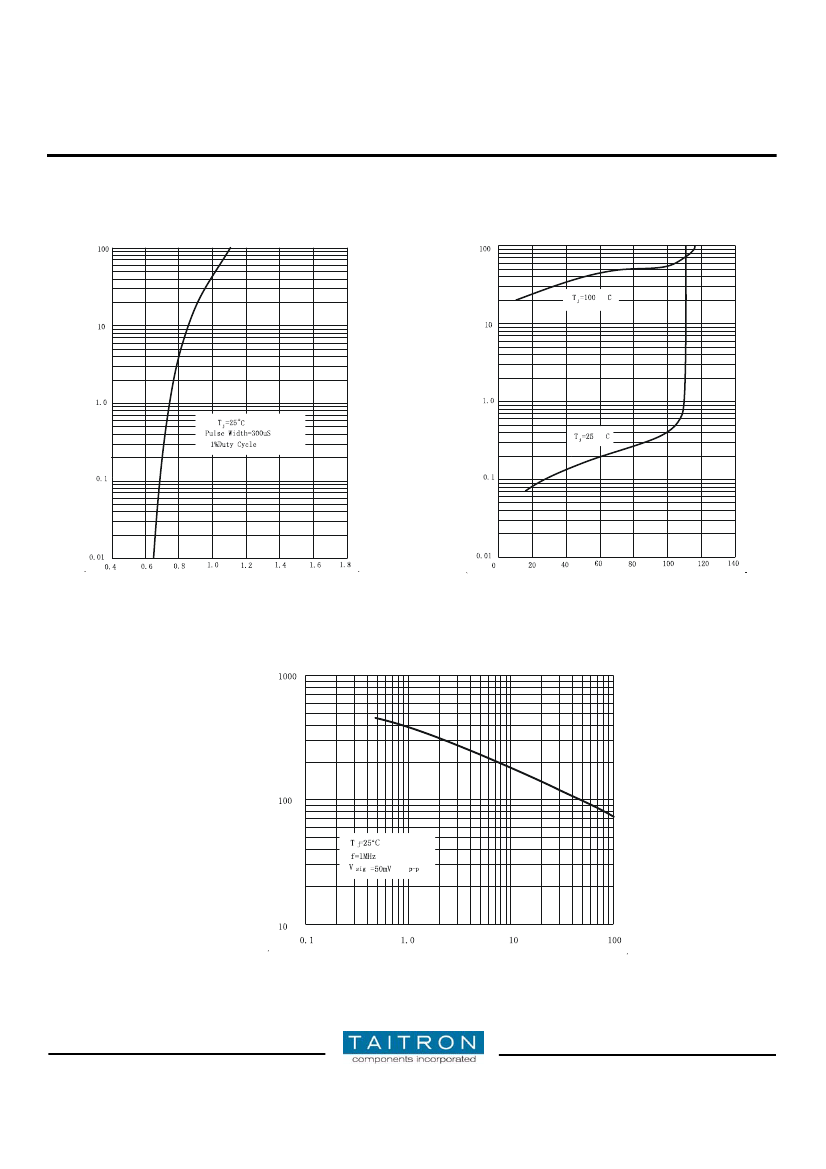

Fig.3- Typical Instantaneous Forward
Characteristics
I
F
Instantaneous Forward Current (A)
I
R
Instantaneous Reverse Current (uA)
Fig.4- Typical Reverse Characteristics
V
F
Instantaneous Forward Voltage (V)
Percent of Rated Peak Reverse Voltage (%)
Fig.5-Typical junction capacitance
C
J
Junction Capacitance (pF)
Reverse Voltage (V)
Rev. A/JJ 2007-06-15
www.taitroncomponents.com
Page 3 of 5
15.0A SINGLE-PHASE BRIDGE RECTIFIER
TB1505 –TB1510
Dimensions in inches (mm)
TB35
Rev. A/JJ 2007-06-15
www.taitroncomponents.com
Page 4 of 5
15.0A SINGLE-PHASE BRIDGE RECTIFIER
TB1505 –TB1510
How to contact us
US HEADQUARTERS
28040 WEST HARRISON PARKWAY, VALENCIA, CA 91355-4162
Tel: (800) TAITRON (800) 824-8766 (661) 257-6060
Fax: (800) TAITFAX (800) 824-8329 (661) 257-6415
Email:
taitron@taitroncomponents.com
Http://www.taitroncomponents.com
TAITRON COMPONENTS MEXICO, S.A .DE C.V.
BOULEVARD CENTRAL 5000 INTERIOR 5 PARQUE INDUSTRIAL ATITALAQUIA, HIDALGO C.P.
42970 MEXICO
Tel: +52-55-5560-1519
Fax: +52-55-5560-2190
TAITRON COMPONENTS INCORPORATED REPRESENTAÇÕES DO BRASIL LTDA
RUA DOMINGOS DE MORAIS, 2777, 2.ANDAR, SALA 24 SAÚDE - SÃO PAULO-SP 04035-001 BRAZIL
Tel: +55-11-5574-7949
Fax: +55-11-5572-0052
TAITRON COMPONENTS INCORPORATED, SHANGHAI REPRESENTATIVE OFFICE
CROSS REGION PLAZA, 899 LINGLING ROAD, SUITE 18C, SHANGHAI, 200030, CHINA
Tel: +86-21-5424-9942
Fax: +86-21-5424-9931
Rev. A/JJ 2007-06-15
www.taitroncomponents.com
Page 5 of 5
