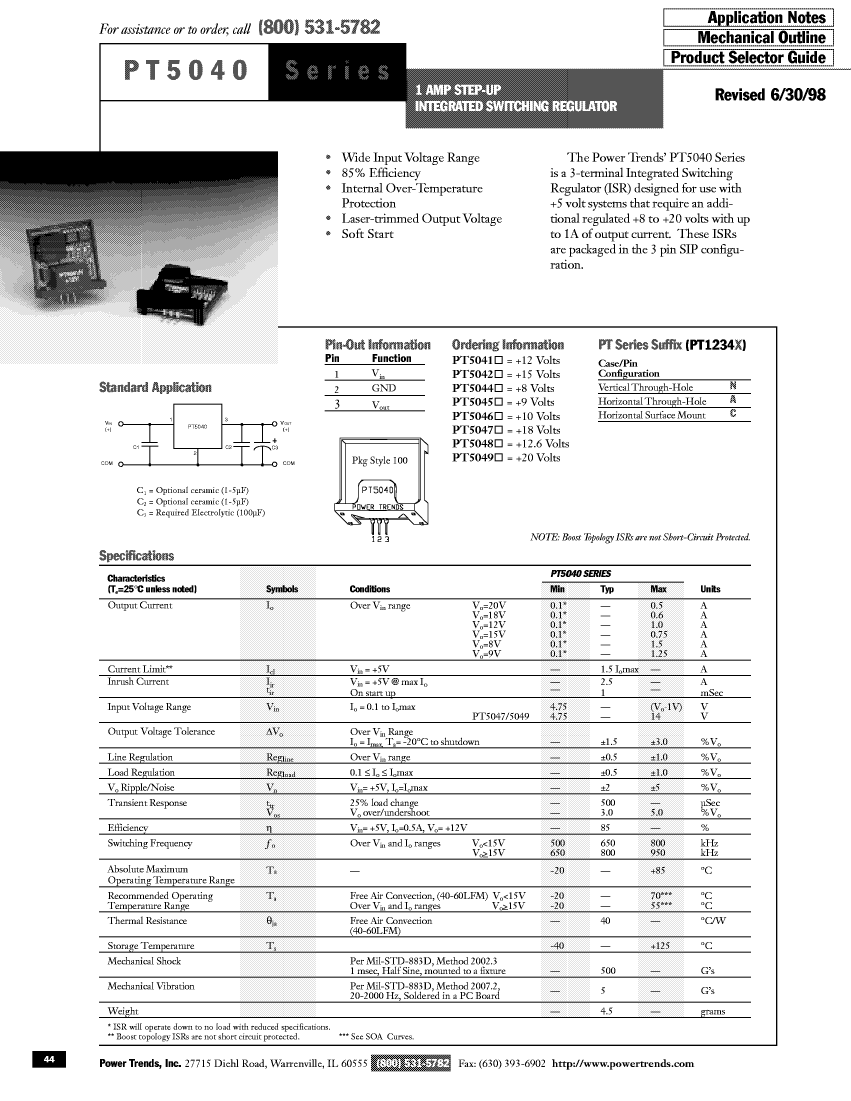

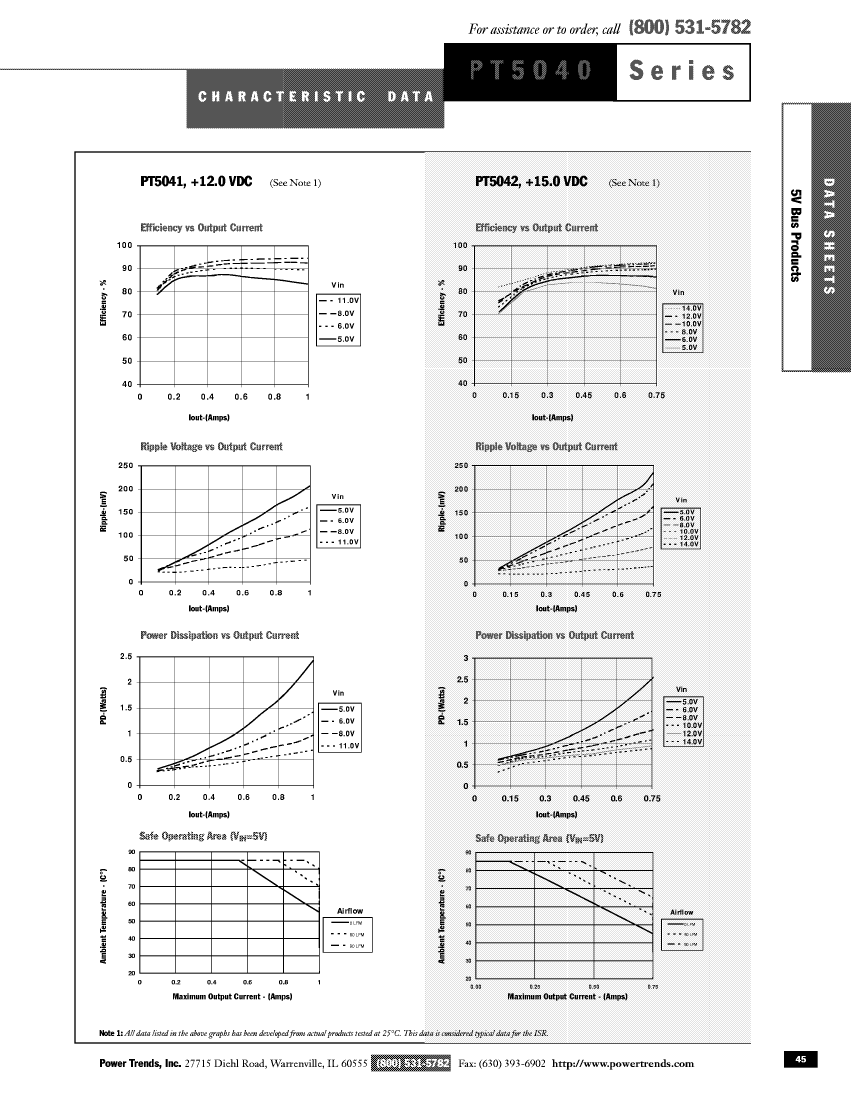

PT5047C datasheet, PDF - EEWORLD Datasheet

PT5047C: DescriptionSwitching Regulator, 0.6A, 950kHz Switching Freq-Max, Hybrid, HORIZONTAL SMT, SIP-3; CategoryPower/power management The power supply circuit; File Size494KB，2 Pages; ManufacturerPower Trends Inc

Download Datasheet Parametric View All

PT5047C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PT5047C	-	-	View	Buy Now

Switching Regulator, 0.6A, 950kHz Switching Freq-Max, Hybrid, HORIZONTAL SMT, SIP-3

Parameter Name	Attribute value
package instruction	HORIZONTAL SMT, SIP-3
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
Maximum input voltage	14 V
Minimum input voltage	4.75 V
Nominal input voltage	5 V
JESD-30 code	R-XSMA-G3
Number of functions	1
Number of terminals	3
Maximum operating temperature	55 °C
Minimum operating temperature	-20 °C
Maximum output current	0.6 A
Nominal output voltage	18 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	YES
Switch configuration	BOOST
Maximum switching frequency	950 kHz
technology	HYBRID
Temperature level	OTHER
Terminal form	GULL WING
Terminal location	SINGLE
Base Number Matches	1
