E13C7D2F-170M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> E13C7D2F-170M

E13C7D2F-170M: DescriptionCRYSTAL OSCILLATOR, CLOCK, 170MHz, LVPECL OUTPUT; CategoryPassive components oscillator; File Size144KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

E13C7D2F-170M Overview

CRYSTAL OSCILLATOR, CLOCK, 170MHz, LVPECL OUTPUT

E13C7D2F-170M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	TRISTATE ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT
maximum descent time	1 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Manufacturer's serial number	E13C7
Installation features	SURFACE MOUNT
Nominal operating frequency	170 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	LVPECL
Output load	50 OHM
physical size	7mm x 5mm x 2mm
longest rise time	1 ns
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Gold (Ni/Au)
Base Number Matches	1

Preview

Download Datasheet

View All

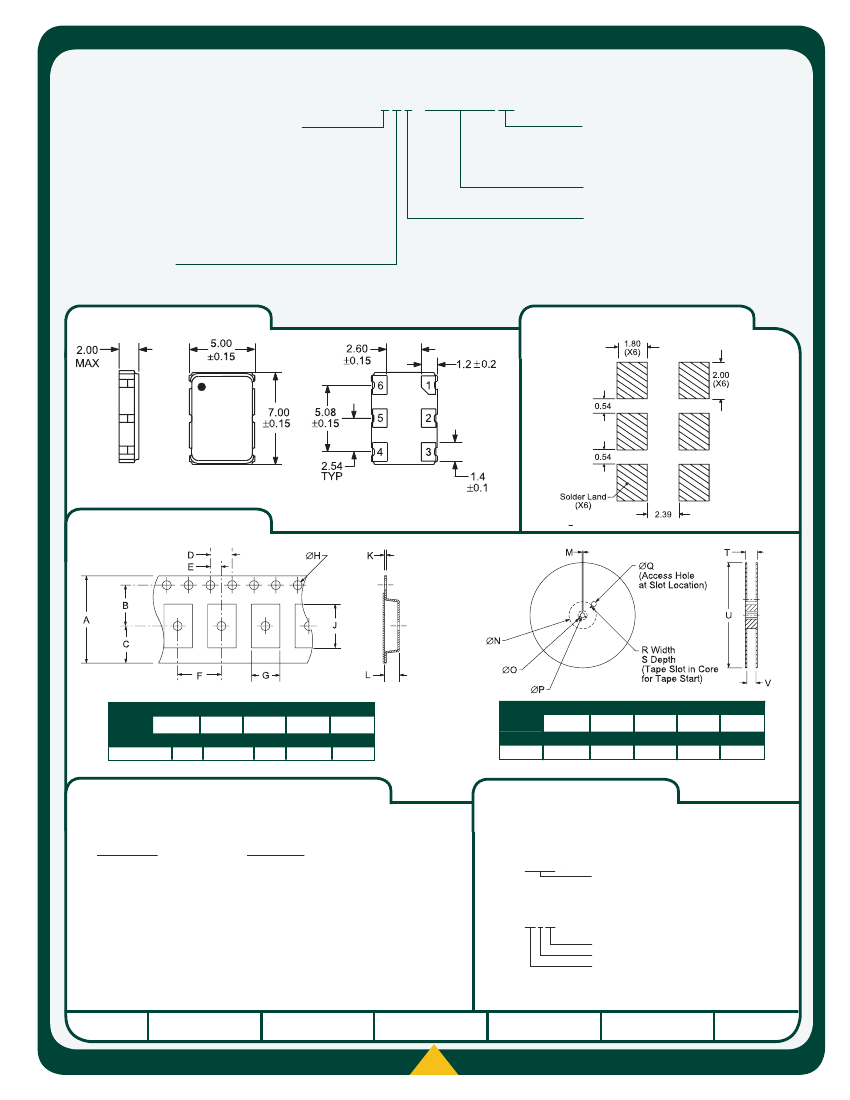

E13C7

Series

• RoHS Compliant (Pb-Free)

• LVPECL Output Oscillators

• 3.3V Supply Voltage

• AT-Cut Fundamental Mode Inverted Mesa Crystal

• Ceramic 6-pad SMD Package

• Stability to 25ppm

• Tri-State Output

• Complementary Output

• Available on Tape and Reel

• Wide Range of Available Frequencies

ELECTRICAL SPECIFICATIONS

Nominal Frequency

E13C7

2.0

7.0

5.0

OSCILLATOR

38.880MHz to 77.760MHz, and 78.125MHz, 80 MHz, 80.157MHz, 85MHz, 87.125MHz, 90MHz, 100MHz,

106.25MHz, 110MHz, 119MHz, 120MHz, 122.888MHz, 124.4MHz, 125MHz, 127MHz, 128MHz, 133MHz,

133.333MHz, 137.472MHz,150MHz, 155.52M, 156.25MHz, 161.1328MHz , 162.5M, 166M, 170MHz,

175MHz, 187.5MHz, 200MHz, 208MHz

Operating Temperature Range

Storage Temperature Range

Supply Voltage (V

)

Input Current

Frequency Tolerance / Stability

Inclusive of All Conditions: Calibration Tolerance at 25°C,

Frequency Stability over the Operating Temperature Range,

Supply Voltage Change, Output Load Change, 1st Year

Aging at 25°C, Shock, and Vibration

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Rise Time / Fall Time

Duty Cycle

Load Drive Capability

Logic Control / Additional Output

Tri-State Input Voltage

of 70% of V

Minimum

No Connection

of 30% of V

Maximum

Standby Current

Start Up Time

RMS Phase Jitter

Typical Phase Noise

< 77.760MHz FJ = 12kHz to 20MHz

> 77.760MHz FJ = 12kHz to 20MHz

Fo=155.520MHz

Without Load

20% to 80% of waveform

at 50% of waveform

0°C to 70°C, or -40°C to +85°C

-55°C to 125°C

3.3V

±5%

75mA Maximum

±100ppm, ±50ppm, or

±25ppm Maximum

-1.025V

Minimum

-1.620V

Maximum

1 nSeconds Maximum

50 ±10(%)

50 ±5(%)

50 Ohms into V

-2.0V

No Connect and Complementary Output or

Tri-State and Complementary Output

Enables Output

Disables Output: High Impedance

10µA Maximum

10 mSeconds Maximum

2 pSec Maximum

1 pSec Maximum

-60dBc/Hz at 10Hz Offset

-95dBc/Hz at 100Hz Offset

-124dBc/Hz at 1kHz Offset

-143dBc/Hz at 10kHz Offset
