CL Series
Ø 0.555” (14mm) Watertight LED
Indicator, IP67 and Vandal Resistant
Robust LED indicator with prominent bezel, especially suitable for
high vibration environments and is ideal for heavy-duty applications.
Application
•
Status Indication
•
Signaling
•
Remote Power Indication
• Maritime, Oil and Gas Industry
•
Automation and Control
• Maintenance and Warning Indication
•
Safety and Emergency
•
Main Power Indication
•
Aircraft/Military Instrumentation
Key Features
•
For panel hole diameter: 0.555” (14mm)
•
Panel thickness up to .354” (9mm)
•
Prominent LED indicator for increased visibility
•
Internally potted-suitable for high vibration applications
•
Designed for extreme, harsh and outdoor environments
•
Available in operating voltage of 2V to 60V, 120VAC, and 240VAC
• Offered with 6” 24 AWG wire leads, red (anode) and black(cathode)
• Mil Spec MIL-W22759/33 wire
•
Robust nickel-plated brass housing
•
Available in four single colors: red, yellow, green, and blue
•
Available in red/green bi-color
• Viewing angle: 20˚-50˚ (dependent on model)
•
Mounting hardware provided: hex nut, spacer, and gasket
•
Thread size: M14*1.0mm
•
Mounting torque: 20 ± 2 in-lb ( 2.26 ± 0.23 N-mm )
•
Resistant to vandal, shock, and vibration
•
For custom cable length, connectors or colors contact VCC
•
RoHS and REACH Compliant
vcclite.com | 1.800.522.5546
CL Series | 02/20 | Page 1 of 4
Ordering Data
Series
CL
CL
Nickel Finish
1
Terminal
1
Leads
LED Specifications
2006
See Chart for
LED Part Number
Resistor Code
9909
See Chart for
Resistor Value Code
I
Sealing
I
IP67
Example:
CL-1-2006-9909-I
CL Nickel Finish, Wire Leads, Red LED 12 Volt, IP67
LED Specification Chart
LED Part
Numbers
Color
Luminous
Intensity (mcd)
Typ. @ IF (mA)
Electrical and Optical Characteristics (TA = 25°C)
Viewing
Angle
(2θ
1/2
)
Peak
Wavelength
(nm)
Resistor Chart
Resistor
Value Code
Voltage
Operating Specification
Resistor Value (Ohms)
Green,Yellow Red,
Bicolor LED
VF Typ.
@ IF (mA)
Current
(mA)
Resistor Value (Ohms)
Blue LED
SINGLE COLOR
2006
2007
2008
2004
Red
Yellow
Green
Blue
100
500.0
100.0
400.0
20
20
20
20
2.0
2.0
2.1
3.3
20
20
20
20
30˚
30˚
30˚
20˚
627
590
574
460
0000
9907
9922
9908
9909
9910
9911
2
5
5
12
12
24
24
48
48
60
60
120VAC
240VAC
20
20
20
20
20
20
20
9
9
7
7
7
3.5
None
150
Not Available
65
511
357
1100
953
4870
4530
8250
7500
16500
66400
Contact VCC
Contact VCC
BI-COLOR
Red
2005
Green
130.0
20
2.1
20
750.0
20
1.95
20
50˚
574
645
9912
9913
9914
9915
0120
0240
Note:
Bi-Color not available in AC voltages
vcclite.com | 1.800.522.5546
CL Series | 02/20 | Page 2 of 4

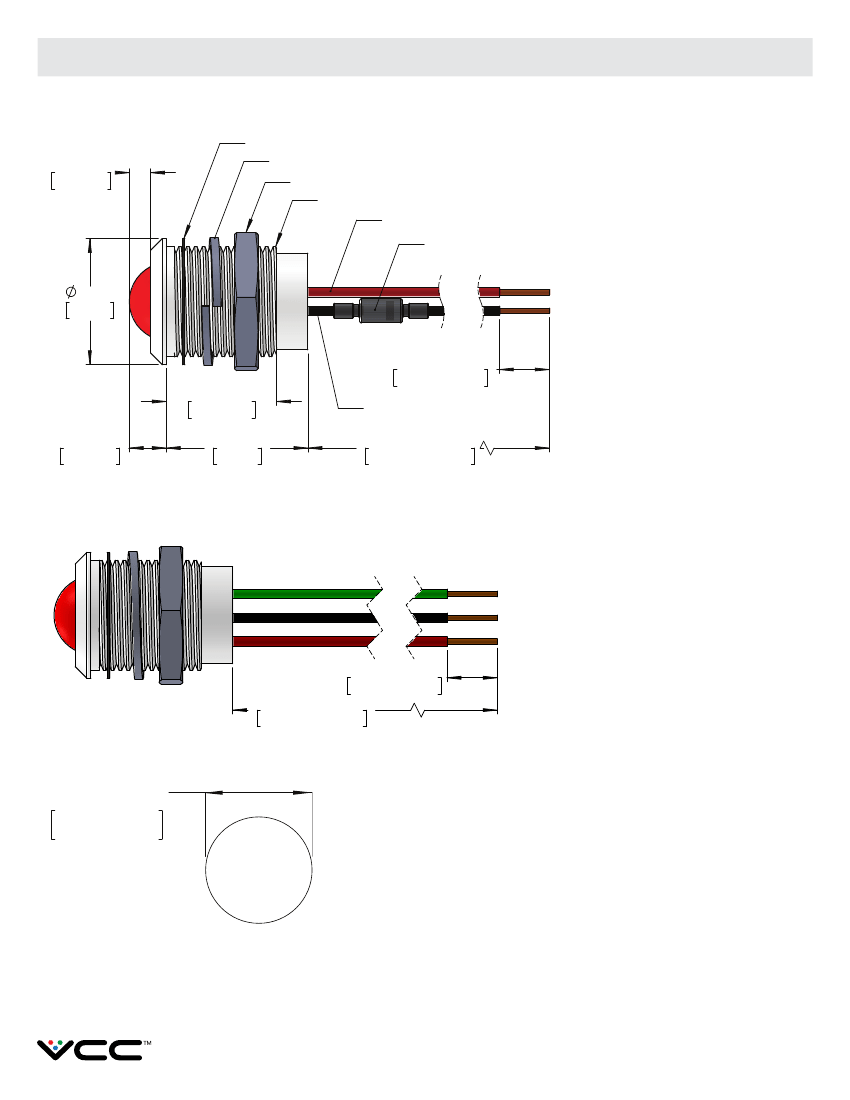

Product Dimensions
CL Series
Wire Leads
.106in
2.69mm
GASKET
WASHER
M14 HEX NUT
M14 X 1.0
24AWG RED(ANODE)
*ONLY 120/240VAC VERSION HAS AN EXTERNAL DIODE
WITH HEAT SHRINK TUBE ON BLACK WIRE
.630in
16mm
.250in±.125
6.35mm±3.18
24AWG BLACK(CATHODE)
.552in
14.01mm
.185in
4.69mm
CL Series
Bi-Color
.709in
18mm
6.00in±.25
152.40mm±6.35
VERSIONS OF 120/240VAC ARE NOT
AVAILABLE FOR BI-COLOR
CONFIGURATIONS
6.00in±.25
152.40mm±6.35
Recommended Mounting Hole
.250in±.125
6.35mm±3.18
Ø 0.555in
Ø 14mm
+0.004
0.000
+0.10
0
Notes:
1. All dimensions are in inches [millimeters]
2. Tolerance is ±[0.25] 0.01 unless otherwise noted.
3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
vcclite.com | 1.800.522.5546
CL Series | 02/20 | Page 3 of 4
Product Specifications
Materials
Housing
Wire Leads
Washer
Gasket
(for W and I option)
Hex Nut
Nickel-plated brass housing
24 awg, 6″ length,
red anode, black cathode
Stainless steel
70 Buna
Brass Alloy 360 - 1/2 Hard
Installation Specifications
Mounting Hole
Panel Thickness
(max.)
Wire Leads
Wire Leads
AC Version
Mounting Torque
0.555″ +.004/-.000″
(14mm +0.10/-0.00mm)
0.354″ (9.0mm)
24AWG UL1061 6.0” ( 152.4mm)
red (anode) and black (cathode),
leads stripped .250” (6.35mm)
Black (hot)
White (neutral) with external
diode on black wire
20 ± 2in-lb (2.26 ± 0.23 N-mm)
Electrical Specifications
Operating Voltage
Operating Current
Refer to table
Refer to table
Temperature Specifications
Operating
Temperature
Storage
Temperature
-40˚C to +85˚C
-40˚F to +185˚F
-40˚C to +85˚C
-40˚F to +185˚F

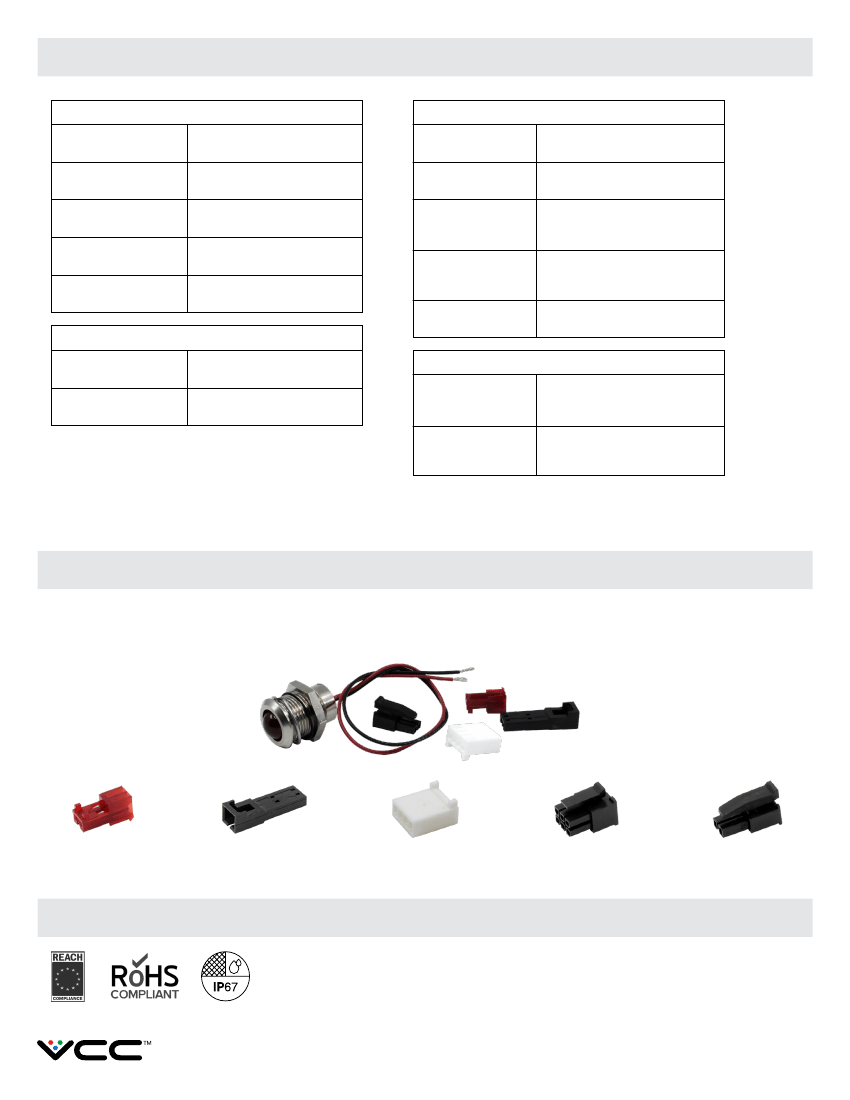

Custom Connector
VCC can add crimped connections to your panel mount indicators (PMIs) and combine two final steps into
one seamless transaction. We offer a range of connector options, including:
2 Position
Connector
Wire-to-Wire Crimp
Housing
Crimp Housing
Connector
Micro-Fit Connector
- Dual Row
Micro Rectangular
Power Connector
Compliances and Approvals
vcclite.com | 1.800.522.5546
CL Series | 02/20 | Page 4 of 4
