SM8503(LQFP) datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> SM8503(LQFP)

SM8503(LQFP): DescriptionMicrocontroller, 8-Bit, MROM, SM85 CPU, 6MHz, PQFP100,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size5MB，76 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

SM8503(LQFP) Overview

Microcontroller, 8-Bit, MROM, SM85 CPU, 6MHz, PQFP100,

SM8503(LQFP) Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
bit size	8
CPU series	SM85
JESD-30 code	S-PQFP-G100
JESD-609 code	e0
Number of terminals	100
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP100,.63SQ,20
Package shape	SQUARE
Package form	FLATPACK
power supply	2/5 V
Certification status	Not Qualified
RAM (bytes)	1024
rom(word)	32768
ROM programmability	MROM
speed	6 MHz
Maximum slew rate	20 mA
surface mount	YES
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Base Number Matches	1

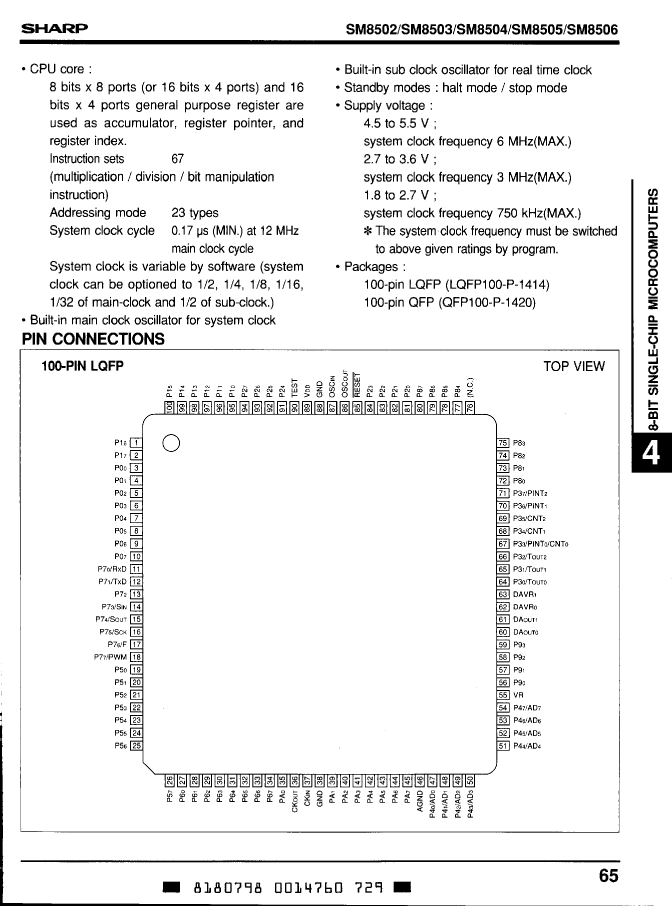

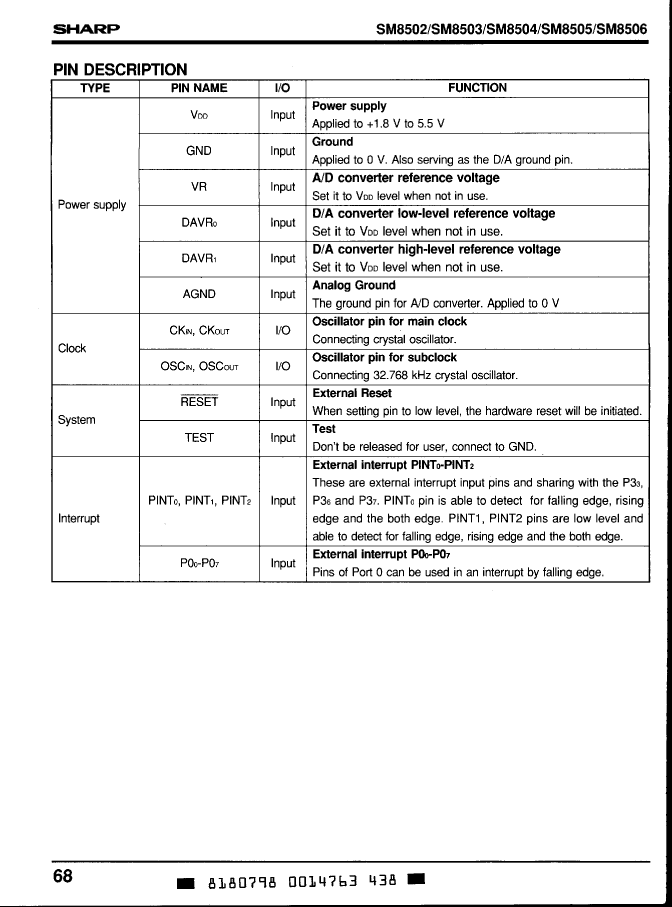

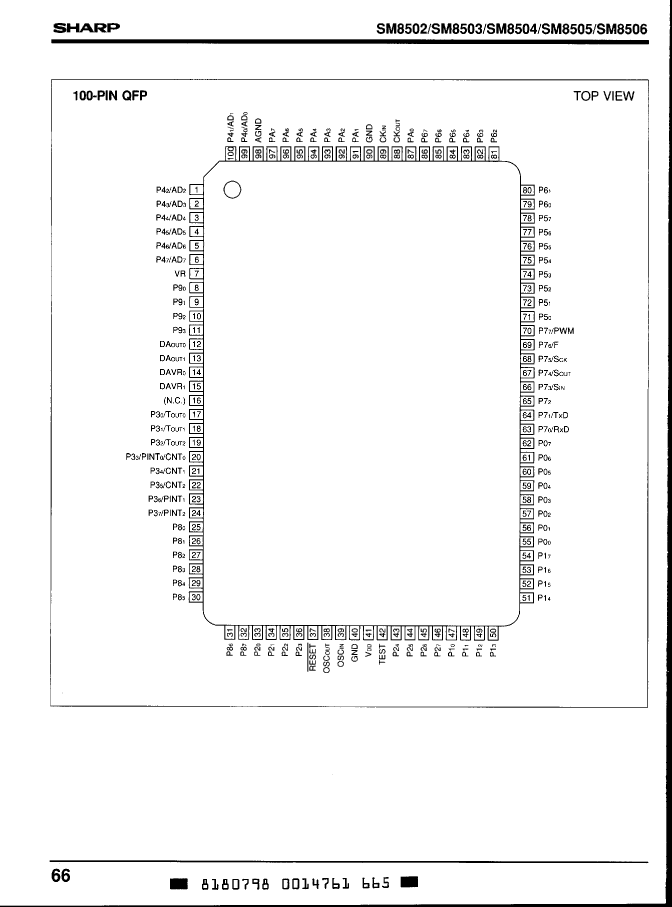

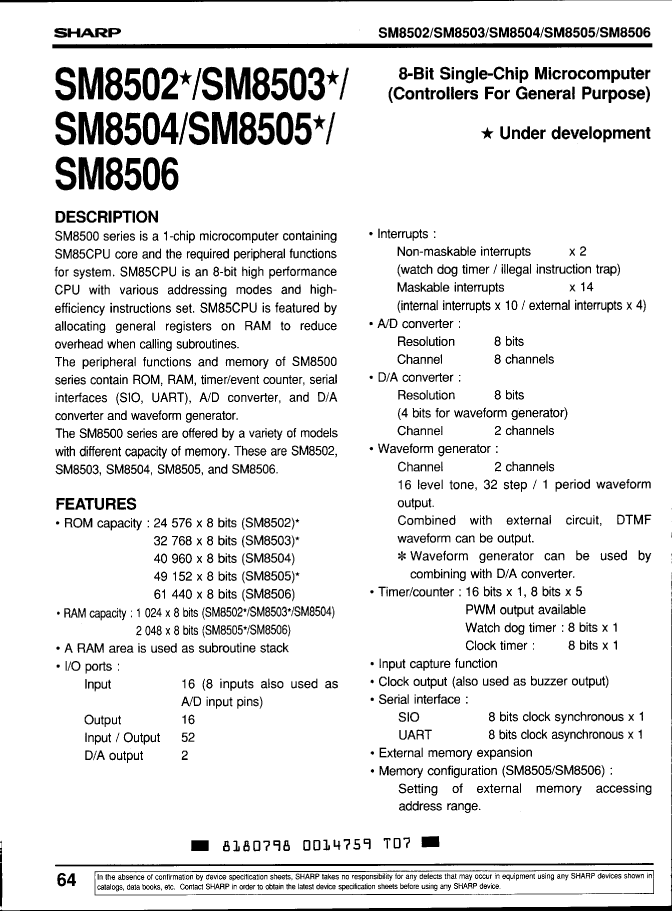

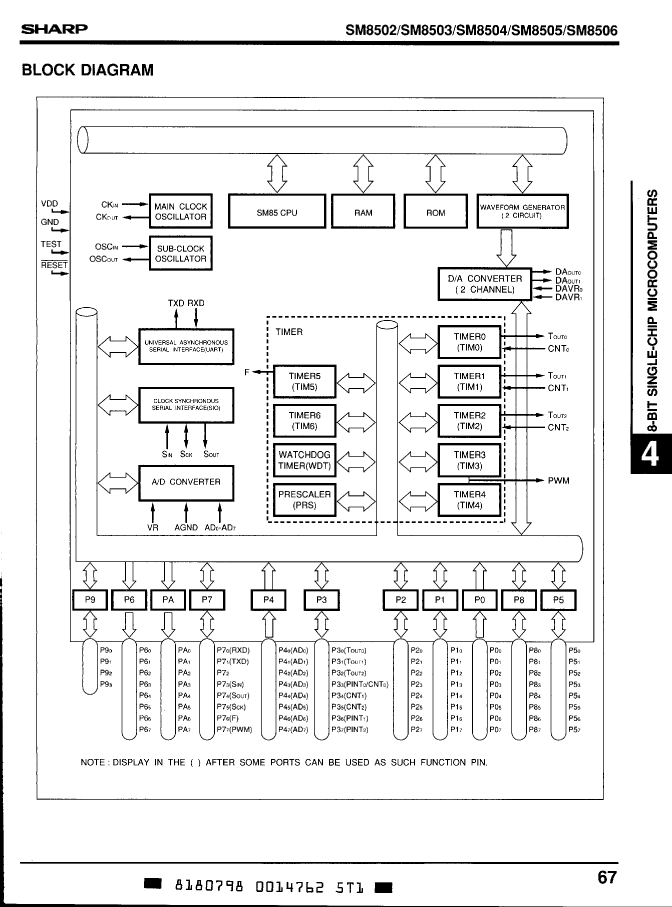

Preview

Download Datasheet

View All

SM8503(LQFP) Related Products

	SM8503(LQFP)	SM8502(LQFP)	SM8502(QFP)	SM8503(QFP)	SM8505(QFP)	SM8505(LQFP)
Description	Microcontroller, 8-Bit, MROM, SM85 CPU, 6MHz, PQFP100,	Microcontroller, 8-Bit, MROM, SM85 CPU, 6MHz, PQFP100,	Microcontroller, 8-Bit, MROM, SM85 CPU, 6MHz, PQFP100,	Microcontroller, 8-Bit, MROM, SM85 CPU, 6MHz, PQFP100,	Microcontroller, 8-Bit, MROM, SM85 CPU, 6MHz, PQFP100,	Microcontroller, 8-Bit, MROM, SM85 CPU, 6MHz, PQFP100,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
bit size	8	8	8	8	8	8
CPU series	SM85	SM85	SM85	SM85	SM85	SM85
JESD-30 code	S-PQFP-G100	S-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	S-PQFP-G100
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of terminals	100	100	100	100	100	100
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP	QFP	QFP	LQFP	LFQFP
Encapsulate equivalent code	QFP100,.63SQ,20	QFP100,.63SQ,20	QFP100,.7X1.0	QFP100,.7X1.0	QFP100,.7X1.0	QFP100,.63SQ,20
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE, FINE PITCH
power supply	2/5 V	2/5 V	2/5 V	2/5 V	2/5 V	2/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	1024	1024	1024	1024	2048	2048
rom(word)	32768	24576	24576	32768	49152	49152
ROM programmability	MROM	MROM	MROM	MROM	MROM	MROM
speed	6 MHz	6 MHz	6 MHz	6 MHz	6 MHz	6 MHz
Maximum slew rate	20 mA	20 mA	20 mA	20 mA	20 mA	20 mA
surface mount	YES	YES	YES	YES	YES	YES
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULLWING	GULLWING
Terminal pitch	0.5 mm	0.5 mm	0.635 mm	0.635 mm	0.65 mm	0.5 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Base Number Matches	1	1	1	1	-	-
