Part Number

Search

BTS136

Description
Power Field-Effect Transistor, 27A I(D), 50V, 0.05ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220SMD, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size159KB,8 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Download Datasheet Parametric Compare View All

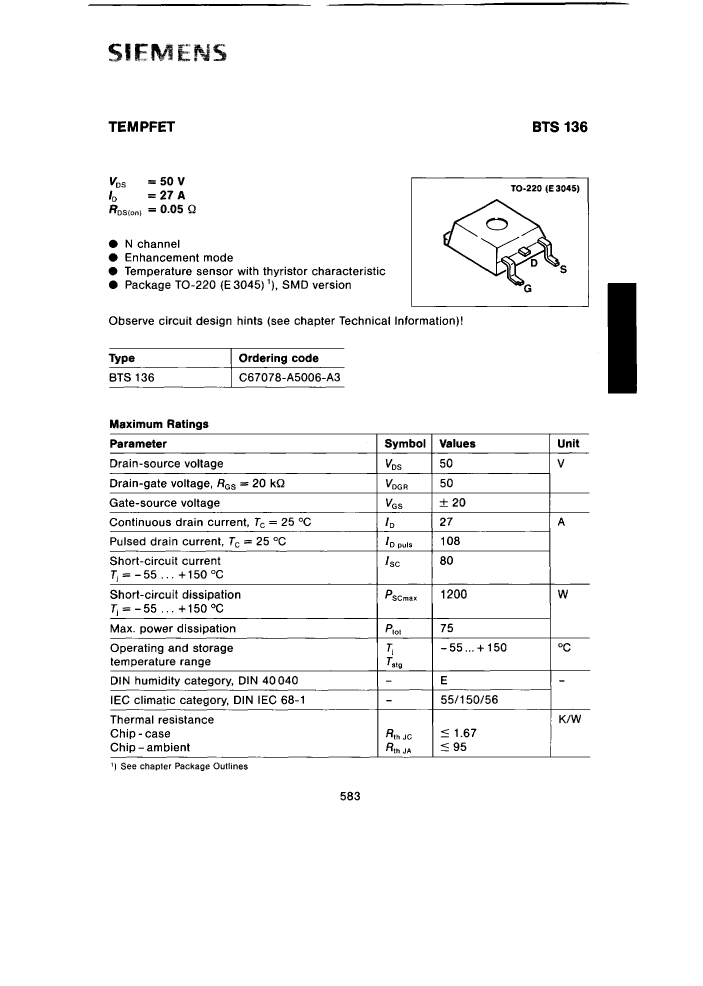

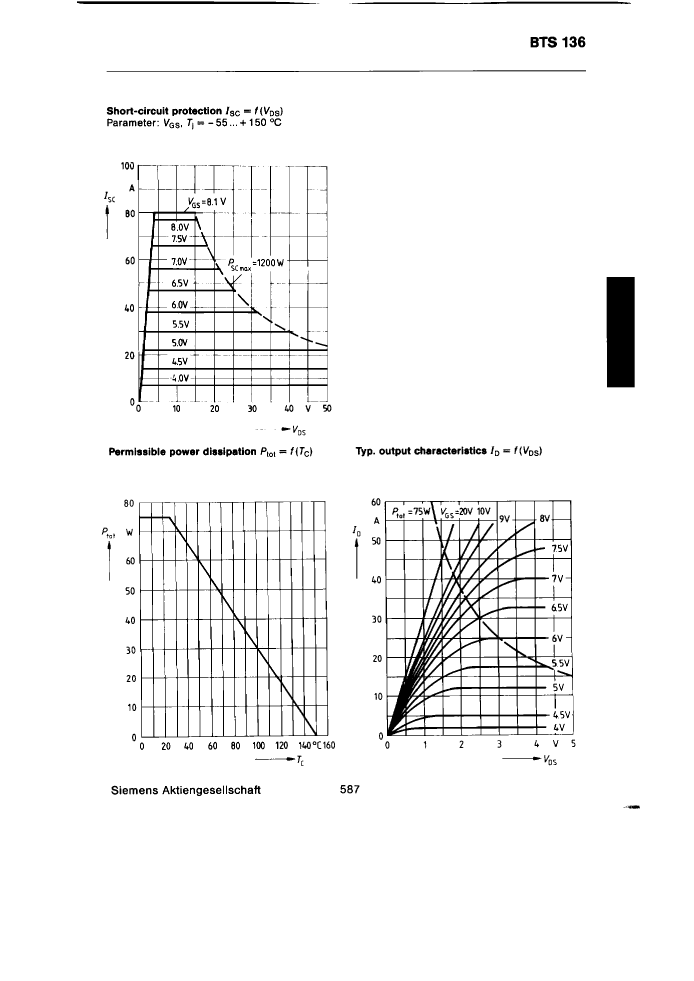

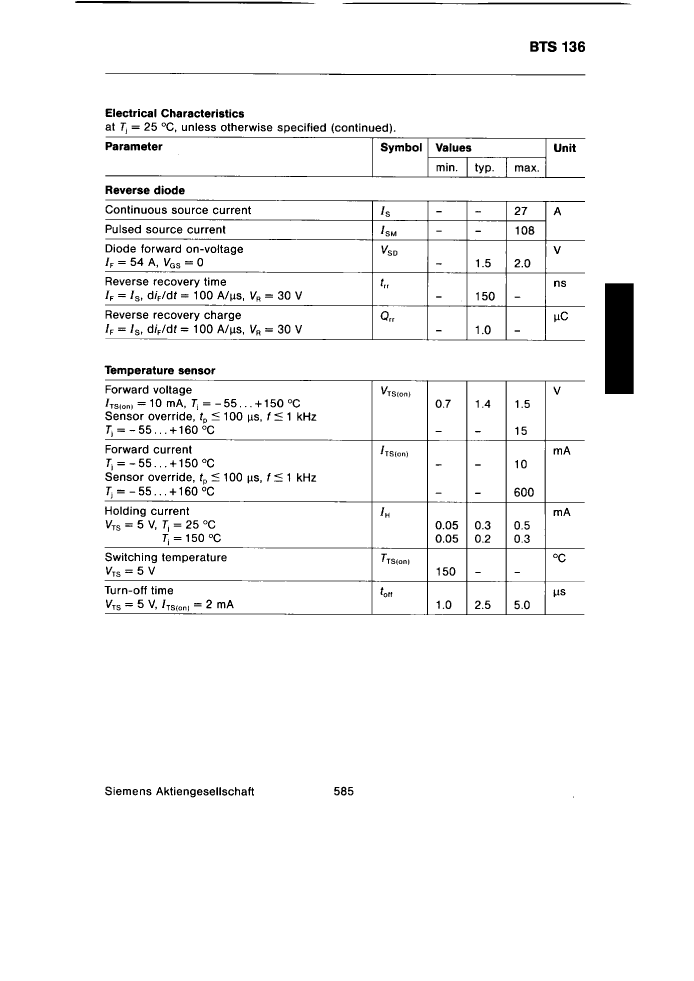

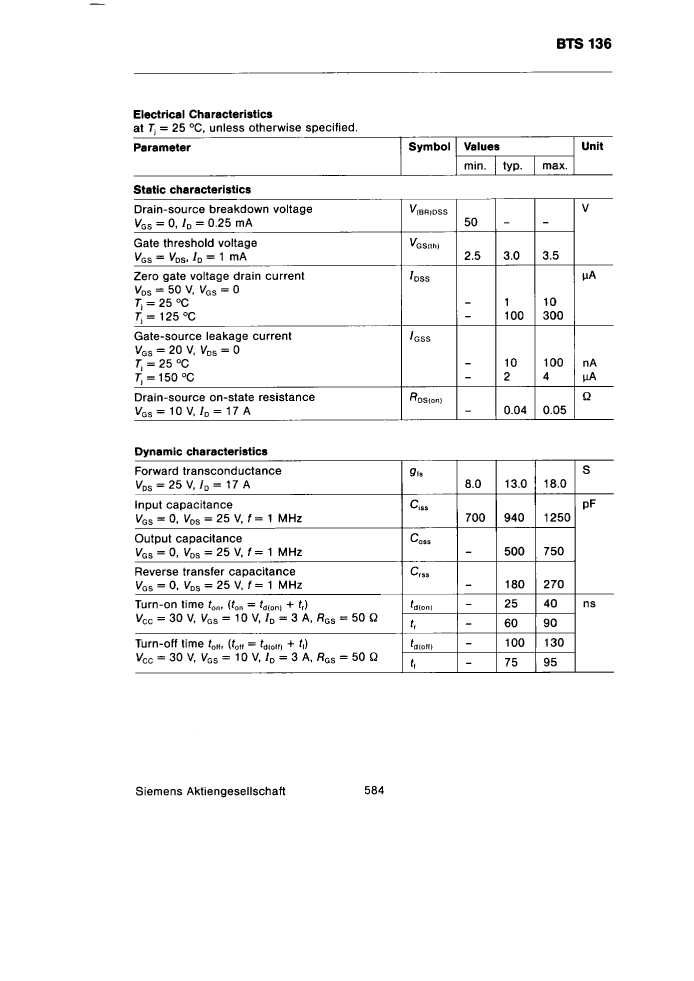

BTS136 Overview

Power Field-Effect Transistor, 27A I(D), 50V, 0.05ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220SMD, 3 PIN

BTS136 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Parts packaging codeTO-220
package instructionTO-220SMD, 3 PIN
Contacts3
Reach Compliance Codeunknown
ECCN codeEAR99
ConfigurationSINGLE WITH BUILT-IN DIODE AND TEMPERATURE SENSOR
Minimum drain-source breakdown voltage50 V
Maximum drain current (Abs) (ID)27 A
Maximum drain current (ID)27 A
Maximum drain-source on-resistance0.05 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeR-PDSO-G2
JESD-609 codee0
Number of components1
Number of terminals2
Operating modeENHANCEMENT MODE
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeN-CHANNEL
Maximum pulsed drain current (IDM)108 A
Certification statusNot Qualified
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Transistor component materialsSILICON
Base Number Matches1

BTS136 Related Products

BTS136
Description Power Field-Effect Transistor, 27A I(D), 50V, 0.05ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220SMD, 3 PIN
Is it Rohs certified? incompatible
Parts packaging code TO-220
package instruction TO-220SMD, 3 PIN
Contacts 3
Reach Compliance Code unknown
ECCN code EAR99
Configuration SINGLE WITH BUILT-IN DIODE AND TEMPERATURE SENSOR
Minimum drain-source breakdown voltage 50 V
Maximum drain current (Abs) (ID) 27 A
Maximum drain current (ID) 27 A
Maximum drain-source on-resistance 0.05 Ω
FET technology METAL-OXIDE SEMICONDUCTOR
JESD-30 code R-PDSO-G2
JESD-609 code e0
Number of components 1
Number of terminals 2
Operating mode ENHANCEMENT MODE
Maximum operating temperature 150 °C
Package body material PLASTIC/EPOXY
Package shape RECTANGULAR
Package form SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED
Polarity/channel type N-CHANNEL
Maximum pulsed drain current (IDM) 108 A
Certification status Not Qualified
surface mount YES
Terminal surface Tin/Lead (Sn/Pb)
Terminal form GULL WING
Terminal location DUAL
Maximum time at peak reflow temperature NOT SPECIFIED
Transistor component materials SILICON
Base Number Matches 1
