PSPD45 Series
Dual Output
Up to 45 Watts
AC/DC Power Supply

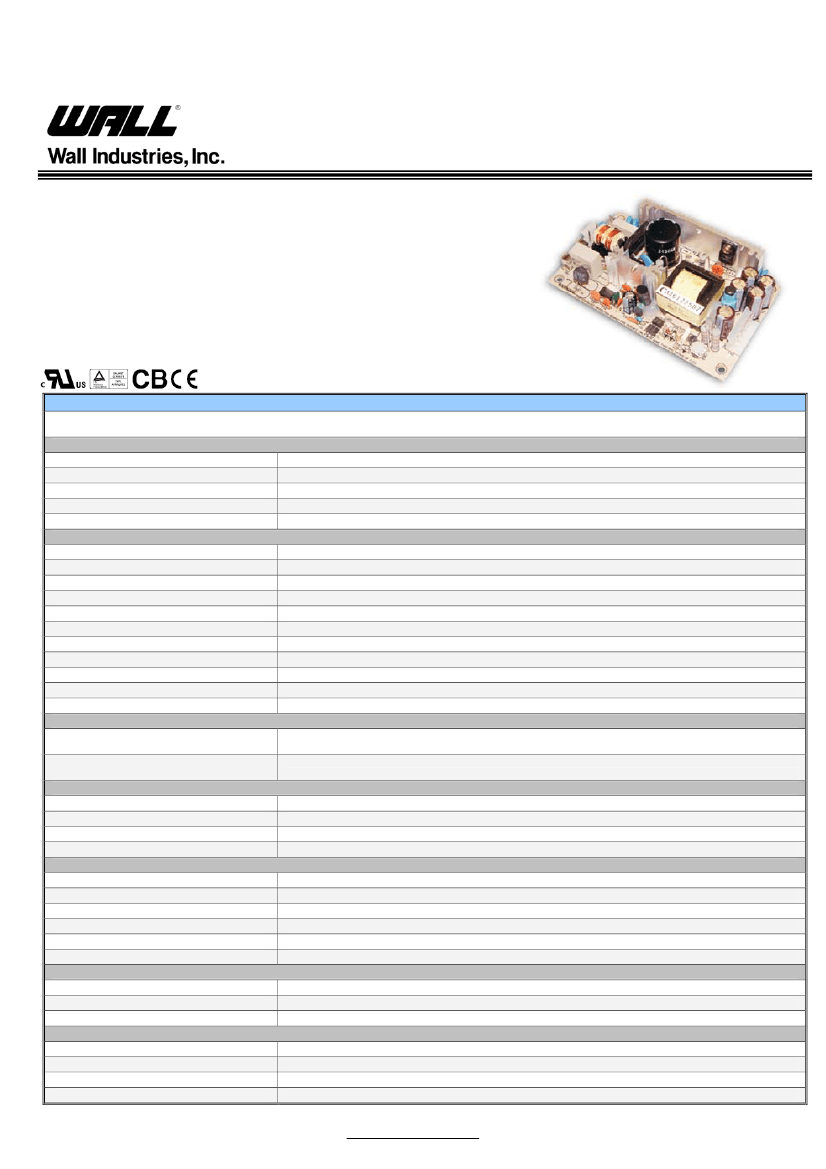

FEATURES
•
2 Year Warranty
•
100% Full Load Burn-In Test
•
Universal AC Input/ Full Range
•
Cooling by Free Air Convection
•
Low Leakage Current < 0.75mA
•
Fixed Switching Frequency at 65KHz
•
Short Circuit, Overload, and Over Voltage Protected
SPECIFICATIONS:
PSPD45 Series
All specifications are based on 25 C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
INPUT SPECIFICATIONS
Input Voltage
90 – 264VAC (127 – 370VDC)
Input Frequency
47 ~ 440Hz
AC Current (typical)
1A @ 115VAC
0.7A @ 230VAC
Inrush Current (typical)
15A @ 115VAC
30A @ 230VAC cold start.
Leakage Current
< 0.75mA
OUTPUT SPECIFICATIONS
Output Voltage
See Table
Output Voltage Tolerance (See Note 3)
CH 1: ±4.0%
CH 2: ±7.0%
Voltage Adjustment Range
CH 1: 4.75 ~ 5.5V
Output Power
Rated output power for convection; 52W with 18CFM min. forced air.
Line Regulation
CH 1: ±1.0%
CH 2: ±2.0%
Load Regulation
CH 1: ±3.0%
CH 2: ±4.0%
Output Current
See Table
Ripple & Noise (See Note 2)
See Table
Setup, Rise Time
800ms, 20ms at full load
Hold Up Time
60ms at full load
Temperature Coefficient
±0.04%/°C (0~50°C) on +5V output.
PROTECTION
5.75 ~ 6.75VDC on CH 1
Over Voltage Protection
Protection Type: Hiccup mode, recovers automatically after fault condition is removed.
53 ~ 75W rated output power
Overload Protection
Protection Type: Hiccup mode, recovers automatically after fault condition is removed.
GENERAL SPECIFICATIONS
Switching Frequency (fixed)
65KHz
Efficiency (typical)
See Table
Withstand Voltage
3KVAC (input to output), 1.5KVAC (input to FG), 0.5KVAC (output to FG).
Isolation Resistance
100MΩ / 500VDC (input to output, input to FG, output to FG)
ENVIRONMENTAL SPECIFICATIONS
Working Temperature
-10°C to +60°C (refer to output load derating curve)
Storage Temperature
-20°C to +85°C
Working Humidity (non-condensing)
20% ~ 90% RH non-condensing
Storage Humidity (non-condensing)
10% ~ 95% RH
Vibration
10~500Hz, 2G 10min./1cycle, Period for 60 minutes each along X, Y, and Z axes.
MTBF
288,100 hours min.
MIL-HDBK-217 (25°C)
PHYSICAL SPECIFICATIONS
Weight
10 oz.

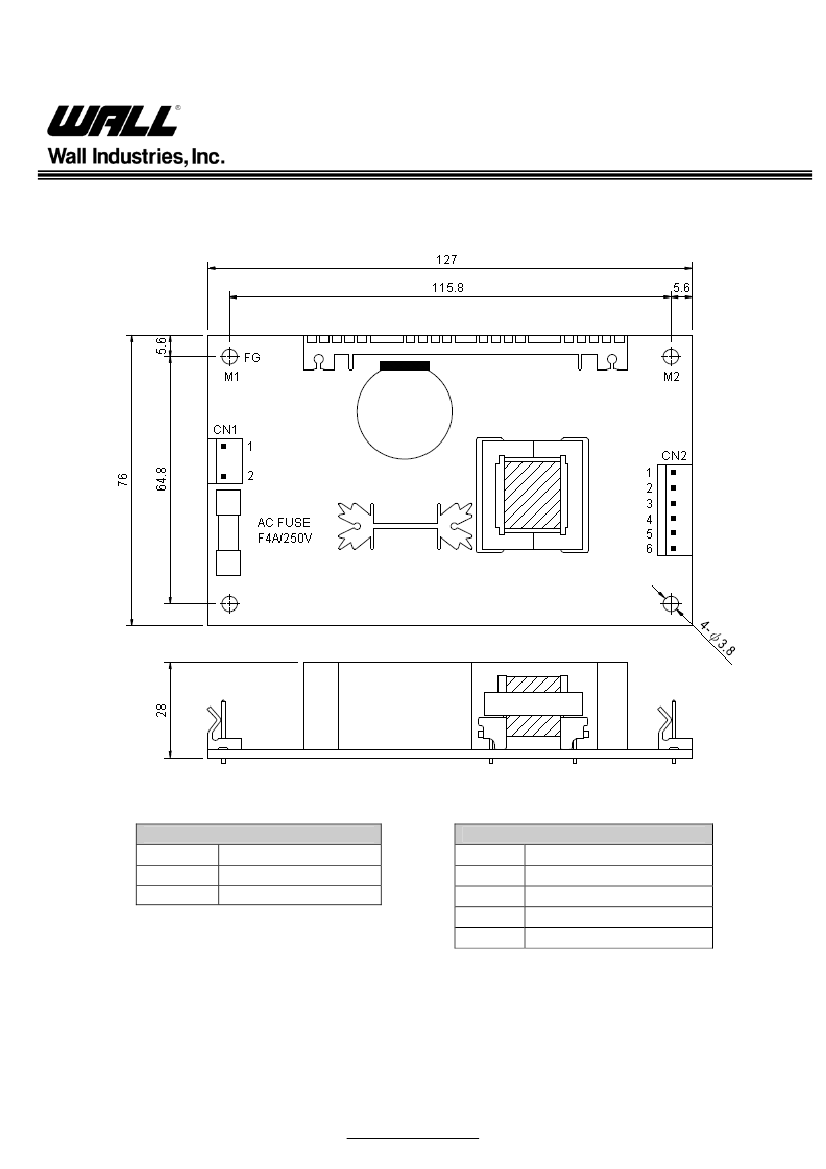

Dimensions
127(L) x 76(W) x 28(H) mm
Warranty
2 years
SAFETY & EMC
Safety Standards
UL60950-1, TUV EN60950-1 Approved
EMI Conduction and Radiation
Compliance to EN55022 (CISPR22) Class B
Harmonic Current
Compliance to EN61000-3-2,3
EMS Immunity
Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, Light industry level, criteria A.
o
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
PSPD45 Series
Dual Output
Up to 45 Watts
AC/DC Power Supply
OUTPUT VOLTAGE / CURRENT RATING CHART
Model
PSPD-45A
PSPD-45B
Channel 1
Channel 2
Channel 1
Channel 2
Input Voltage
90 ~ 264 VAC
(127 ~ 370 VDC)
Output
Voltage
5 VDC
12 VDC
5 VDC
24 VDC
Rated
Current
3.2A
2A
3.2A
1.2A
Current
Range
0.4 ~ 5A
0.2 ~ 2.5A
0.4 ~ 5A
0.2 ~ 1.8A
Ripple &
Noise
50mVp-p
120mVp-p
50mVp-p
150mVp-p
Output
Power
40W
44.8W
Efficiency
77%
78%
NOTES
1. All parameters not specially mentioned are measured at 230VAC input, rated load, and 25°C ambient temperature.
2. Ripple & noise are measured at 20MHz using a 12" twisted pair-wire terminated with 0.1uF & 47uF capacitors in parallel.
3. Tolerance: includes set up tolerance, line regulation, and load regulation.
4. The power supply is considered a component, which will be installed into final equipment. The final equipment must be re-
confirmed that it still meets EMC directives.
5. Mounting holes M1 and M2 should be grounded for EMI purposes.

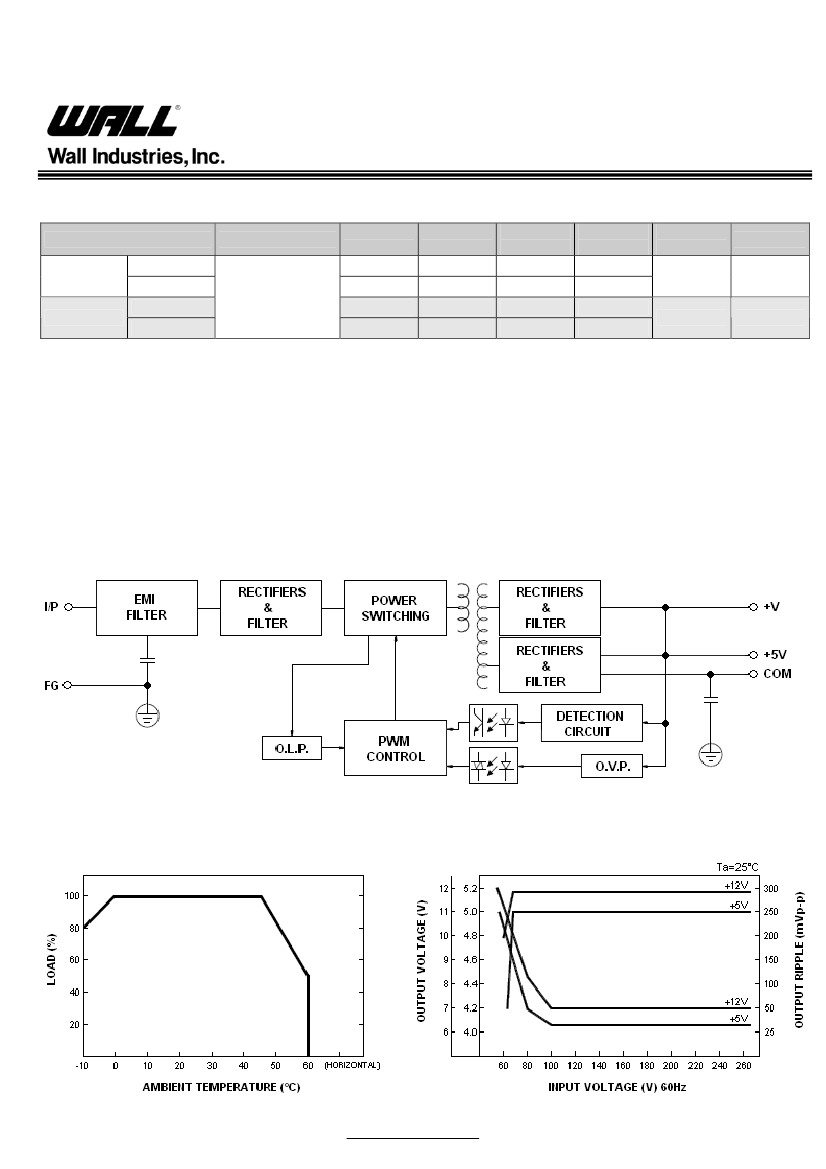

BLOCK DIAGRAM
fosc: 65KHz
DERATING CURVE
STATIC CHARACTERISTICS (A)
