SMAJ15-M3/5A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMAJ15-M3/5A

SMAJ15-M3/5A: DescriptionTrans Voltage Suppressor Diode, 15V V(RWM), Unidirectional,; CategoryDiscrete semiconductor diode; File Size89KB，6 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

SMAJ15-M3/5A Overview

Trans Voltage Suppressor Diode, 15V V(RWM), Unidirectional,

SMAJ15-M3/5A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Breakdown voltage nominal value	18.55 V
Maximum clamping voltage	24.4 V
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
polarity	UNIDIRECTIONAL
Maximum repetitive peak reverse voltage	15 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

New Product

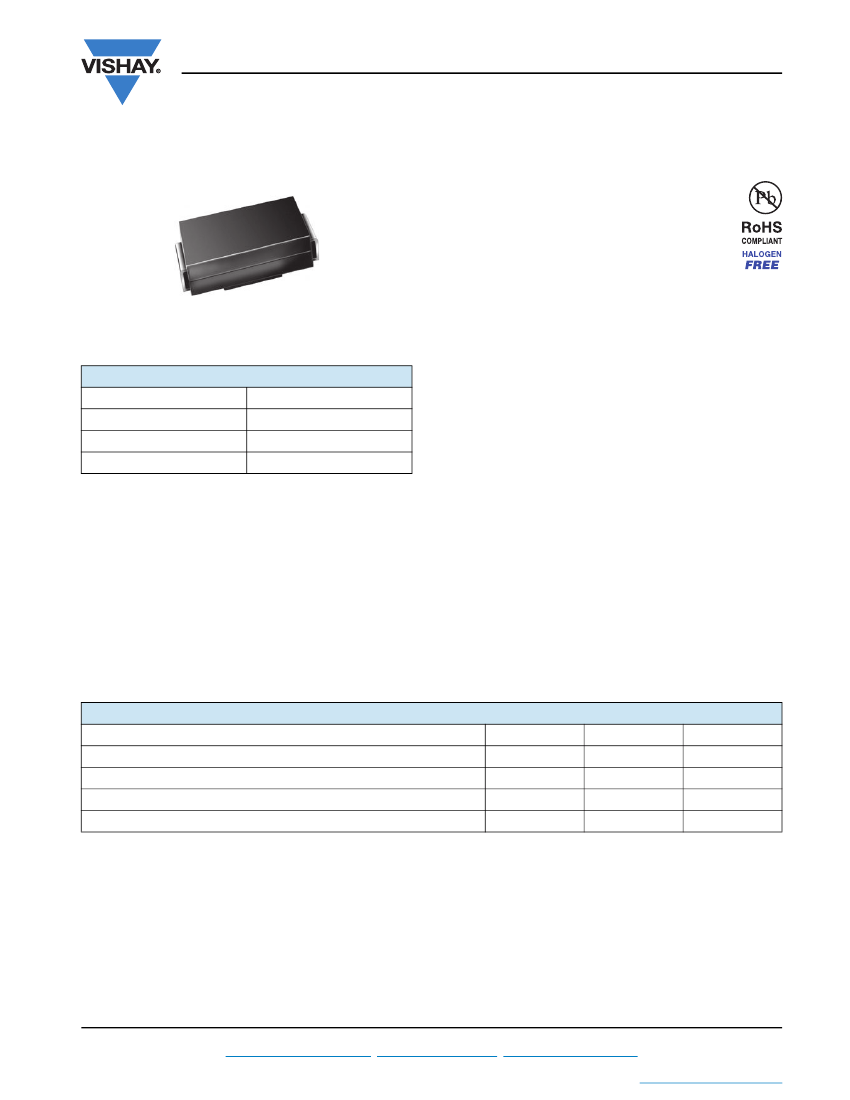

SMAJ5.0 thru SMAJ188CA

Vishay General Semiconductor

Surface Mount T

RANS

ORB®

Transient Voltage Suppressors

FEATURES

• Low profile package

• Ideal for automated placement

• Glass passivated chip junction

• Available in uni-directional and bi-directional

• 400 W peak pulse power capability with a 10/1000 μs

waveform, repetitive rate (duty cycle): 0.01 % (300 W

above 78 V)

• Excellent clamping capability

• Very fast response time

DO-214AC (SMA)

PRIMARY CHARACTERISTICS

PPM

FSM

max.

5.0 V to 188 V

400 W, 300 W

40 A

150 °C

• Low incremental surge resistance

• Meets MSL level 1, per J-STD-020, LF maximum peak of

260 °C

• Compliant to RoHS Directive 2002/95/EC and in

accordance to WEEE 2002/96/EC

•

Halogen-free according to IEC 61249-2-21 definition

TYPICAL APPLICATIONS

Use in sensitive electronics protection against voltage

transients induced by inductive load switching and lighting

on ICs, MOSFET, signal lines of sensor units for consumer,

computer, industrial, and telecommunication.

MECHANICAL DATA

Case:

DO-214AC (SMA)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-M3 - halogen-free, RoHS compliant, and

commercial grade

Terminals:

Matte tin plated leads, solderable

J-STD-002 and JESD 22-B102

M3 suffix meets JESD 201 class 1A whisker test

per

DEVICES FOR BI-DIRECTION APPLICATIONS

For bi-directional use C or CA suffix (e.g. SMAJ10C,

SMAJ10CA).

Electrical characteristics apply in both directions.

Polarity:

For uni-directional types the band denotes

cathode end, no marking on bi-directional types

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Peak pulse power dissipation with a 10/1000 μs waveform (fig. 1)

Peak pulse current with a waveform

Peak forward surge current 8.3 ms single half sine-wave uni-directional only

Operating junction and storage temperature range

SYMBOL

PPM (1)(2)

PPM (1)

FSM (2)

, T

STG

VALUE

400

See next table

- 55 to + 150

UNIT

°C

Notes

(1)

Non-repetitive current pulse, per fig. 3 and derated above T = 25 °C per fig. 2, rating is 300 W above 78 V

(2)

Mounted on 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pads to each terminal

Document Number: 89277

Revision: 20-Apr-11

For technical questions within your region, please contact one of the following:

www.vishay.com

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

This document is subject to change without notice.

THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
