PETC-04-40-04-01-T-VT-LC-L datasheet, PDF

Datasheet> All Categories > The connector> The connector> PETC-04-40-04-01-T-VT-LC-L

PETC-04-40-04-01-T-VT-LC-L: DescriptionBoard Connector, 48 Contact(s), Male, Straight, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size258KB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

PETC-04-40-04-01-T-VT-LC-L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PETC-04-40-04-01-T-VT-LC-L	-	-	View	Buy Now

PETC-04-40-04-01-T-VT-LC-L Overview

Board Connector, 48 Contact(s), Male, Straight, Solder Terminal, Locking, Black Insulator

PETC-04-40-04-01-T-VT-LC-L Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	SPLIT BOARD LOCK
body width	0.571 inch
subject depth	0.575 inch
body length	3.75 inch
Connector type	BOARD CONNECTOR
Contact arrangement	S40P8
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact style	HYBRID
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	PETC
Mixed contacts	YES
Installation option 1	LOCKING
Installation option 2	LATCH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Rated current (signal)	5.7 A
reliability	COMMERCIAL
Terminal length	0.092 inch
Termination type	SOLDER
Total number of contacts	48
Base Number Matches	1

Preview

Download Datasheet

View All

REVISION Q

DO NOT

SCALE FROM

THIS PRINT

DESIGNED & DIMENSIONED

IN MILLIMETERS[INCHES]

"A" REF (SEE TABLE 2)

PETC-XX-XX-XX-01-X-VT-XX-X

POWER PINS (PER END 1)

-01, -02, -04

OPTION

-L: LATCH EARS

(SEE FIG 5, SHT 3)

OPTION

-LC: LOCKING CLIP

(USE LC-11-TM)

(SEE FIG 2, SHT 2)

VERTICAL

PLATING SPECIFICATION

-S: 30µ" SELECTIVE GOLD IN CONTACT

AREA, MATTE TIN ON TAIL

-T: MATTE TIN CONTACT AND TAIL

-L: 10µ" SELECTIVE GOLD IN

CONTACT AREA, MATTE TIN ON TAIL

"B" (SEE TABLE 2)

5.72 .225 (TYP)

11.43 .450

01 (POWER)

04 (SIGNAL)

SIGNAL PINS

-12,-40

POWER PINS (PER END 2)

02 (POWER)

-01, -02, -04

LEAD STYLE

-01

14.50 .571

REF

"A"

* - SEE TABLE 1 FOR AVAILABLE COMBINATIONS

01(SIGNAL)

2.54 .100 (TYP)

6.60 .260 (TYP) REF

"B"

1.10 .043 REF

PET-XX-V-40-NL

2.700 .1063

0.64 .025

REF

14.62 .575

REF

2.35 .092

(TYP)

0.50 .020 (TYP) REF

T-1S64-15-X

"B"

2.35 .092 (TYP)

(SEE NOTE 5)

2.35 .092 (TYP)

"D" (SEE TABLE 2)

0.64 .025 SQ REF

3.16 .125

2.54 .100 (TYP)

2 MAX SWAY (TYP)

(EITHER DIRECTION)

("E" SPACES @ 2.54 [.100])

SUB-T-1M33-01-XX

0.64 .025 (TYP) REF

2.54 .100 (TYP)

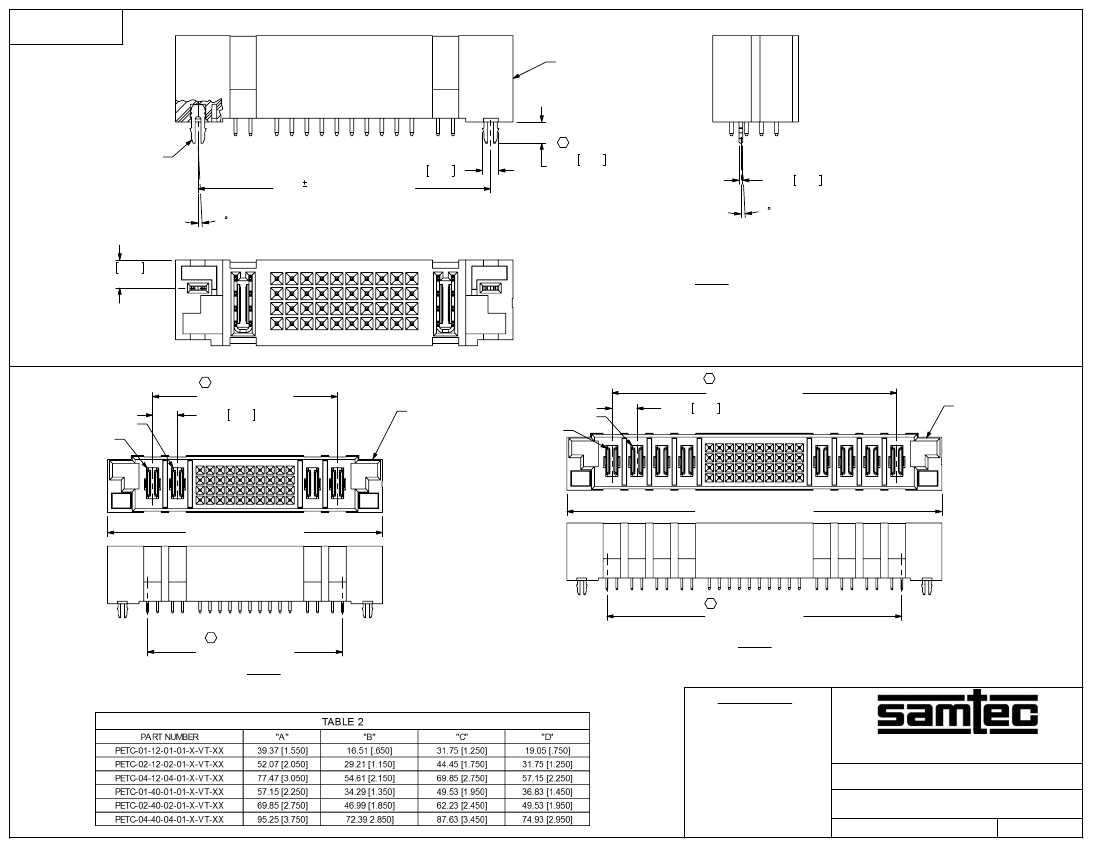

SECTION "A"-"A"

MAX

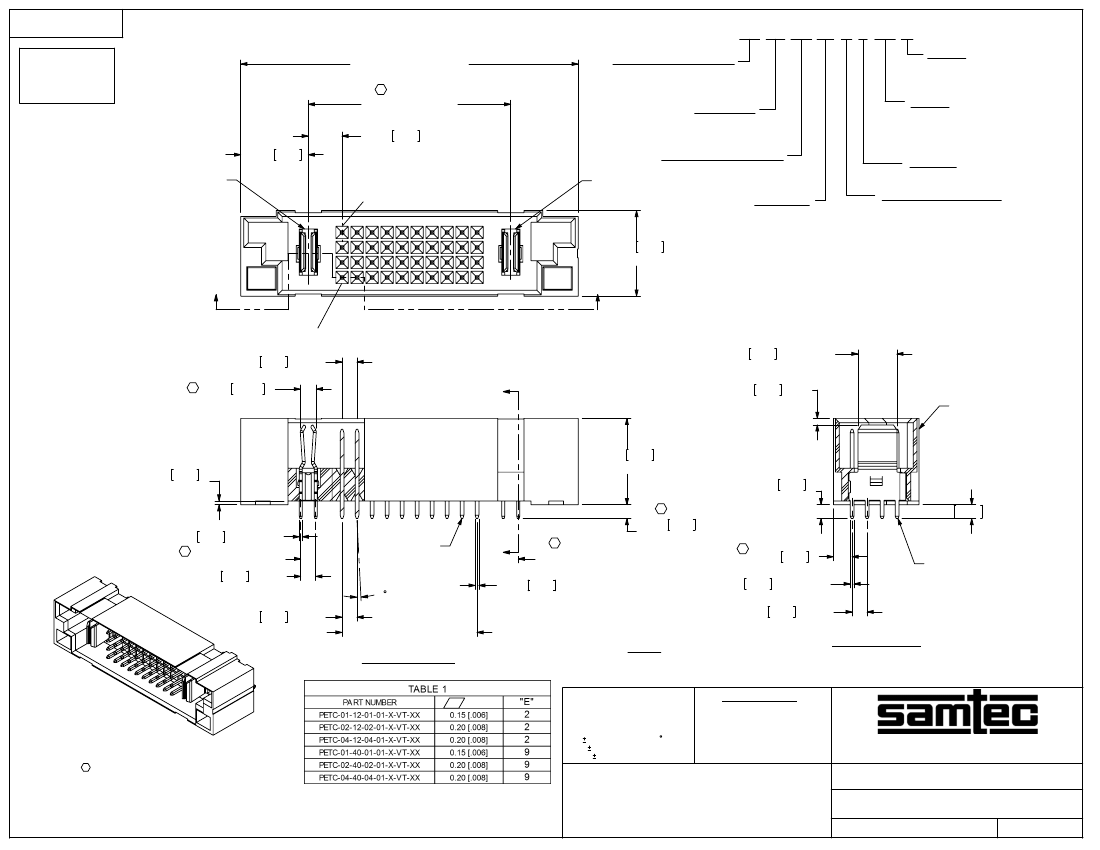

FIG 1

PETC-01-40-01-01-X-VT SHOWN

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN MILLIMETERS.

TOLERANCES ARE:

DECIMALS

SECTION "B"-"B"

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. BURR ALLOWANCE: 0.13 [.005] MAX.

3. MINIMUM PUSHOUT FORCE: 2.22N [.5 LB].

4. PARTS TO BE PACKAGED IN TRAYS.

5. DIMENSION INCLUDES BOTH POWER AND SIGNAL PINS.

.X: 0.3 [.01]

.XX: 0.13 [.005]

.XXX: 0.051 [.0020]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

INSULATOR: LCP, COLOR: BLACK

TERMINAL: COPPER ALLOY

DO NOT SCALE DRAWING

SHEET SCALE: 1:0.666667

VERTICAL POWER TERMINAL

1/11/2006

SHEET

PETC-XX-XX-XX-01-X-VT-XX-X

F:\DWG\MISC\MKTG\PETC-XX-XX-XX-01-X-VT-XX-X-MKT.SLDDRW

BY:

CLAY W

PETC-04-40-04-01-T-VT-LC-L Related Products

	PETC-04-40-04-01-T-VT-LC-L	PETC-01-40-01-01-T-VT-LC-L	PETC-02-40-02-01-S-VT-LC-L	PETC-02-40-02-01-T-VT-LC-L
Description	Board Connector, 48 Contact(s), Male, Straight, Solder Terminal, Locking, Black Insulator	Board Connector, 42 Contact(s), Male, Straight, Solder Terminal, Locking, Black Insulator	Board Connector, 44 Contact(s), Male, Straight, Solder Terminal, Locking, Black Insulator	Board Connector, 44 Contact(s), Male, Straight, Solder Terminal, Locking, Black Insulator
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.571 inch	0.571 inch	0.571 inch	0.571 inch
subject depth	0.575 inch	0.575 inch	0.575 inch	0.575 inch
body length	3.75 inch	2.25 inch	2.75 inch	2.75 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S40P8	S40P2	S40P4	S40P4
Contact to complete cooperation	SN ON NI	SN ON NI	AU ON NI	SN ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Contact style	HYBRID	HYBRID	HYBRID	HYBRID
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	PETC	PETC	PETC	PETC
Mixed contacts	YES	YES	YES	YES
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	LATCH	LATCH	LATCH	LATCH
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
Maximum operating temperature	105 °C	105 °C	125 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Rated current (signal)	5.7 A	5.7 A	5.7 A	5.7 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.092 inch	0.092 inch	0.092 inch	0.092 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	48	42	44	44
Base Number Matches	1	1	1	-
