767003-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 767003-6

767003-6: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,228 CONTACTS,SKT,0.025 PITCH; CategoryThe connector The connector; File Size149KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

767003-6 Overview

HEADER CONNECTOR,PCB MNT,PLUG,228 CONTACTS,SKT,0.025 PITCH

767003-6 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	GROUNDED BUS
Board mount options	INTEGRAL BOARDLOCK
body width	0.209 inch
subject depth	0.429 inch
body length	3.506 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Dielectric withstand voltage	500VAC V
Durability	25 Cycles
maximum insertion force	.556 N
Insulation resistance	10000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	767003
Plug contact pitch	0.025 inch
Installation method	STRAIGHT
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.0866 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.635 mm
Total number of contacts	228
Evacuation force-minimum value	.139 N
Base Number Matches	1

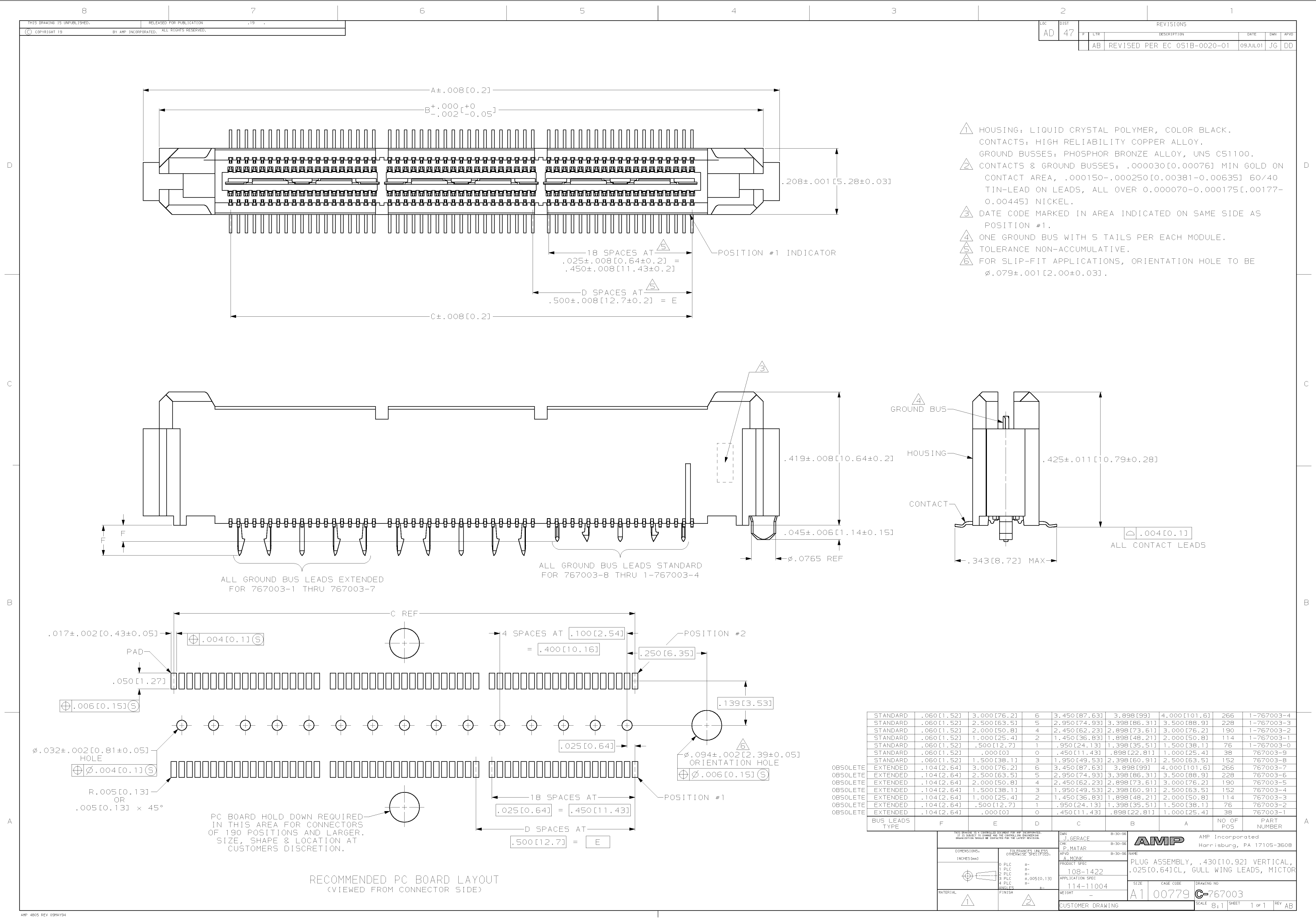

Preview

Download Datasheet

View All

767003-6 Related Products

	767003-6	767003-2	767003-3	767003-5	767003-1	767003-4	767003-7
Description	HEADER CONNECTOR,PCB MNT,PLUG,228 CONTACTS,SKT,0.025 PITCH	HEADER CONNECTOR,PCB MNT,PLUG,76 CONTACTS,SKT,0.025 PITCH	HEADER CONNECTOR,PCB MNT,PLUG,114 CONTACTS,SKT,0.025 PITCH	190 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, PLUG	HEADER CONNECTOR,PCB MNT,PLUG,38 CONTACTS,SKT,0.025 PITCH	HEADER CONNECTOR,PCB MNT,PLUG,152 CONTACTS,SKT,0.025 PITCH	HEADER CONNECTOR,PCB MNT,PLUG,266 CONTACTS,SKT,0.025 PITCH
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	GROUNDED BUS	GROUNDED BUS	GROUNDED BUS	MICTOR	GROUNDED BUS	GROUNDED BUS	GROUNDED BUS
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	MALE	FEMALE	FEMALE	FEMALE
Manufacturer's serial number	767003	767003	767003	767003	767003	767003	767003
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of rows loaded	2	2	2	2	2	2	2
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.64 mm	0.635 mm	0.635 mm	0.635 mm
Total number of contacts	228	76	114	190	38	152	266
Board mount options	INTEGRAL BOARDLOCK	INTEGRAL BOARDLOCK	INTEGRAL BOARDLOCK	-	INTEGRAL BOARDLOCK	INTEGRAL BOARDLOCK	INTEGRAL BOARDLOCK
body width	0.209 inch	0.209 inch	0.209 inch	-	0.209 inch	0.209 inch	0.209 inch
subject depth	0.429 inch	0.429 inch	0.429 inch	-	0.429 inch	0.429 inch	0.429 inch
body length	3.506 inch	1.506 inch	2.006 inch	-	1.006 inch	2.506 inch	4.006 inch
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	-	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD	GOLD	GOLD	-	GOLD	GOLD	GOLD
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	-	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	-	10 mΩ	10 mΩ	10 mΩ
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	-	500VAC V	500VAC V	500VAC V
Durability	25 Cycles	25 Cycles	25 Cycles	-	25 Cycles	25 Cycles	25 Cycles
maximum insertion force	.556 N	.556 N	.556 N	-	.556 N	.556 N	.556 N
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	-	10000000000 Ω	10000000000 Ω	10000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	-	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch	0.025 inch	0.025 inch	0.025 inch	-	0.025 inch	0.025 inch	0.025 inch
Number of connectors	ONE	ONE	ONE	-	ONE	ONE	ONE
PCB row number	2	2	2	-	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	-	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	7.0866 mm	7.0866 mm	7.0866 mm	-	7.0866 mm	7.0866 mm	7.0866 mm
Plating thickness	30u inch	30u inch	30u inch	-	30u inch	30u inch	30u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL	-	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Evacuation force-minimum value	.139 N	.139 N	.139 N	-	.139 N	.139 N	.139 N
