BRUS210 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BRUS210

BRUS210: DescriptionBridge Rectifier Diode, 1 Phase, 9A, 200V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size60KB，2 Pages; ManufacturerEDI [Electronic devices inc.]

Download Datasheet Parametric Compare View All

BRUS210 Overview

Bridge Rectifier Diode, 1 Phase, 9A, 200V V(RRM), Silicon

BRUS210 Parametric

Parameter Name	Attribute value
package instruction	O-PUFM-W4
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	UL RECOGNIZED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JESD-30 code	O-PUFM-W4
Maximum non-repetitive peak forward current	100 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	9 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	WIRE
Terminal location	UPPER
Base Number Matches	1

Preview

Download Datasheet

View All

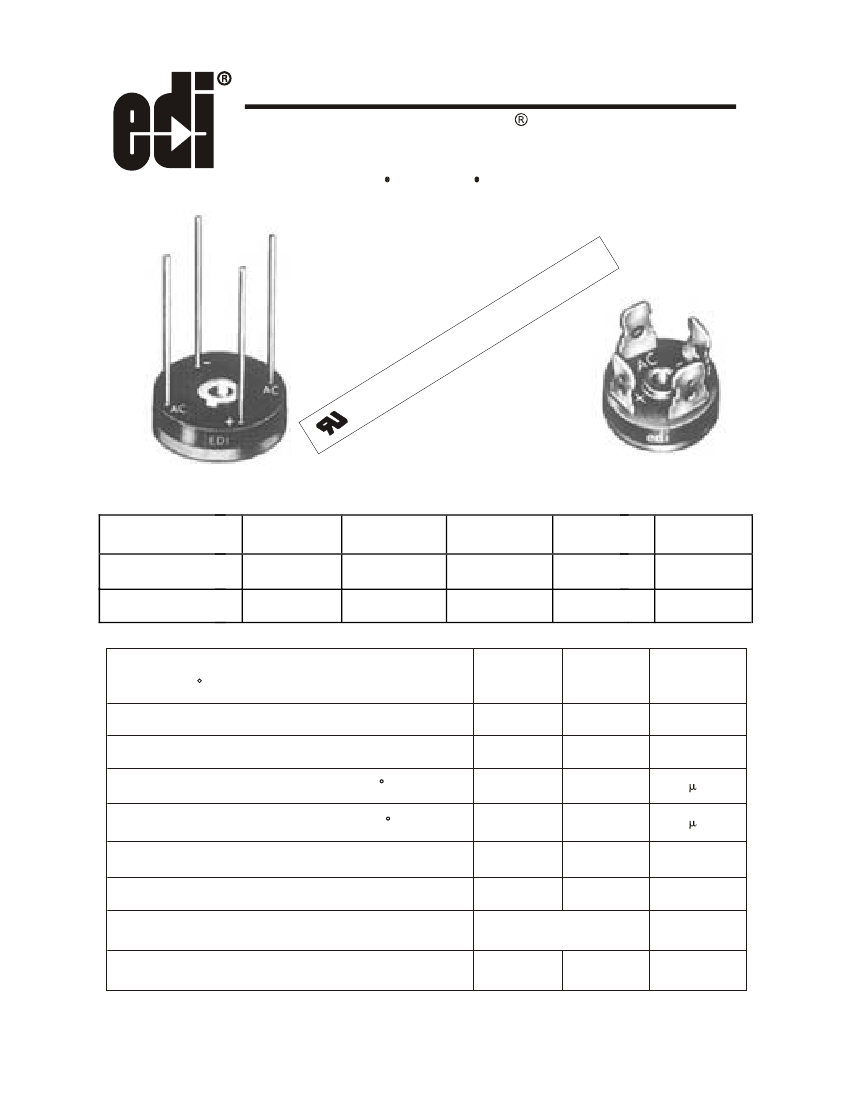

BRUS2 BRUS2F

MINIBRIDGE

50 ns. ULTRA-FAST RECOVERY

SINGLE-PHASE, FULL-WAVE BRIDGES

HEAT SINK CHASSIS P.C. BOARD MOUNTING

er , inc.

nd s

n u torie

nit ra

og abo

ec L

s r ters

ate ri

dic derw

in n

ark of U

is m

Th ogra

BRUS2

9 Amps. Wire Leads

BRUS 2F

10.5 Amps. Quick-connects

PRV/Leg

9.0 AMP SERIES

10.5AMP SERIES

50V

BRUS205

BRUS205F

100V

BRUS210

BRUS210F

200V

BRUS220

BRUS220F

400V

BRUS240

BRUS240F

600V

BRUS260

BRUS260F

ELECTRICAL CHARACTERISTICS PER LEG

(at T

=25 C U nle ss O the rwis e Sp eci fie d)

Average Output Current l

(Av.) T

60 C (Fig.1)

Max. Forward Voltage Drop, V

2.0

Max.DC Reverse Current @ PRV and 25

Max.DC Reverse Current @ PRV and 100

Max. Reverse Recovery Time,T

(Fig.4)

Max. Peak Surge Current, l

FSM

(8.3ms)

Storage Temperature Range, T

STG

Thermal Resistance (Total Bridge), R0

BRUS2

9.0

1.3

200

125

BRUS2F

10.5

1.3

200

125

UNITS

Amps

Volts

Nanosec.

Amps

-55 to+150

5.5 typ.

4.5 typ.

C/W

EDI reserves the right to change these specifications at any time without notice.

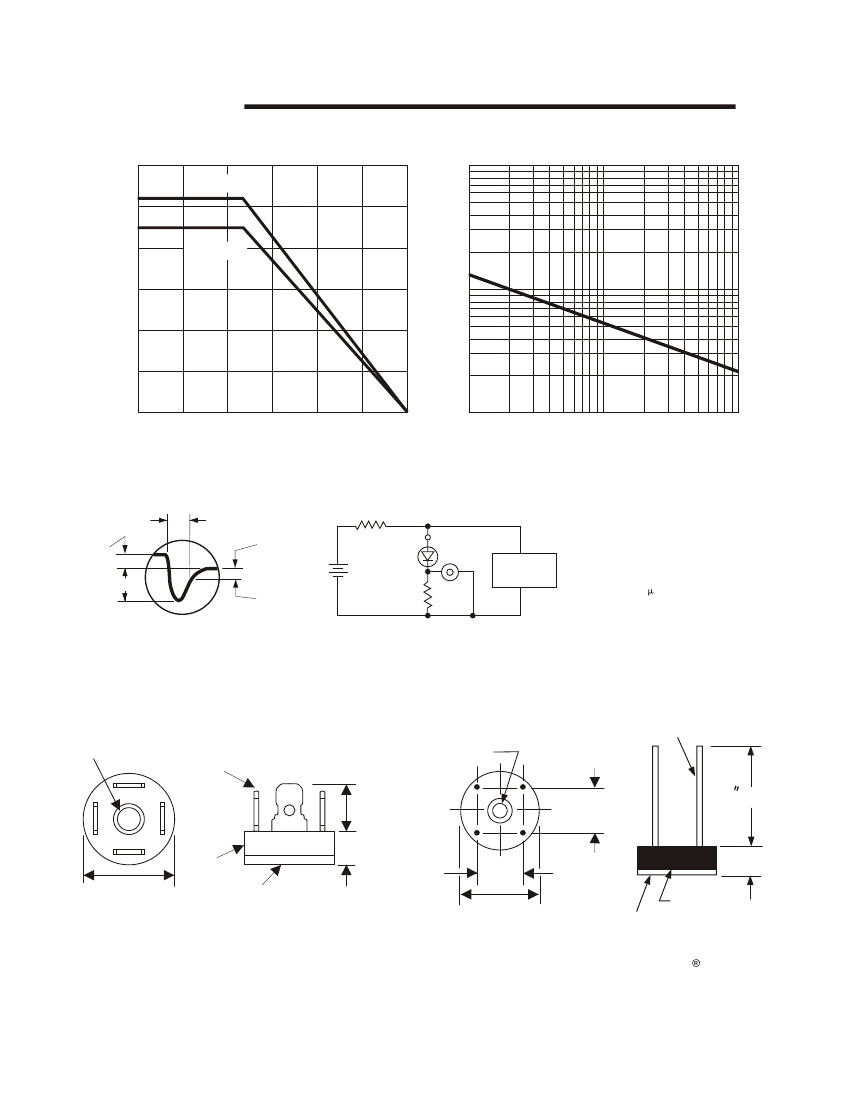

BRUS210 Related Products

	BRUS210	BRUS220	BRUS205F
Description	Bridge Rectifier Diode, 1 Phase, 9A, 200V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 9A, 400V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 10.5A, 100V V(RRM), Silicon
package instruction	O-PUFM-W4	O-PUFM-W4	O-PUFM-D4
Reach Compliance Code	unknown	unknown	unknown
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V	1.3 V
JESD-30 code	O-PUFM-W4	O-PUFM-W4	O-PUFM-D4
Maximum non-repetitive peak forward current	100 A	100 A	100 A
Number of components	4	4	4
Phase	1	1	1
Number of terminals	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C
Maximum output current	9 A	9 A	10.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	400 V	100 V
Maximum reverse recovery time	0.05 µs	0.05 µs	0.05 µs
surface mount	NO	NO	NO
Terminal form	WIRE	WIRE	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER
Base Number Matches	1	1	1
ECCN code	EAR99	-	EAR99
