TCM680EOATR datasheet, PDF - EEWORLD Datasheet

TCM680EOATR: DescriptionSwitched Capacitor Converter, 8kHz Switching Freq-Max, PDSO8, SOIC-8; CategoryPower/power management The power supply circuit; File Size235KB，7 Pages; ManufacturerTelCom Semiconductor, Inc. (Microchip Technology); Websitehttp://www.telcom-semi.com/

Download Datasheet Parametric View All

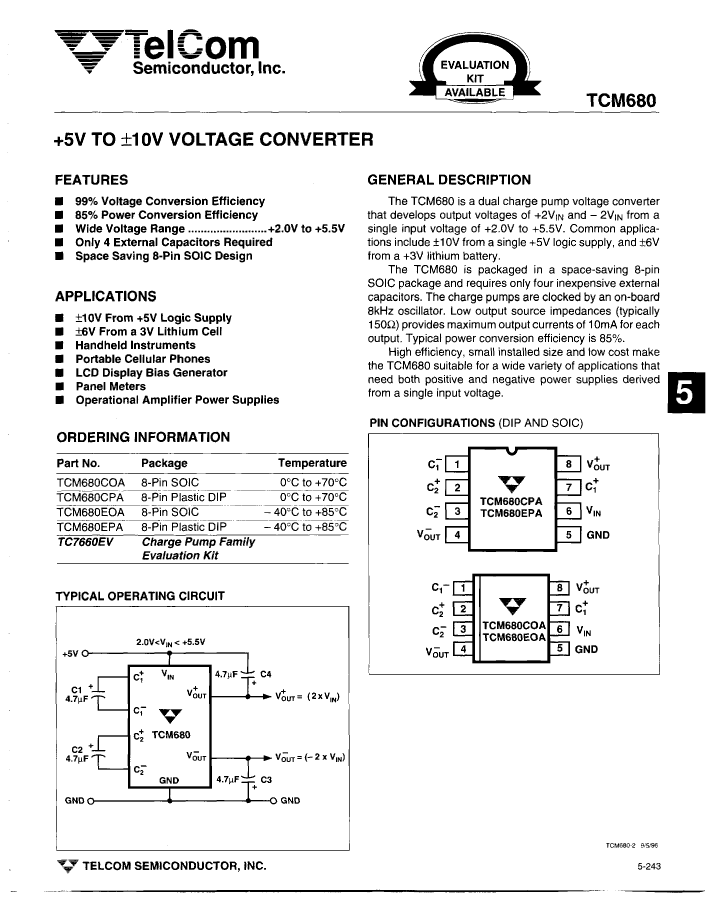

TCM680EOATR Overview

Switched Capacitor Converter, 8kHz Switching Freq-Max, PDSO8, SOIC-8

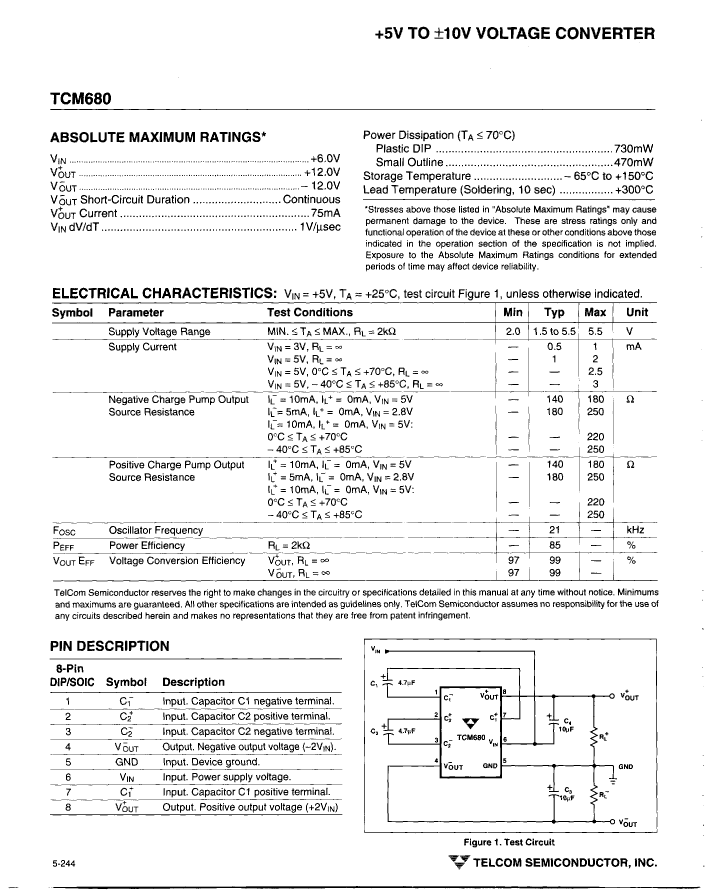

Parameter Name	Attribute value
package instruction	SOIC-8
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SWITCHED CAPACITOR CONVERTER
Maximum input voltage	5.5 V
Minimum input voltage	2 V
JESD-30 code	R-PDSO-G8
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
surface mount	YES

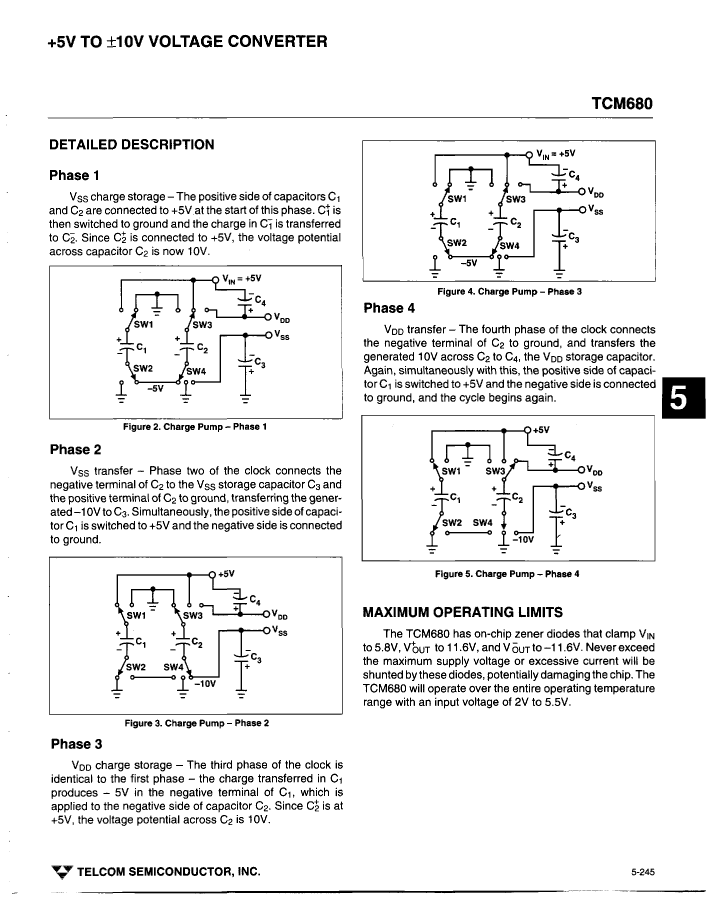

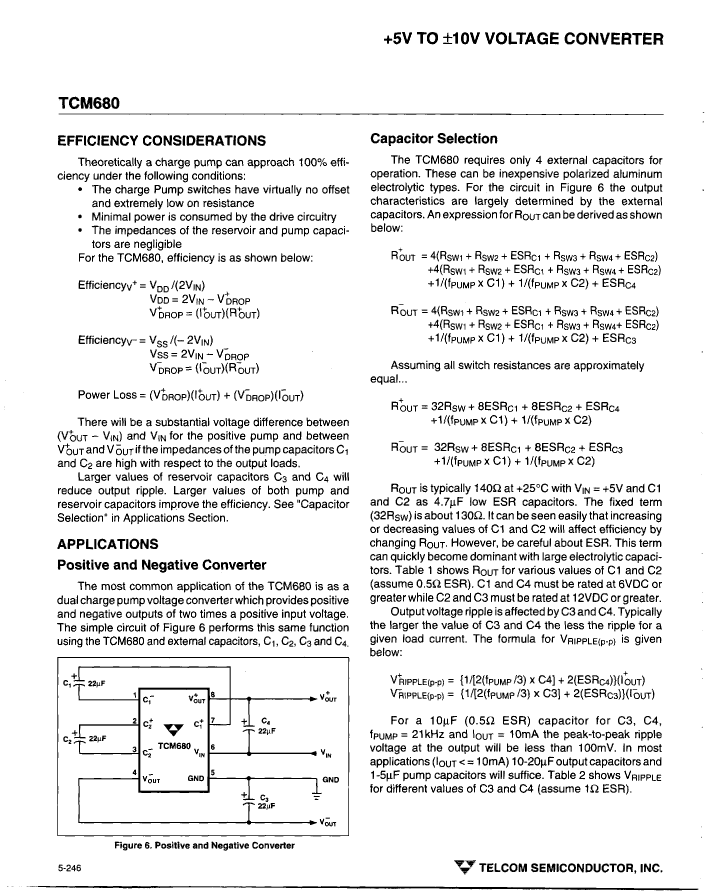

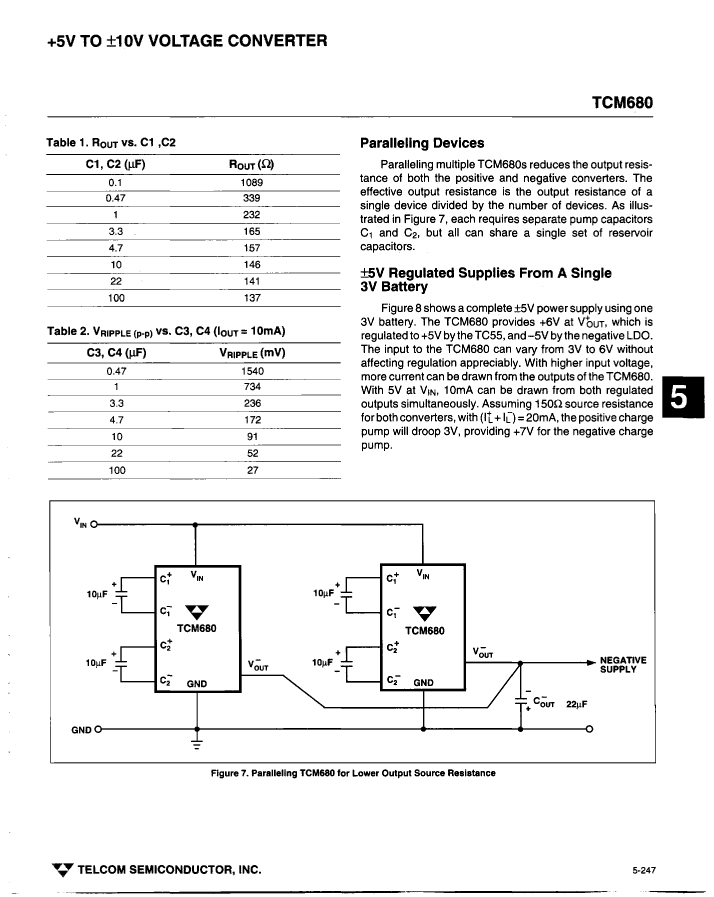

Switch configuration	DOUBLER INVERTER
Maximum switching frequency	8 kHz
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1
