M5233P datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> M5233P

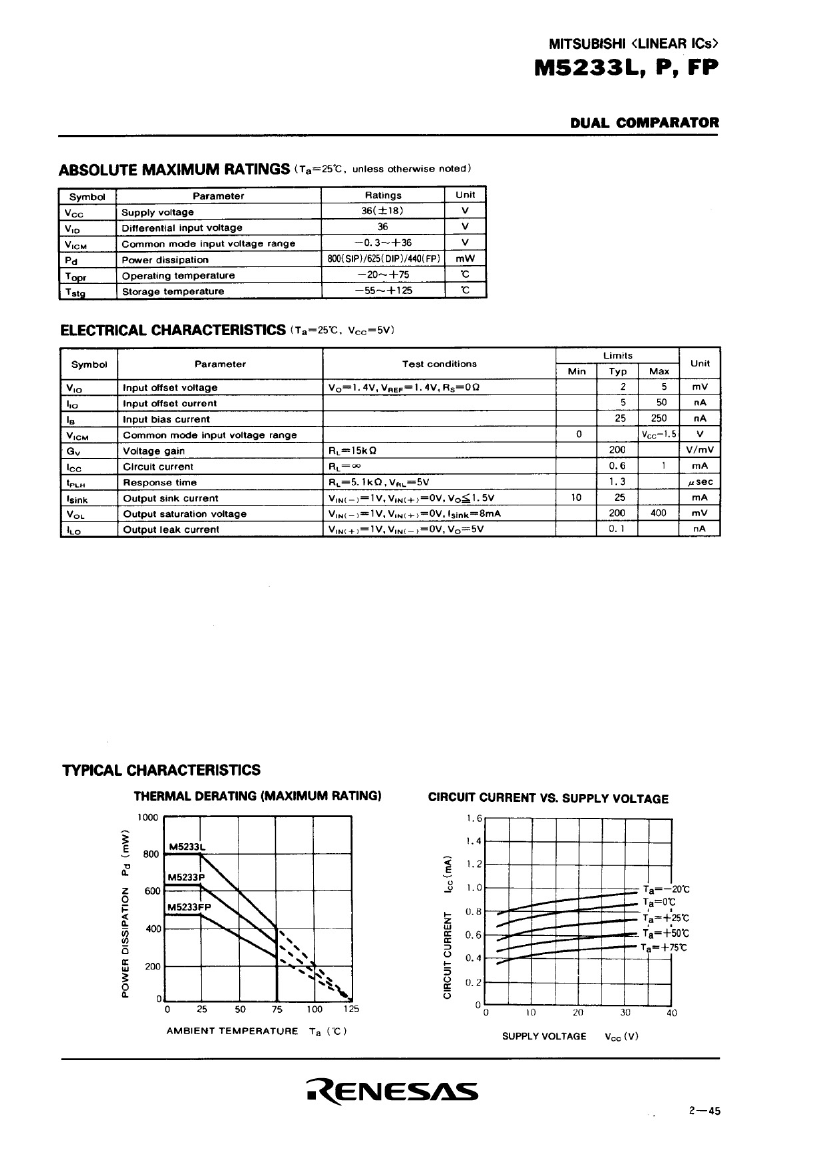

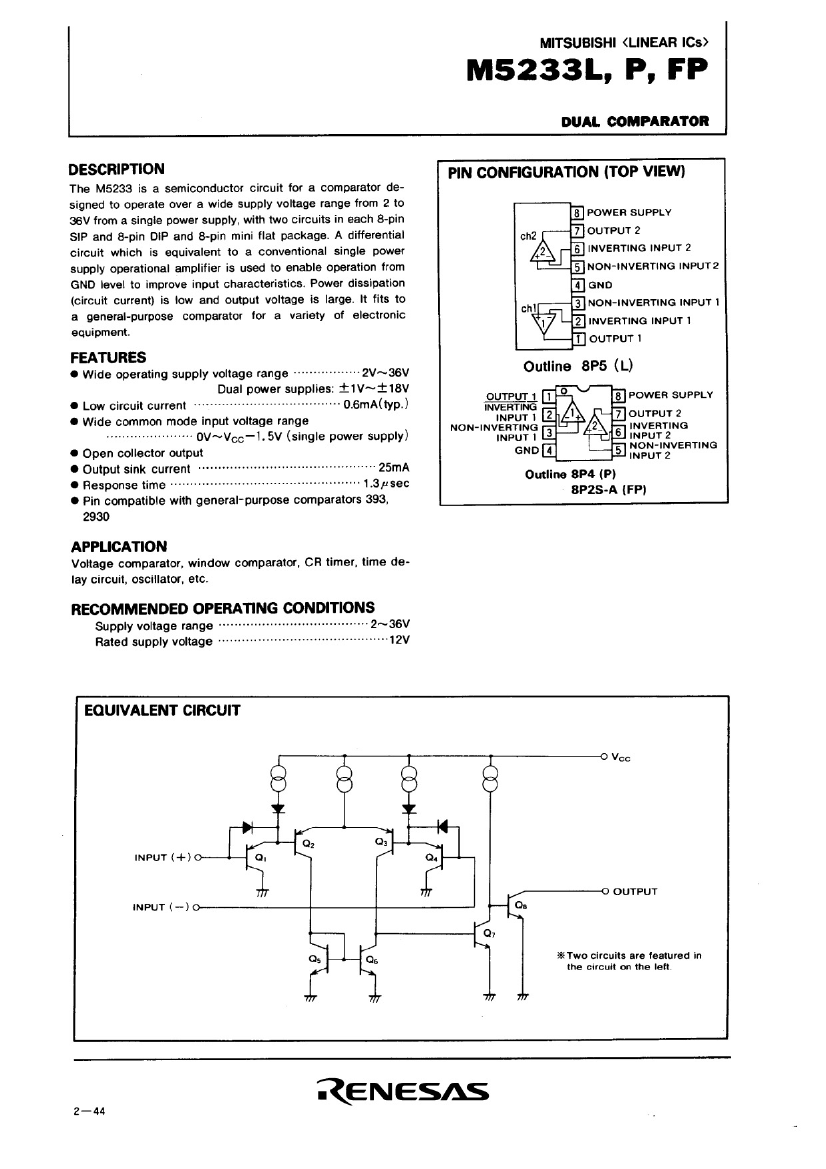

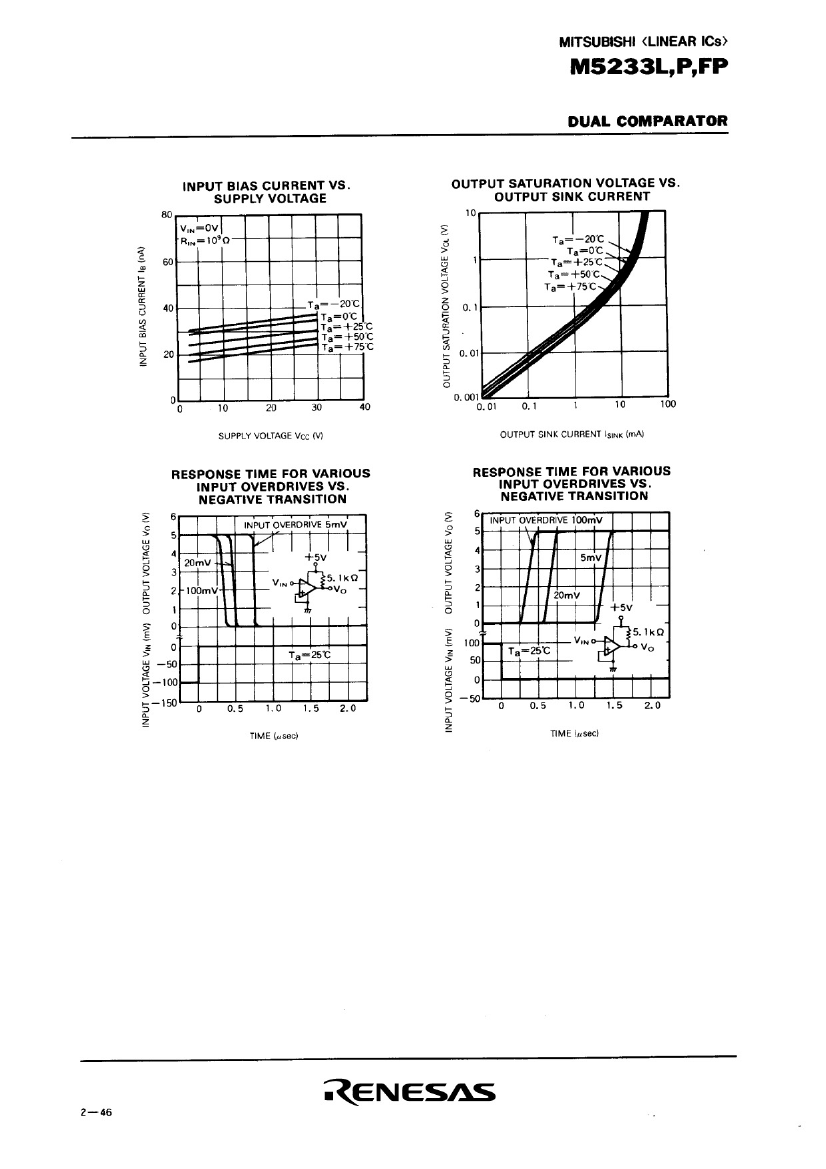

Preview

M5233P: DescriptionDUAL COMPARATOR, 5000 uV OFFSET-MAX, 1300 ns RESPONSE TIME, PDIP8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size1MB，4 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M5233P Overview

DUAL COMPARATOR, 5000 uV OFFSET-MAX, 1300 ns RESPONSE TIME, PDIP8

M5233P Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compli
ECCN code	EAR99
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	0.25 µA
Maximum bias current (IIB) at 25C	0.25 µA
Maximum input offset voltage	5000 µV
JESD-30 code	R-PDIP-T8
length	8.9 mm
Number of functions	2
Number of terminals	8
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Output type	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	12 V
Certification status	Not Qualified
Nominal response time	1300 ns
Maximum seat height	4.5 mm
Maximum slew rate	1 mA
Supply voltage upper limit	36 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

Preview

Download Datasheet

View All

M5233P Related Products

	M5233P	M5233FP	M5233L
Description	DUAL COMPARATOR, 5000 uV OFFSET-MAX, 1300 ns RESPONSE TIME, PDIP8	DUAL COMPARATOR, 5000 uV OFFSET-MAX, 1300 ns RESPONSE TIME, PDSO8	DUAL COMPARATOR, 5000 uV OFFSET-MAX, 1300 ns RESPONSE TIME, PSIP8
Is it lead-free?	Lead free	Lead free	Contains lead
Is it Rohs certified?	conform to	conform to	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	DIP	SOIC	SIP
package instruction	DIP, DIP8,.3	SOP, SOP8,.25	SIP-8
Contacts	8	8	8
Reach Compliance Code	compli	compli	unknow
ECCN code	EAR99	EAR99	EAR99
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR
Maximum average bias current (IIB)	0.25 µA	0.25 µA	0.25 µA
Maximum bias current (IIB) at 25C	0.25 µA	0.25 µA	0.25 µA
Maximum input offset voltage	5000 µV	5000 µV	5000 µV
JESD-30 code	R-PDIP-T8	R-PDSO-G8	R-PSIP-T8
length	8.9 mm	5 mm	19 mm
Number of functions	2	2	2
Number of terminals	8	8	8
Maximum operating temperature	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C
Output type	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SIP
Encapsulate equivalent code	DIP8,.3	SOP8,.25	SIP8,.06
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	225
power supply	12 V	12 V	12 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal response time	1300 ns	1300 ns	1300 ns
Maximum seat height	4.5 mm	1.9 mm	8.3 mm
Maximum slew rate	1 mA	1 mA	1 mA
Supply voltage upper limit	36 V	36 V	36 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	4.4 mm	2.8 mm
