Overview
- Circular size 16
UTP
UTG
UTO
new
Description

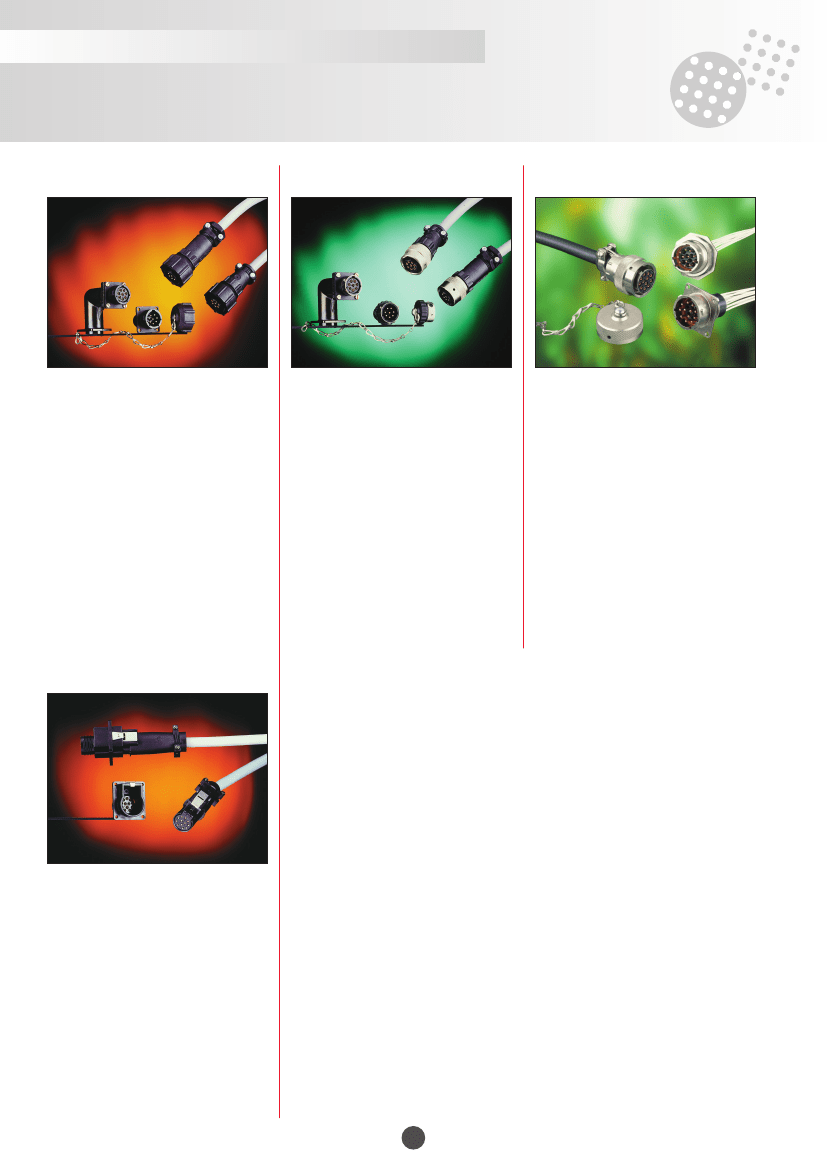

Full plastic circular connector with rugged plastic
bayonet coupling system
Range
Shell sizes:
Contact arrangements:
Features
Derived from MIL - C 26482
Intermateable with UTO / UTG
IP65 (waterprotected version)
Min 250 matings/unmatings
2 VDE versions
Accessories
Different type of cable clamps
Dustcaps
Discrimination pins
Description
Plastic circular connector with metal bayonet
coupling system
Range
Shell sizes:
Contact arrangements:
Features
Derived from MIL - C 26482
Intermateable with UTO / UTP
IP65 (waterprotected version)
Min 500 matings/unmatings
3 VDE versions
Accessories
Different types of cable clamps
Dustcaps
Discrimination pins
Description
Metal circular connector with metal bayonet
coupling system
Range
Shell sizes:
Contact arrangements:
8
10 (3 to 48)
8
1 (3 to 48)
1
8
8 (4 to 48)
Features (see also page 2)
Derived from MIL - C 26482
Intermateable with UTG / UTP
2 levels of water protection:
Dynamic IP67/IP69K and IP68/IP69K
Suitable for EMC requirements
Min 500 matings/unmatings
2 levels of salt spray: 48 and 96h
Higher salt spray (200/500h) upon request
Cat5e ethernet compatible
Back shells with metric cable glands
RoHS compliant
Accessories
Different types of cable clamps
Shielded cable clamp
Dustcaps
MBG
Description
Plastic circular connector with metal quick mating
feature (push-pull)
Range
Shell sizes:
Contact arrangements:
5
5 (4 to 46)
Features
Min 5000 matings/unmatings
Quick and easy mating with latching system
Accessories
Cable clamp
4
Overview
- Rectangular size 16
MS-M
MSO
V35 - DTE/DCE

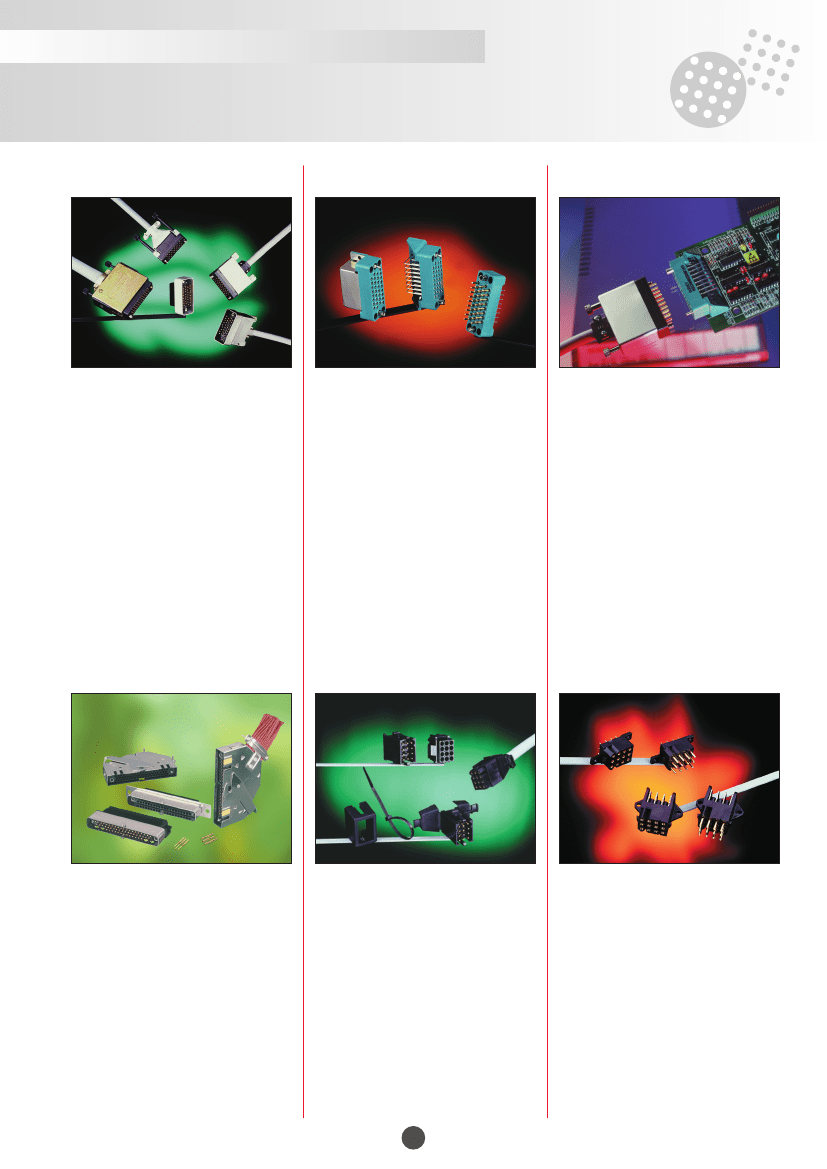

Description
High performance rectangular cable connector
Range
Shell sizes:
Contact arrangements:
Features
Per MIL - C 28748
Intermateable with MSO
Accessories
Different types of cable clamps
Guide and jackscrew pins
Pin protection shrouds
Discrimination pins
Description
Rectangular boardmount connector to mate with
MS-M cable connectors
Range
Shell sizes:
Contact arrangements:
Description
Rectangular cable and boardmount connector for
V.35 DTE/DCE interface applications
Range
1 shell size with 34 contact positions
straight and right angle boardmount connector
Features
In compliance with international standards of ISO
2593 for TSS V.35 interfacing
Solid machined or stamped and formed contacts
for boardmount connector
Shielded cable and boardmount connectors
available
Accessories
Different type of cable clamps (incl. shielded)
Guide and jackscrew pins
Pin protection shrouds and discrimination pins
9
9 to 75
5
5 straight (9 to 75)
3 right angle
(9,18,34)
Features
Solid machined or stamped and formed contacts
Intermateable with MS-M
Accessories
Guide and jackscrew pins
Discrimination pins
MSG / MB
new
SMS - Qikmate cable connectors
SMS - Qikmate boardmount
Description
Cable (MSG + MB) and boardmount (MSG)
connectors with lever locking system.
Range
Shell sizes:
Contact arrangements:
Description
Low cost rectangular cable connectors for cable
to cable and cable to panel applications
Range
Shell sizes:
Contact arrangements:
Description
Low cost rectangular boardmount connector to
mate with SMS cable connectors
Range
Shell sizes:
Contact arrangements:
1 for MSG
1 for MB
50 + 59 for MSG
52 for MB
10
10 (2 to 36)
Features
Lever locking system – easy mating
MSG is 19” rack mountable
Polarization features available
Anti jack knife system on MB
Features
Intermateable with SMS Boardmount
Moulded-on cable hood
No extra hardware required
Positive locking with retaining latches
Disrrimination cavities in between contact cavities
Accessories
Pin protection shrouds
Discrimination pins
Tie wraps
10
10 straight (2 to 36)
4 right angle
(3,6,1
2,18)
Features
Solid machined or stamped and formed contacts
No extra hardware required
Intermateable with SMS cable connectors
Disrrimination cavities in between contact cavities
Accessories
Discrimination pins
5
Overview
- Contacts size 16
RM/RC-M (size 1
6)
SM/SC-M (size 1
6)
RMDX/RCDX (size 1
6)

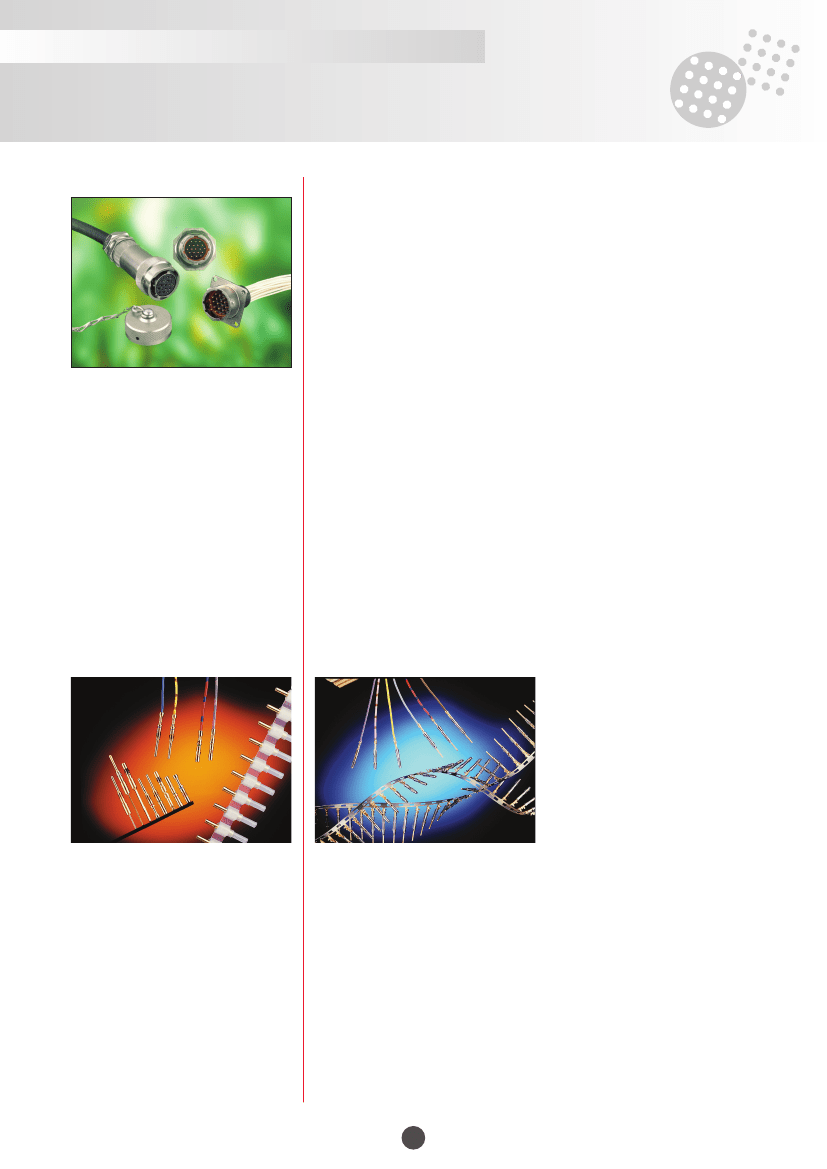

Description
Machined Snap in pin and socket contacts for
heavy duty top performance requirements.
Range
30 to 1 AWG – 0.05 to 2.5 mm
2
4
Crimp, PC Boardmount, Handsolder
Wire wrap, Grounding contacts
Features
Current rating: 1 Amps
3
Plating: Gold or Tin
Colour coded for different wire sizes
Description
Two piece strip formed snap in pin and socket
contacts.
Range
26 to 1 AWG – 0.1 to 2.0 mm
2
4
3
Crimp.
Features
Current rating: 1 Amps
3
Plating: Gold or Tin
Description
Snap in pin and socket coaxial contacts for a wide
range of coaxial and twisted pair cables.
Range
Multi piece or Monocrimp design.
Typical coaxial cables are: RG161, RG1
78, RG1
79.
RG188.
Features
Plating: Gold
Fibre optic (size 1
6)
Description
Snap in pin and socket fibre optic contacts for the
integration of optical links.
Range
Plastic optical Fibre (POF):
1mm core and 2.2mm jacket.
Plastic clad Fibre (PCF):
230 µm core and 2.2 mm jacket
Multimode Silica Fibre:
50/1 µm type 1.5mm (or 900 µm) jacket.
25
Features
Socket contact is spring loaded to avoid any air
gap between the optical faces.
6
Overview

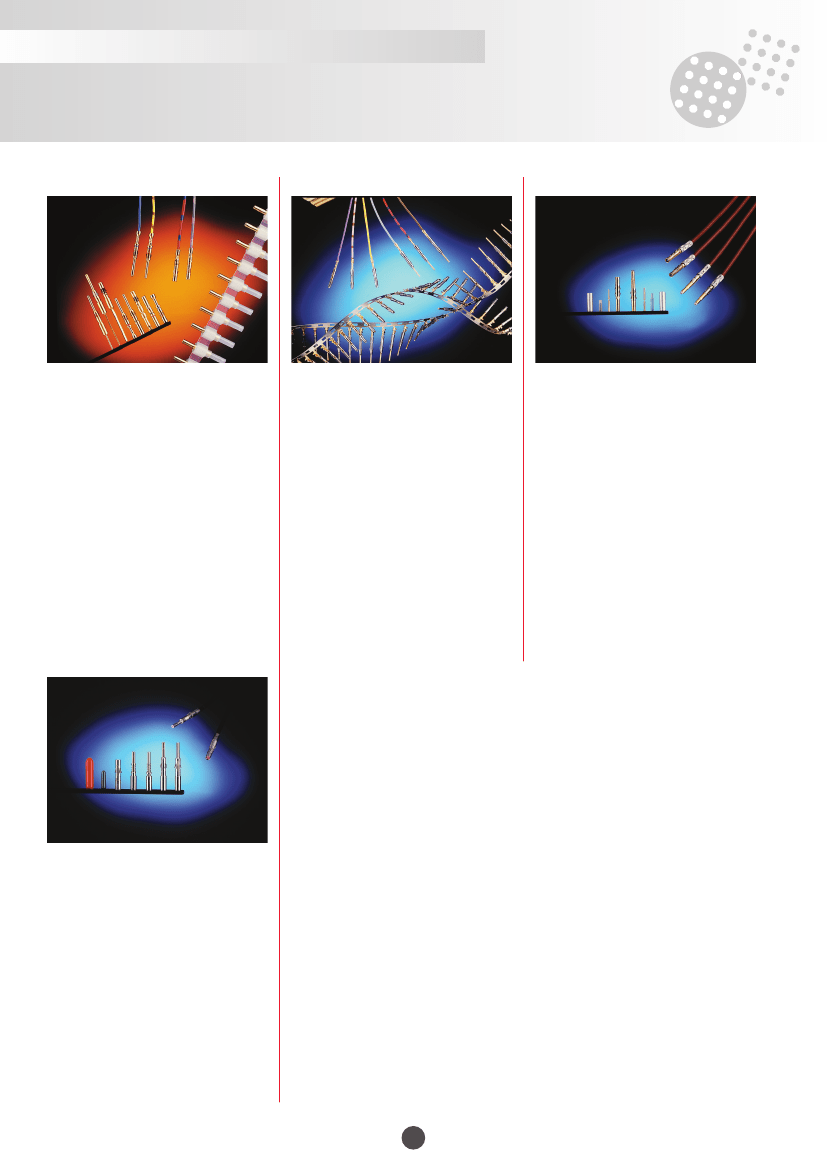

- size 20 connectors + contacts
UTOW
new
Description
Metal circular connector with metal bayonet
coupling system.
Range
Shell sizes:
Contact arrangements:
8
8 (6 to 61)
Features (see also page 2)
2 levels of water protection:
Dynamic IP67/IP69K and IP68/IP69K
Suitable for EMC requirements
Min 500 matings/unmatings
2 levels of salt spray: 48 and 96h
Higher salt spray (200/500h) upon request
Back shells with metric cable glands
RoHS compliant
Accessories
Different types of cable clamps
Shielded cable clamp
Dustcaps
Discrimination pins
RM/RC-W (size 20)
SM/SC-W (size 20)
Description
Machined Snap in pin and socket contacts for
heavy duty top performance requirements.
Range
26 to 18 AWG – 0.1 to 1.0 mm
2
3
Crimp and PC Boardmount
Features
Current rating: 7.5 Amps
Plating: Gold
Description
Two piece strip formed snap in pin and socket
contacts.
Range
26 to 20 AWG – 0.1 to 0.5 mm2
3
Crimp.
Features
Current rating: 5 Amps
Plating: Gold
7

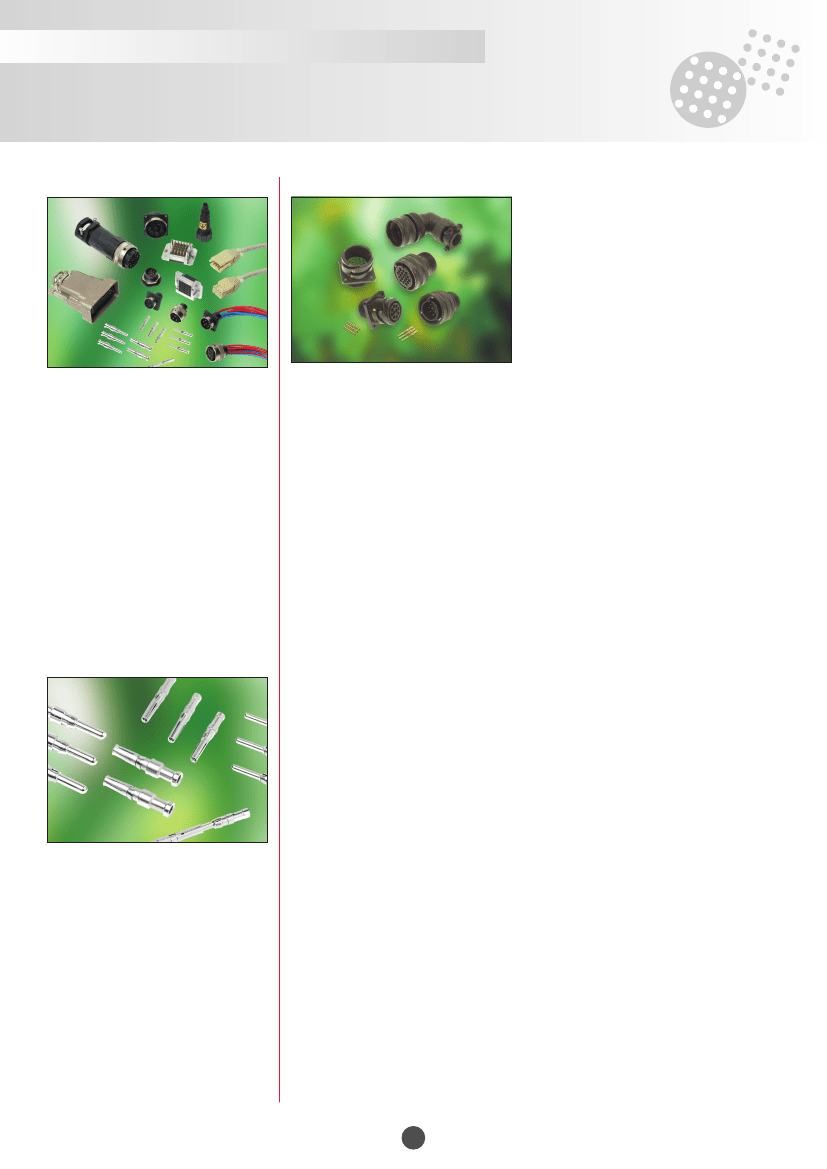

Overview
- mixed power signal/ruggedized
Circular & Rectangular power versions
UTV series
ne w
Description
Power connectors are connectors to meet mixed
power / signal requirements.
This range of power connectors is an extension
of the long established and popular TRIM TRIO
connector series
Description
Ruggedized metal circular connector for heavy
duty applications
Range
Shell sizes:
Contacts arrangements:
8
9 (7 to 60)
Features
Completely intermountable with VG95237: the
MS501 reverse bayonet connectors.
5
2 levels of waterprotection:
Dynamic IP67/69K and IP68/69K
Up to 500 h salt spray.
Accessories
Straight back shells
Right angle back shells
Grommets and filler plugs
8291 (power)
Description
Machined snap in pin and sockets contacts
for power applications
Range
Size 1 contacts:
2
20 to 1 AWG – 0.5 to 2.5 mm
2
4
Size 8 contacts:
16 to 8 AWG – 1.5 to 10 mm
2
Features
Current rating: 26 Amps for size 1 contacts
2
44 Amps for size 8 contacts
Plating: Gold or Silver for size 1 contacts
2
Gold for size 8 contacts
8
