TS68008CP10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> TS68008CP10

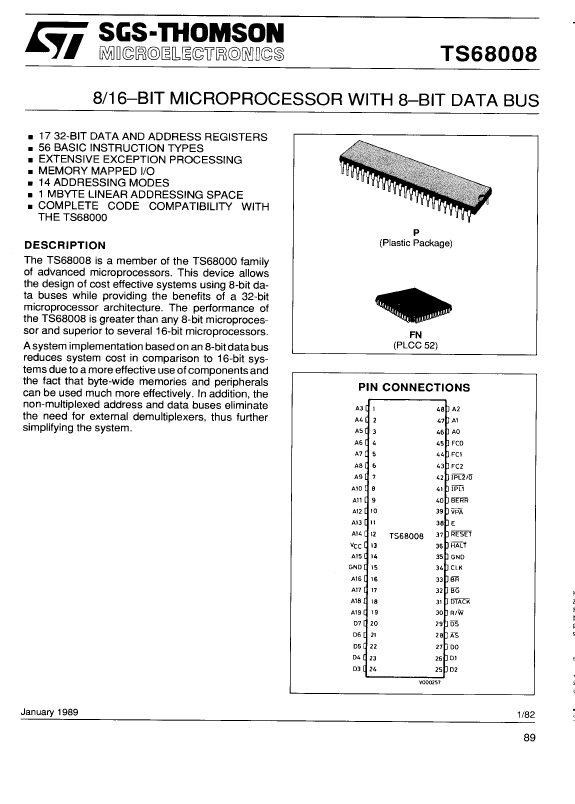

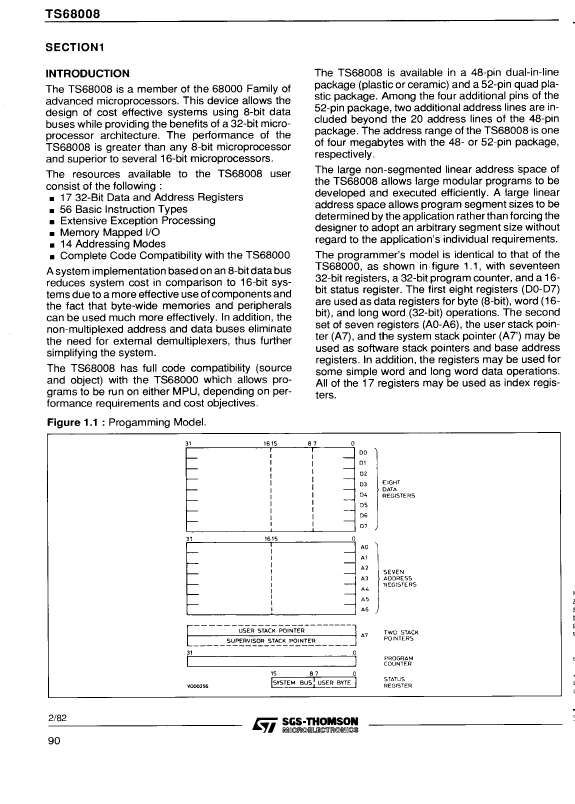

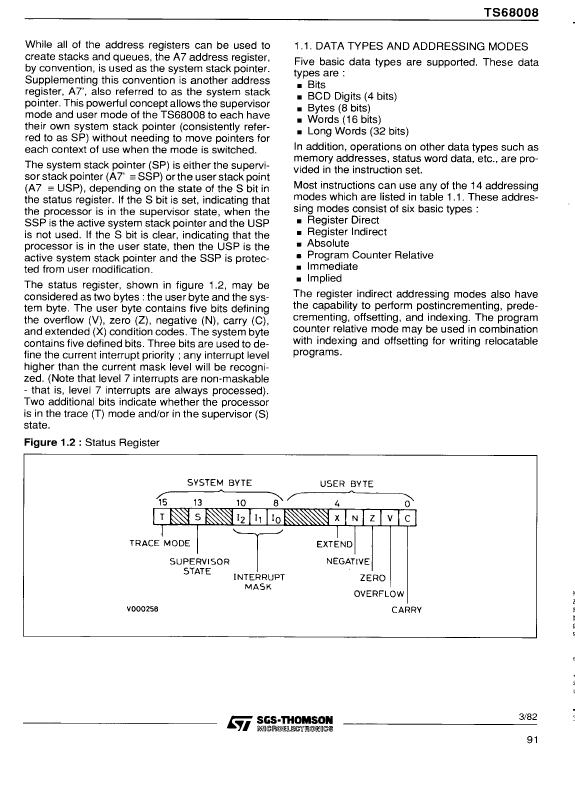

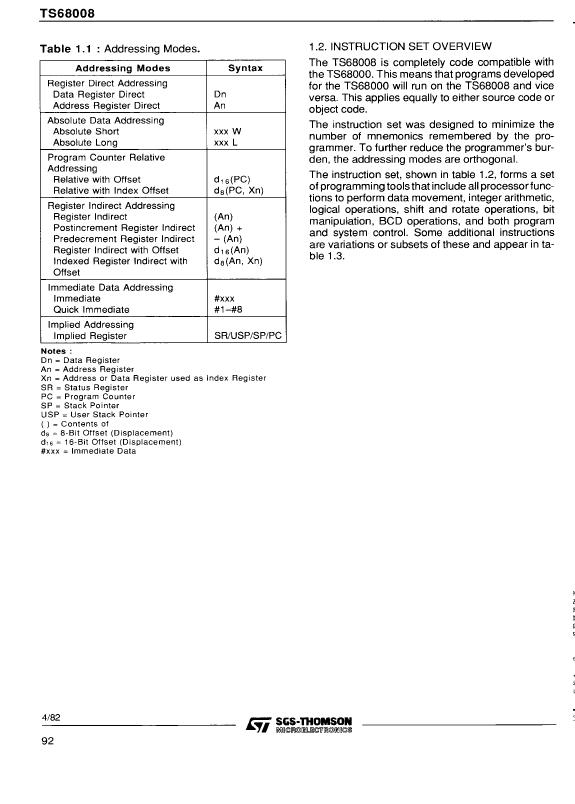

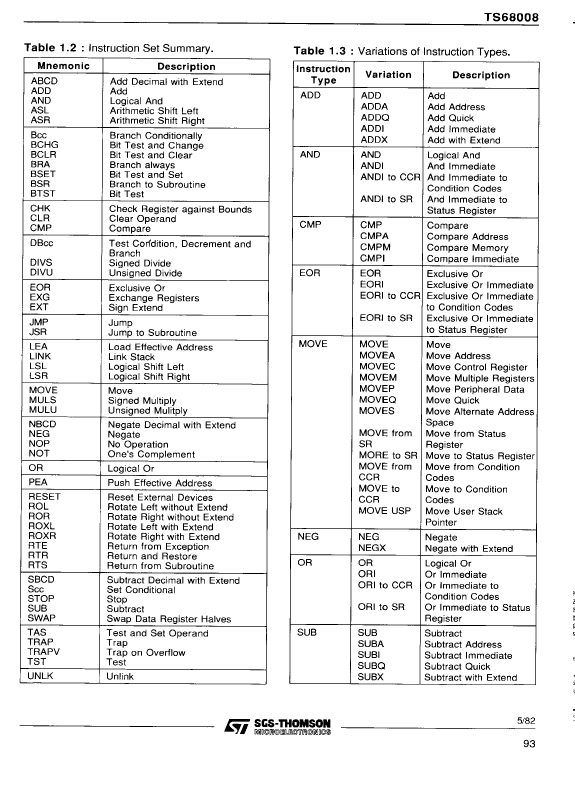

TS68008CP10: Description16-BIT, 10MHz, MICROPROCESSOR, PDIP48, PLASTIC, DIP-48; CategoryThe embedded processor and controller Microcontrollers and processors; File Size3MB，82 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

TS68008CP10 Overview

16-BIT, 10MHz, MICROPROCESSOR, PDIP48, PLASTIC, DIP-48

TS68008CP10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	PLASTIC, DIP-48
Contacts	48
Reach Compliance Code	not_compliant
Address bus width	20
bit size	16
boundary scan	NO
maximum clock frequency	10 MHz
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T48
JESD-609 code	e0
low power mode	NO
Number of DMA channels
Number of external interrupt devices	3
Number of serial I/Os
Number of terminals	48
On-chip data RAM width
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP48,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	5.08 mm
speed	10 MHz
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR
Base Number Matches	1

Preview

Download Datasheet

View All

TS68008CP10 Related Products

	TS68008CP10	TS68008CFN10	TS68008CP8	TS68008VFN10
Description	16-BIT, 10MHz, MICROPROCESSOR, PDIP48, PLASTIC, DIP-48	16-BIT, 10MHz, MICROPROCESSOR, PQCC52, PLASTIC, LCC-52	16-BIT, 8MHz, MICROPROCESSOR, PDIP48, PLASTIC, DIP-48	16-BIT, 10MHz, MICROPROCESSOR, PQCC52, PLASTIC, LCC-52
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	LCC	DIP	LCC
package instruction	PLASTIC, DIP-48	PLASTIC, LCC-52	PLASTIC, DIP-48	PLASTIC, LCC-52
Contacts	48	52	48	52
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
Address bus width	20	22	20	22
bit size	16	16	16	16
boundary scan	NO	NO	NO	NO
maximum clock frequency	10 MHz	10 MHz	8 MHz	10 MHz
External data bus width	8	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO
JESD-30 code	R-PDIP-T48	S-PQCC-J52	R-PDIP-T48	S-PQCC-J52
JESD-609 code	e0	e0	e0	e0
low power mode	NO	NO	NO	NO
Number of external interrupt devices	3	7	3	7
Number of terminals	48	52	48	52
Maximum operating temperature	70 °C	70 °C	70 °C	85 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCJ	DIP	QCCJ
Encapsulate equivalent code	DIP48,.6	LDCC52,.8SQ	DIP48,.6	LDCC52,.8SQ
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm
speed	10 MHz	10 MHz	8 MHz	10 MHz
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES
technology	NMOS	NMOS	NMOS	NMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	J BEND	THROUGH-HOLE	J BEND
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	19.1262 mm	15.24 mm	19.1262 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR
Base Number Matches	1	1	1	1
