TLP759F
TOSHIBA Photocoupler
GaAℓAs Ired + Photo−IC
TLP759F
Digital Logic Ground Isolation
Line Receiver
Microprocessor System Interfaces
Switching Power Supply Feedback Control
Transistor Inverter
The TOSHIBA TLP759F consists of a GaAℓAs high-output light
emitting diode and a high speed detector of one chip photo diode-
transistor. This unit is 8-lead DIP package.
TLP759F has no internal base connection, and a faraday shield
integrated on the photodetector chip provides an effective common
mode noise transient immunity.
So this is suitable for application in noisy environmental condition.
All parameters are tested to the specification of TLP759.
•
•
•
•
•
Isolation voltage: 5000 Vrms (min.)
Switching speed: t
pHL =
0.3μs (typ.)
t
pHL
= 0.5μs (typ.) (R
L
= 1.9 kΩ)
TTL compatible
UL recognized: UL1577, file no. E67349
BSI approved:
BS EN60065:2002, certificate no.8869
BS EN60950-1:2002, certificate no.8870
Option (D4) type
VDE approved: DIN EN 60747-5-2
Certificate no. 40009302
Maximum operating insulation: 1140V
PK
Highest permissible over voltage: 6000V
PK
1
2
3
8
7
6
SHIELD
5
1: N.C.
2: Anode
3: Cathode
4: N.C.
5: Emitter(GND)
6: Collector(output)
7: N.C.
8: V
CC

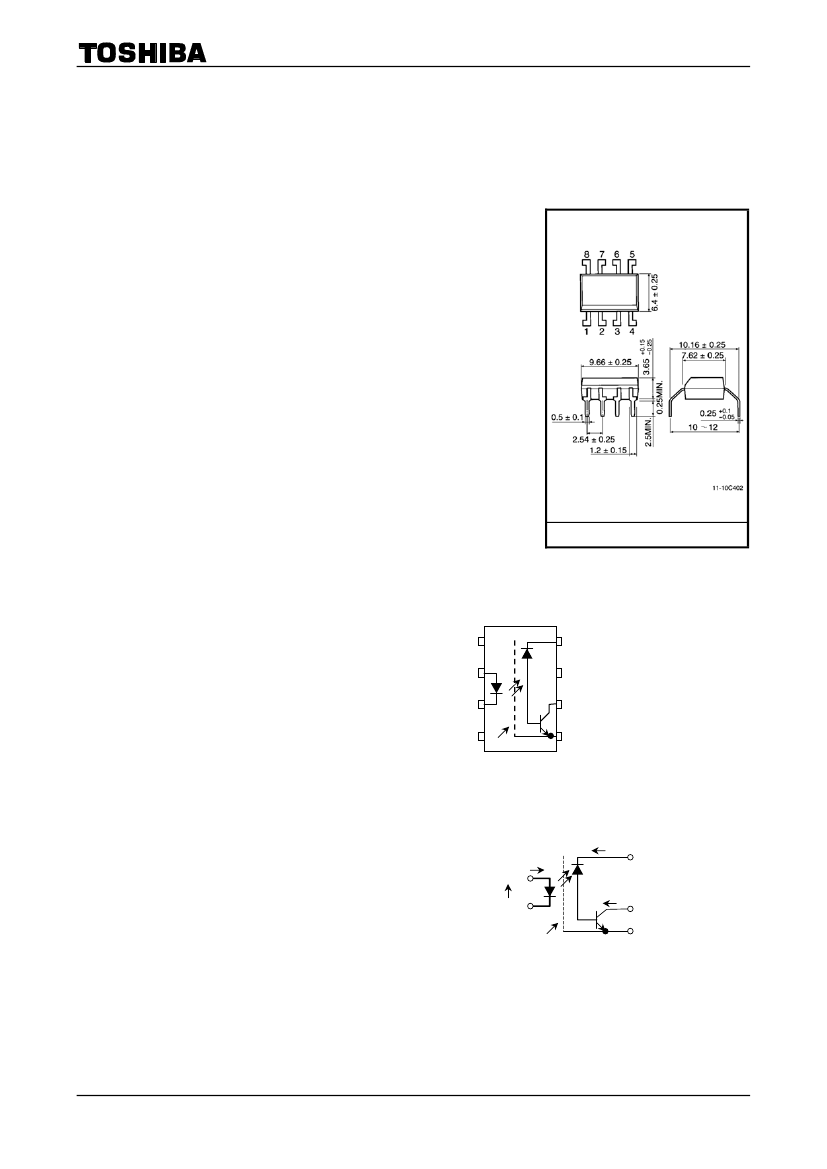

Unit: mm
TOSHIBA
11−10C402
Weight: 0.54 g (typ.)
•
Pin Configuration(top view)
(Note) When an EN 60747-5-2 approved type is
needed, please designate the “ Option (D4) ”
•
Creepage distance: 8.0 mm
Clearance: 8.0 mm
Insulation thickness: 0.4 mm
4
Schematic
I
CC
I
F
2
V
F
3
6
SHIELD
5
I
O
V
O
GND
8
V
CC
1
2007-10-01
