LFVCXO016735REEL datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> LFVCXO016735REEL

LFVCXO016735REEL: DescriptionHCMOS Output Clock Oscillator, 19.44MHz Nom; CategoryPassive components oscillator; File Size807KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFVCXO016735REEL Overview

HCMOS Output Clock Oscillator, 19.44MHz Nom

LFVCXO016735REEL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IQD Frequency Products
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TR
Maximum control voltage	3.15 V
Minimum control voltage	0.15 V
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	50%
linearity	10%
Installation features	SURFACE MOUNT
Nominal operating frequency	19.44 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	7.5mm x 5.0mm x 1.9mm
longest rise time	5 ns
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %
Base Number Matches	1

Preview

Download Datasheet

View All

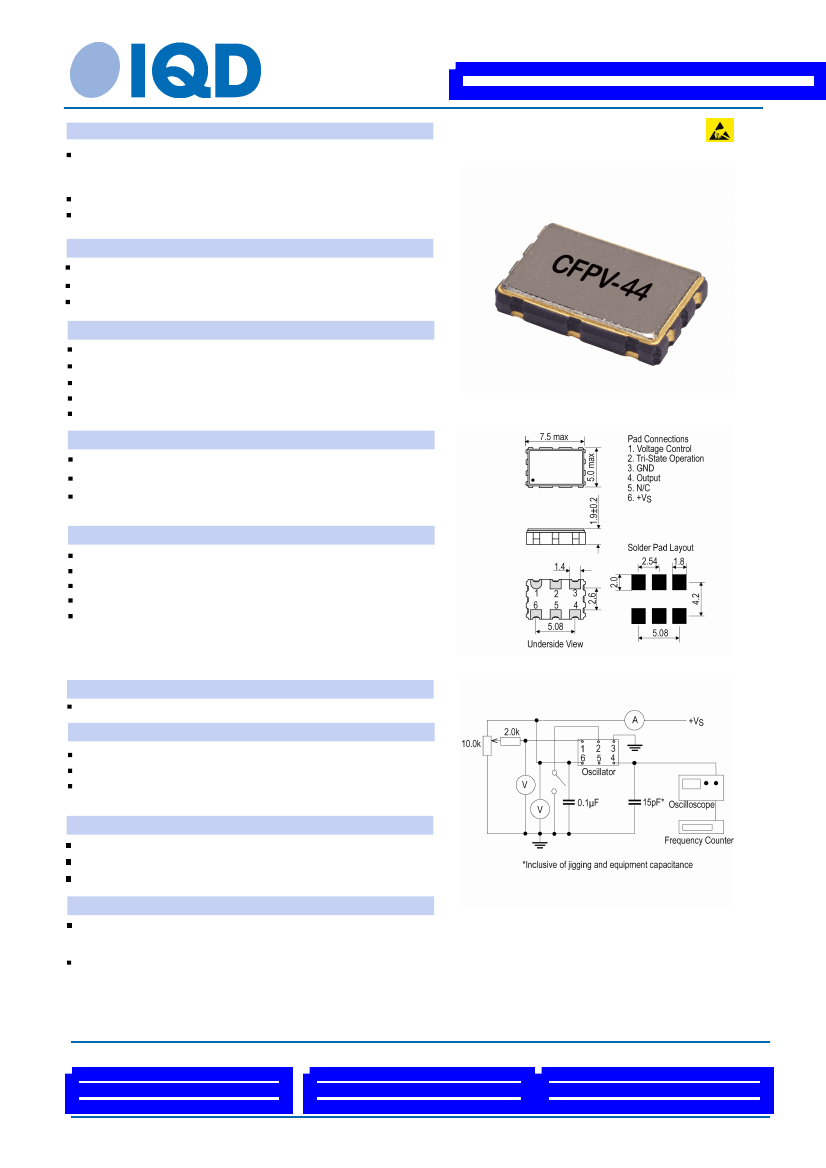

VCXO Specification

Part No. + Packaging:

LFVCXO016735Reel

Description

Standard 7 x 5mm Voltage Controlled Crystal Oscillator

Ceramic package with a seam sealed metal lid, hermetically

sealed

Model

CFPV-44

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Electrical Parameters

19.440MHz

±50.00ppm

-10.00 to 70.00°C

3.3V ±0.3V

Supply Voltage

Current Draw

15.00mA

Start-Up Time: 10ms max

Linearity: Positive ±10% max

Modulation Bandwidth: 20kHz min

Frequency Adjustment

Outline (mm)

Pulling

Control Voltage

Input Impedence

Output Details

±100ppm min

1.65V ±1.5V

1-80MHz 100kΩ typ,

>80-125MHz 5MΩ typ

HCMOS

Output Compatability

Drive Capability

15pF max

Rise and Fall Time

5.0ns max

40/60%

Duty Cycle

Logic ‘1’ (>70%VS) to pad 2 enables oscillator output

Logic ‘0’ (<30%VS) to pad 2 disables oscillator output; when

disabled the oscillator output goes to the high impedance state

No connection pad 2 enables oscillator output

Noise Parameters

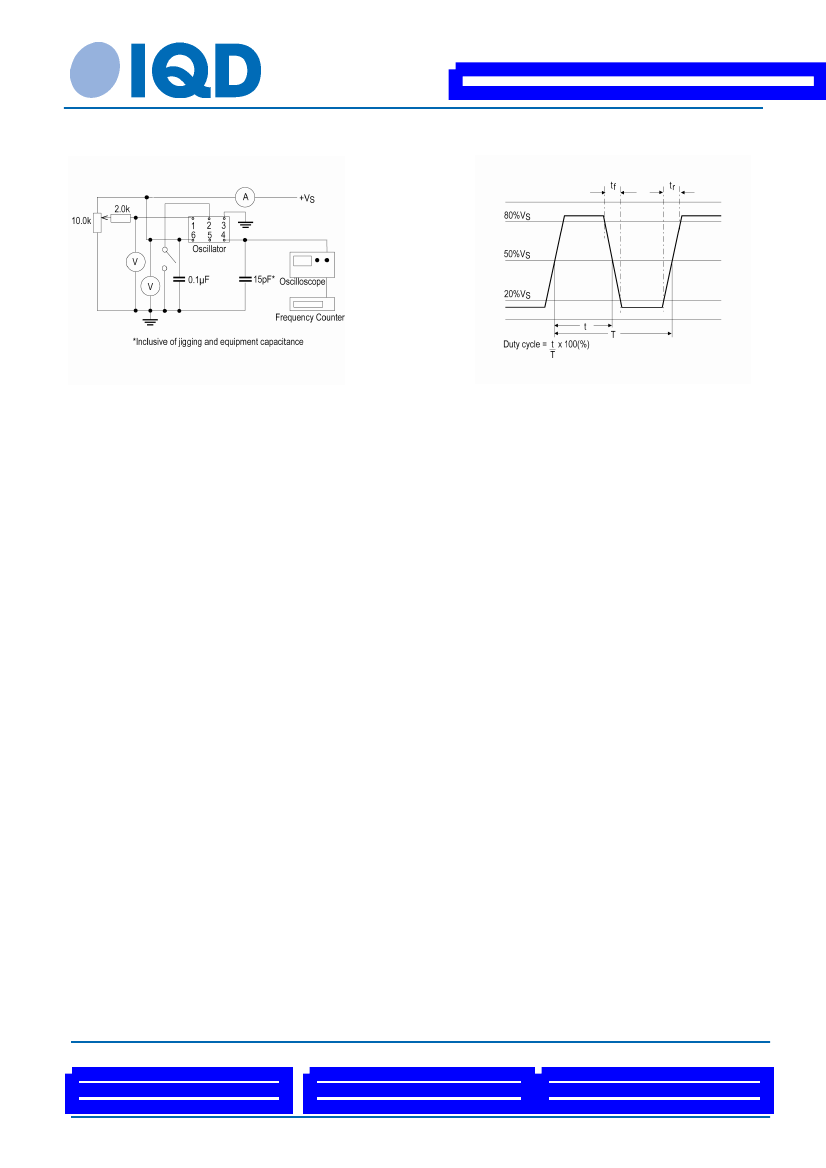

Test Circuit

Phase Jitter: 20MHz max 1ps rms (12kHz - 1MHz)

Environmental Parameters

Storage Temperature Range: -40 to 85°C

Shock: MIL-STD-202F, Method 213B (1000G, 0.5ms, 1/2 sine)

Vibration: Sinewave, frequency range 10-55Hz, amplitude

1.52mm, 2hrs in X, Y, Z axes (total 6 hrs)

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2
