10515130 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 10515130

10515130: DescriptionD Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Receptacle; CategoryThe connector The connector; File Size288KB，2 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric Compare View All

10515130 Overview

D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Receptacle

10515130 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
body width	0.494 inch
subject depth	0.213 inch
body length	1.541 inch
Body/casing type	RECEPTACLE
Contactor design	MACH OR STAMPED
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	105
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .112-.124
Installation option 2	LOCKING
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STEEL
Terminal length	0.13 inch
Termination type	SOLDER LUG
Total number of contacts	15
Base Number Matches	1

Preview

Download Datasheet

View All

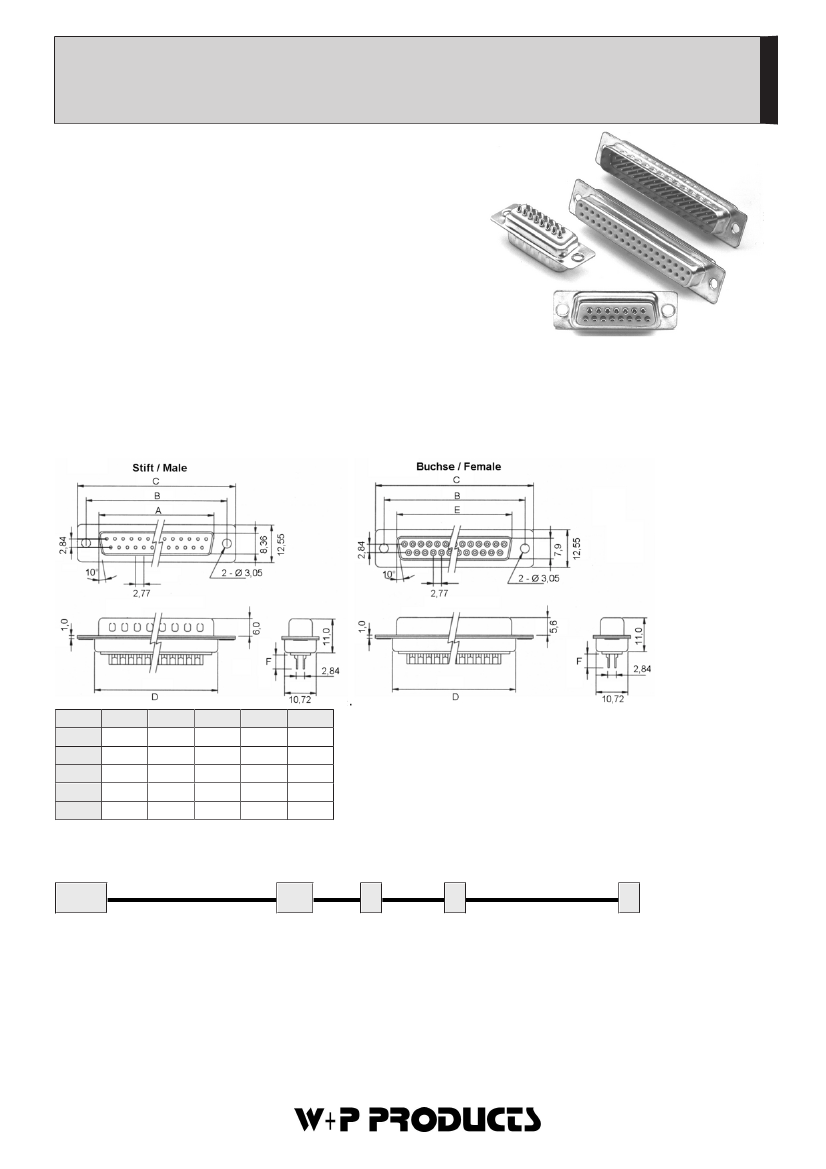

100 105

D-SUB Steckverbinder - Lötkelch - DIN 41652

D-SUB-Connector - Solder Cup - acc. to DIN 41652

Technische Daten /Technical

Data

Gehäuse

Stahl vernickelt, verzinnt

Shell

Steel, tin coated over nickel

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Kupferlegierung

Contact Material

Copper alloy

Kontaktoberfläche

Gold über Nickel

Contact Surface

Gold plated over nickel

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 10mΩ

Contact Resistance

< 10mΩ

Isolationswiderstand

> 10

Ω

Insulation Resistance

> 10

Ω

Spannungsfestigkeit

1000V

Test Voltage

1000V

Nennstrom

Current Rating

Temperaturbereich

-55°C ... +125°C

Temperature Range

-55°C ... +125°C

Verarbeitung

Wellenlötverfahren; weitere Informationen in Kapitel T

Processing

Wave soldering, detailed information in ch. T

Contacts

16,92

25,25

38,96

55,42

24,99

33,62

47,04

63,50

30,81

39,14

53,04

69,32

66,90

19,28

27,51

41,30

57,71

55,30

16,33

24,66

38,38

54,84

52,34

52,86

61,11

Serie 100: F=2,6mm

Serie 105: F=3,3mm

Series

Contacts

Terminal

Quality

Mounting

100

Stift

Male

Buchse

Female

GK 1

Min. 500 Zyklen

Quality class 1: 500 cycles min.

GK 2

Min. 200 Zyklen

Quality class 2: 200 cycles min.

GK 3

Min. 50 Zyklen

Quality class 3: 50 cycles min.

0 ... CL

Lt. Übersicht S. C31

See options p. C31

100

Gedrehte Kontakte, GK 1, 2 und 3

09/15/25/37/50

Screw machined contacts, quality class 1, 2,

105

Gestanzte Kontakte, nur GK 3

Stamped contacts, quality class 3 only

(

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com

10515130 Related Products

	10515130	10509130	10515230
Description	D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Receptacle	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Receptacle	D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Plug
Reach Compliance Code	compli	compliant	compliant
body width	0.494 inch	0.494 inch	0.494 inch
subject depth	0.213 inch	0.213 inch	0.197 inch
body length	1.541 inch	1.213 inch	1.541 inch
Body/casing type	RECEPTACLE	RECEPTACLE	PLUG
Contactor design	MACH OR STAMPED	MACH OR STAMPED	MACH OR STAMPED
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	STAGGERED	STAGGERED	STAGGERED
Contact resistance	10 mΩ	10 mΩ	10 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	105	105	105
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch
Installation option 1	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124
Installation option 2	LOCKING	LOCKING	LOCKING
Installation type	PANEL	PANEL	PANEL
Number of rows loaded	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Rated current (signal)	5 A	5 A	5 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Shell material	STEEL	STEEL	STEEL
Terminal length	0.13 inch	0.13 inch	0.13 inch
Termination type	SOLDER LUG	SOLDER LUG	SOLDER LUG
Total number of contacts	15	9	15
Base Number Matches	1	1	-
Maker	-	W+P Products GmbH	W+P Products GmbH
