DA-19603-403 datasheet, PDF - EEWORLD Datasheet

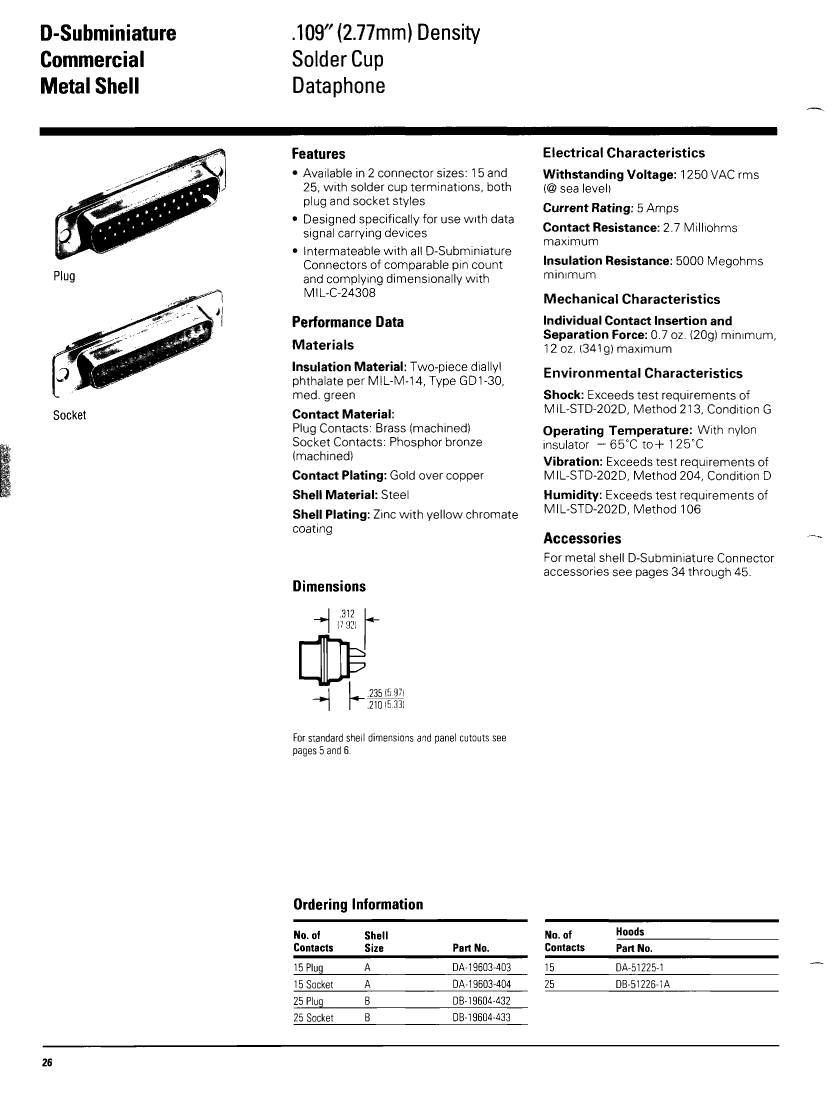

DA-19603-403: DescriptionD Subminiature Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Plug,; CategoryThe connector The connector; File Size41KB，1 Pages; ManufacturerCinch Connectivity Solutions

Download Datasheet Parametric Compare View All

DA-19603-403 Overview

D Subminiature Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Plug,

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
body length	1.541 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON CU
Contact completed and terminated	GOLD OVER COPPER
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	2.7 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1250VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	DIALLYL PHTHALATE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	HOLE .112-.124
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Plating thickness	FLASH inch
Rated current (signal)	5 A
reliability	MIL-C-24308
Shell surface	ZINC/YELLOW CHROMATE
Shell material	STEEL
Housing size	2/A
Terminal length	0.077 inch
Termination type	SOLDER
Total number of contacts	15
Evacuation force-minimum value	.1946 N
Base Number Matches	1

	DA-19603-403	DA-19603-404	DB-19604-432	DB-19604-433
Description	D Subminiature Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Plug,	D Subminiature Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Socket,	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, Plug,	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Socket
Reach Compliance Code	compliant	compliant	compliant	unknown
Body/casing type	PLUG	SOCKET	PLUG	SOCKET
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact completed and terminated	GOLD OVER COPPER	GOLD OVER COPPER	GOLD OVER COPPER	GOLD OVER COPPER
Contact point gender	MALE	FEMALE	MALE	FEMALE
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation type	PANEL	PANEL	PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	STEEL	STEEL	STEEL	STEEL
Housing size	2/A	2/A	3/B	3/B
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	15	25	25
Base Number Matches	1	1	1	1
