LAS-19A15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LAS-19A15

LAS-19A15: Description15V FIXED POSITIVE REGULATOR, MBFM2, FM-2; CategoryPower/power management The power supply circuit; File Size221KB，6 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet Parametric Compare View All

LAS-19A15 Overview

15V FIXED POSITIVE REGULATOR, MBFM2, FM-2

LAS-19A15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Contacts	2
Reach Compliance Code	unknown
Maximum input voltage	35 V
Minimum input voltage	17.6 V
JESD-30 code	O-MBFM-P2
JESD-609 code	e0
Number of functions	1
Number of terminals	2
Maximum output current 1	5 A
Nominal output voltage 1	15 V
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

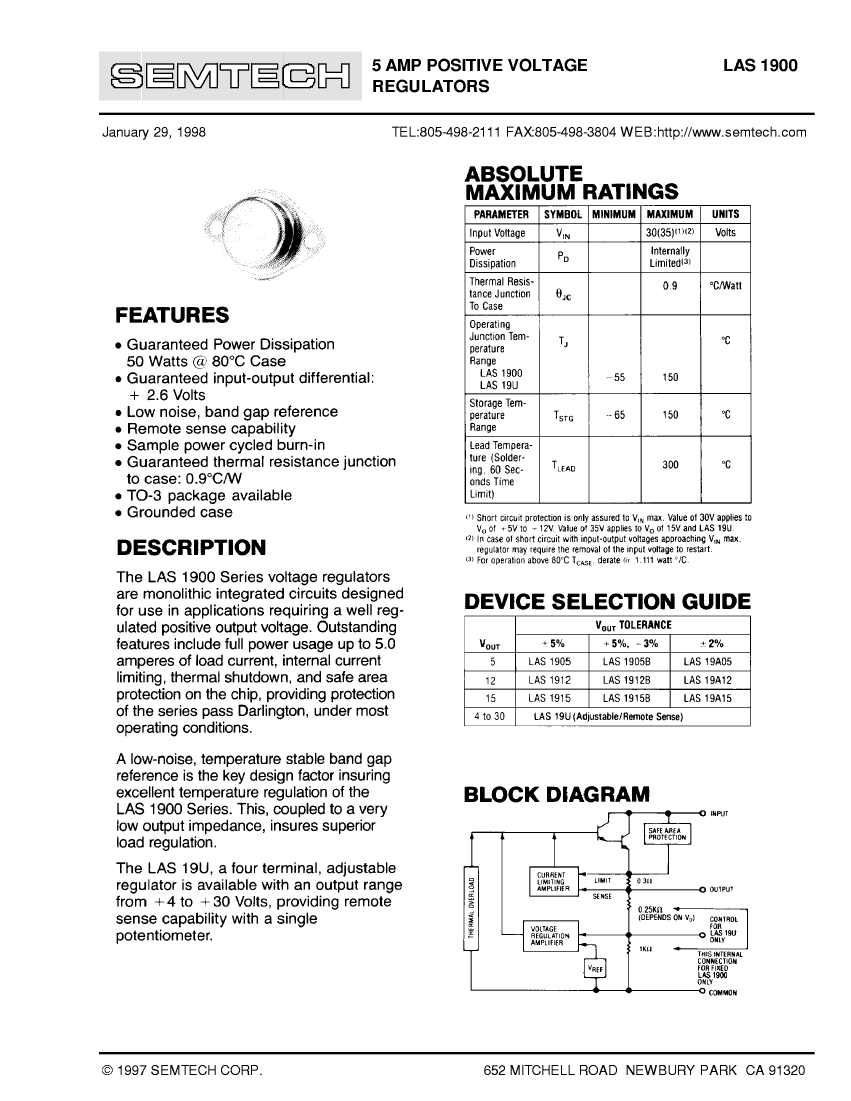

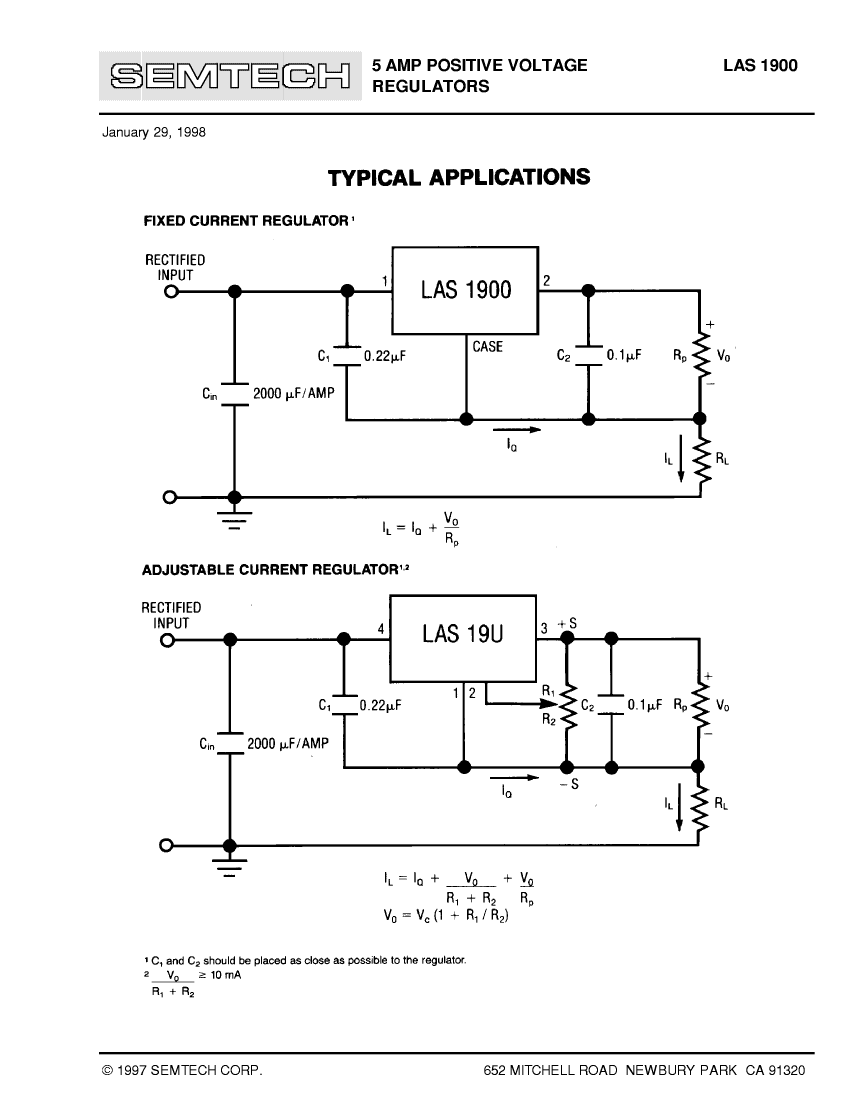

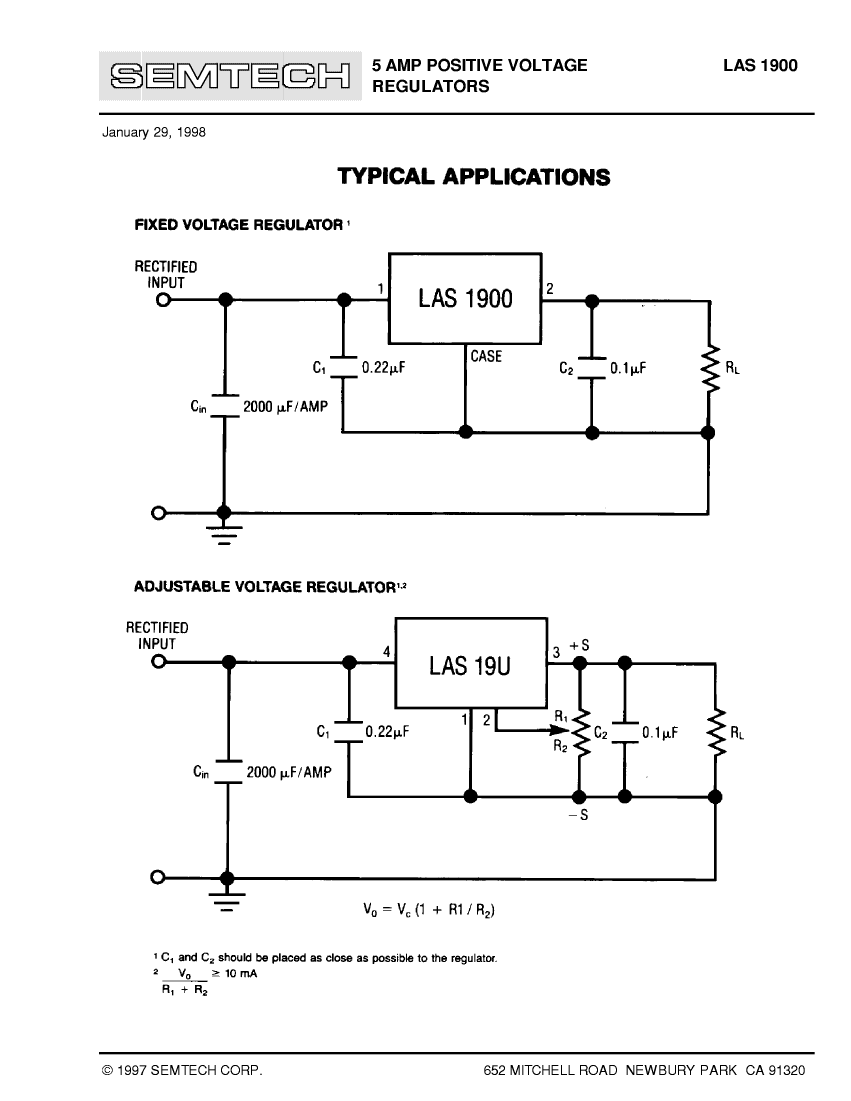

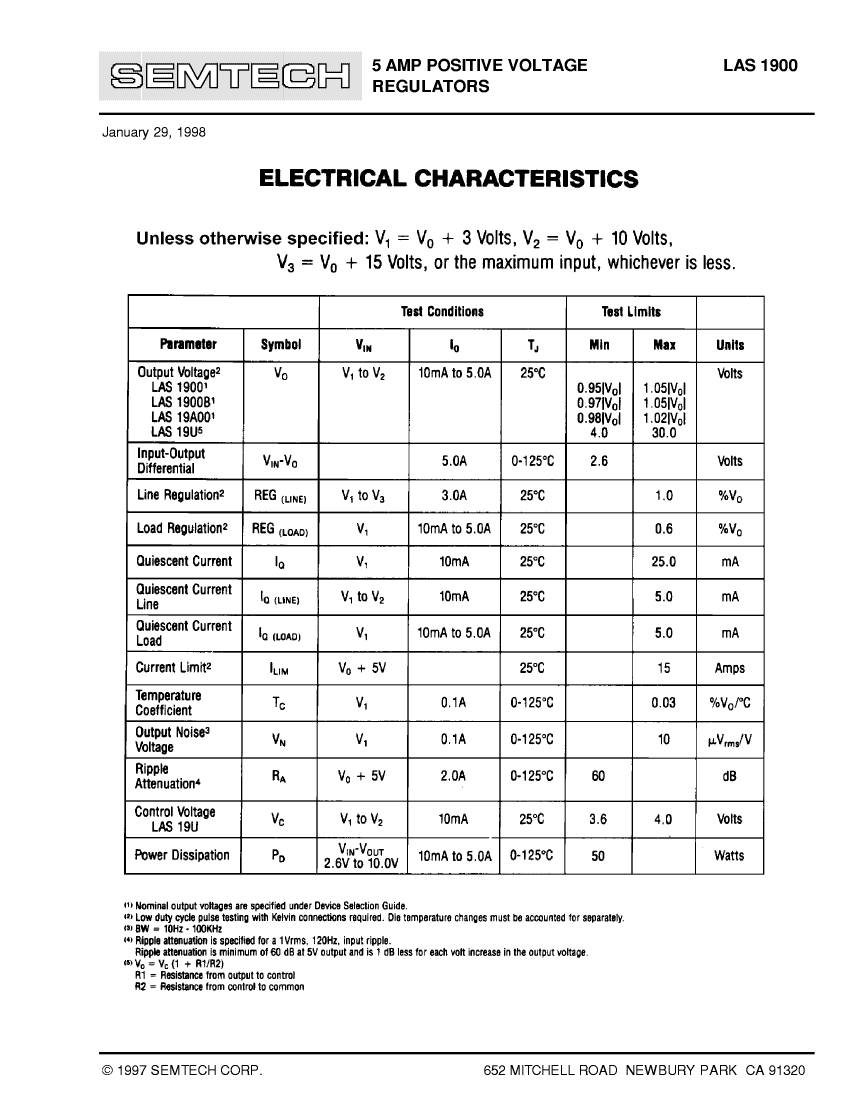

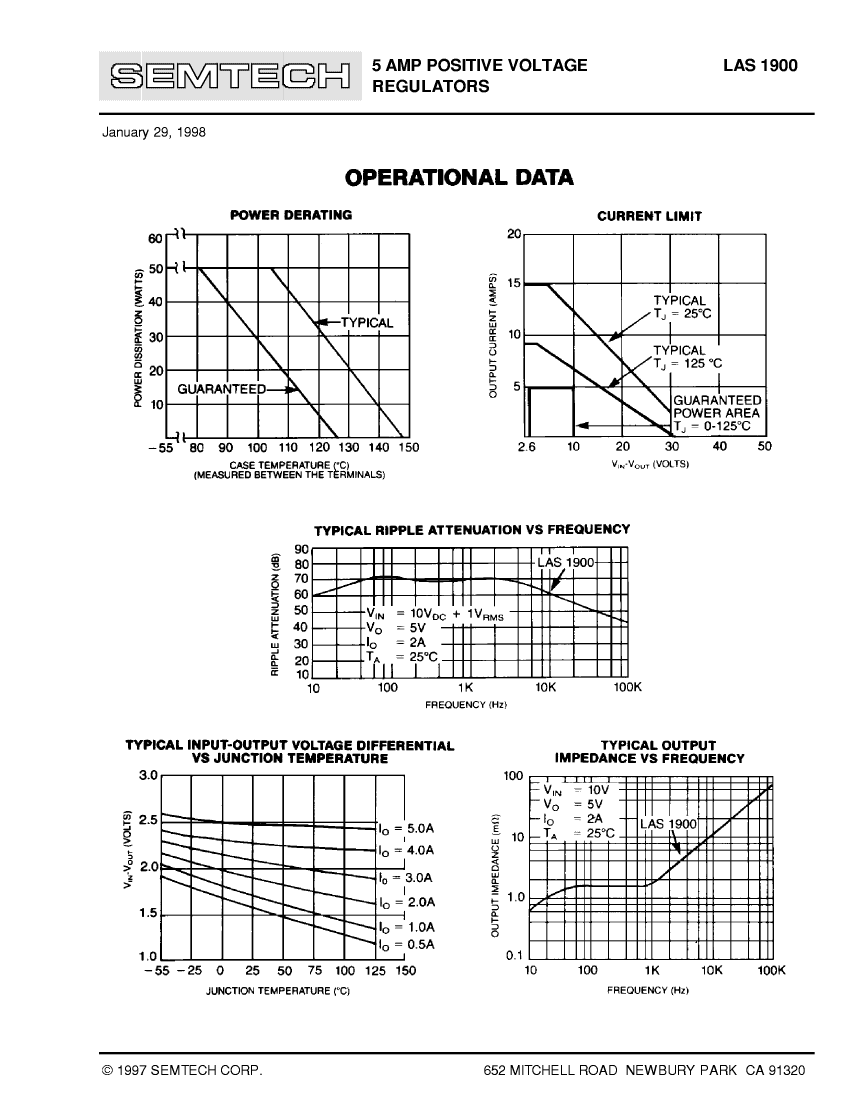

Preview

Download Datasheet

View All

LAS-19A15 Related Products

	LAS-19A15	LAS-19A05	LAS-1905	LAS-1905B	LAS-1915	LAS-1915B	LAS-1912	LAS-1912B	LAS-19A12
Description	15V FIXED POSITIVE REGULATOR, MBFM2, FM-2	5V FIXED POSITIVE REGULATOR, MBFM2, FM-2	5V FIXED POSITIVE REGULATOR, MBFM2, FM-2	5V FIXED POSITIVE REGULATOR, MBFM2, FM-2	15 V FIXED POSITIVE REGULATOR, MBFM2, FM-2	15V FIXED POSITIVE REGULATOR, MBFM2, FM-2	12V FIXED POSITIVE REGULATOR, MBFM2, FM-2	12V FIXED POSITIVE REGULATOR, MBFM2, FM-2	12V FIXED POSITIVE REGULATOR, MBFM2, FM-2
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Contacts	2	2	2	2	2	2	2	2	2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum input voltage	35 V	30 V	30 V	30 V	35 V	35 V	30 V	30 V	30 V
Minimum input voltage	17.6 V	7.6 V	7.6 V	7.6 V	17.6 V	17.6 V	14.6 V	14.6 V	14.6 V
JESD-30 code	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum output current 1	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Nominal output voltage 1	15 V	5 V	5 V	5 V	15 V	15 V	12 V	12 V	12 V
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	-	-	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH
