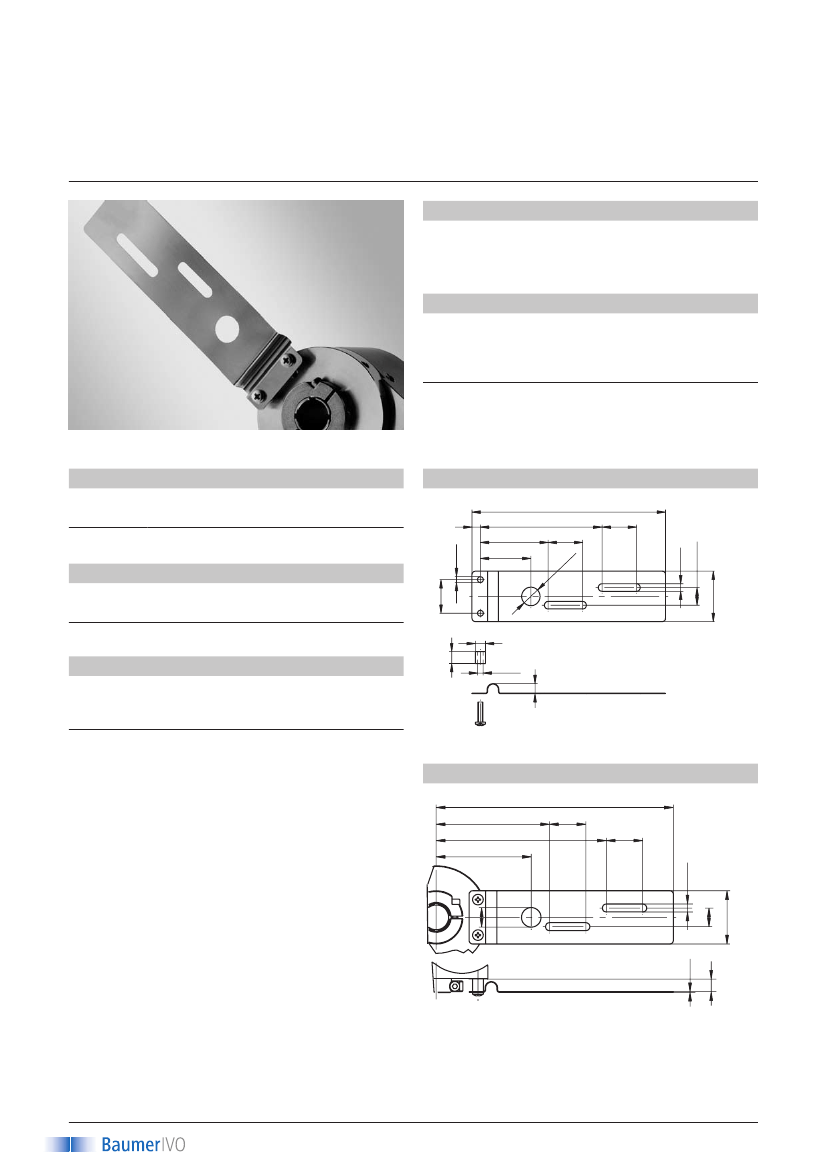

Accessories
Torque supports for hollow shaft encoders
Z 119.076
Features
– Several graduated circle options for mounting on the
intended surface
– For low-dynamic applications
Mounting description
Spring coupling mount is for low-dynamic applications.
Mount Spring coupling at flange by help of the attached
screws. Push encoder onto drive shaft and fix the torque
support at the contact surface.
Part number
Z 119.076
Spring coupling for encoders with ø58 mm
housing
Dimensions
5
3.5
115
72.25
40.25
20.5
30
1
ø1
20.5
4.5
10.5
30
ø6
ø3.2
6
Scope of delivery
Included: spring coupling, two screws M3 x 12 with two
spacer sleeves
20
7
Suitable for
G0AMH, G0M2H, G0MMH, G0P5H, GBAMH, GBAMS,
GBMMH, GBMMS, GBP5H, GCM2S, GCMMS, GXA2S,
GXM2S, GXM7S, GXMMS, GXP5S
Dimension
63.75
95.75
53.5
133.5
20.5
20.5
4.5
1
www.baumerivo.com
29/10/2008
Subject to modification in technic and design. Errors and omissions excepted.
10.5
0.3
7
30
11
