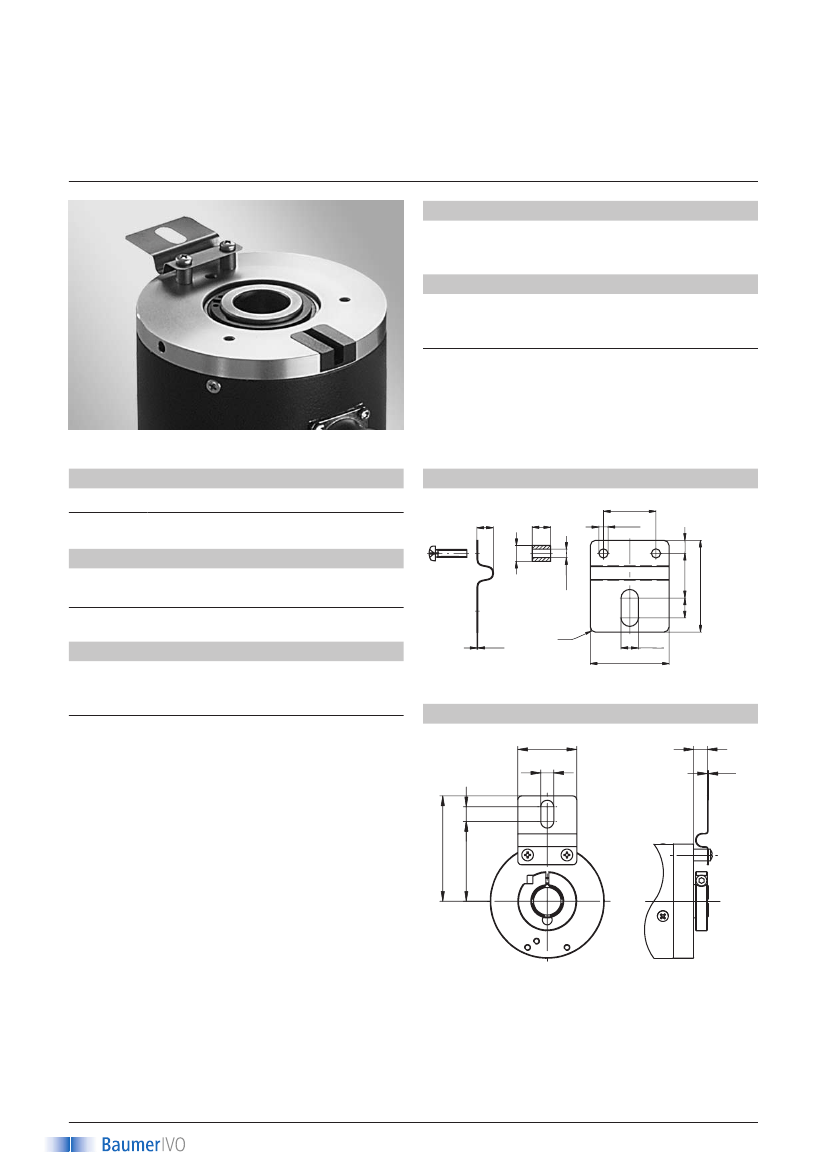

Accessories
Torque supports for hollow shaft encoders
Z 119.050
Features
– For low-dynamic applications and constant
movements
Mounting description
Fix spring coupling onto flange by help of the attached
screws. Push encoder onto the drive shaft and mount torque
support onto the contact surface.
Part number
Z 119.050
Spring coupling
Dimensions
6
7
ø6
20
ø3.5
5
ø3.2
R2
30
ø6.6
30
6.6
7.5
0.3
Dimension
7
0.3
Subject to modification in technic and design. Errors and omissions excepted.
29/10/2008
Scope of delivery
Included: spring coupling, two screws M3 x 12 with two
spacer sleeves
Suitable for
G0AMH, G0M2H, G0MMH, G0P5H, GBAMH, GBAMS,
GBMMH, GBMMS, GBP5H, GCM2S, GCMMS, GXA2S,
GXM2S, GXM7S, GXMMS, GXP5S
53.5
40.5
7.5
1
www.baumerivo.com
17
35
