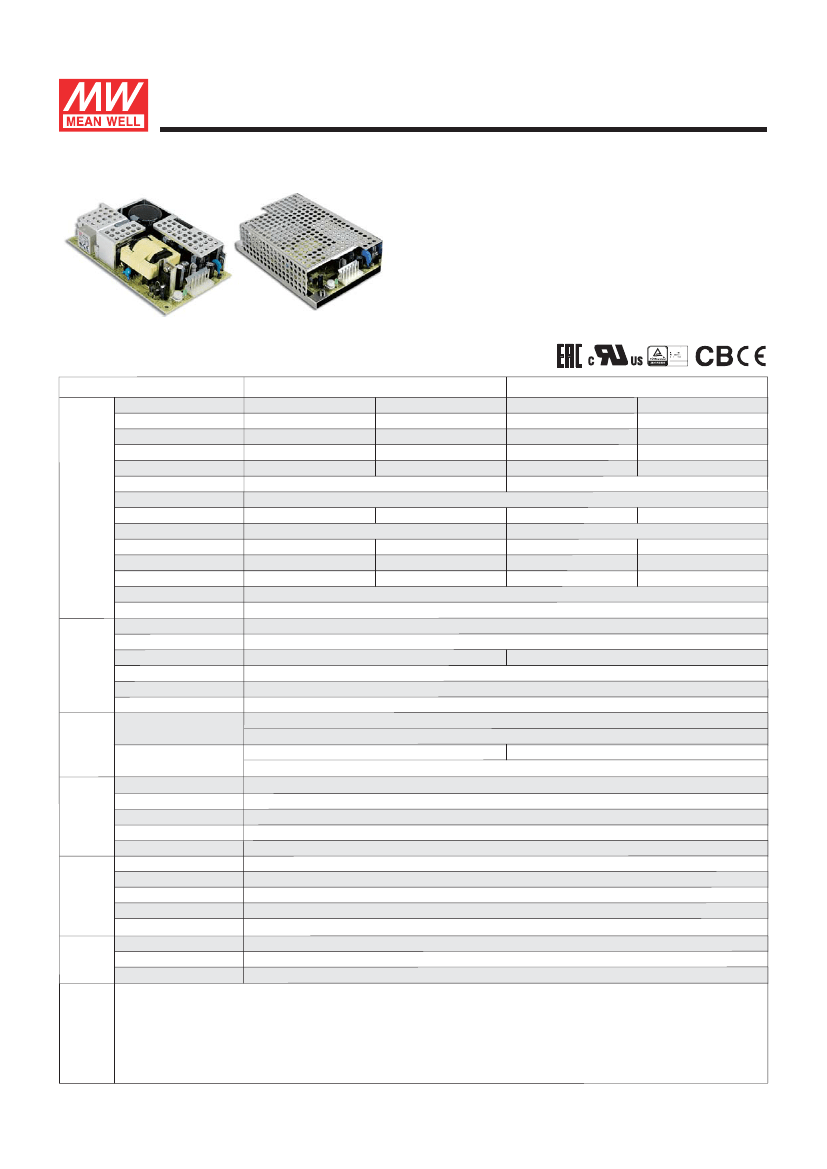

65W Dual Output Switching Power Supply

Preview

Download Datasheet

View All

65W Dual Output Switching Power Supply

■

Features :

Universal AC input/Full range

RPD-65

series

12V or 24V high peak output current capability

Optional L-Bracket and cover (RPD-65x-C, x=C,D)

Low leakage current<1mA

Protections: Short circuit / Overload / Over voltage

60W free air convection, 77.1W with 18CFM forced air

100% full load burn-in test

Fixed switching frequency at 65KHz

2 years warranty

Bauar t gepruft

Sicherheit

egel ma ge

o s

be wac

SPECIFICATION

MODEL

OUTPUT NUMBER

DC VOLTAGE

RATED CURRENT

CURRENT RANGE

PEAK LOAD

RATED POWER

OUTPUT

OUTPUT POWER (max.)

VOLTAGE ADJ. RANGE

LINE REGULATION

LOAD REGULATION

SETUP, RISE TIME

HOLD UP TIME (Typ.)

VOLTAGE RANGE

FREQUENCY RANGE

INPUT

EFFICIENCY (Typ.)

AC CURRENT (Typ.)

INRUSH CURRENT (Typ.)

LEAKAGE CURRENT

OVERLOAD

PROTECTION

OVER VOLTAGE

WORKING TEMP.

WORKING HUMIDITY

ENVIRONMENT STORAGE TEMP., HUMIDITY

TEMP. COEFFICIENT

VIBRATION

SAFETY STANDARDS

SAFETY & WITHSTAND VOLTAGE

EMC

(Note 5)

www. tuv.com

ID 2000000000

RPD-65C

CH1

12V

4.5A

0 ~ 5.8A

Note.4

7.5A

RPD-65D

CH2

1.2A

0 ~ 1.5A

Rated load

CH1

24V

2.25A

0 ~ 2.9A

3.75A

60W

50mVp-p

±5.0%

±1.0%

±5.0%

150mVp-p

CH1:22.8 ~ 26.4V

±2.0%

±1.0%

±2.0%

50mVp-p

±5.0%

±1.0%

±5.0%

CH2

1.2A

0 ~ 1.5A

Rated load

60W

Rated output power for convection; 77.1W with 18CFM min. forced air

RIPPLE & NOISE (max.)

Note.2

120mVp-p

CH1:11.4 ~ 12.8V

VOLTAGE TOLERANCE

Note.3

±2.0%

±1.0%

±2.0%

800ms, 20ms at full load

20ms at full load

90 ~ 264VAC

47 ~ 440Hz

79%

1.5A/115VAC

127 ~370VDC

81%

0.9A/230VAC

50A/230VAC

COLD START 25A/115VAC

<1mA

90 ~ 125W output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed.

CH1:27.6 ~ 32.4V

CH1:13.8 ~ 16.2V

Protection type : Hiccup mode, recovers automatically after fault condition is removed.

-20 ~ +60

℃

(Refer to "Derating Curve")

20 ~ 90% RH non-condensing

-40 ~ +85

℃

, 10 ~ 95% RH

0.04%/

℃

(0 ~ 50

℃

) on CH1 output

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

UL60950-1, TUV EN60950-1,

EAC TP TC 004

approved

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25

℃

/ 70% RH

Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A, EAC TP TC 020

ISOLATION RESISTANCE

EMC EMISSION

EMC IMMUNITY

MTBF

OTHERS

NOTE

288.1K hrs min. MIL-HDBK-217F (25

℃

)

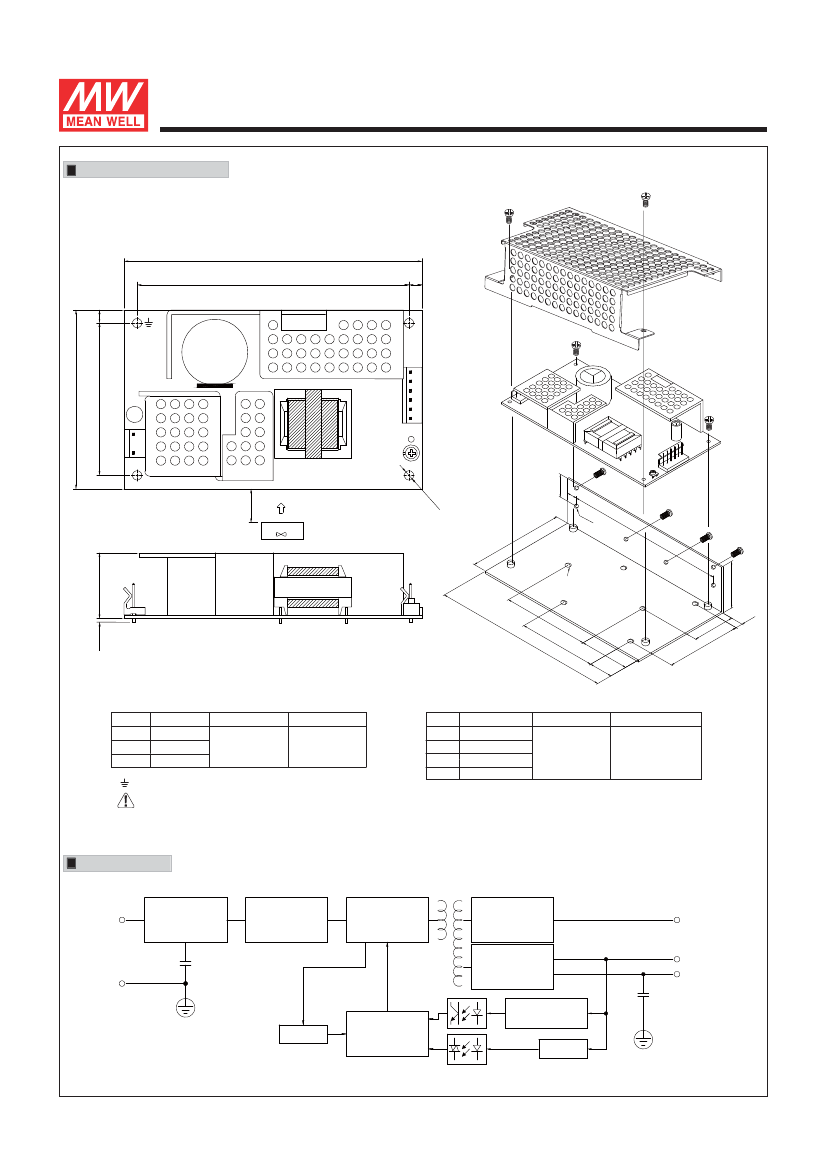

PCB:127*76*29mm (L*W*H) ; with optional CASE:130*85*37mm (L*W*H)

DIMENSION

PCB:0.24Kg; 63pcs/16Kg/1.35CUFT ; with optional CASE:0.47Kg;32pcs/16Kg/0.64CUFT

PACKING

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25

℃

of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. 10% duty cycle maximum within every second. Average output power should not exceed the rated power, output voltage above 90% DC voltage.

5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets

EMC directives.

For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”

(as available on http://www.meanwell.com)

6. The ambient temperature derating of 3.5

℃

/1000m with fanless models and of 5

℃

/1000m with fan models for operating altitude higher than 2000m(6500ft).

File Name:RPD-65-SPEC 2018-01-12
