MC33184D

Description

MC33184D amplifier basic information:

MC33184D is an OPERATIONAL AMPLIFIER. The commonly used packaging method is SOP,

MC33184D amplifier core information:

The MC33184D has a minimum operating temperature of -40 °C and a maximum operating temperature of 85 °C. Its peak reflow temperature is 245°C and its maximum average bias current is 0.004 µA

How to simply check the efficiency of an amplifier? Looking at its slew rate, the MC33184D has a nominal slew rate of 10 V/us. When the op amp is used in a closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the MC33184D gain becomes 0.707 times the low-frequency gain is 4000 kHz.

The nominal supply voltage of the MC33184D is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of MC33184D is 11500 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

Related dimensions of MC33184D:

The width of MC33184D is: 3.9 mm and the length is 8.65 mm. MC33184D has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 14

MC33184D amplifier additional information:

Its temperature grade is: INDUSTRIAL. MC33184D is not Rohs certified. It contains lead. The corresponding JESD-30 code is: R-PDSO-G14. The corresponding JESD-609 code is: e0.

The package code of MC33184D is: SOP. The materials used in the MC33184D package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. MC33184D package pin formats are: SMALL OUTLINE. Its terminal forms are: GULL WING.

The maximum seat height is 1.75 mm.

CategoryAnalog mixed-signal IC    Amplifier circuit
File Size895KB，13 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/
Alternative parts：MC33184D
Download Datasheet Parametric Compare View All

MC33184D Overview

MC33184D amplifier basic information:

MC33184D is an OPERATIONAL AMPLIFIER. The commonly used packaging method is SOP,

MC33184D amplifier core information:

The MC33184D has a minimum operating temperature of -40 °C and a maximum operating temperature of 85 °C. Its peak reflow temperature is 245°C and its maximum average bias current is 0.004 µA

How to simply check the efficiency of an amplifier? Looking at its slew rate, the MC33184D has a nominal slew rate of 10 V/us. When the op amp is used in a closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the MC33184D gain becomes 0.707 times the low-frequency gain is 4000 kHz.

The nominal supply voltage of the MC33184D is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of MC33184D is 11500 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

Related dimensions of MC33184D:

The width of MC33184D is: 3.9 mm and the length is 8.65 mm. MC33184D has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 14

MC33184D amplifier additional information:

Its temperature grade is: INDUSTRIAL. MC33184D is not Rohs certified. It contains lead. The corresponding JESD-30 code is: R-PDSO-G14. The corresponding JESD-609 code is: e0.

The package code of MC33184D is: SOP. The materials used in the MC33184D package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. MC33184D package pin formats are: SMALL OUTLINE. Its terminal forms are: GULL WING.

The maximum seat height is 1.75 mm.

MC33184D Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Parts packaging codeSOIC
package instructionSOP,
Contacts14
Reach Compliance Codeunknown
Amplifier typeOPERATIONAL AMPLIFIER
Maximum average bias current (IIB)0.004 µA
Nominal Common Mode Rejection Ratio86 dB
Maximum input offset voltage11500 µV
JESD-30 codeR-PDSO-G14
JESD-609 codee0
length8.65 mm
Negative supply voltage upper limit-18 V
Nominal Negative Supply Voltage (Vsup)-15 V
Number of functions4
Number of terminals14
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)245
Certification statusCOMMERCIAL
Maximum seat height1.75 mm
Nominal slew rate10 V/us
Supply voltage upper limit18 V
Nominal supply voltage (Vsup)15 V
surface mountYES
technologyBIPOLAR
Temperature levelINDUSTRIAL
Terminal surfaceTIN LEAD
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperature30
Nominal Uniform Gain Bandwidth4000 kHz
width3.9 mm
Base Number Matches1

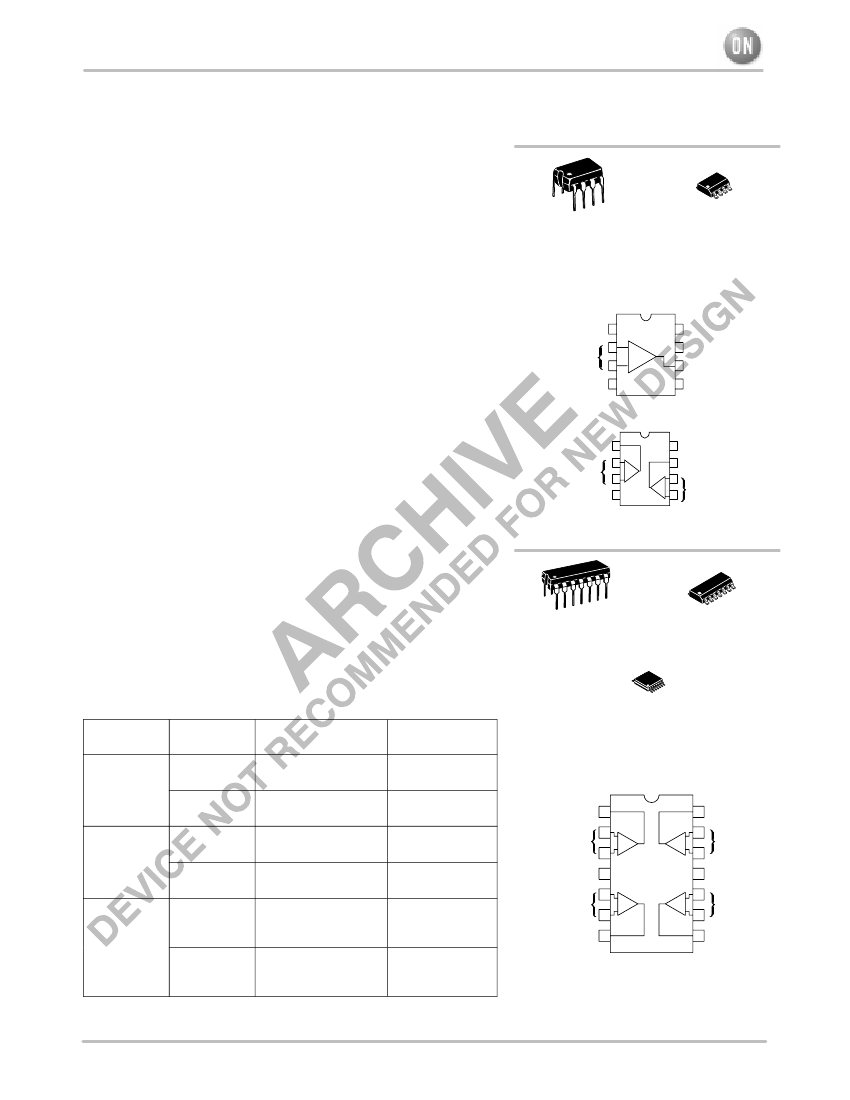

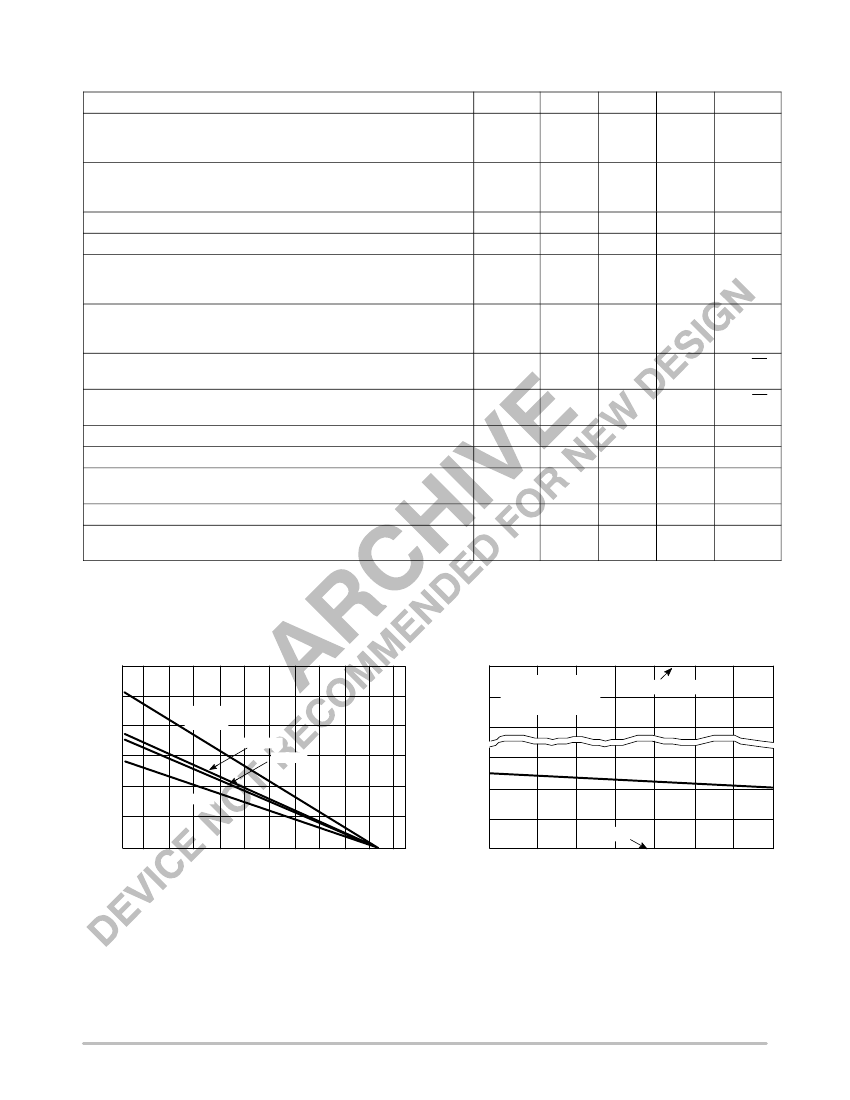

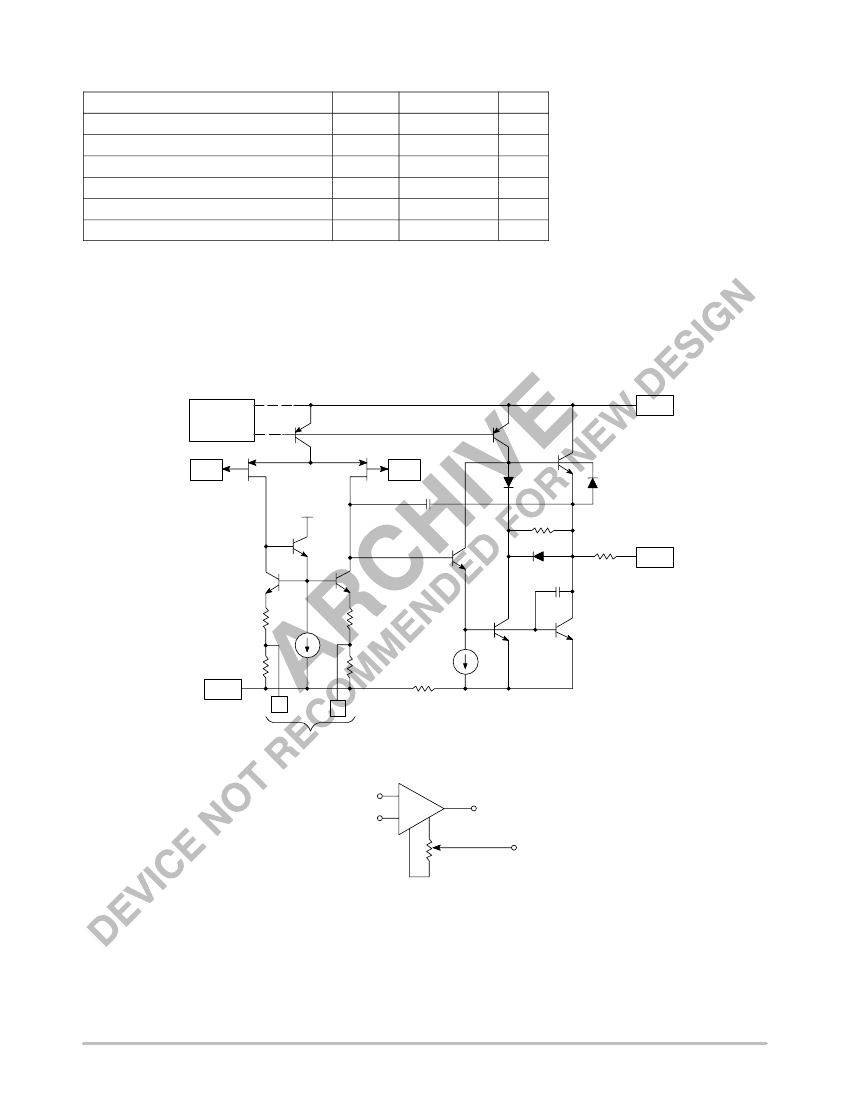

Preview

Download Datasheet
D ts e t
aa h e
R c e t r lc r nc
o h se Ee to is
Ma u a t r dCo o e t
n fc u e
mp n n s
R c e tr b a d d c mp n ns ae
o h se rn e
o oet r
ma ua trd u ig ete dewaes
n fcue sn i r i/ fr
h
p rh s d f m te oiia s p l r
uc a e r
o h r n l u pi s
g
e
o R c e tr waes rce td f m
r o h se
fr e rae r
o
te oiia I. Al rce t n ae
h
r nl P
g
l e rai s r
o
d n wi tea p o a o teOC
o e t h p rv l f h
h
M.
P r aetse u igoiia fcoy
at r e td sn r n la tr
s
g
ts p o rmso R c e tr e eo e
e t rga
r o h se d v lp d
ts s lt n t g aa te p o u t
e t oui s o u rne
o
rd c
me t o e c e teOC d t s e t
es r x e d h
M aa h e.
Qu l yOv riw
ai
t
e ve
• IO- 0 1
S 90
•A 92 cr ct n
S 1 0 et ai
i
o
• Qu l e Ma ua trr Ls (
ai d
n fcues it QML MI- R -
) LP F
385
53
•C a sQ Mitr
ls
lay
i
•C a sVS a eL v l
ls
p c ee
• Qu l e S p l r Ls o D sr uos( L )
ai d u pi s it f it b tr QS D
e
i
•R c e trsacic l u pir oD A a d
o h se i
r ia s p l t L n
t
e
me t aln u t a dD A sa d r s
es lid sr n L tn ad .
y
R c e tr lcrnc , L i c mmi e t
o h se Ee t is L C s o
o
tdo
t
s p ligp o u t ta s t f c so r x e t-
u pyn rd cs h t ai y u tme e p ca
s
t n fr u lya daee u loto eoiial
i s o q ai n r q a t h s r n l
o
t
g
y
s p l db id sr ma ua trr.
u pi
e yn ut
y n fcues
T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e
h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c
g
s
o
a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n
n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -
o
o
isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -
c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a
o
s
g
t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g
i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu
o
a
r xmu ai s
n
ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig
y e a e n rd c c aa tr t , e in smuai , r a l e t .
z o
o
n
© 2 1 R cetr l t n s LC Al i t R sre 0 1 2 1
0 3 ohs E cr i , L . lRg s eevd 7 1 0 3
e e oc
h
T l r m r, l s v iw wrcl . m
o e n oe p ae it w . e c o
a
e
s
o ec
