RC2211AM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> RC2211AM

RC2211AM: DescriptionModem-Demodulator, Bipolar, PDSO14, PLASTIC, SOIC-14; CategoryWireless rf/communication Telecom circuit; File Size682KB，12 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric Compare View All

RC2211AM Overview

Modem-Demodulator, Bipolar, PDSO14, PLASTIC, SOIC-14

RC2211AM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1438359196
package instruction	PLASTIC, SOIC-14
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
Number of functions	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	12 V
Certification status	Not Qualified
Maximum slew rate	0.011 mA
Nominal supply voltage	12 V
surface mount	YES
technology	BIPOLAR
Telecom integrated circuit types	MODEM-DEMODULATOR
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

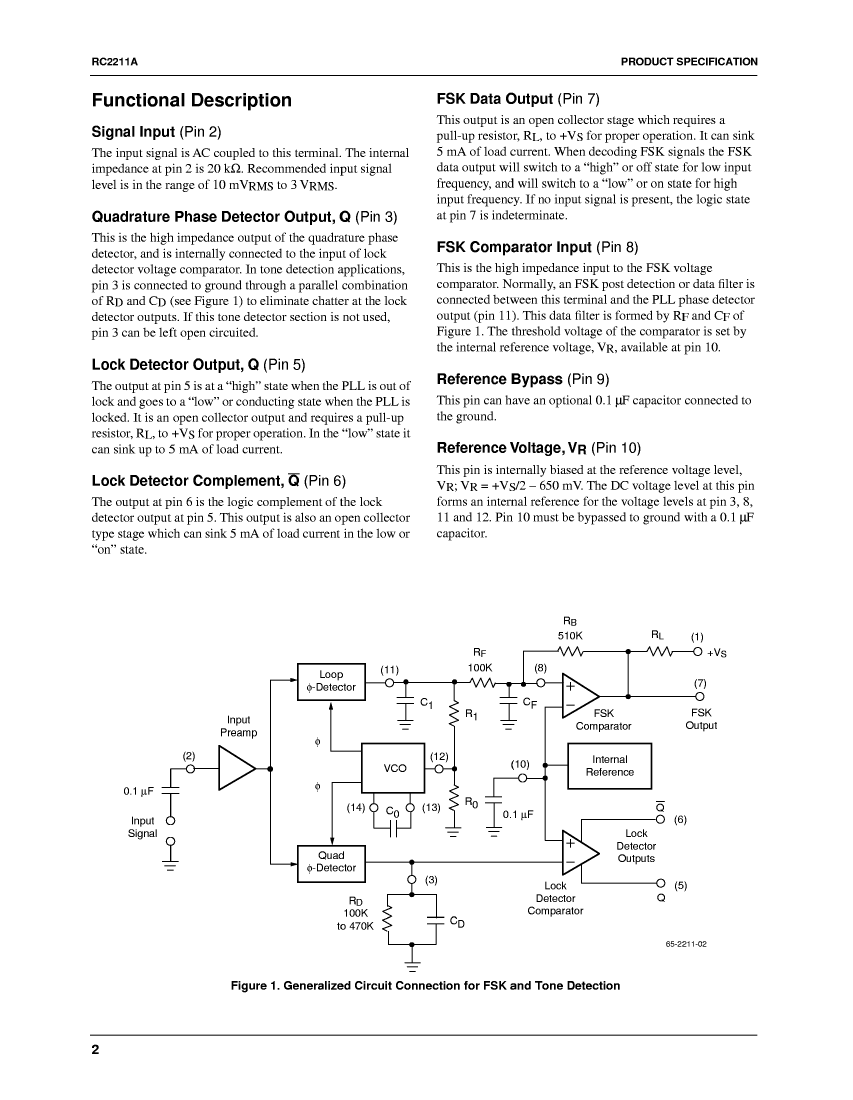

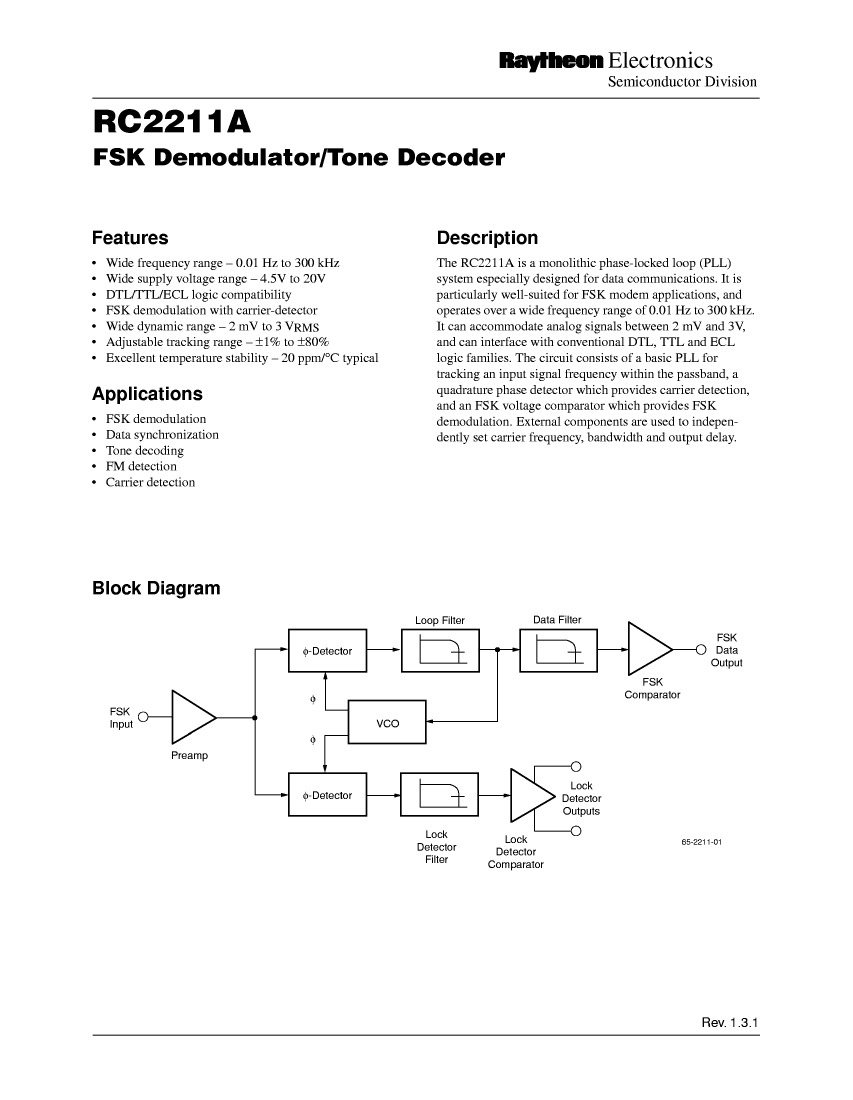

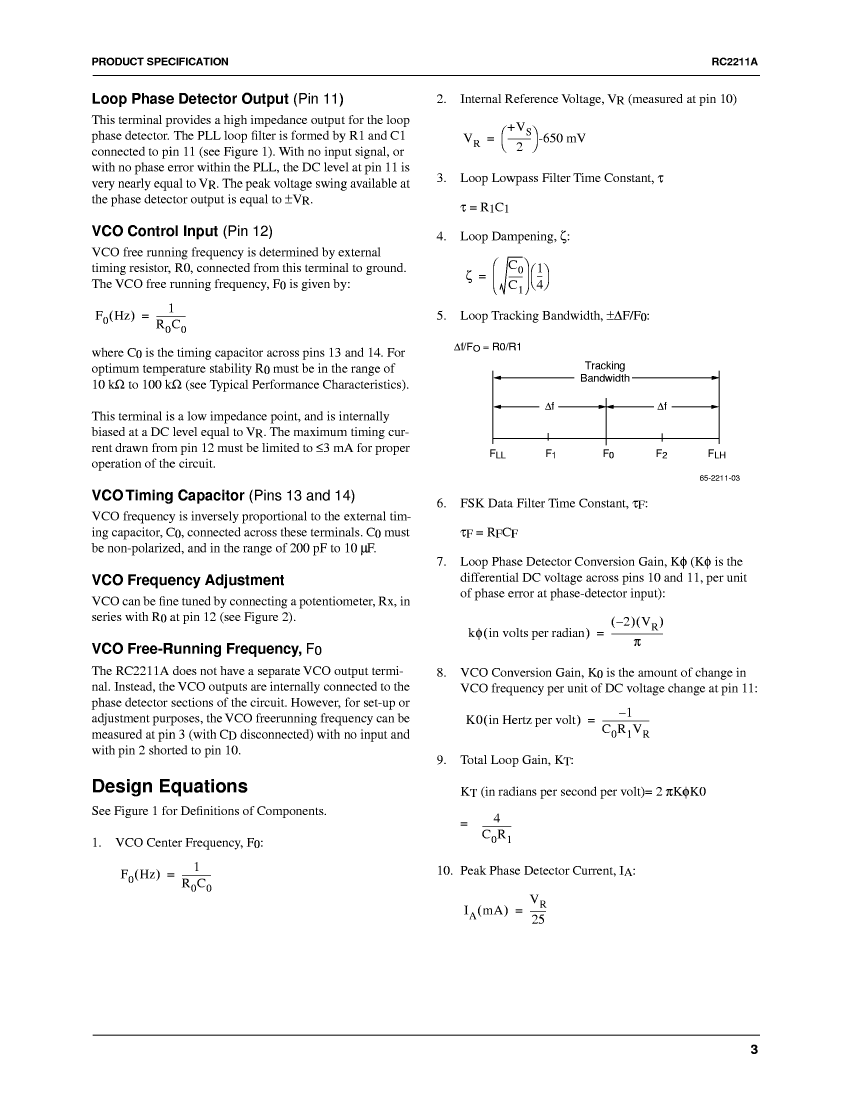

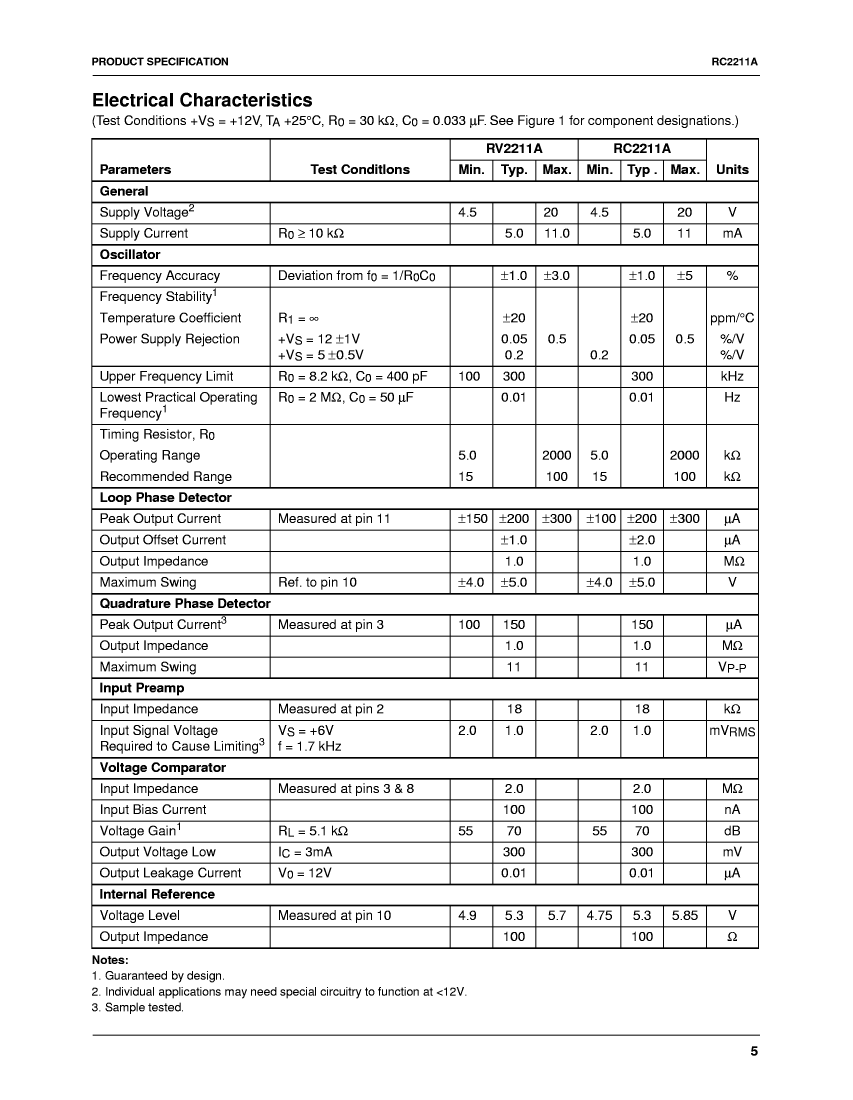

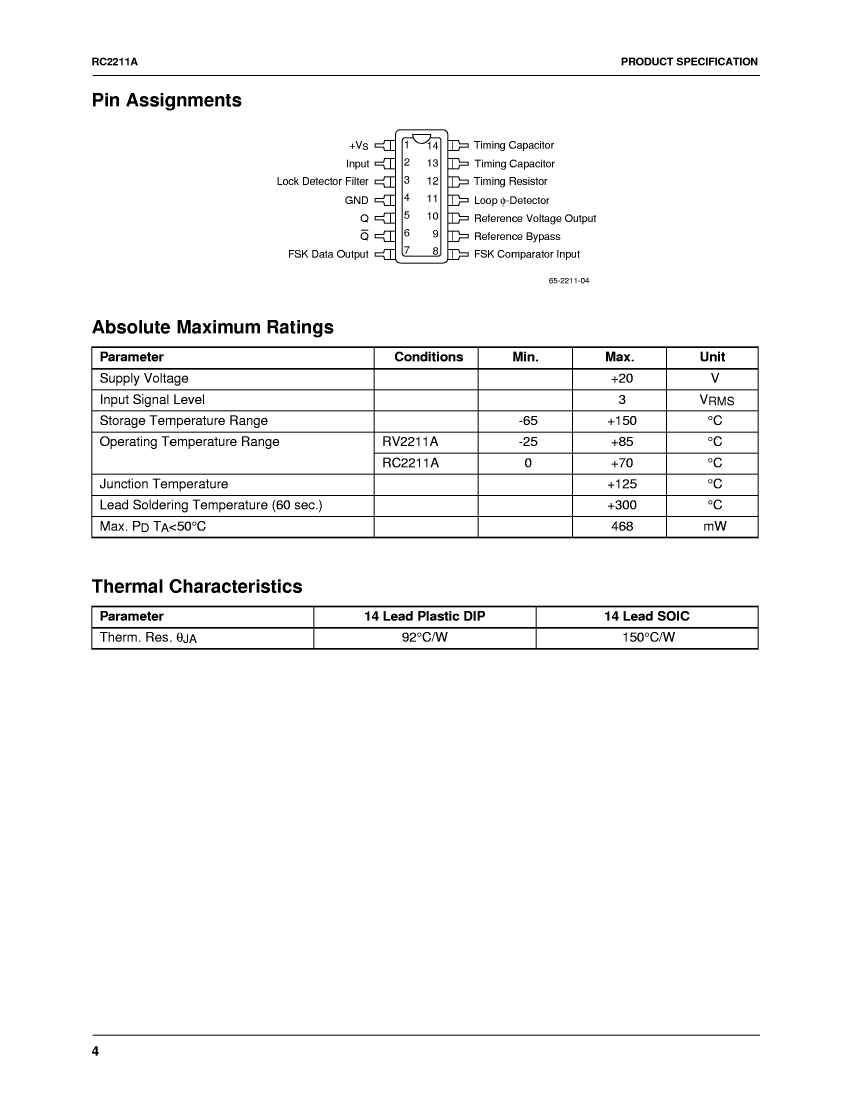

Preview

Download Datasheet

View All

RC2211AM Related Products

	RC2211AM	RC2211AN	XR2211CP	RV2211AN	XR2211M	XR2211P
Description	Modem-Demodulator, Bipolar, PDSO14, PLASTIC, SOIC-14	Telecom Circuit, 1-Func, Bipolar, PDIP14, PLASTIC, DIP-14	Telecom Circuit, Bipolar, PDIP14,	Telecom Circuit, 1-Func, Bipolar, PDIP14, PLASTIC, DIP-14	Telecom Circuit, Bipolar, CDIP14,	Telecom Circuit, Bipolar, PDIP14,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Objectid	1438359196	1438359190	100088711	1438359193	100088704	100088721
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PDSO-G14	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14	R-XDIP-T14	R-PDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C	85 °C	125 °C	85 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	SOP14,.25	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	12 V	12 V	12 V	12 V	12 V	12 V
surface mount	YES	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Telecom integrated circuit types	MODEM-DEMODULATOR	TELECOM CIRCUIT	TELECOM CIRCUIT	TELECOM CIRCUIT	TELECOM CIRCUIT	TELECOM CIRCUIT
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	OTHER	MILITARY	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
package instruction	PLASTIC, SOIC-14	PLASTIC, DIP-14	DIP-14	PLASTIC, DIP-14	-	-
power supply	12 V	12 V	-	12 V	12 V	12 V
Maximum slew rate	0.011 mA	0.011 mA	11 mA	0.011 mA	9 mA	-
