PIEZO FILTERS
HIGH PERFORMANCE CERAMIC DISCRIMINATORS
FOR MOBILE COMMUNICATION EQUIPMENT CDB/CDBC/CDBM 455kHz
Ceramic discriminator consists of wide band piezoelectric
resonator. It is ideal for mobile communication equipment
due to its small size and light weight. Standard line includes
products for a wide range of applications, from cordless
telephones to cellular telephones, making non-adjustment
and shrinking of the detection circuit possible.
FEATURES
I
Small in size and light weight
I
Realize non-adjustment in detection circuit
I
High sensitivity and stability
I
Wide range of standard products are available for various ICs
I
Operating temperature range: –20°C to +80°C
Storage temperature range: –40°C to +85°C
RECOVERED AUDIO CURVE SPECIFICATIONS
Part Number/
Characteristics
CDB455C7
CDBM455C7
CDBC455CX7
CDB455C9
CDBM455C9
CDBC455CX9
CDB455CL9
CDBM455CL9
CDB455C13A
CDBM455C13A
CDBC455CX13
CDB455CL13
CDBM455CL13
CDBC455CLX13
CDB455C16
CDBM455C16
CDBC455CX16
CDBM455C18
CDB455C21
CDBM455C21
CDBC455CX21
CDB455CL21
CDBM455CL21
CDBC455CLX21
CDB455C24
CDBM455C24
CDBC455CX24
CDB455C27
CDBM455C27
CDBC455CX27
CDB455C28
CDBM455C28
CDBC455CX28
Recovered Audio
3dB Bandwidth
(from 544kHz) min.
±4.0
±4.0
±4.0
±5.0
±5.0
±4.0
±15.0
±15.0
±4.0
±4.0
±4.0
±15.0
±15.0
±13.0
±4.0
±4.0
±4.0
±3.0
±4.0
±4.0
±4.0
±13.0
±13.0
±11.0
±4.0
±4.0
±4.0
±4.0
±4.0
±4.0
±4.0
±4.0
±4.0
Output
(at 455kHz)
340 ± 60mV
340 ± 60mV
350 ± 60mV
100mV min.
100mV min.
120 ± 40mV
70 ± 20mV
70 ± 20mV
350 ± 50mV
350 ± 50mV
330 ± 50mV
110 ± 30mV
110 ± 30mV
120 ± 30mV
185 ± 40mV
185 ± 40mV
175 ± 40mV
180 ± 40mV
55 ± 20mV
55 ± 20mV
55 ± 20mV
65 ± 20mV
65 ± 20mV
75 ± 25mV
100 ± 40mV
100 ± 40mV
100 ± 40mV
100 ± 40mV
100 ± 40mV
90 ± 30mV
40 ± 20mV
40 ± 20mV
40 ± 20mV
(at 455kHz)
max.
2.5%
3.0%
3.0%
1.5%
1.5%
1.5%
1.5%
1.5%
3.0%
3.0%
4.0%
1.5%
1.5%
1.5%
2.0%
2.0%
2.0%
2.0%
2.0%
2.0%
2.0%
2.5%
2.5%
2.5%
2.0%
2.0%
2.0%
2.0%
2.0%
2.0%
3.0%
3.0%
3.0%
Distortion
within
455 ± 8kHz
—
—
—
—
—
—
3.5% max.
3.5% max.
—
—
—
5.0% max.
5.0% max.
5.0% max.
—
—
—
—
—
—
—
5.0% max.
5.0% max.
5.0% max.
—
—
—
—
—
—
—
—
—
CDB/CDBC/CDBM 455kHz
IC
Application
Cordless Telephone,
Communications
Equipment
MC3357
PIEZO FILTERS
NE604N
Cordless Telephone,
Cellular Phone,
Communications
Equipment
CXA1003BM
Cellular Phone,
Communications
Equipment
MC3372
Cellular Phone,
Cordless Telephone,
Communications
Equipment
Cordless Telephone,
Communications
Equipment
MC3371
TA31132
Cordless Telephone,
Cellular Phone,
Communications
Equipment
TA31136
Cordless Telephone,
Communications
Equipment
Cordless Telephone,
Communications
Equipment
TK10487
TA31142
Pager
CG01-J
439
PIEZO FILTERS
HIGH PERFORMANCE CERAMIC DISCRIMINATORS
FOR MOBILE COMMUNICATION EQUIPMENT CDB/CDBC/CDBM 455kHz
RECOVERED AUDIO CURVE SPECIFICATIONS
Part Number/
Characteristics
CDB455C29
CDBM455C29
CDBC455CX29
CDB455C30
CDBM455C30
CDBC455CX30
CDB455C32
CDBM455C32
CDBC455CX32
CDB455C34
CDBM455C34
CDB455C35
CDBM455C35
CDBC455CX35
CDBM455C36
CDBC455CLX36
CDBM455C39
CDBC455CLX39
CDBM455C40
CDBC455CX40
CDB455C42
CDBM455C42
CDBM455C49
CDBC455CX49
CDBM455C50
CDBC455CX50
CDBC455C52
CDBC455C55
Recovered Audio
3dB Bandwidth
(from 455kHz) min.
±4.0
±4.0
±4.0
±4.0
±4.0
±4.0
±4.0
±4.0
±4.0
±4.0
±4.0
±4.0
±4.0
±4.0
±3.5
±13.0
±4.0
±11.0
±4.0
±4.0
±4.0
±4.0
±4.0
±4.0
±4.0
±4.0
±3.0
±3.0
Output
(at 455kHz)
125 ± 30mV
125 ± 30mV
100 ± 30mV
90 ± 30mV
90 ± 30mV
80 ± 20mV
40 ± 20mV
40 ± 20mV
40 ± 20mV
65 ± 20mV
65 ± 20mV
100 ± 40mV
100 ± 40mV
100 ± 40mV
100 ± 25mV
90 ± 30mV
85 ± 20mV
130 ± 20mV
40 ± 20mV
40 ± 20mV
40 ± 15mV
40 ± 15mV
45 ± 10mV
45 ± 10mV
64 ± 6.4mV
64 ± 6.4mV
65 ± 25mV
40 ± 15mV
(at 455kHz)
max.
2.5%
2.5%
2.5%
2.0%
2.0%
2.0%
3.0%
3.0%
3.0%
2.5%
2.5%
2.5%
2.5%
2.5%
3.5%
2.5%
2.5%
2.5%
3.0%
3.5%
3.0%
3.0%
3.0%
3.0%
4.0%
4.0%
3.0%
3.0%
Distortion
within
455 ± 8kHz
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
5.0% max.
—
7.0% max.
—
—
—
—
—
—
—
—
—
—
NE(SA)606,
NE(SA)616
NE(SA)607/617
TA31145
TK14590,
TK14591
MC3361
CXA3117
SA625
SA608D
TK10930
MC13136
Cordless Telephone,
Communications
Equipment
Cordless Telephone,
Communications
Equipment
Cordless Telephone,
Cellular Phone
Cordless Telephone
Pager
Pager
Cordless Telephone
Pager
Communications
Equipment
Communications
Equipment
TA31143
Pager
TK14501
NE605
IC
Application
Cordless Telephone,
Communications
Equipment
Telephone,
Communications
Equipment
CDB/CDBC/CDBM 455kHz
IMPEDANCE CURVE SPECIFICATIONS
Part Number/
Characteristics
CDBM455C2
CDBC455CX2
CDB455C3
CDBM455C3
CDBM455C4
CDB455C10
CDBM455C10
CDBM455C15
CDBM455C25
CDBM455C31
CDBC455CX31
CDBM455C33
Resonant
Frequency (Fr)
Antiresonant
Frequency (Fa)
•
•
CDB/CDBC/CDBM 455kHz
∆F
(Fa-Fr)
•
•
Resonant
Resistance (R1)
Capacitance
(C)
140pF ± 20%
280pF ± 20%
IC
TA8104F
Application
Pager
447 ± 1.5kHz (|Z| = 2.05k ) 463 ± 1.5kHz (|Z| = 10.0k )
447 ± 1.5kHz (|Z| = 0.80k ) 463 ± 1.5kHz (|Z| = 3.65k )
—
—
—
429 ± 2kHz
429 ± 2kHz
—
—
455 ± 1.5kHz
455 ± 1.5kHz
470 ± 1.0kHz
—
—
463.5 ± 1kHz
465 ± 1.5kHz
•
•
48 ± 5.0kHz
46 ± 5.0kHz
43 ± 2.0kHz
51 ± 5.0kHz
51 ± 5.0kHz
43 ± 2.0kHz
45 ± 4.0kHz
•
•
70
70
300
70
70
300
300
max.
max.
max.
max.
max.
max.
max.
600pF ± 20%
550pF ± 20%
140pF ± 20%
580pF ± 20%
580pF ± 20%
140pF ± 20%
135pF ± 20%
140pF ± 20%
280pF ± 20%
CXA1184M
LA8610
TA8103F
CXA1183M
CXA1484
TA31141
CXA1474
Pager
Pager
Cordless Telephone
Cordless Telephone
Pager
Pager
Pager
447 ± 1.5kHz (|Z| = 2.05k ) 463 ± 1.5kHz (|Z| = 10.0k )
447 ± 1.5kHz (|Z| = 0.80k ) 463 ± 1.5kHz (|Z| = 3.65k )
—
465 ± 1.5kHz
45 ± 4.0kHz
300
max.
135pF ± 20%
440
CG01-J Rev. 1
PIEZO FILTERS
HIGH PERFORMANCE CERAMIC DISCRIMINATORS
FOR MOBILE COMMUNICATION EQUIPMENT CDB/CDBC/CDBM 455kHz

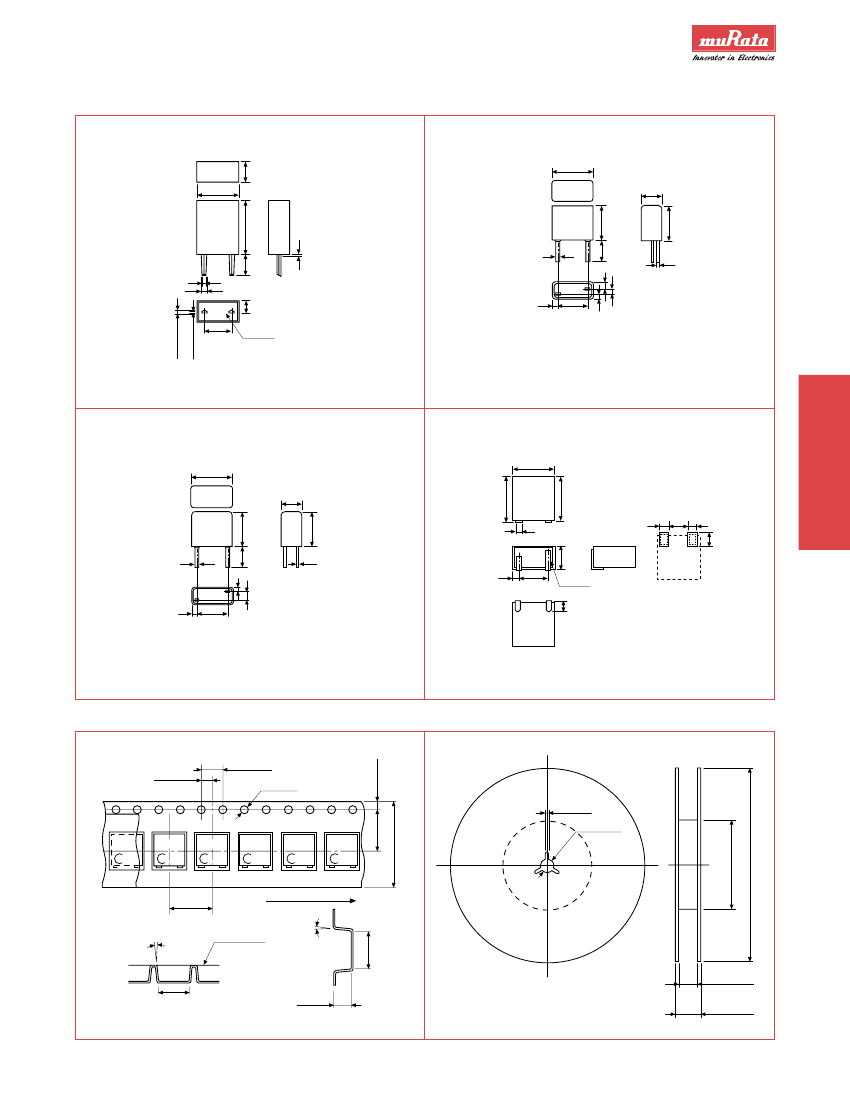

DIMENSIONS: mm
CDB455C/CDB455CL
3.5 ± 0.3
CDBM455C/CDBM455CL
6.0 ± 0.2
3.0 ± 0.3
6.0 max.
6.3 max.
0.15 ± 0.05
1.5 ± 0.3
0.5 ± 0.2
4.2 ± 0.2
7.0 ± 0.3
9.0 ± 0.3
3.5 ± 0.5
1.5 max.
0.5 ± 0.1
4.2 ± 0.5
1.0 ± 0.3
0.8 ± 0.1
1.1 ± 0.1
1.75 ± 0.5
0.25 ± 0.05
0.1 ± 0.05
Sealing
0.9 ± 0.2
5.0 ± 0.2
Applicable Part Number: All
Applicable Part Number: 3, 7, 9, 10, 13, 21, 24, 27, 28, 29, 30, 32, 34,
35, 40, 42, 47, 49, 50
PIEZO FILTERS
CDBM455C
CDBC455CX/CDBC455CLX
6.0 ± 0.2
6.0 ± 0.2
3.0 ± 0.3
6.0 max.
6.3 max.
6.6 ± 0.3
6.2 ± 0.2
Standard Land Dimension
1.2 2.5 1.2
2.0
1.0 ± 0.1
3.1 max.
1.15 ± 0.2
3.7 ± 0.2
Sealing
1.5 ± 0.3
4.2 ± 0.5
0.5 ± 0.1
0.6 ± 0.2
1.8 ± 0.2
0.9 ± 0.2
4.2 ± 0.2
0.15 ± 0.05
Applicable Part Number: 2, 4, 15, 16, 18, 25, 31, 33, 36, 39
Applicable Part Number: All
PLASTIC TAPE DIMENSIONS: mm
CDBC455C – TC
4.0
±
0.1
2.0
±
0.1
1.5
+1.0
–0
Reel
1.75
±
0.1
2.0
±
0.2
7.5
±
0.1
16.0
±
0.15
13.0
±
0.5
( 178)
50C56
M
50C56
M
50C56
M
50C56
M
50C56
M
50C56
M
*
*
*
*
*
*
8.0
±
0.1
Feeding Direction
3° max.
7.2
±
0.1
3° max.
Cover Tape
18.5
+0.3
–0
6.3
±
0.1
3.3
±
0.1
22.5 max.
The marked part number is faced on the cover tape side.
CG01-J
( 80)
441
