FF9-30B-R16A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> FF9-30B-R16A

FF9-30B-R16A: DescriptionCard Edge Connector, 30 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size589KB，8 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric Compare View All

FF9-30B-R16A Overview

Card Edge Connector, 30 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

FF9-30B-R16A Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	LEAD-FREE, 2500 PCS/REEL PKG.
Board mount options	FITTING NAIL
body width	0.071 inch
subject depth	0.169 inch
body length	0.807 inch
Connector type	FFC/FPC CONNECTOR
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SINGLE PRONG
Dielectric withstand voltage	300VAC V
maximum insertion force	ZIF N
Insulation resistance	100000000 Ω
Insulator color	BLACK
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	30
Base Number Matches	1

Preview

Download Datasheet

View All

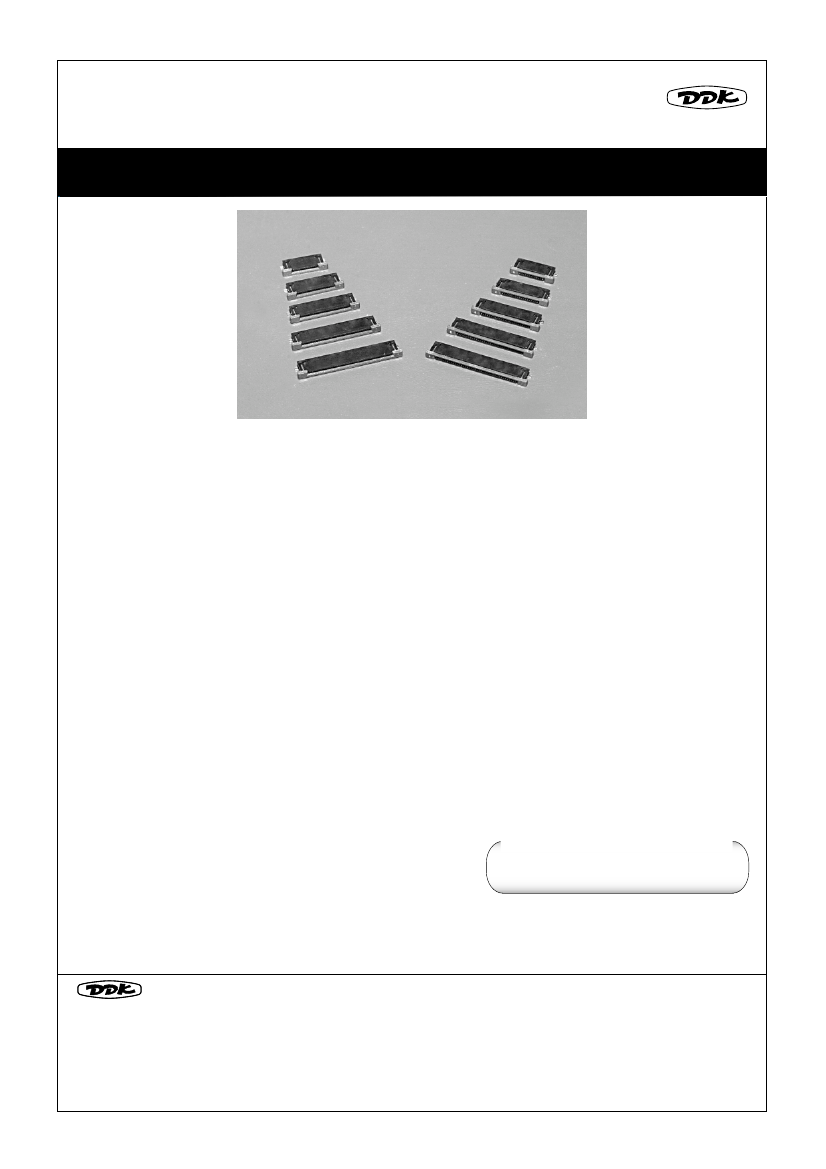

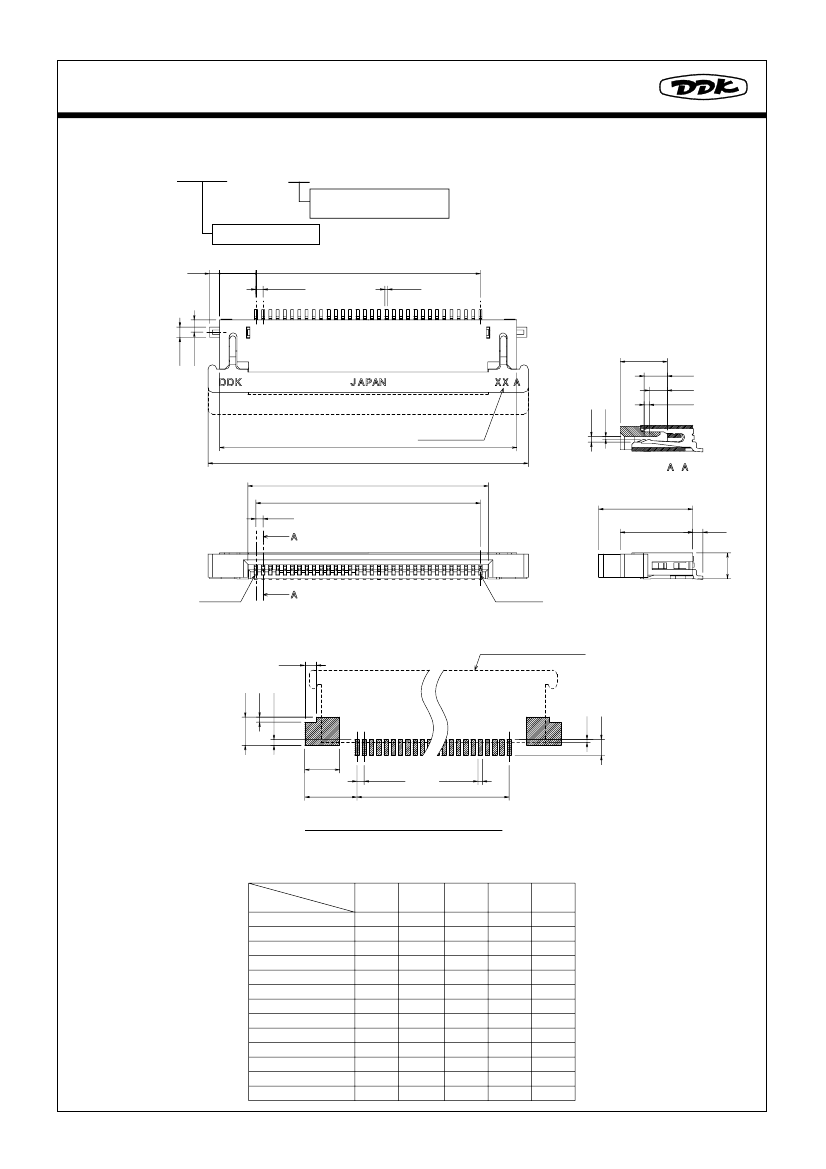

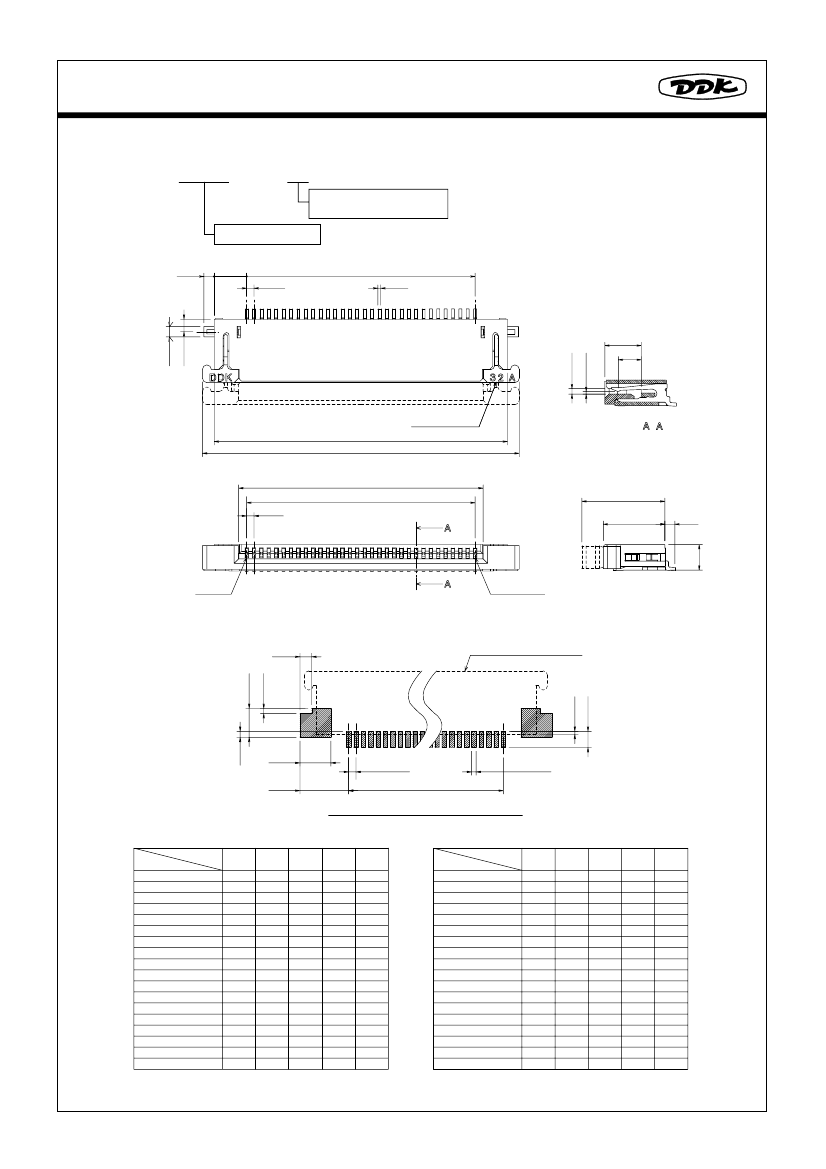

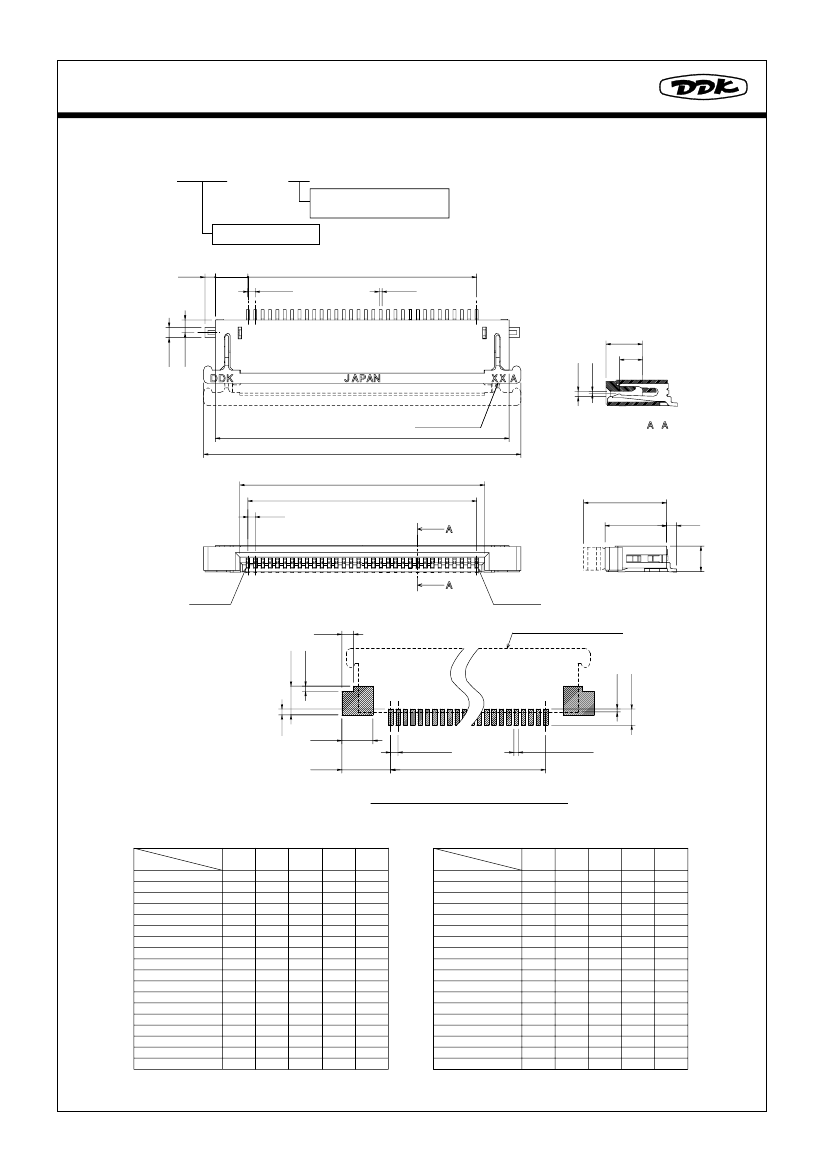

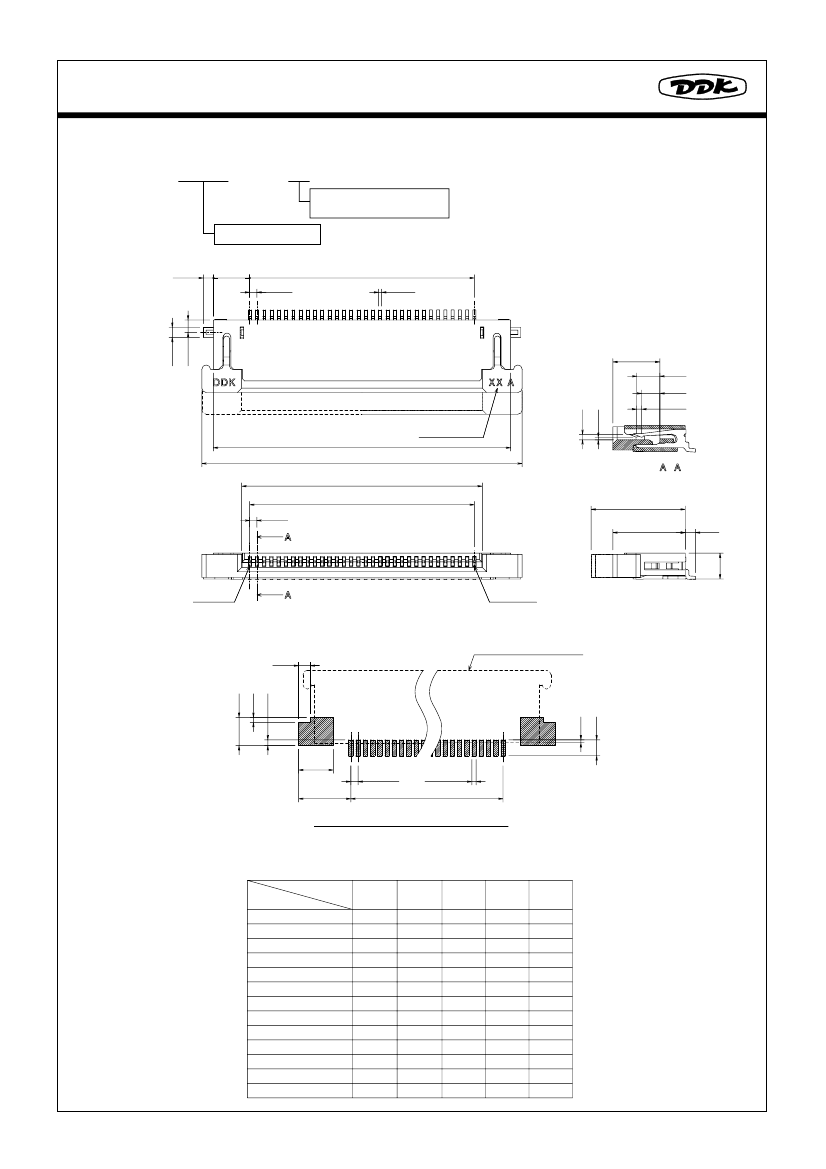

0.5mmPitch FPC / FFC Connectors

FF9 Series

FF9-E-02

APPLICATION

Mobile Phones, Notebook Computers, CD-ROM, DVD-ROM, Handheld Devices

FEATURES

1. Low profile, 1.8mm in height. 0.5mm pitch

2. Accepts flat flexible cable(FFC) and flexible printed circuitry(FPC)

（FPC thickness: 0.3mm）

3. Retains FFC and FPC well.

ZIF style(Slider style) for excellent durability .

4. High temperature plastic for reflow solderingI .

（Applicable to lead-free solder temperature profile）

5. Both of upper contact and lower contact available

6. Tape and reel packaging available（2,500PCS / REEL）

SPECIFICATION

Rated voltage ................................

Rated current ................................

Dielectric withstanding voltage .......

Insulation resistance .....................

........................

Contact resistance

50V AC(rms)

0.5A / contact

200V AC(rms) for 1 minute

100MΩ min. at 500V DC

30mΩ max.

Conforming to "Lead-Free" requirement

"Lead-Free" Plated contacts available

as well as solder plated contacts

MATERIAL / FINISH

Contact .............. Copper alloy / Tin-Lead Plating

Housing .............. High Temparature Plastic / (UL94V-0) color, Black

.............. High Temparature Plastic / (UL94V-0) color, Brown

Slider

Locking tab ......... Copper alloy / Lard-Free Plating

SA LE S OF F I CE

http://www.ddkconnectors.com/

Fax 81-285-82-9036

Fax 66-2-529-1427

Fax 44-1959-561034

Fax 1-408-980-9750

Fax 65-271-2345

Fax 852-2369-7392

. DDK LT D. ( JA PA N )

: Tel 81-285-84-7861

. DDK (T H AIL AN D ) LTD

: Tel 66-2-529-1428

FUJIKURA DDK ELECTRONICS (EUROPE) LTD : Tel 44-1959-561224

. FA I DD K C ON N . D I V. ( U SA )

: Tel 1-408-980-8344

. FA L DDK C O N N . D IV. ( S 'P O RE )

: Tel 65-271-1151

. FHL DDK C O N N. DI V. ( H K)

: Tel 852-2369-7028

Specifications are subject to change without notice for purpose of product modificcation.

FF9-30B-R16A Related Products

	FF9-30B-R16A	FF9-26B-R16A	FF9-50B-R16B
Description	Card Edge Connector, 30 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 26 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 50 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator
Reach Compliance Code	unknown	unknown	unknown
Other features	LEAD-FREE, 2500 PCS/REEL PKG.	LEAD-FREE, 2500 PCS/REEL PKG.	LEAD-FREE, 2500 PCS/REEL PKG.
Board mount options	FITTING NAIL	FITTING NAIL	FITTING NAIL
body width	0.071 inch	0.071 inch	0.071 inch
subject depth	0.169 inch	0.169 inch	0.197 inch
body length	0.807 inch	0.728 inch	1.224 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ
Contact style	SINGLE PRONG	SINGLE PRONG	SINGLE PRONG
Dielectric withstand voltage	300VAC V	300VAC V	300VAC V
maximum insertion force	ZIF N	ZIF N	ZIF N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK
Plug contact pitch	0.02 inch	0.02 inch	0.02 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
PCB row number	1	1	1
Number of rows loaded	1	1	1
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.508 mm	0.508 mm	0.508 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	30	26	50
Base Number Matches	1	1	-
