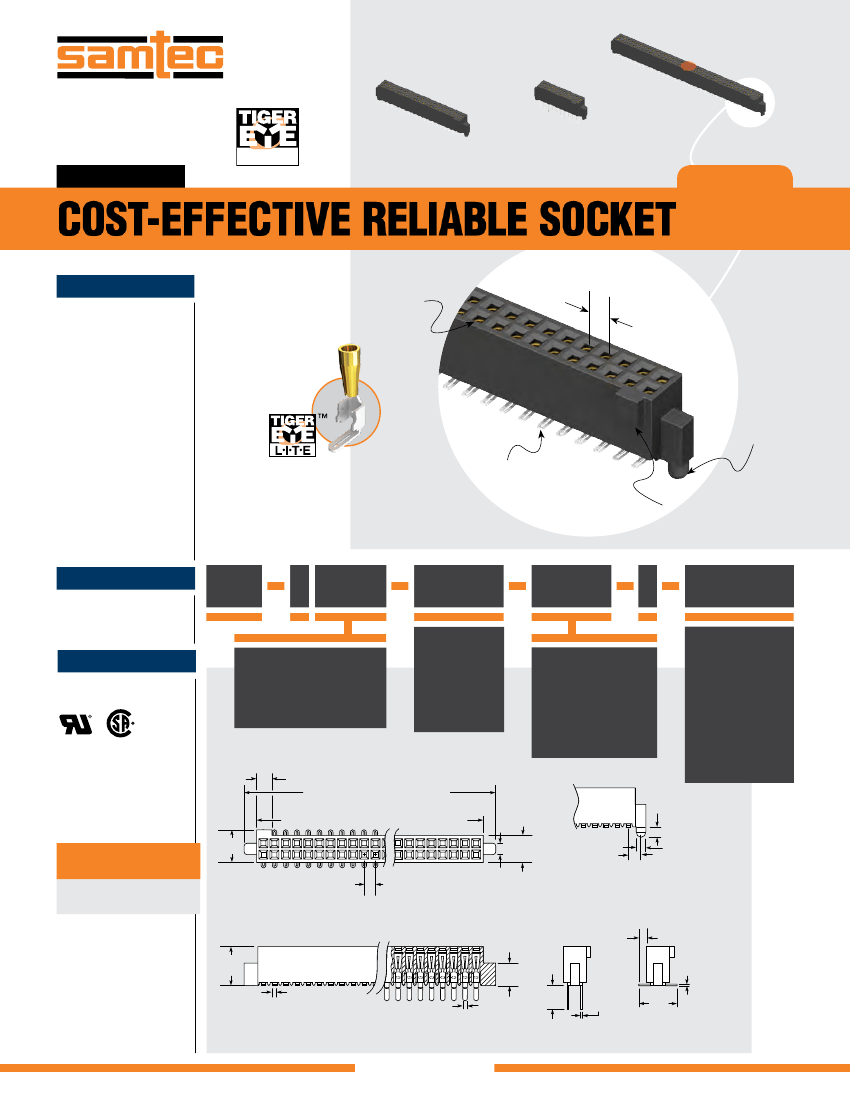

F-217
SFC–135–T2–L–D–A–K
SFC–120–T2–L–D–A
™
SFC–110–T1–L–D–A
SYSTEM
(1.27 mm) .050"
SFC SERIES
COST-EFFECTIVE RELIABLE SOCKET
SPECIFICATIONS
For complete specifications and
recommended PCB layouts
see www.samtec.com?SFC
Insulator Material:
Black Liquid Crystal Polymer
Contact Material:
Phosphor Bronze
Plating:
Au or Sn over
50 µ" (1.27 µm) Ni
Current Rating:
3.1 A per pin
(1 pin powered per row)
Voltage Rating:
350 VAC mated with TFC
Operating Temp Range:
-55 °C to +125 °C
Contact Resistance:
15 mW
Insertion Depth:
(3.05 mm) .120" to
(4.06 mm) .160"
Max Cycles:
10,000 with 30 µ" (0.76 µm) Au
RoHS Compliant:
Yes
Board Mates:
TFC
Cable Mates:
TFSD, TFSDT
High reliability
Tiger Eye™ LITE
contacts
(1.27 mm x 1.27 mm)
.050" x .050"
micro pitch
Alignment
pin option
Slotted SMT tails
Polarized
PROCESSING
Lead-Free Solderable:
Yes
SMT Lead Coplanarity:
(0.10 mm) .004" max (04-25)
(0.15 mm) .006" max (30-50)
SFC
1
NO. PINS
PER ROW
LEAD
STYLE
PLATING
OPTION
D
OPTION
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
04, 05, 10,
15, 20, 25, 30,
35, 40, 45, 50
(Standard sizes)
= Through-hole
Tiger Eye
™
LITE
–T1
–T2
= Gold flash on contact,
Matte Tin on tail
–F
–L
= Alignment Pin
–A
–K
= Surface Mount
Tiger Eye
™
LITE
FILE NO. E111594
FILE NO: 090871_0_000
= 10 µ" (0.25 µm)
Gold on contact,
Matte Tin on tail
= (4.00 mm) .157" DIA
Polyimide film
Pick & Place Pad
(2.03)
.080
= Tape & Reel
(–T2 only)
(1.27)
.050
–TR
(1.27) .050 x No. of Positions + (3.94) .155
except for alignment pin option:
(1.27) .050 x No. of Positions + (3.17) .125
(1.27) .050 x No. of Positions + (0.38) .015
02
ALSO AVAILABLE
(MOQ Required)
• Other sizes
Contact Samtec.
(3.68)
.145
(1.27)
.050
TYP
01
(3.05)
.120
(1.27)
.050
(1.59)
.063
(1.27)
.050
DIA
–A OPTION
(4.57)
.180
(0.51) .020
(2.79)
.110
(0.51)
.020
(3.05)
.120
(0.58)
.023
(0.13)
.005
TYP
(0.13)
.005
TYP
(4.19)
.165
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
–T1
–T2
WWW.SAMTEC.COM
Due to technical progress, all designs, specifications and components are subject to change without notice.
