TA80486DX-33 datasheet, PDF - EEWORLD Datasheet

TA80486DX-33: DescriptionMicroprocessor, 32-Bit, 33MHz, CMOS, CPGA168, CERAMIC, PGA-168; CategoryThe embedded processor and controller Microcontrollers and processors; File Size538KB，19 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric View All

TA80486DX-33 Overview

Microprocessor, 32-Bit, 33MHz, CMOS, CPGA168, CERAMIC, PGA-168

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	PGA
package instruction	CERAMIC, PGA-168
Contacts	168
Reach Compliance Code	unknown
ECCN code	3A991.A.2
Address bus width	32
bit size	32
boundary scan	YES
maximum clock frequency	33 MHz
External data bus width	32
Format	FLOATING POINT
Integrated cache	YES
JESD-30 code	S-CPGA-P168
JESD-609 code	e0
length	44.45 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	3
Number of serial I/Os
Number of terminals	168
On-chip data RAM width

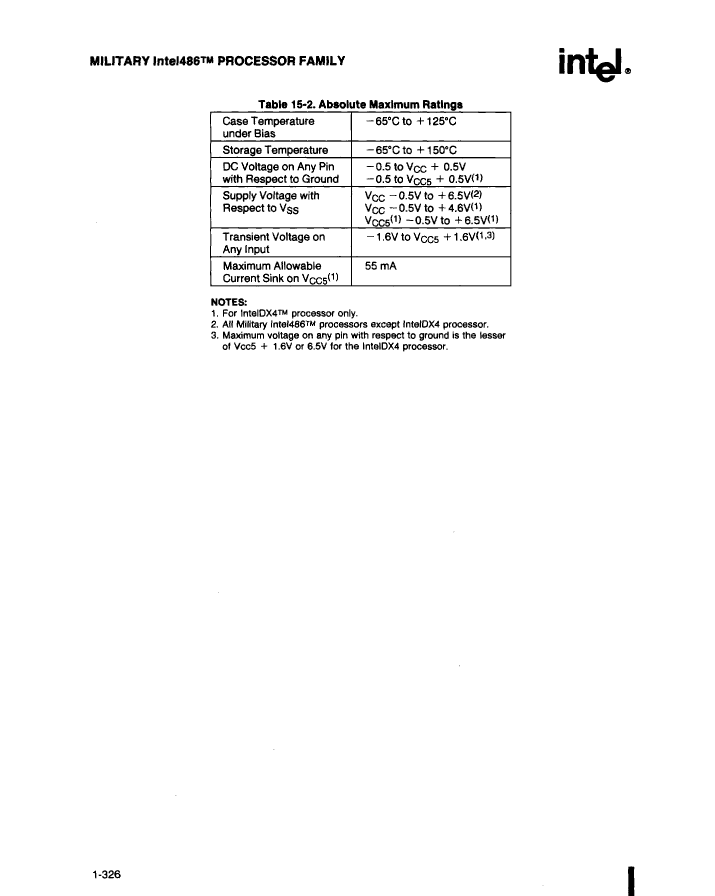

Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Encapsulate equivalent code	PGA168,17X17
Package shape	SQUARE
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

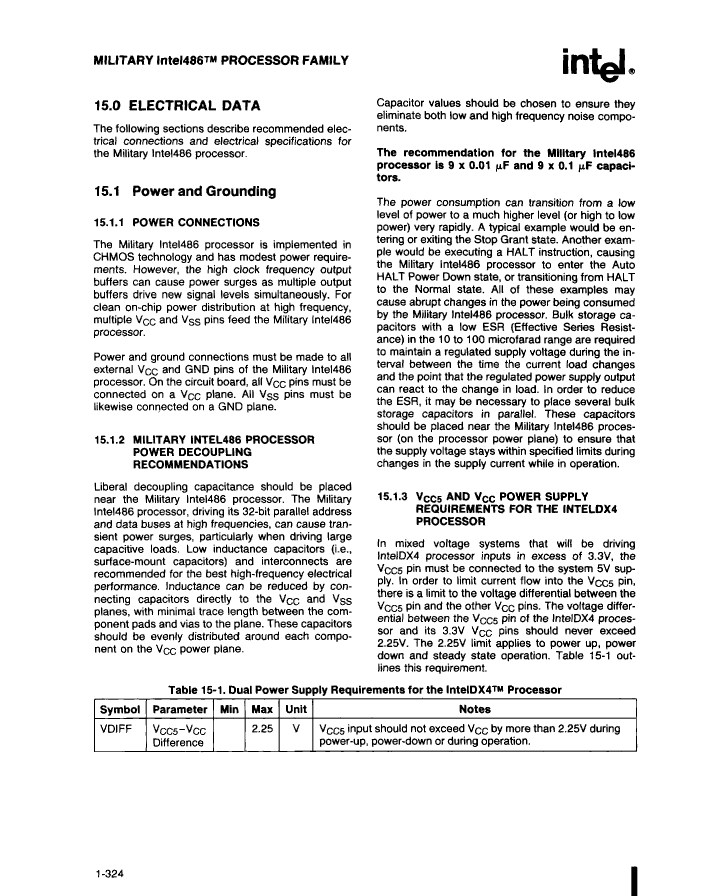

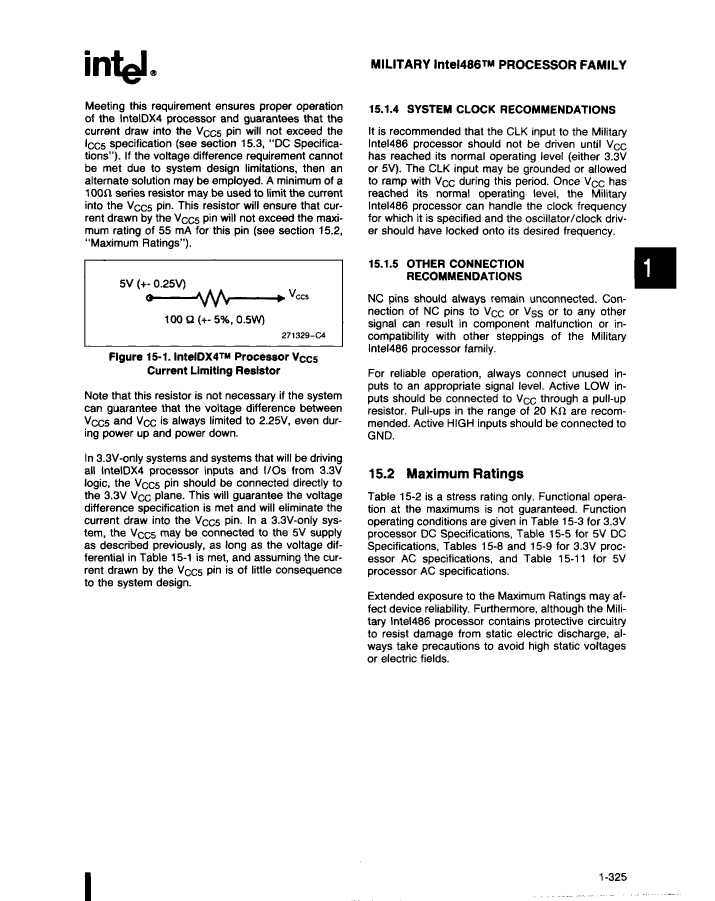

power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	4.57 mm
speed	33 MHz

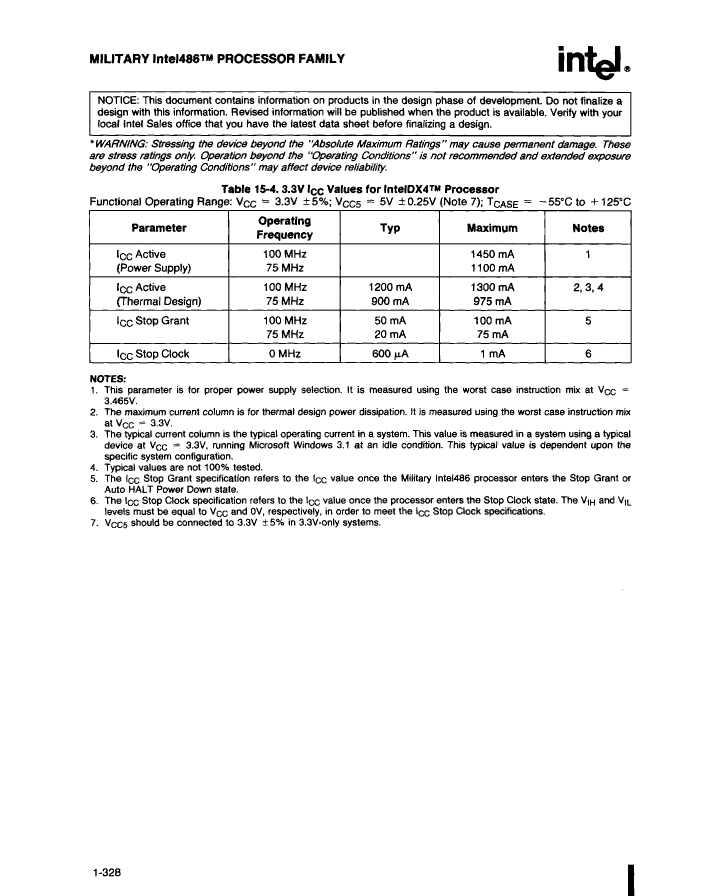

Maximum slew rate	900 mA

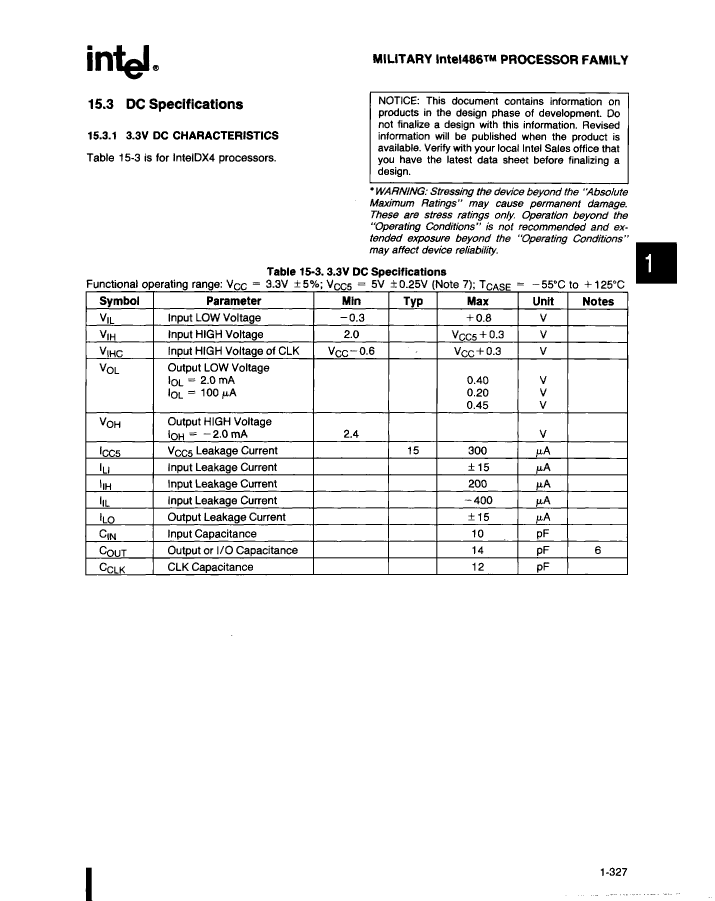

Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED
width	44.45 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR
Base Number Matches	1
