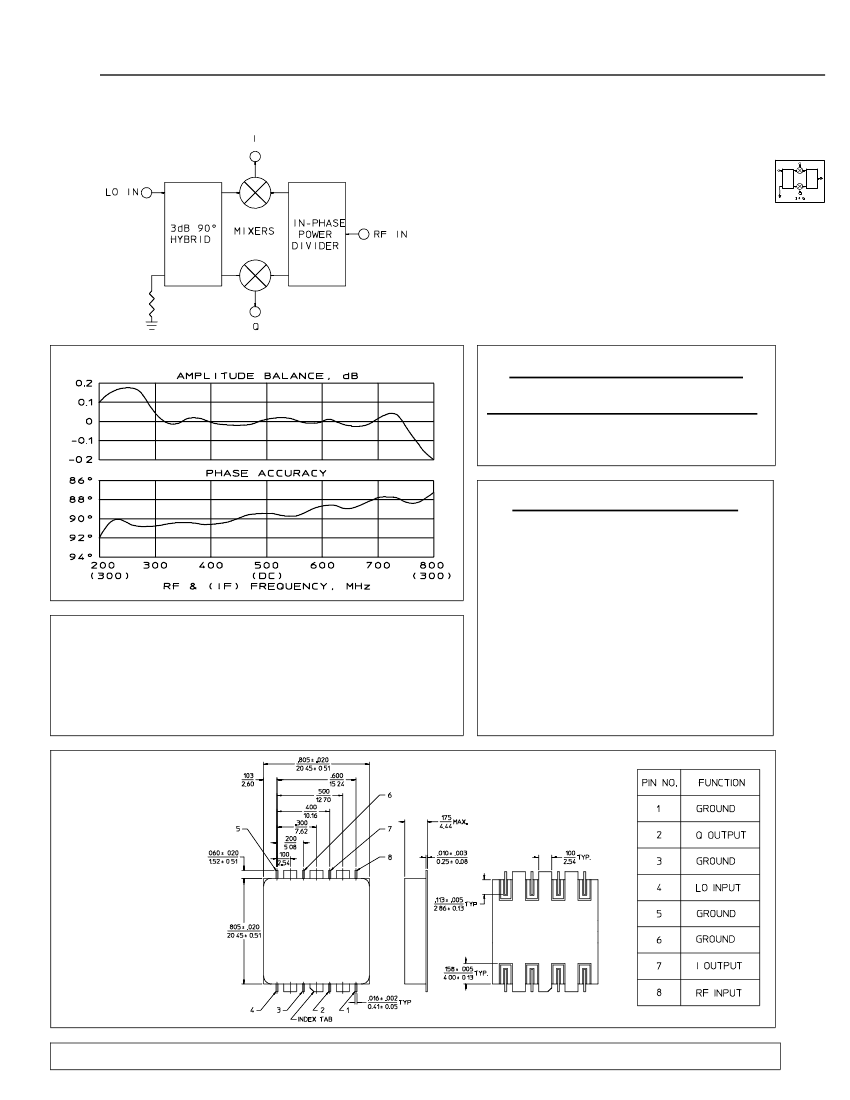

IQG-20E Series
I&Q NETWORKS
Units to 1 GHz / Low Loss / Close Tolerance in Both Phase and Amplitude / Hi-Rel Hermetic
Package
Performance over Video Bandwidth (LO at 500 MHz)
PRINCIPAL SPECIFICATIONS
Model
LO Frequency,
Number
f
o,
MHz
IQG-20E-***B
20 - 160
IQG-20E-***B
160 - 1000
†
Video BW,
MHz
50
100
For Model Number replace *** with LO Center Frequency, f
o
in MHz.
GENERAL SPECIFICATIONS
RF/LO Input Characteristics (50
Ω
nom.)
VSWR:
1.5:1 max.
RF Bandwidth:
10% of f
o
Power Level:
0 dBm nom.
LO Power Level @ f
o
: +10 dBm nom.
Conversion Loss
(RF to I/Q):
10 dB typ,12 dB max.
IF Quadrature Balance (I to Q),@100 kHz IF
Phase, @ LO=f
o
:
±1°
nom.,
±2°
max.
Phase, @ LO=f
o
±5%: ±3°
nom.,
±5°
max.
Ampl., @ LO=f
o
:
0.2 dB max.
Ampl., @ LO=f
o
±5%:
0.5 dB max.
Weight, nominal:
0.32 oz (9 g)
Operating Temp:
-- 55° to +85°C
†
General Notes:
1. I & Q networks are integrated networks that produce two quadrature phased,
equal amplitude signals when fed RF and LO signals.
2. The IQG-20E is specially tailored for high accuracy at a specified LO frequency.
It maintains the minimum specified performance across a band equal to 10% of
the LO frequency.
3. Merrimac I & Q networks comply with the relevant sections of MIL-M-28837 and
may be supplied screened for compliance with additional specifications for military
and space applications requiring the highest reliability.
RF and Video Bandwidths are typically much greater than specified.
E - Size Surface Mount
NOTES:
1. Tolerance on 3 place decimals
±
.010(.25) except as noted.
2. Dimensions in inches over millimeters.
3. All unmarked pins are case ground.
13Feb96
F rf t e if r to c n a t
M ERRI AC /41 Faifel Pl,W estCal el,NJ,07006 / 973-
o ur h r n o ma in o t c
M
ri d .
dw l
575-
1300 /FAX 973- 0531
575-
