UISH5057M-102R: DescriptionGeneral Purpose Inductor, 1000uH, 20%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size56KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com; Environmental Compliance

Download Datasheet Parametric View All

UISH5057M-102R Overview

General Purpose Inductor, 1000uH, 20%, 1 Element, SMD, ROHS COMPLIANT

UISH5057M-102R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	14.42 Ω
Nominal inductance(L)	1000 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	UISH5057
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Maximum rated current	0.15 A
self resonant frequency	1.7 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.01 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

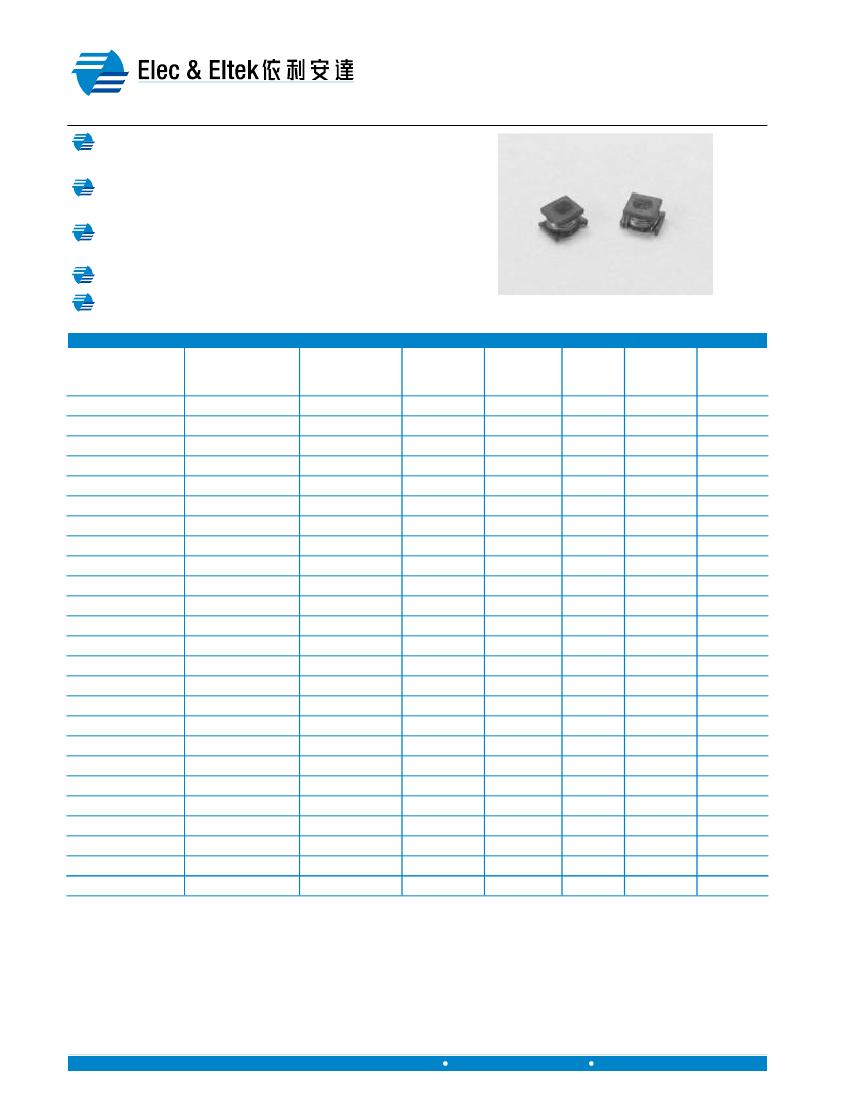

SMT POWER INDUCTORS

E & E Magnetic Products Limited

Drum Type, UISH5057 Series, Self-Leaded

Suitable for DC/DC conversions in hard disk, VCR,

S

CHEMATICS

or other electrical equipments.

High performance and small size for surface mounting

applications

Unshielded and self-leaded design for pick and place

handling

Inductance range from 0.12 to 10000 micro H

RoHS compliant versions are available

E

LECTRICAL

S

PECIFICATION @

25°C

Part

Number

UISH5057M-R12

UISH5057M-R27

UISH5057M-R47

UISH5057M-1R0

UISH5057M-1R5

UISH5057M-2R2

UISH5057M-3R3

UISH5057M-4R7

UISH5057M-6R8

UISH5057M-100

UISH5057M-150

UISH5057M-220

UISH5057M-330

UISH5057M-470

UISH5057M-680

UISH5057M-101

UISH5057M-151

UISH5057M-221

UISH5057M-331

UISH5057M-471

UISH5057M-681

UISH5057M-102

UISH5057M-222

UISH5057M-472

UISH5057M-103

RoHS

Part Number

UISH5057M-R12F

UISH5057M-R27F

UISH5057M-R47F

UISH5057M-1R0F

UISH5057M-1R5F

UISH5057M-2R2F

UISH5057M-3R3F

UISH5057M-4R7F

UISH5057M-6R8F

UISH5057M-100F

UISH5057M-150F

UISH5057M-220F

UISH5057M-330F

UISH5057M-470F

UISH5057M-680F

UISH5057M-101F

UISH5057M-151F

UISH5057M-221F

UISH5057M-331F

UISH5057M-471F

UISH5057M-681F

UISH5057M-102F

UISH5057M-222F

UISH5057M-472F

UISH5057M-103F

Inductance

L (uH

±

20%)

0.12

0.27

0.47

1.0

1.5

2.2

3.3

4.7

6.8

10

15

22

33

47

68

100

150

220

330

470

680

1000

2200

4700

10000

Test

1

Frequency

(Hz)

1M

100k

10k

SRF

(MHz)

Typ.

450

300

200

150

110

80

40

30

25

20

17

15

12

10

7.6

6.5

5.0

4.0

3.1

2.4

1.9

1.7

1.2

0.8

0.5

DCR

(

Ω

)

Max

9.8m

14.0m

18.2m

26.6m

30.8m

40.6m

50.4m

57.4m

0.104

0.13

0.21

0.266

0.448

0.56

0.94

1.204

2.66

3.36

6.16

7.56

11.34

14.42

30.1

61.04

140

Rated DC

Current

(mA)

6000

5300

4800

4000

3700

3200

2900

2700

2000

1700

1400

1200

900

800

640

560

420

320

270

240

190

150

100

70

50

Marking

(XYYY)

MR12

MR27

MR47

M1R0

M1R5

M2R2

M3R3

M4R7

M6R8

M100

M150

M220

M330

M470

M680

M101

M151

M221

M331

M471

M681

M102

M222

M472

M103

Notes:

1. Test frequency is specified as the frequency for measuring the inductance.

2. Operating temperature range: -25°C to +85°C.

3. Contact EEMPL for RoHS compliant version availability.

4. The part temperature (ambient temperature + temperature rise) should not exceed the upper limit of the operating

temperature under worst case operating conditions. Circuit design, component placement, PWB trace size and

thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified

in the end application.

2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong

1

Tel: (852) 2765 3888

Fax: (852) 2954 3304

PI081(01)

Revised in 06/07
