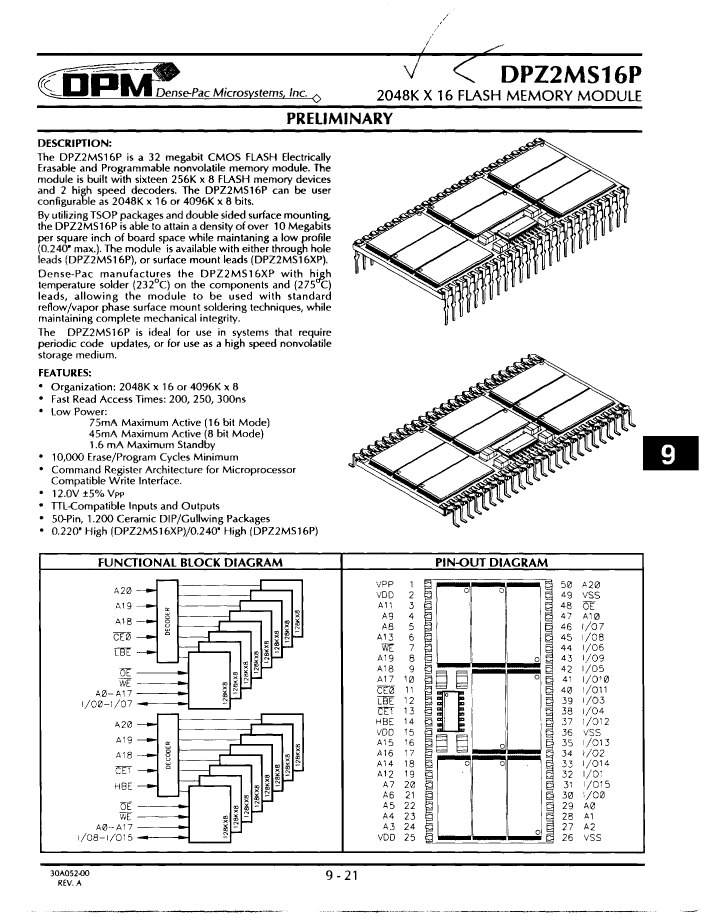

DPZ2MS16-30C

Description
Flash Module, 4MX8, 300ns
Categorystorage    storage
File Size396KB,11 Pages
ManufacturerB&B Electronics Manufacturing Company
Download Datasheet Parametric Compare View All

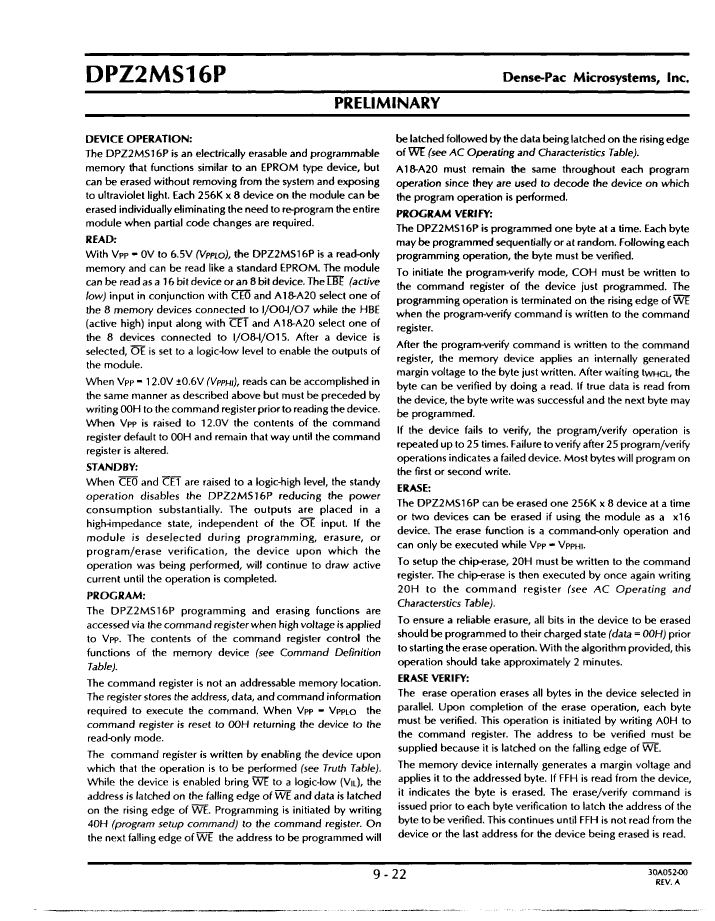

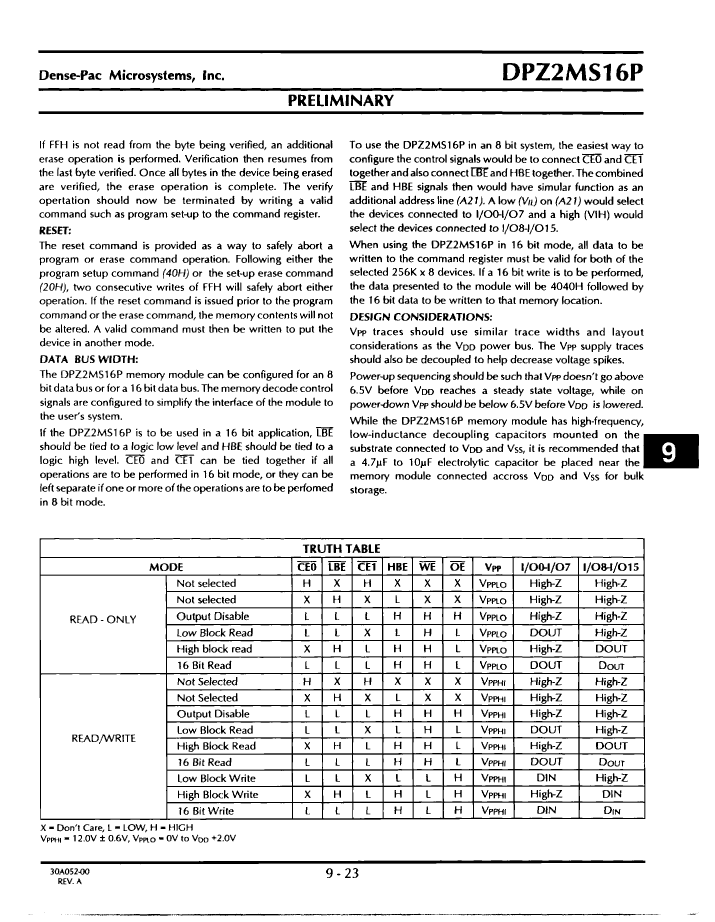

DPZ2MS16-30C Overview

Flash Module, 4MX8, 300ns

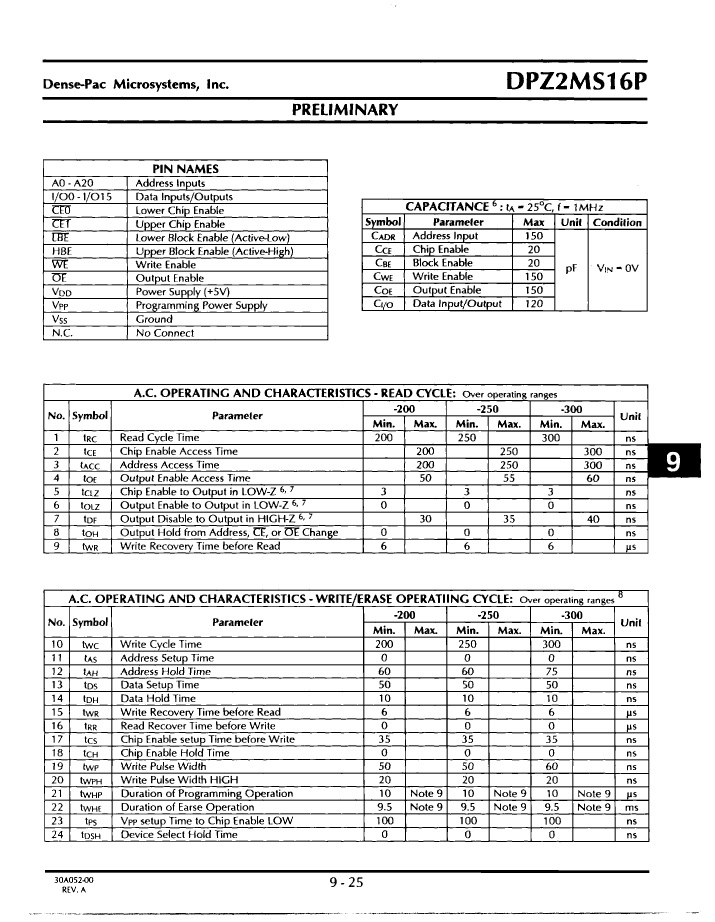

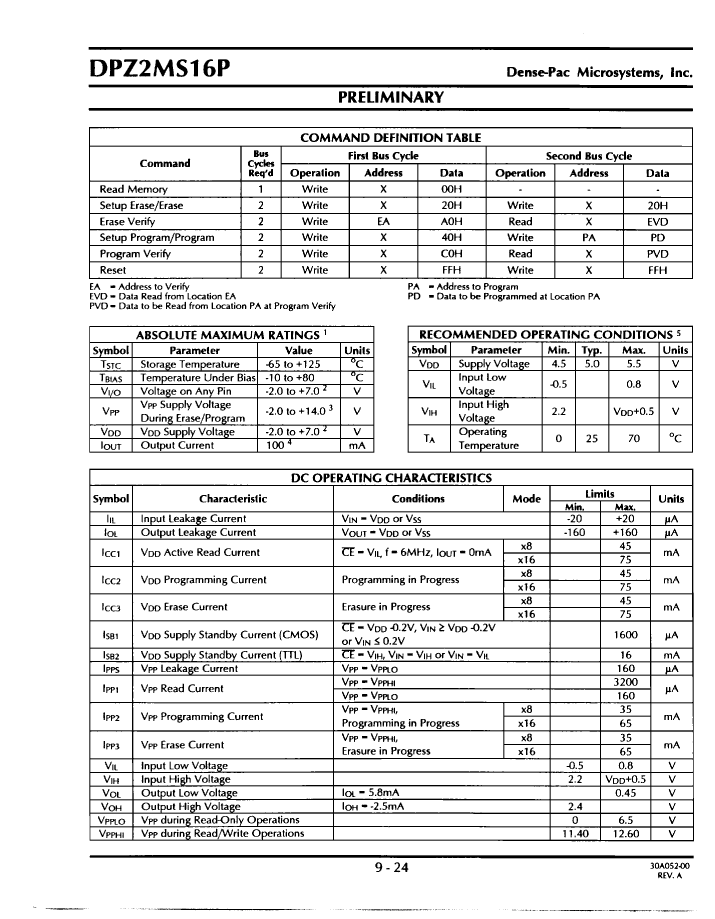

DPZ2MS16-30C Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN code3A991.B.1.A
Maximum access time300 ns
Spare memory width16
JESD-30 codeR-XDMA-T50
memory density33554432 bit
Memory IC TypeFLASH MODULE
memory width8
Number of functions1
Number of terminals50
word count4194304 words
character code4000000
Operating modeASYNCHRONOUS
Maximum operating temperature70 °C
Minimum operating temperature
organize4MX8
Output characteristics3-STATE
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Parallel/SerialPARALLEL
Programming voltage12 V
Certification statusNot Qualified
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyCMOS
Temperature levelCOMMERCIAL
Terminal formTHROUGH-HOLE
Terminal locationDUAL
typeNOR TYPE
Base Number Matches1

DPZ2MS16-30C Related Products

DPZ2MS16-30C DPZ2MS16X-25C DPZ2MS16X-30C DPZ2MS16X-20C DPZ2MS16-20C DPZ2MS16-25C
Description Flash Module, 4MX8, 300ns Flash Module, 4MX8, 250ns Flash Module, 4MX8, 300ns Flash Module, 4MX8, 200ns Flash Module, 4MX8, 200ns Flash Module, 4MX8, 250ns
Reach Compliance Code unknown unknown unknown unknown unknown unknown
ECCN code 3A991.B.1.A 3A991.B.1.A 3A991.B.1.A 3A991.B.1.A 3A991.B.1.A 3A991.B.1.A
Maximum access time 300 ns 250 ns 300 ns 200 ns 200 ns 250 ns
Spare memory width 16 16 16 16 16 16
JESD-30 code R-XDMA-T50 R-XDMA-G50 R-XDMA-G50 R-XDMA-G50 R-XDMA-T50 R-XDMA-T50
memory density 33554432 bit 33554432 bit 33554432 bit 33554432 bit 33554432 bit 33554432 bit
Memory IC Type FLASH MODULE FLASH MODULE FLASH MODULE FLASH MODULE FLASH MODULE FLASH MODULE
memory width 8 8 8 8 8 8
Number of functions 1 1 1 1 1 1
Number of terminals 50 50 50 50 50 50
word count 4194304 words 4194304 words 4194304 words 4194304 words 4194304 words 4194304 words
character code 4000000 4000000 4000000 4000000 4000000 4000000
Operating mode ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS
Maximum operating temperature 70 °C 70 °C 70 °C 70 °C 70 °C 70 °C
organize 4MX8 4MX8 4MX8 4MX8 4MX8 4MX8
Output characteristics 3-STATE 3-STATE 3-STATE 3-STATE 3-STATE 3-STATE
Package body material UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY
Parallel/Serial PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL
Programming voltage 12 V 12 V 12 V 12 V 12 V 12 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V 4.5 V 4.5 V 4.5 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V 5 V 5 V 5 V
surface mount NO YES YES YES NO NO
technology CMOS CMOS CMOS CMOS CMOS CMOS
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal form THROUGH-HOLE GULL WING GULL WING GULL WING THROUGH-HOLE THROUGH-HOLE
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL
type NOR TYPE NOR TYPE NOR TYPE NOR TYPE NOR TYPE NOR TYPE
Base Number Matches 1 1 1 1 - -
