SpectrAlert
®
Selectable Output
Features
• Combines the technologies of two
SpectrAlert® products: Selectable
Output Strobes and SP200
Speakers.
• Widest range of candela options:
12 V:
15 and 15/75 candela.
24 V:
15, 15/75, 30, 75, 110
candela.
• Operates on either 12 V or 24 V.
• Easy candela selection with side
viewing window.
• 25.0 and 70.7 volt speaker with
four field-selectable power taps.
• Field-reversible strobe position for
left- or right-mounting.
• Synchronizable with
MDL
Sync•Circuit™ module or equip-
ment with SpectrAlert® Sync
Protocol.
• Optional surface-mount backbox
skirt available; BBS-SP2R (red)
and BBS-SP2W (White).
Wall Speaker/Strobes
Description
SystemSensor SpectrAlert®
Selectable Output Wall
Speaker/Strobes
offer en-
hanced features that include the
widest range of candela options
available and the ability to rec-
ognize and self-adjust for either
12- or 24-volt operation, along
with the fidelity sound quality
expected from SpectrAlert®
speaker technology.

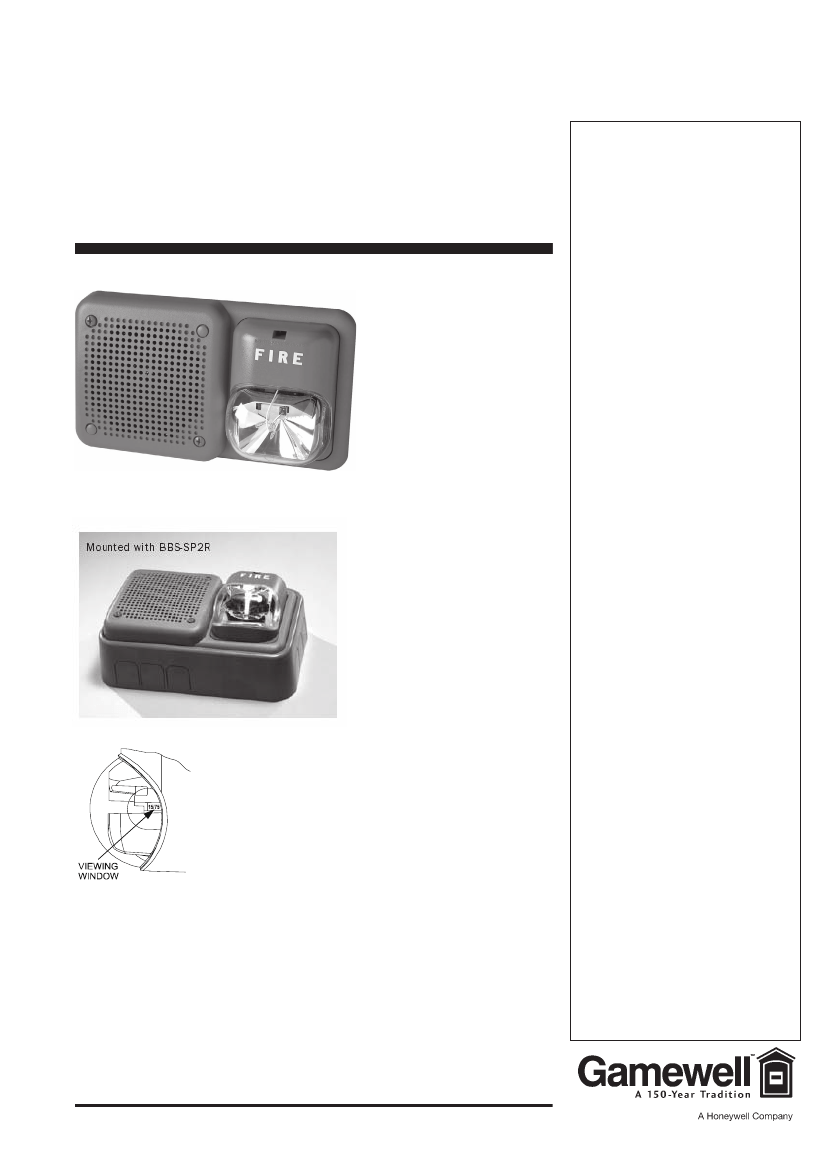

SP2R1224MC
Performance.
The selectable-
output speaker/strobe offers av-
erage current draws that are not
only lower than conventional
fixed-candela SpectrAlert® prod-
ucts, but also lower than similar
selectable-candela products. In
addition, the broad-frequency re-
sponse range and low harmonic
distortion
provided
by
SpectrAlert® speaker technology
provides an accurate and intelli-
gible broadcast of evacuation
messages.
Listings
Listings and approvals below
apply to the basic SpectrAlert
®
Selectrable Output Wall Speaker/
Strobes. In some cases, certain
modules may not be listed by
certain approval agencies, or
listing may be in process. Consult
factory for latest listing status.
• UL Listed: file S4048.
• CSFM approved: file 7320-
1209:186.
• MEA approved: file 127-02-E.
Installation.
SpectrAlert® se-
lectable-output speaker/strobes offer a variety of in-
stallation-friendly features, such as the ability to mount
to a 4" (10.16 cm) square x 2.125" (5.398 cm) deep
backbox without an extension ring and with no en-
croachment into the box. With field-reversible strobe
placement, the speaker/strobe may be either left- or
right-mounted to avoid obstructions.
Flexibility.
SpectrAlert® selectable-output speaker/
6941dia1.wmf
For strobe candela se-
lection, adjust slide
switch located on the
rear of the
strobes offer the broadest range of candela options. In
addition, these selectable-output speaker/strobes can
operate on either 12 or 24 volts, with no setting re-
quired — the device recognizes and self-adjusts to the
correct operating voltage automatically. Speaker volt-
age (25.0 or 70.7) and power tap settings (1/4, 1/2, 1,
or 2 watt) are field-selectable.
Aesthetics.
SpectrAlert® selectable-output speaker/strobes incorporate the same
stylish, low-profile design of the conventional SpectrAlert® products, for a consis-
tent and aesthetically pleasing appearance across the entire product line
.
SpectrAlert®
and
Sync•Circuit™
are trademarks of System Sensor.
SpectrAlert® Selectable Output Wall Speaker/Strobes
CS-2452 10/21/04
Page 1 of 2
Engineering Specifications
Speaker/Strobe shall be a System Sensor model _____ Listed to UL1480 and UL
1971 and be approved for fire protective signaling systems. Speaker shall be
capable of operating at 25.0 or 70.7 nominal V
RMS
, and shall have a frequency
range of 400 – 4000 Hz. Speaker shall have power taps that are selected by DIP
switch. The strobe shall consist of a xenon flash tube with associated lens/re-
flector system and operate on either 12 volts or 24 volts. The strobe shall also
feature selectable-candela output, providing options for 15 or 15/75 candela when
operating on 12 volts; and 15, 15/75, 30, 75, or 110 when operating on 24 volts.
The strobe shall comply with the Americans with Disabilities Act requirement for
visible signaling appliances, flashing at 1 Hz over the strobe’s entire operating
voltage range.
Specifications
Input terminals
12 to 18 AWG (3.25 mm² to 0.51
mm²).
Dimensions
4.875" (12.383 cm) high x 8.25"
(20.955 cm) wide x 2.25" (5.715 cm)
deep.
Mounting
4" x 4" x 2.125" deep (10.16 x 10.16
x 5.398 cm) backbox.
Reversible strobe feature
Speaker/strobe is shipped in the
strobe-right-mounted position. For a
left-mounted strobe: Remove the
strobe screw and lift the strobe
assembly out of the rib slot. Rotate
the strobe 180° and remount to the
base.
Weight
3 lbs (1.361 kg).
Operating temperature,
indoor
32°F to 120°F (0°C to 49°C).
Maximum humidity
85%.
Strobe operating voltages*
12 or 24 VDC and FWR unfiltered.
Operating voltage range:*
12V: 8 – 17.5V.
24V: 16 – 33 V.
With Sync-
Circuit™ module MDL*:
12 V: 9 –
17.5 V. 24 V: 17 – 33 V.
Speaker input voltage
25.0 or 70.7 V
RMS
(nominal).
Speaker frequency range:**
400 – 4,000 Hz.
**The
SP2 Series is UL Listed from
400 to 4,000 Hz but will provide an
output from 100 to 10,000 Hz.
Speaker power taps
1/4, 1/2, 1, and 2 watts.
U.S. Patent Numbers
5,593,569. 5,914,665. 5,850,178.
5,598,139. 6,049,446. 6,127,935.
6,522,261.
Ordering Information
Description
Model No.
Candela
Setting
FWR
Operating
Current-
Strobe
(mA RMS)
12 V
15
Wall
Speaker/
Strobe
Surf ace-
mount back
box skirt
15/75
SP2R1224MC SP2W41224MC
30
75
110
BBS-SP2R
BBS-SP2W
112
135
24 V
64
74
93
158
208
DC Operating
Current-
Strobe
(mA RMS)
12 V
127
127
24 V
59
69
90
160
209
Red
White
Sound Output
Pow er Tap
Selections:
Sound Output (UL
Reverberant
@ 10 ft./3.048 m):
Sound Output (UL
Anechoic
@ 10 ft./3.048 m):
2 Watt
84 dBA
1 Watt
81 dBA
1/2 Watt
78 dBA
1/4 Watt
75 dBA
87 dBA
84 dBA
81 dBA
78 dBA
Gamewell
12 Clintonville Road
Northford, CT 06472-1610
Phone: 203-484-7161
Fax: 203-484-7118
www.gamewell.com
A Honeywell Company
© 2004 Gamewell
Specifications and wiring information are provided for information only and are believed
to be accurate. Gamewell assumes no responsibility for their use.
Data and design are subject to change without notice. Installation and wiring instructions
shipped with the product shall always be used for actual installation. For more
information, contact Gamewell.
Page 2 of 2
SpectrAlert® Selectable Output Wall Speaker/Strobes
CS-2452 10/21/04
