M213TGN5.0000MHZ datasheet, PDF

M213TGN5.0000MHZ: DescriptionHCMOS Output Clock Oscillator, 5MHz Nom,; CategoryPassive components oscillator; File Size57KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

M213TGN5.0000MHZ Overview

HCMOS Output Clock Oscillator, 5MHz Nom,

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	MtronPTI
Reach Compliance Code	unknown
Other features	TRISTATE FUNCTION; TTL LOAD AVAILABLE
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	5 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	15 pF
physical size	7mm x 5mm x 1.9mm
longest rise time	6 ns
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %
Terminal surface	Nickel/Gold (Ni/Au)

M2 Series

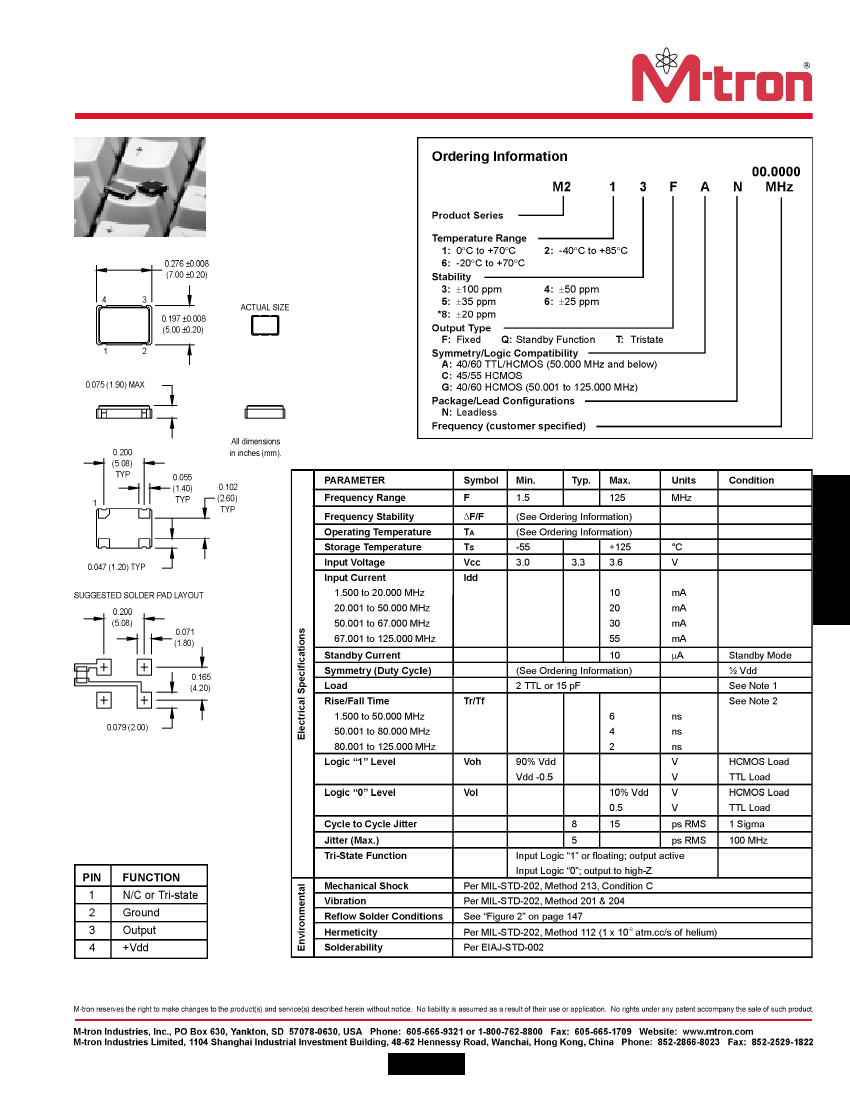

5x7 mm, 3.3 Volt, HCMOS/TTL, Clock Oscillator

*Contact factory for availability

X

O

NOTE:

A capacitor of value 0.01

µF

or greater between Vdd and Ground

is recommended.

Pin Connections

1. See load circuit diagram #2 on page 148. Consult factory with nonstandard output load requirements.

2. Rise/Fall times are measured between 0.5 V and 2.4 V with TTL load, and between 10% Vdd and 90% Vdd with HCMOS load.

99

Revised 7/22/03
