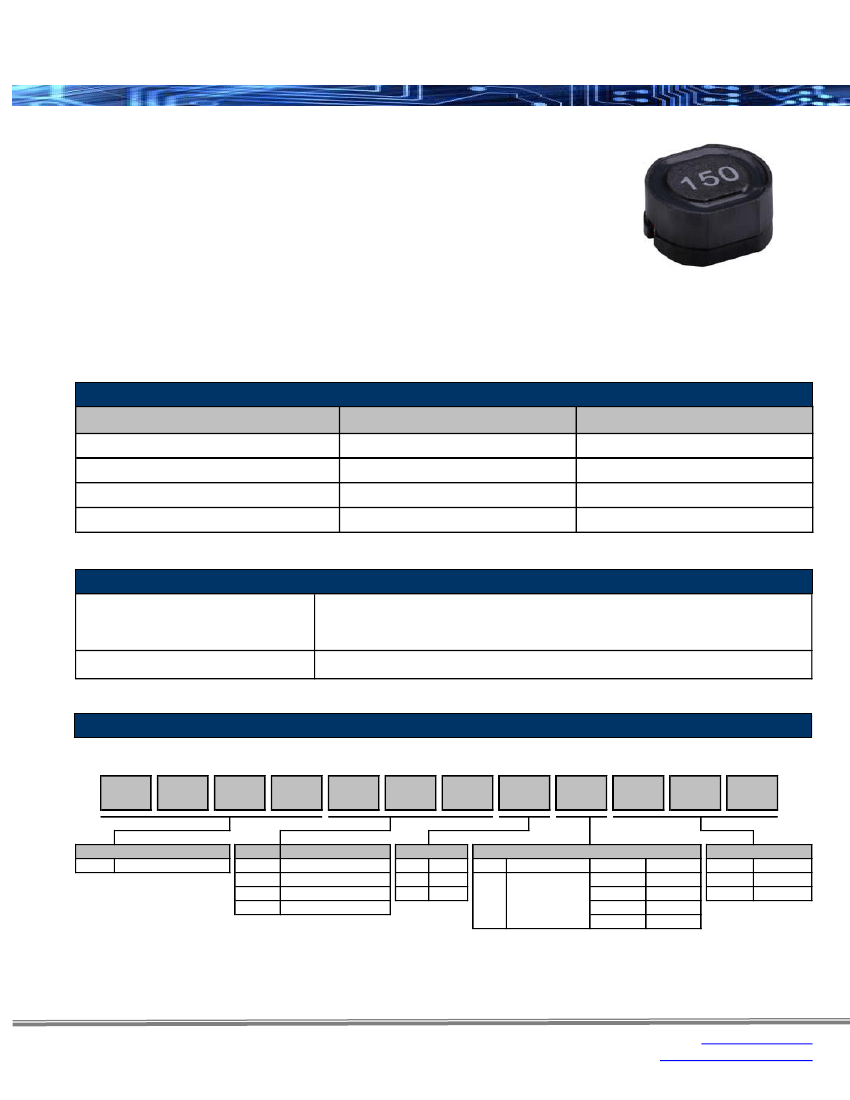

PCDS Series
SMD Shielded Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Features:
•
•
•
•
High power and high saturation
Silver plated for low cost design
Provides magnetic shielding
Contact factory for inductance values outside those
listed in the datasheet
Power supply for VTRs
Notebook PCs
DC/DC converters
LCD televisions
Portable communication
Applications:
•
•
•
•
•
Inductance and Current Ranges
Type
PCDS63B
PCDS74B
PCDS105B
PCDS125B
Inductance (μH)
10 ~ 68
4.7 ~ 270
10 ~ 470
10 ~ 820
Current Range (A)
1 ~ 0.42
3.15 ~ 0.33
2.06 ~ 0.33
2.65 ~ 0.36
Performance Characteristics
Rated DC Current
Operating Temperature Range
The current when the inductance becomes 25% lower than its initial value or the
actual current when the temperature of coil increases to
∆40ºC.
The smaller one is defined as Rated DC Current (Ta=25ºC)
-40 ~ 85ºC
How to Order
1
2
3
4
5
6
7
8
9
10
11
12
P
C
D
S
6
3
B
M
T
1
0
1
Product Series
PCDS SMD Power Inductor
Code
63B
74B
105B
125B
Dimensions (mm)
6.2x 5.6x3.2
7.8x7.0x4.5
10.0x9.0x5.0
12.6x11.6x5.4
Tolerance
Code Tol
M ±20%
N
±30%
Packaging
Size
Code Description
63B
74B
T
Tape and Reel
105B
125B
Quantity
1,500
1,000
750
500
Inductance
1R1
1.1μH
470
47μH
101
100μH
Rev Date: 06/28/2012
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
PCDS Series
SMD Shielded Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions

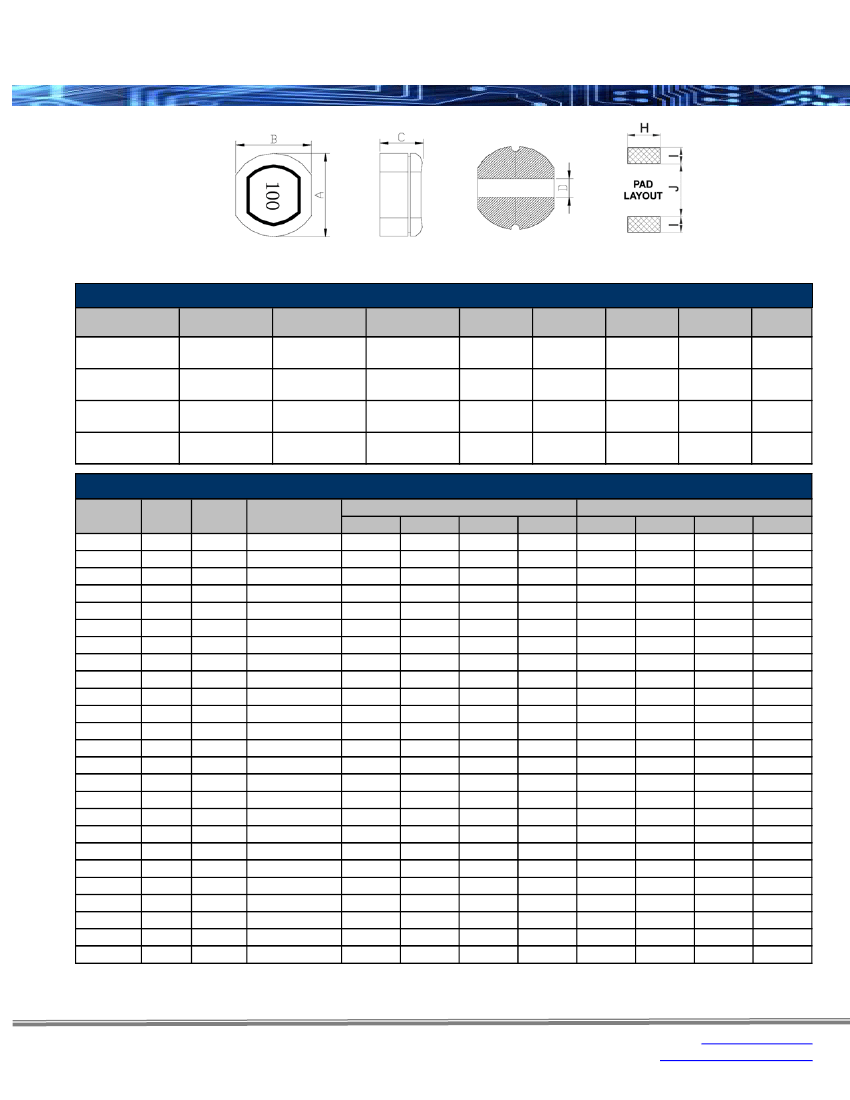

Mechanical Specifications
Type / Code
PCDS63B
PCDS74B
PCDS105B
PCDS125B
A
0.24 ± 0.01
6.20 ± 0.30
0.31 ± 0.01
7.80 ± 0.35
0.39 ± 0.02
10.00 ± 0.40
0.50 ± 0.02
12.60 ± 0.50
B
0.22 ± 0.01
5.60 ± 0.30
0.28 ± 0.01
7.00 ± 0.35
0.35 ± 0.02
9.00 ± 0.40
0.46 ± 0.02
11.60 ± 0.50
C
0.13 ± 0.01
3.20 ± 0.30
0.18 ± 0.02
4.50 ± 0.40
0.20 ± 0.02
5.00 ± 0.50
0.21 ± 0.02
5.40 ± 0.50
D
0.067
1.70
0.075
1.90
0.098
2.50
0.118
3.00
H
0.217
5.50
0.295
7.50
0.374
9.50
0.472
12.00
I
0.089
2.25
0.157
4.00
0.197
5.00
0.236
6.00
J
0.067
1.70
0.079
2.00
0.098
2.50
0.118
3.00
Unit
inches
mm
inches
mm
inches
mm
inches
mm
Electrical Specifications
Type / Code
4R7
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
821
L (μH)
4.7
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
Tolerance
N
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
Test Condition
100KHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
63B
-
0.14
0.16
0.18
0.25
0.32
0.36
0.41
0.47
0.51
0.72
0.82
-
-
-
-
-
-
-
-
-
-
-
-
-
DCR (Ω) max
74B
105B
0.03
-
0.07
0.06
0.07
0.07
0.08
0.07
0.10
0.08
0.13
0.08
0.16
0.10
0.18
0.11
0.18
0.12
0.27
0.14
0.29
0.19
0.33
0.21
0.43
0.28
0.49
0.34
0.68
0.37
0.94
0.51
1.00
0.57
1.18
0.78
1.30
0.87
-
1.20
-
1.34
-
1.50
-
-
-
-
-
-
125B
-
0.05
0.05
0.06
0.06
0.07
0.08
0.10
0.11
0.12
0.15
0.17
0.20
0.25
0.28
0.40
0.48
0.52
0.70
0.80
1.08
1.20
1.34
1.78
2.00
63B
-
1.00
0.94
0.86
0.78
0.76
0.64
0.61
0.53
0.50
0.46
0.42
-
-
-
-
-
-
-
-
-
-
-
-
-
IDC (A) max
74B
105B
3.15
-
1.65
2.06
1.57
1.94
1.39
1.72
1.29
1.58
1.12
1.42
1.06
1.32
0.97
1.16
0.91
1.10
0.80
1.00
0.76
0.93
0.68
0.85
0.62
0.79
0.55
0.72
0.49
0.63
0.44
0.55
0.40
0.50
0.36
0.47
0.33
0.41
-
0.37
-
0.35
-
0.33
-
-
-
-
-
-
125B
-
2.65
2.50
2.45
2.40
2.20
2.00
1.80
1.65
1.50
1.38
1.26
1.14
1.05
0.95
0.85
0.77
0.70
0.63
0.57
0.52
0.48
0.44
0.40
0.36
Rev Date: 06/28/2012
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
